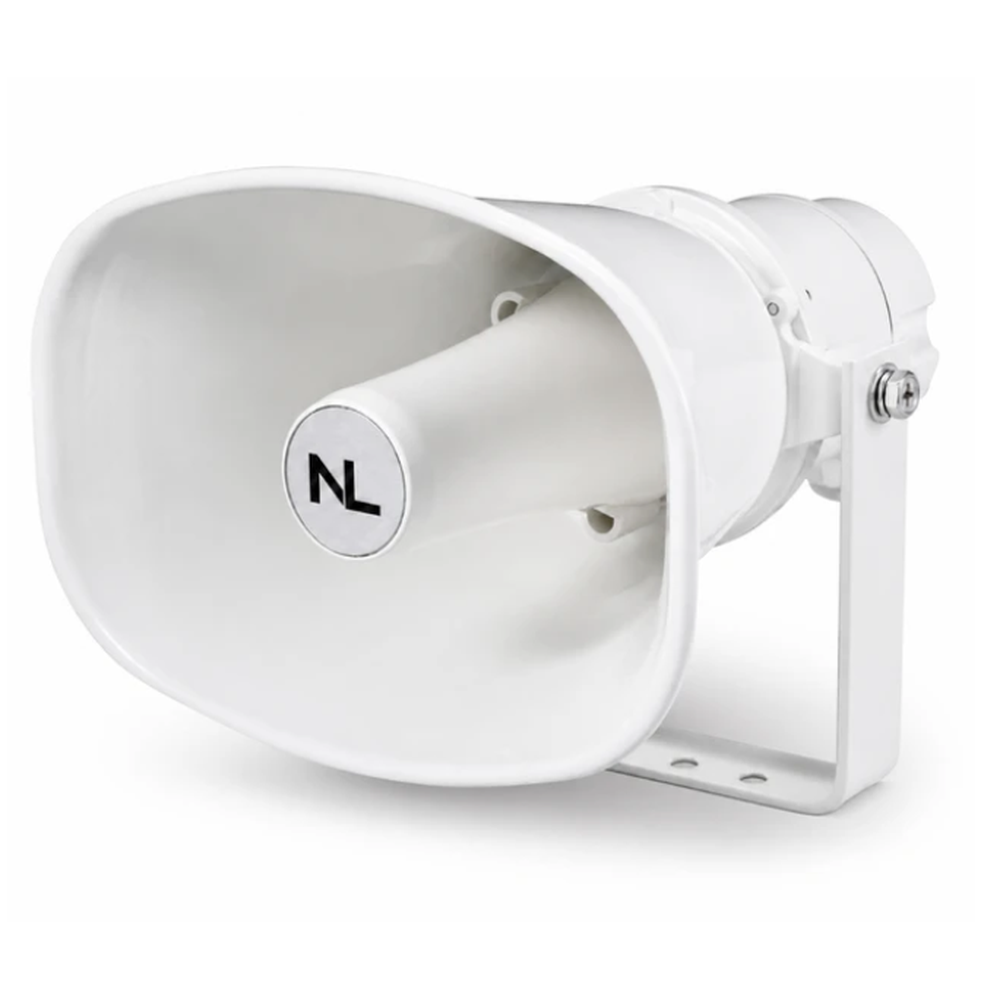

• TEXONIC NL330T 30W 70V/100V/8Ω Commercial Paging Horn Speaker
1 1

NorthLine

NL330T 30W 70V/100V/8Ω Commercial Paging Horn Speaker

NL330T 30W 70V/100V/8Ω Commercial Paging Horn Speaker

NL330T

$99.89 CAD
$99.89 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Commercial Paging Horn Speaker

NorthLine NL330T 30W 70V/100V/8Ω Commercial Paging Horn Speaker

The NL330T is a compact 30W commercial paging horn speaker designed for clear public address announcements, voice paging and tone signalling.

Its directional horn design helps project speech across warehouses, schools, yards, parking areas, industrial facilities and outdoor commercial spaces. The NL330T supports 70V and 100V distributed audio systems as well as compatible 8Ω low impedance amplifiers.

30W Paging Horn 70V / 100V / 8Ω 108dB Sensitivity 300Hz–8kHz Voice Range Indoor / Outdoor
Manual

Product Overview

The NL330T is designed mainly for speech intelligibility in commercial paging and public address systems. Its directional horn helps carry announcements and tone signals over longer distances than many standard wall or ceiling speakers.

Selectable 70V and 100V transformer taps provide flexibility for distributed speaker systems, while the 8Ω setting allows the horn to be used with a compatible low impedance amplifier.

The weather resistant ABS horn body and powder coated mounting bracket support indoor and outdoor commercial installation. The adjustable bracket lets the installer aim the horn toward the required listening area.

Best For Warehouses, schools, yards, parking areas, factories, industrial facilities, recreation areas and outdoor commercial spaces.
System Fit 70V/100V commercial paging systems or compatible 8Ω PA amplifiers.
Product Note: The NL330T is designed primarily for speech paging, announcements and tone signalling. For installations where music quality is a priority, consider a wide range or full range commercial speaker.

Key Features

  • Compact commercial paging horn speaker
  • Designed for public address announcements
  • Designed for voice paging and tone signalling
  • 30W maximum transformer tap
  • Supports 70V distributed audio systems
  • Supports 100V distributed audio systems
  • Supports compatible 8Ω low-impedance amplifiers
  • 70V taps: 1.9W / 3.75W / 7.5W / 15W / 30W
  • 100V taps: 3.75W / 7.5W / 15W / 30W
  • 8Ω low impedance mode
  • 108dB ±3dB sensitivity
  • Speech-focused 300Hz–8kHz frequency response
  • Directional horn design for focused voice coverage
  • Weather resistant ABS horn body
  • Powder coated metal mounting bracket
  • Adjustable aiming toward the listening area
  • Wall, pole or structural mounting
  • Suitable for indoor and outdoor commercial use
  • Use outdoor rated cable and weather resistant cable entry methods where required
  • White finish

Specifications

Brand NorthLine Series
Model / SKU NL330T
Product Type Commercial paging horn speaker
Maximum Tap 30W
System Compatibility 70V / 100V / 8Ω
70V Power Taps 1.9W / 3.75W / 7.5W / 15W / 30W
100V Power Taps 3.75W / 7.5W / 15W / 30W
Low-Impedance Mode 8Ω
Sensitivity 108dB ±3dB
Frequency Response 300Hz–8kHz
Horn Material Weather resistant ABS
Bracket Powder coated metal
Dimensions 28.5 × 27.5 × 22.0 cm
Dimensions in Inches 11.22″ × 10.83″ × 8.66″
Net Weight 2.2 kg / 4.85 lb
Colour White
Recommended Use Paging, announcements and tone signalling
Installation Surface Solid wall, pole, beam or other load-bearing structure
Outdoor Installation Note Aim horn downward so rain or snow cannot collect inside the horn opening
Installation Note: Choose a solid wall, pole, beam or other load bearing structure capable of supporting the speaker and bracket. Use suitable anchors or fasteners for the installation surface, tighten the bracket securely, aim the horn toward the listening area, and confirm the speaker is stable before powering the system.

Transformer Tap Settings

Select the correct operating mode for the amplifier being used. Only one operating mode should be used.

Line / Mode Available Tap Settings Use
70V 1.9W / 3.75W / 7.5W / 15W / 30W 70V commercial distributed paging systems
100V 3.75W / 7.5W / 15W / 30W 100V commercial distributed paging systems
8Ω Low-impedance operation only Use only with a compatible low-impedance amplifier output
Important: Power off the amplifier before connecting the speaker or changing its operating mode. Do not use the 8Ω connection on a 70V or 100V speaker line.
Speaker Load Reminder: For 70V/100V systems, calculate the combined wattage of all connected horn speakers and keep the total within the amplifier's rated output. Do not exceed the amplifier or speaker power rating.

What’s Included

1 × NL330T paging horn speaker
1 × Adjustable mounting bracket
User Manual
Installation Reminder: Turn off the amplifier before installing, wiring or servicing the speaker. For outdoor installations, angle the horn downward so rain or snow cannot collect inside the horn opening, and use outdoor rated cable and weather resistant cable entry methods where required.
