6-Zone Paging Microphone Console

TEXONIC GTM5 6-Zone Paging Microphone Console for GT Series Amplifiers

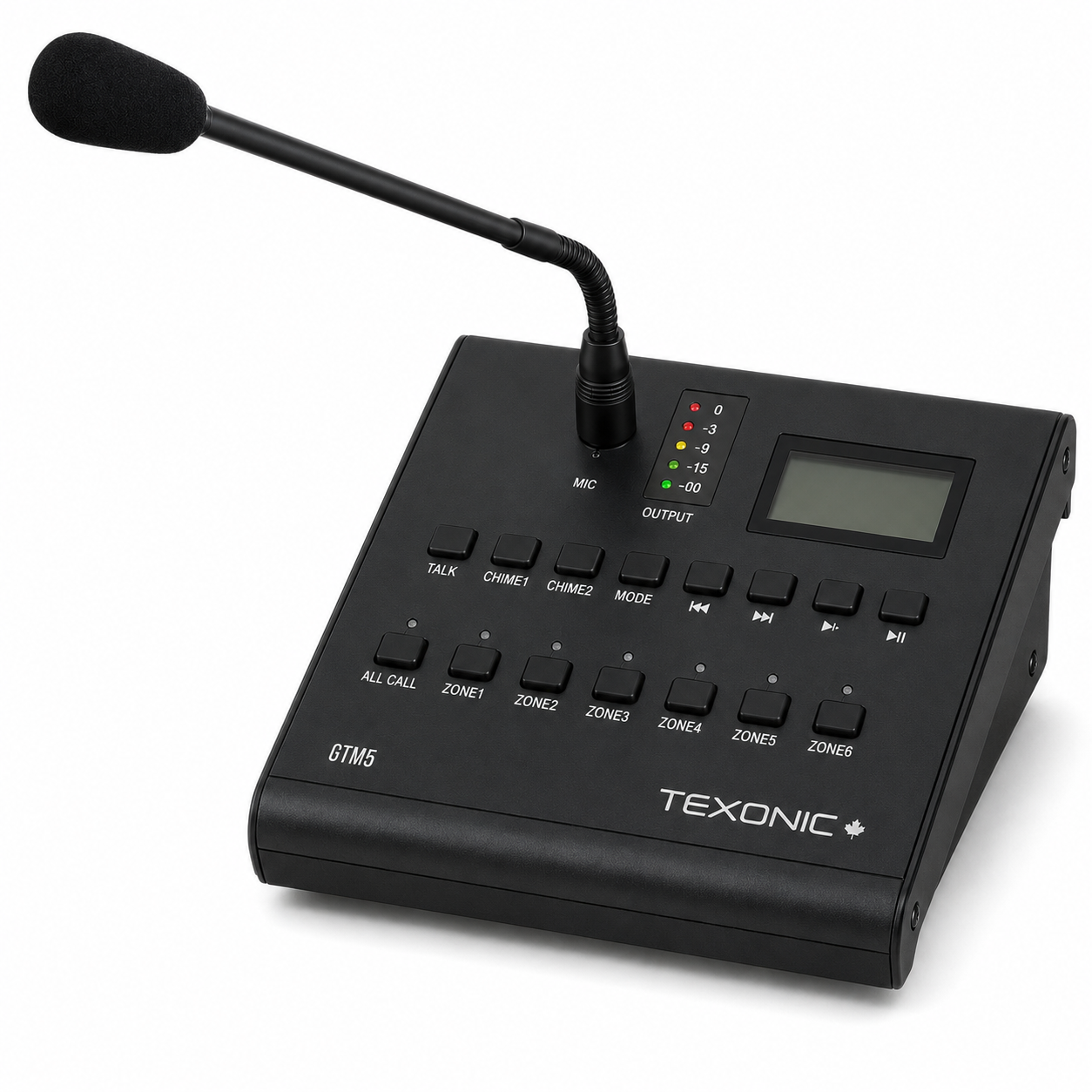

The TEXONIC GTM5 is a professional desktop paging microphone console designed for compatible TEXONIC GT Series Zone Mixer Amplifiers.

From one paging station, staff can make announcements to one zone, several selected zones, or all six zones at once. This makes it useful for commercial buildings where announcements need to reach different areas without always broadcasting everywhere.

6 Selectable Zones ALL CALL Function RS485 Communication Bluetooth + USB Playback 24V DC Operation
Manual

Product Overview

The GTM5 gives businesses a simple desktop control point for live paging. Individual ZONE 1–6 buttons allow staff to select the area they want to reach, while the ALL CALL button sends the announcement to the complete system when required.

The detachable gooseneck condenser microphone provides a comfortable speaking position. The LCD screen and LED output level meter help staff see operating status while using the paging console.

The GTM5 also supports Bluetooth audio streaming, USB playback, a 3.5 mm external line input and a 3.5 mm external electret microphone input, so the console can support more than live voice announcements.

Best For Retail stores, restaurants, hotels, schools, offices, warehouses and other commercial facilities using compatible TEXONIC GT Series Zone Mixer Amplifiers.
System Fit Multi-zone commercial PA systems where staff need to page one zone, selected zones, or all zones from a desktop console.

Key Features

  • 6 individually selectable paging zones
  • Page one zone, multiple selected zones or all zones
  • Dedicated ZONE 1–6 selection buttons
  • ALL CALL paging function
  • RS485 communication with compatible TEXONIC GT Series amplifiers
  • Supports up to 6 paging consoles on one compatible system
  • Individual console addressing from 01 to 06
  • Priority paging capability
  • Address 01 provides the highest paging priority
  • 2 programmable pre-announcement chimes
  • Detachable gooseneck condenser paging microphone
  • Built-in Bluetooth audio streaming
  • USB music playback
  • 3.5 mm external line-level audio input
  • 3.5 mm external electret microphone input
  • LCD operating display and LED output level meter
  • Independent microphone and line input level controls
  • Automatic standby function
  • Indoor commercial PA system use only
  • 24V DC operation

Specifications

Brand TEXONIC
Model / SKU GTM5
Product Type Remote 6-zone paging microphone console
Compatible Systems TEXONIC GT Series Zone Mixer Amplifiers
Zone Selection ZONE 1–6 and ALL
Paging Modes Individual zone, multiple zones and all zones
Communication RS485
Communication Connections Dual RJ45 ports for GT Series communication
Maximum Paging Consoles Up to 6
Console Address Range 01–06
Audio Playback USB and Bluetooth
Audio Inputs Paging microphone, external microphone and external line input
External Line Input 3.5 mm
External Microphone Input 3.5 mm electret microphone input
Chime 2 programmable chimes
Display LCD
Level Indicator LED output level meter
Power Supply 24V DC
Operating Environment Indoor commercial use
Compatibility Notice: The GTM5 is designed specifically for compatible TEXONIC GT Series Zone Mixer Amplifiers. Although the communication ports use RJ45-style connectors, they are for the GT Series RS485 communication system and should not be connected to Ethernet switches, routers or PoE equipment.

Priority & Setup Notes

When more than one audio source is active, the GTM5 follows a priority order. Higher-priority sources temporarily override lower-priority audio.

  1. Chime — highest source priority
  2. Live microphone paging — for spoken announcements
  3. USB / Bluetooth audio — for playback sources
  4. External line input — lower-priority external audio source
Multiple Consoles Up to six GTM5 paging consoles can operate on one compatible system. Each console must have a unique address from 01 to 06.
Highest Priority Address Console address 01 has the highest paging priority and can override lower-priority paging stations.
Important: Duplicate console addresses are not permitted. Do not connect the GTM5 communication ports to Ethernet switches, routers or PoE equipment.

What’s Included

1 × TEXONIC GTM5 6-zone paging microphone console
1 × Detachable gooseneck condenser microphone
1 × 24V DC power adapter
User manual
Installation Reminder: The GTM5 is for indoor commercial use only. Turn off the connected GT Series amplifier before installing or servicing the unit, and use only the supplied or TEXONIC-approved 24V DC power adapter.
