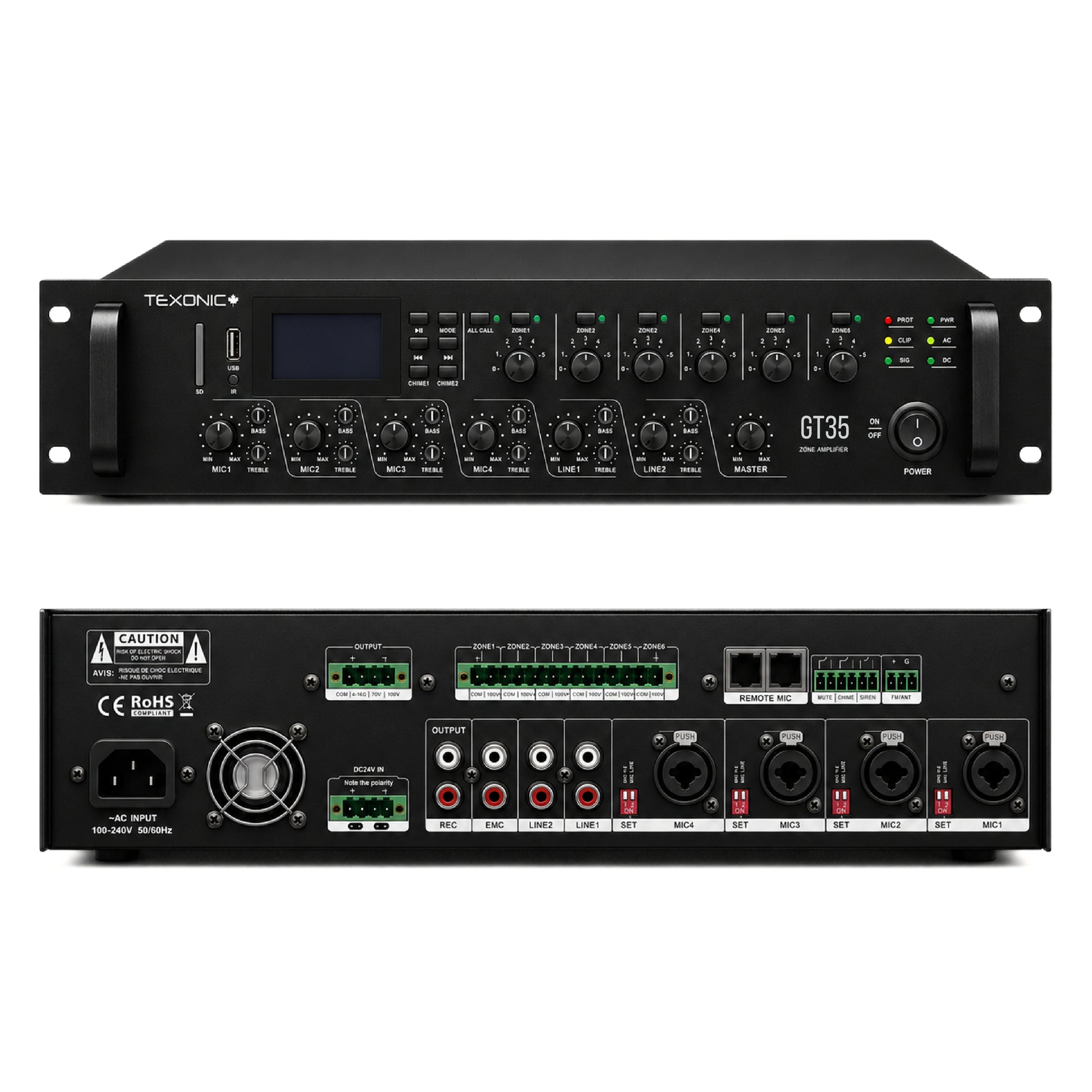

TEXONIC GT35 350W 6-Zone 70V/100V Commercial Mixer Amplifier

The TEXONIC GT35 is a 350W 6-zone commercial mixer amplifier designed for background music, paging and multi-zone business audio systems.

It provides six independently adjustable 100V speaker zones, allowing installers to divide a commercial audio system into separate areas and adjust each zone from the front panel. When all six zones are in use, up to 58W is available per zone, with total amplifier power shared across the system.

For installations that do not require individual zone control, the GT35 also provides a Direct Master output with 70V, 100V and 4–16Ω speaker connections.

Built-in Bluetooth, FM radio, USB and SD card playback provide convenient music sources. Four microphone/line inputs, two line inputs, 48V phantom-power selection, a GTM5 remote paging microphone port and a four-level priority system make the GT35 well suited to commercial paging and announcement applications.

The 19″ 2U rack-mount chassis also includes 24V DC backup power capability, EMC emergency priority input, chime and siren triggers, tone controls and protection against overload, overheating and short circuits.

Ideal for restaurants, retail stores, offices, clinics, showrooms, hospitality spaces, schools and other commercial facilities that require multiple independently controlled speaker zones.

Key Features

• 350W commercial 6-zone mixer amplifier
• Six independently adjustable 100V speaker zones
• Up to 58W per zone when all six zones are used
• Direct Master 70V / 100V / 4–16Ω speaker output
• Built-in Bluetooth audio playback
• Built-in FM radio
• USB media playback
• SD card media playback
• Four microphone/line inputs
• Balanced XLR / 1/4″ combo microphone inputs
• 48V phantom-power selection
• Two auxiliary line inputs
• GTM5 remote 6-zone paging microphone support
• Individual zone selection and volume controls
• All-Zone selection function
• Four-level audio priority system
• EMC emergency priority input
• External mute, chime and siren trigger connections
• Built-in chime and alarm functions
• Bass and treble tone controls
• Master volume control
• REC / line output
• 24V DC backup power input
• 19″ 2U rack-mount chassis
• Integrated rack ears and front handles
• Protection against overload, overheating and short circuits
• Suitable for commercial background music and paging systems

Specifications

Series: GT Series
Product Type: 6-Zone Commercial Mixer Amplifier
Rated Direct Master Output: 350W
Number of Zones: 6
Zone Output Type: 100V
Maximum Output per Zone: 58W when all six zones are used
Direct Master Outputs: 70V / 100V / 4–16Ω
Low-Impedance Output: 4–16Ω direct output path
Microphone / Line Inputs: 4
Microphone Input: 10mV / 600Ω
Line Input: 300mV / 10kΩ
Microphone Connectors: Balanced XLR / 1/4″ combo
Phantom Power: 48V selectable
Additional Line Inputs: 2
Media Sources: Bluetooth, FM radio, USB and SD card
Remote Paging: Compatible with TEXONIC GTM5 6-zone paging microphone
Emergency Input: EMC priority input
External Triggers: Mute / Chime / Siren
Line Output: REC output
Frequency Response: 60Hz–15kHz
Signal-to-Noise Ratio: Mic ≥65dB / Line ≥75dB
Tone Control: ±10dB
Bass Control Frequency: 100Hz
Treble Control Frequency: 10kHz
AC Power: 110–240V AC, 50/60Hz
DC Backup: 24V DC
Power Consumption: 430W
Weight: 7.8kg
Rack Format: 19″ / 2U
Protection: Overload, overheating and short circuit
Status Indicators: Protection, clip, signal, power, AC and DC

What’s Included

• 1 × TEXONIC GT35 6-Zone Mixer Amplifier
• 1 × Remote Control
• 1 × AC Power Cord
• 1 × Screwdriver
• Terminal Connectors
• User Manual
