TEXONIC EX240D Gym Sound System with 6 CS75 Wall Speakers

TEXONIC EX240D Gym Sound System with 6 CS75 Wall Speakers

TXOW06-01

$1,179.99 CAD
$1,179.99 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Commercial Gym Audio Package

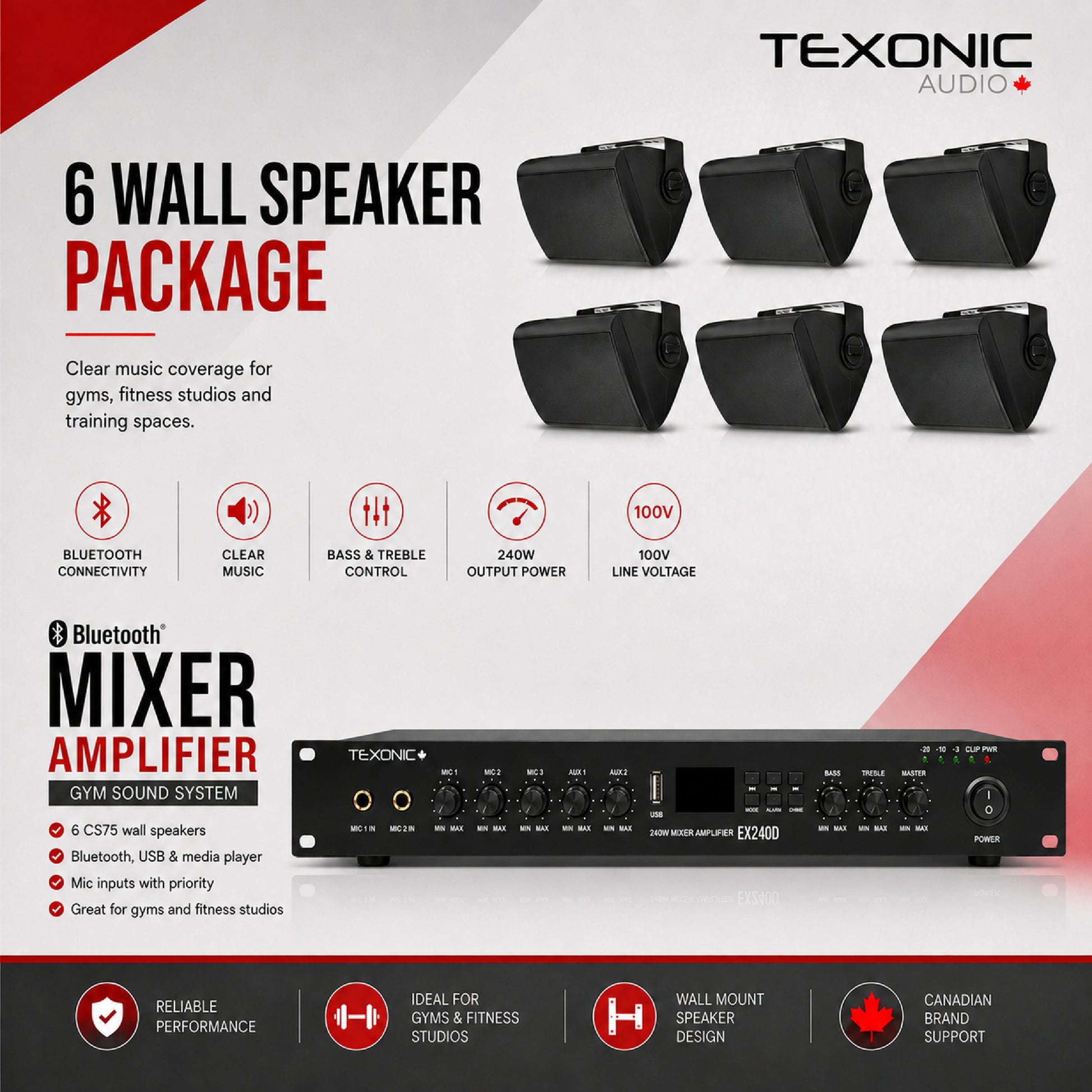

TEXONIC EX240D Gym Sound System with 6 CS75 Wall Speakers

The TEXONIC EX240D Gym Sound System is a complete commercial audio package designed for gyms, fitness studios and training spaces that need clear, evenly distributed music from wall-mounted speakers.

The system combines the 240W TEXONIC EX240D mixer amplifier with six CS75 5.25-inch 2-way wall speakers. Bluetooth and USB playback make everyday music simple, while microphone inputs allow the same system to be used for announcements when required.

240W EX240D Amplifier 6 × CS75 Wall Speakers Bluetooth + USB Playback 100V Distributed Audio

Designed for Gym and Fitness Audio

Fitness spaces need music that can be heard clearly throughout the room without relying on one loud speaker at the front. Using six wall-mounted CS75 speakers allows the system to spread sound around the listening area while keeping individual speakers closer to customers.

The CS75 adjustable wall bracket makes it possible to aim each speaker toward workout, training or circulation areas. This is useful in rooms where in-ceiling speakers are not practical or where exposed ceilings are used.

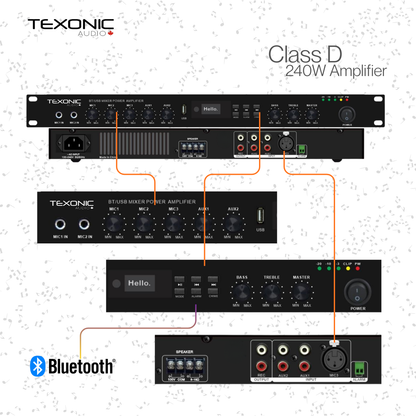

The EX240D provides amplification, music playback and microphone connectivity in one compact 1U rack-mount unit. Bluetooth can be used for everyday wireless playback, while USB provides another simple source option.

Best Fit Gyms, fitness studios, training and exercise rooms, yoga and group fitness spaces, recreation facilities, open-ceiling commercial spaces, and rooms where wall-mounted speakers are preferred.
System Approach Six distributed wall speakers, 100V commercial speaker wiring, Bluetooth and USB music playback, microphone inputs for announcements, adjustable bass and treble, and remaining amplifier capacity.
Room Planning: Exact coverage depends on room size, ceiling height, speaker placement, room acoustics and the listening level required. Larger or high-energy fitness spaces may require additional speakers, more amplifier power or supplemental bass.

Key Features

  • Complete amplifier and six-speaker gym audio package
  • 240W TEXONIC EX240D commercial mixer amplifier
  • Six TEXONIC CS75 5.25-inch 2-way wall speakers
  • 100V distributed audio for multi-speaker installations
  • Bluetooth wireless music playback
  • USB media playback
  • Three microphone inputs for announcements and paging
  • Two AUX inputs for external music sources
  • Bass, treble and master volume controls
  • Built-in chime and alarm tone functions
  • Wide 120° CS75 speaker coverage
  • Adjustable wall brackets for horizontal or vertical mounting
  • 92dB CS75 speaker sensitivity for clear music and speech
  • 1U rack-mount amplifier chassis
  • Short-circuit, overload and thermal amplifier protection

System Specifications

Brand TEXONIC
Package SKU TXOW06-01
Package Type Commercial gym and fitness sound system
Amplifier TEXONIC EX240D
Amplifier Output 240W rated output
Speaker System 100V distributed audio
Speaker Model TEXONIC CS75
Speaker Quantity 6
Music Sources Bluetooth, USB and external AUX sources
Microphone Inputs 3
Amplifier Frequency Response 60Hz – 20kHz ±3dB
Speaker Type 5.25-inch 2-way wall-mount speaker
Speaker Frequency Response 60Hz – 20kHz (-10dB)
Speaker Sensitivity 92dB at 1W / 1m
Speaker Coverage 120° wide coverage
CS75 100V Tap Options 3.75W, 7.5W, 15W, 30W
Speaker Mounting Stainless U-shaped wall bracket
Recommended Applications Gyms, fitness studios, exercise rooms and training spaces
Connection Notice: All six CS75 speakers should be wired in parallel to the EX240D 100V and COM speaker-line terminals with consistent polarity. Do not connect this 100V speaker layout to the amplifier low-impedance output at the same time.

Recommended 100V Speaker Load

For this package, each CS75 speaker can be set to its 30W / 100V tap.

6 speakers × 30W = 180W total speaker load

240W amplifier − 180W speaker load = 60W remaining

The recommended configuration uses approximately 75% of the EX240D's rated power and leaves approximately 25% capacity available.

CS75 Tap 6-Speaker Load Typical Use
7.5W 45W total Lower-level background audio
15W 90W total Moderate background music
30W 180W total Recommended starting point for this gym package
Important: All six CS75 speakers should be wired in parallel to the EX240D's 100V and COM speaker-line terminals with consistent polarity. Do not connect this 100V speaker layout to the amplifier's low-impedance output at the same time.
Final setup note: Final tap settings should be chosen after considering the room, speaker placement and required listening level. Power down the amplifier before wiring speakers or changing transformer tap settings.

What’s Included

1 × TEXONIC EX240D 240W mixer amplifier
6 × TEXONIC CS75 5.25-inch wall speakers
6 × CS75 wall-mount brackets
1 × EX240D remote control
1 × EX240D AC power cord
1 × EX240D terminal connector
1 × EX240D setup screwdriver
EX240D user manual access
CS75 user manual access
Installation Planning: Speaker cable length and mounting hardware depend on the building and installation surface and are not part of this package. Select suitable cable and rated mounting hardware for the installation.
