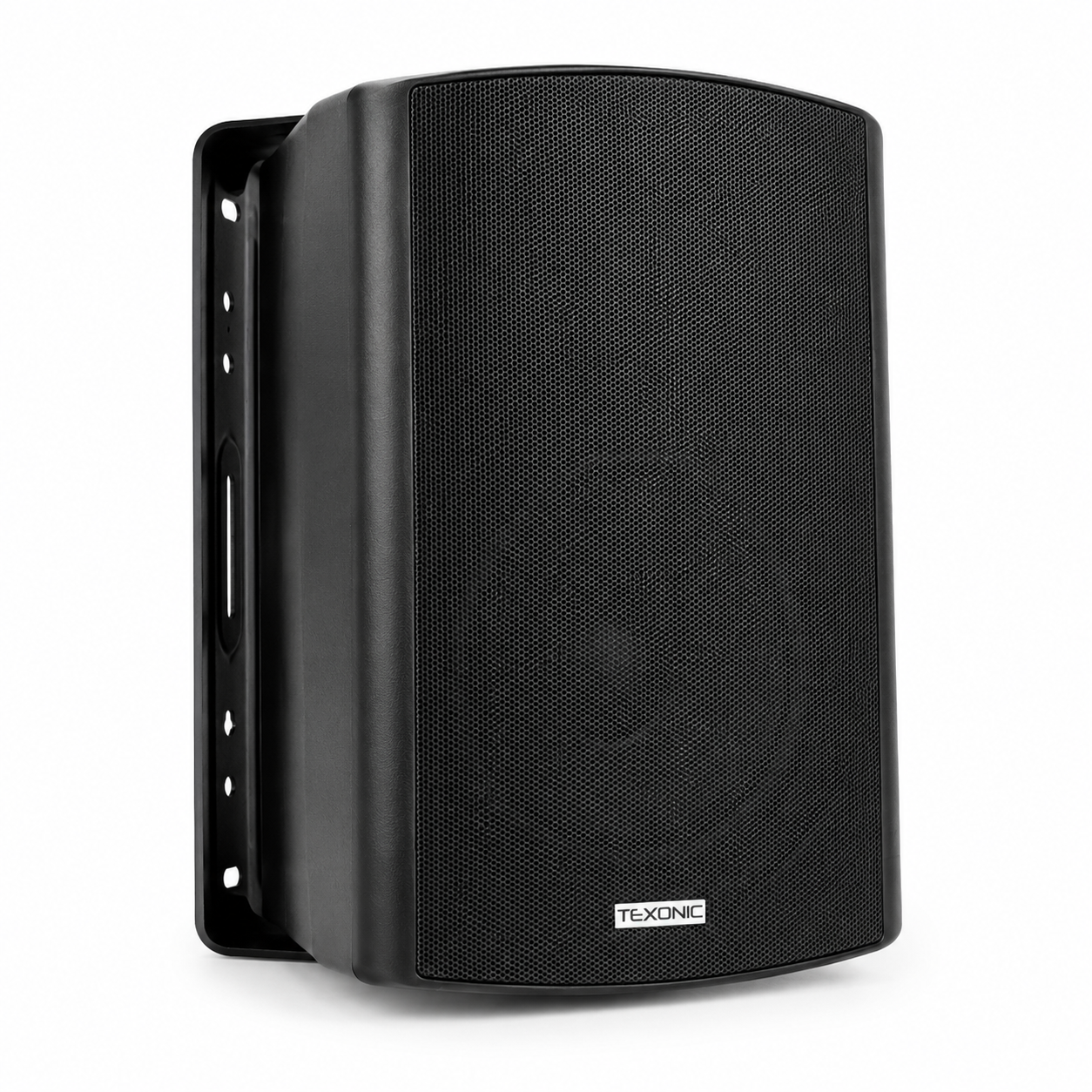

• TEXONIC CS76B 6-inch 2-Way 70V 100V 8-ohm Commercial Wall Speaker

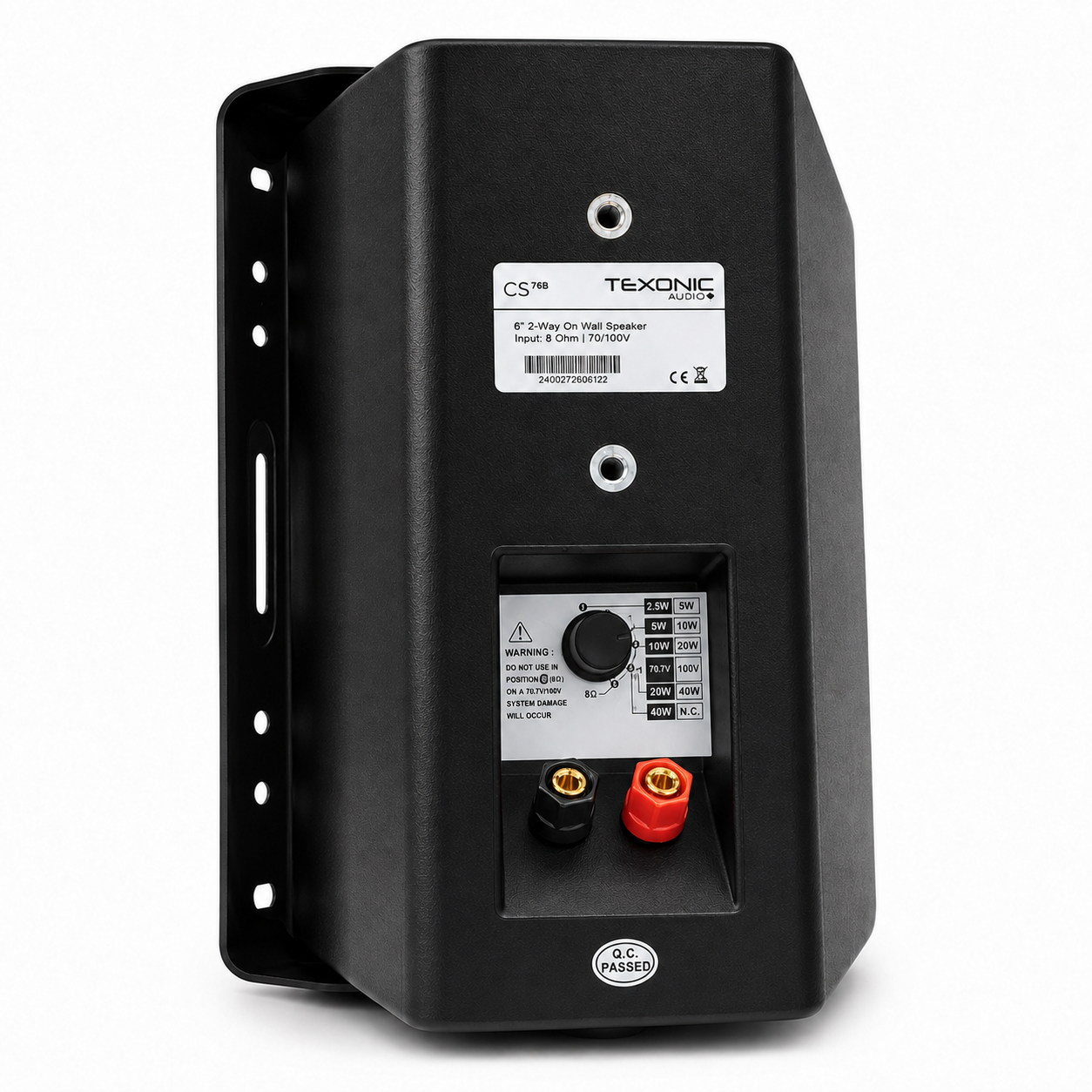

  • Rear view of TEXONIC CS76B 6-inch commercial wall speaker showing 70V 100V tap selector and 8-ohm terminals
1 2

TEXONIC

TEXONIC CS76B 6″ 2-Way 70V/100V/8Ω Commercial Wall Speaker

TEXONIC CS76B 6″ 2-Way 70V/100V/8Ω Commercial Wall Speaker

CS76B

$189.99 CAD
$189.99 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
6-Inch 2-Way Commercial Wall Speaker

TEXONIC CS76B 6" 2-Way On-Wall Commercial Speaker

The TEXONIC CS76B is a 6" two-way on-wall commercial speaker designed for background music, voice paging and general business audio systems.

It supports 70V and 100V distributed audio systems, plus compatible 8Ω low-impedance amplifier use. The rear rotary selector makes it easy to choose the correct transformer tap for the system design.

70V / 100V / 8Ω 6" + 1.5" Two-Way 94dB Sensitivity 120° Coverage Black Finish
Manual

Product Overview

The CS76B is designed for business spaces that need fuller wall-mounted sound than smaller speakers can provide. Its larger 6" driver helps improve low-frequency performance, while the high-frequency driver helps keep music and announcements clear.

The included U-shaped bracket allows the speaker to be mounted on a wall or used in an open-ceiling commercial application. It can be positioned horizontally or vertically and angled toward the main listening area.

Best For Restaurants, cafés, retail stores, showrooms, offices, hotels, schools, training rooms, gyms, warehouses, reception areas, waiting areas and open-ceiling commercial spaces.
System Fit 70V/100V distributed audio systems for commercial background music and paging, or compatible 8Ω low-impedance systems.

Key Features

  • 6" two-way on-wall commercial speaker
  • Designed for background music and voice paging
  • Supports 70V, 100V and 8Ω audio systems
  • Built-in 70V/100V transformer
  • Rear rotary transformer tap selector
  • Five selectable positions for 70V operation
  • Four active selectable power settings for 100V operation
  • Up to 40W transformer tap
  • 100W output rating in 8Ω mode
  • 50Hz–20kHz frequency response
  • 94dB sensitivity at 1W / 1m
  • Wide 120° sound coverage
  • Gold-plated screw / banana-plug terminals
  • Durable ABS enclosure with metal grille
  • Adjustable U-shaped mounting bracket
  • Horizontal or vertical mounting
  • Adjustable listening angle
  • Black finish

Specifications

Brand TEXONIC
Model / SKU CS76B
Product Type 2-way on-wall commercial speaker
Speaker Size 6"
Speaker Configuration 6" + 1.5" two-way speaker unit
System Compatibility 70V / 100V / 8Ω
Frequency Response 50Hz – 20kHz (-10dB)
Sensitivity 94dB at 1W / 1m
8Ω Power Rating 100W
Coverage Angle 120°
70V Power Taps 2.5W / 5W / 10W / 20W / 40W
100V Power Taps 5W / 10W / 20W / 40W / N.C.
Transformer Impedance 2kΩ / 1kΩ / 500Ω / 250Ω / 122Ω
Low-Impedance Setting 8Ω
Connections Gold-plated screw / banana-plug terminals
Enclosure ABS
Grille Metal
Mounting Adjustable U-shaped mounting bracket
Mounting Orientation Horizontal or vertical
Dimensions 29.8 × 21.5 × 22.5 cm
Weight Approx. 3.7 kg
Colour Black
Selling Unit 1 speaker
Connection Notice: Select the proper 70V, 100V or 8Ω setting before powering the system. Do not use the 8Ω position when the speaker is connected to a 70V or 100V amplifier output.

Speaker Tap Settings

Use the rear rotary tap selector to choose the correct wattage for the amplifier output and system design.

System Selector Position Tap Setting
70V Position 1 2.5W
70V Position 2 5W
70V Position 3 10W
70V Position 4 20W
70V Position 5 40W
100V Position 1 5W
100V Position 2 10W
100V Position 3 20W
100V Position 4 40W
100V Position 5 N.C. – Do Not Use
8Ω 8Ω Position Use only with a compatible low-impedance amplifier
Important: Power down the amplifier before wiring or changing tap settings. For 70V or 100V systems, add the wattage of all connected speakers and confirm the total load does not exceed the amplifier’s output capacity.

What’s Included

1 × TEXONIC CS76B 6" on-wall commercial speaker
1 × U-shaped mounting bracket
User manual
Installation Reminder: Mounting screws, bolts and wall anchors are not included. Use mounting hardware rated for the installation surface and capable of supporting the speaker and bracket.
