Commercial Ceiling Speakers

Shop TEXONIC commercial ceiling speakers for background music, paging and distributed audio systems. Choose from 5″, 6″ and 8″ models with 70V/100V transformer taps for restaurants, retail stores, offices, clinics, schools, hotels and other business spaces.

Options include trimless speakers for a cleaner ceiling appearance, metal-back models for enclosed installations, and two-way/coaxial designs for fuller music reproduction. Before ordering, confirm the ceiling cutout size, amplifier voltage and total speaker tap load for your system.

Commercial Ceiling Speakers

Which Commercial Ceiling Speaker Should I Choose?

Compare TEXONIC commercial ceiling speakers by size, system compatibility, power and installation style. Choose the model that best matches your ceiling, amplifier and required sound level.

Model Best For System Max Tap Frequency Range Cutout

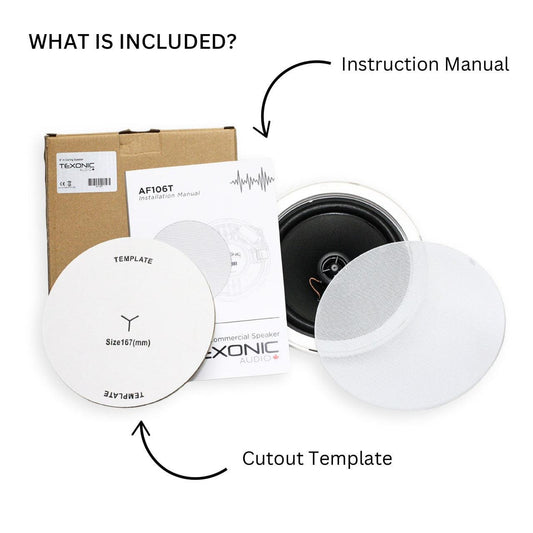

AF106T View product → Clean trimless installations 70V / 100V 10W 90Hz–20kHz 170mm

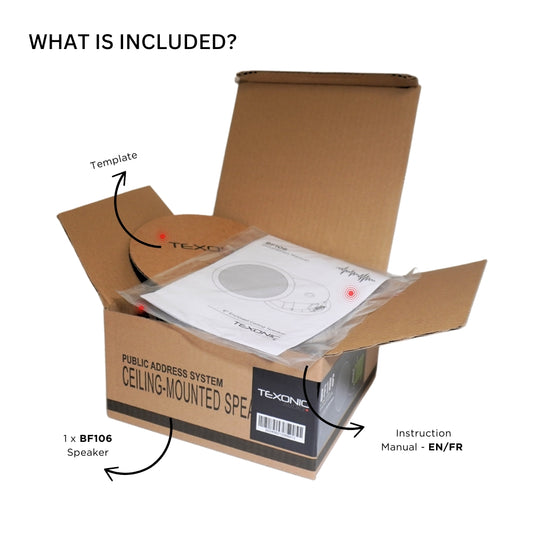

BF106 View product → Enclosed metal-back installations 70V / 100V 6W 110Hz–15kHz 170mm

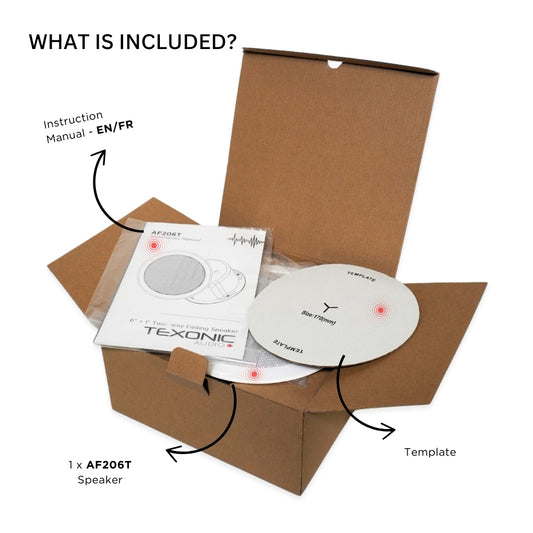

AF206T View product → Two-way music + paging 70V / 100V 6W 100Hz–18kHz 175mm
CM60T View product → Higher-output 6″ music + paging 70V / 100V 30W 100Hz–20kHz 200mm

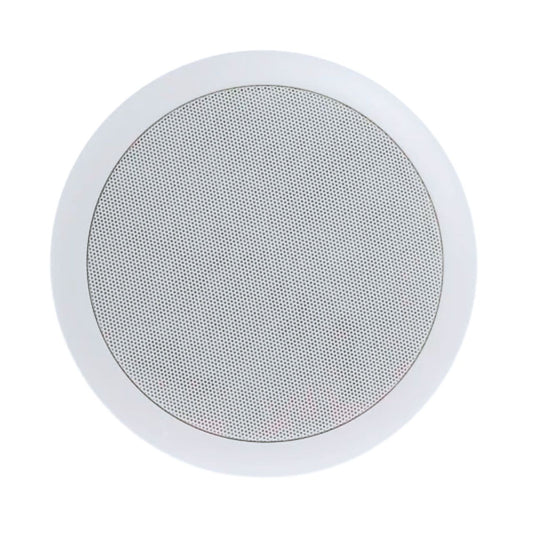

CM80T View product → Fuller music and larger areas 70V / 100V 40W 60Hz–20kHz 240mm
502T View product → Metal back + 8Ω flexibility 70V / 100V / 8Ω 20W 100Hz–20kHz 180mm
Quick Tip: Choose AF106T when a clean trimless appearance is the priority. Choose BF106 when you want a compact enclosed metal-back speaker. Choose AF206T for everyday two-way music and paging. Choose CM60T when more output is required from a 6″ speaker. Choose CM80T when fuller music reproduction and stronger low-frequency performance are important. Choose 502T when you need an enclosed ceiling speaker with the additional flexibility of 8Ω operation.

Choosing Between 70V/100V and 8Ω Ceiling Speakers

Commercial ceiling speakers can use different amplifier and wiring systems. Choosing the correct system before installation makes it easier to plan speaker quantity, amplifier power and wiring.

70V / 100V Distributed Audio

Best for multiple ceiling speakers and larger commercial spaces. 70V and 100V systems allow several speakers to share one amplifier line, making them practical for offices, restaurants, retail stores, schools and other distributed audio installations.

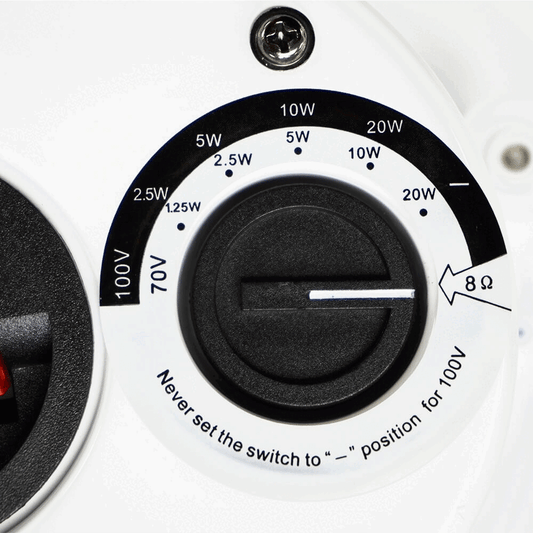

Each ceiling speaker is set to a transformer wattage tap. Add the selected wattage of every connected speaker to calculate the total load on the amplifier.

8Ω Low-Impedance Audio

Best for one or a small number of compatible speakers. An 8Ω ceiling speaker connects to a compatible low-impedance amplifier without using a 70V or 100V transformer tap.

When connecting more than one 8Ω speaker, the total impedance must be calculated correctly so the connected load remains within the amplifier's supported range.

Example — 70V/100V System:

If six ceiling speakers are each set to 10W, the total connected speaker load is: 6 × 10W = 60W

Select a commercial amplifier with enough output above the calculated speaker load. Leaving suitable amplifier headroom helps provide reliable everyday operation.
Important: Confirm the amplifier output type and speaker setting before installation. Do not connect an 8Ω speaker setting to a 70V or 100V amplifier output. For 70V/100V systems, calculate the combined wattage of all speaker taps before selecting the amplifier.
