TEXONIC BF106 6″ 70V/100V Commercial Ceiling Speaker with Metal Back

TEXONIC BF106 6″ 70V/100V Commercial Ceiling Speaker with Metal Back

BF106

$44.99 CAD
$44.99 CAD
Sale Sold out
Shipping calculated at checkout.
6-Inch 70V/100V Commercial Ceiling Speaker

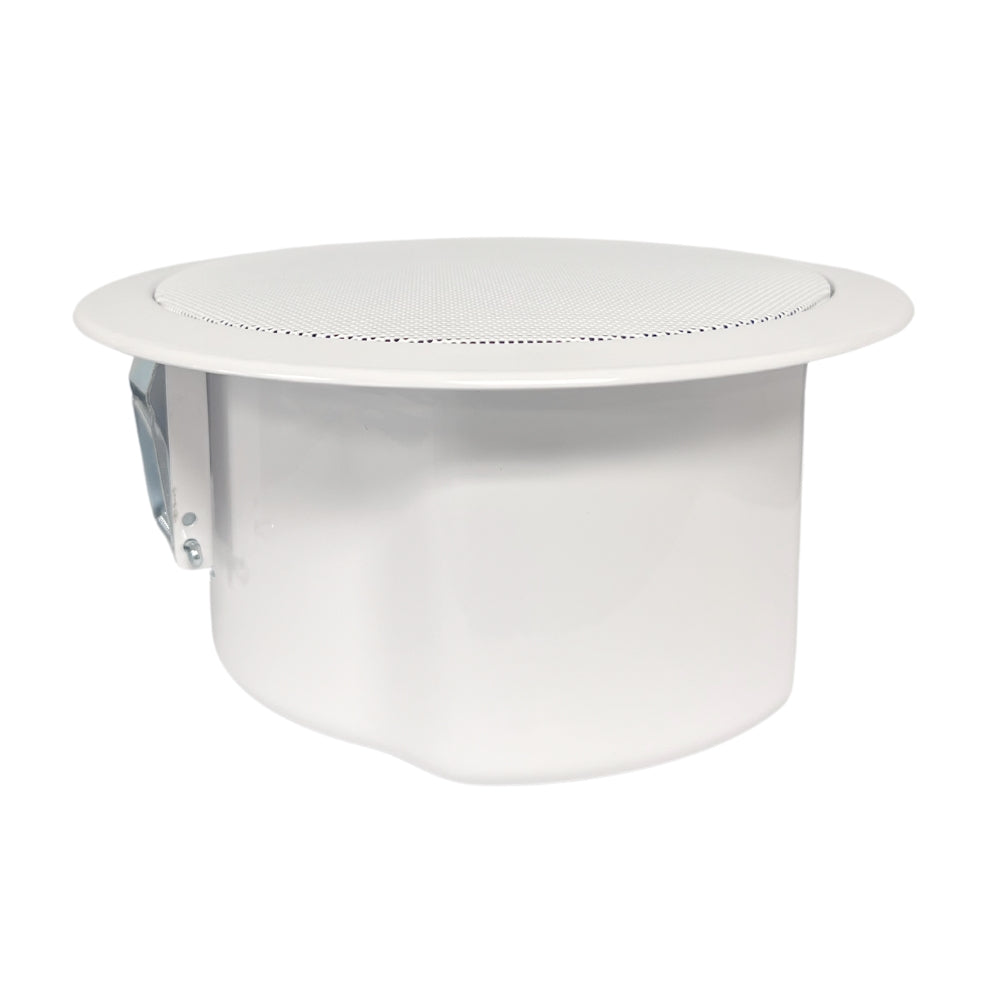

TEXONIC BF106 6" Commercial Ceiling Speaker

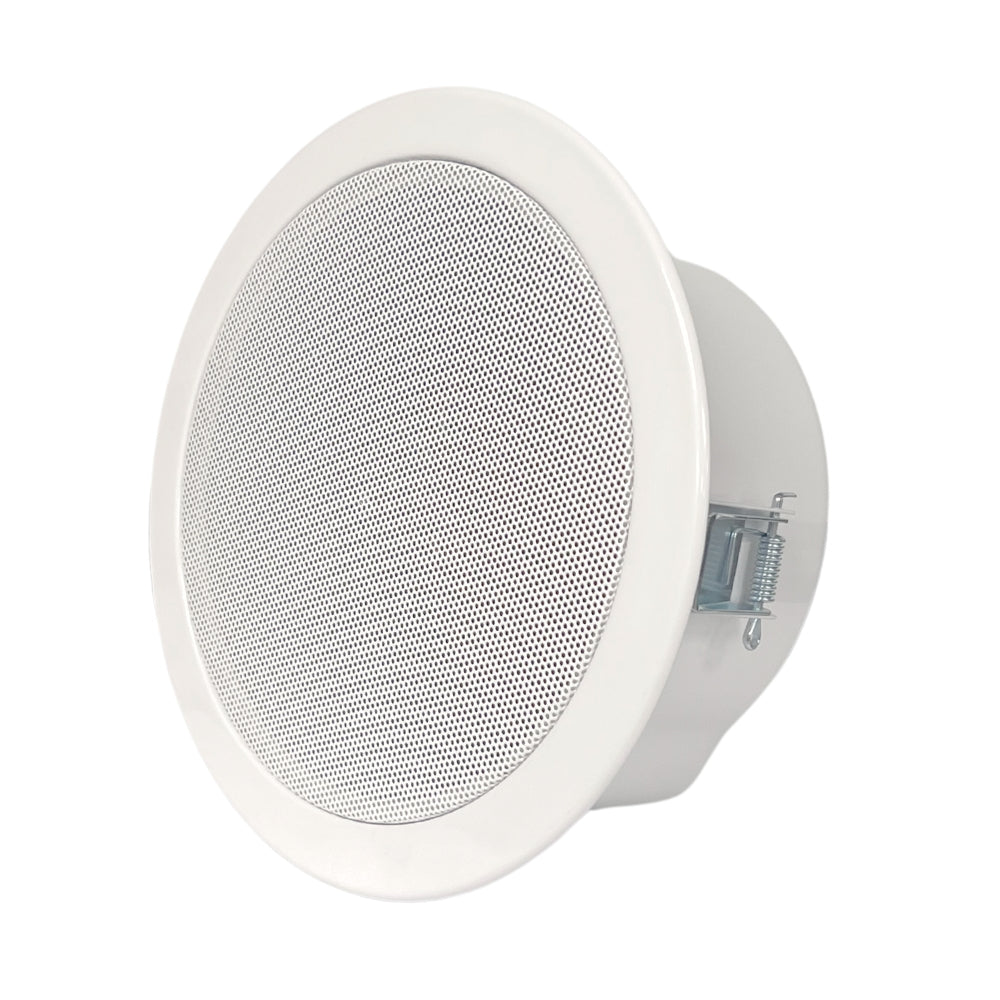

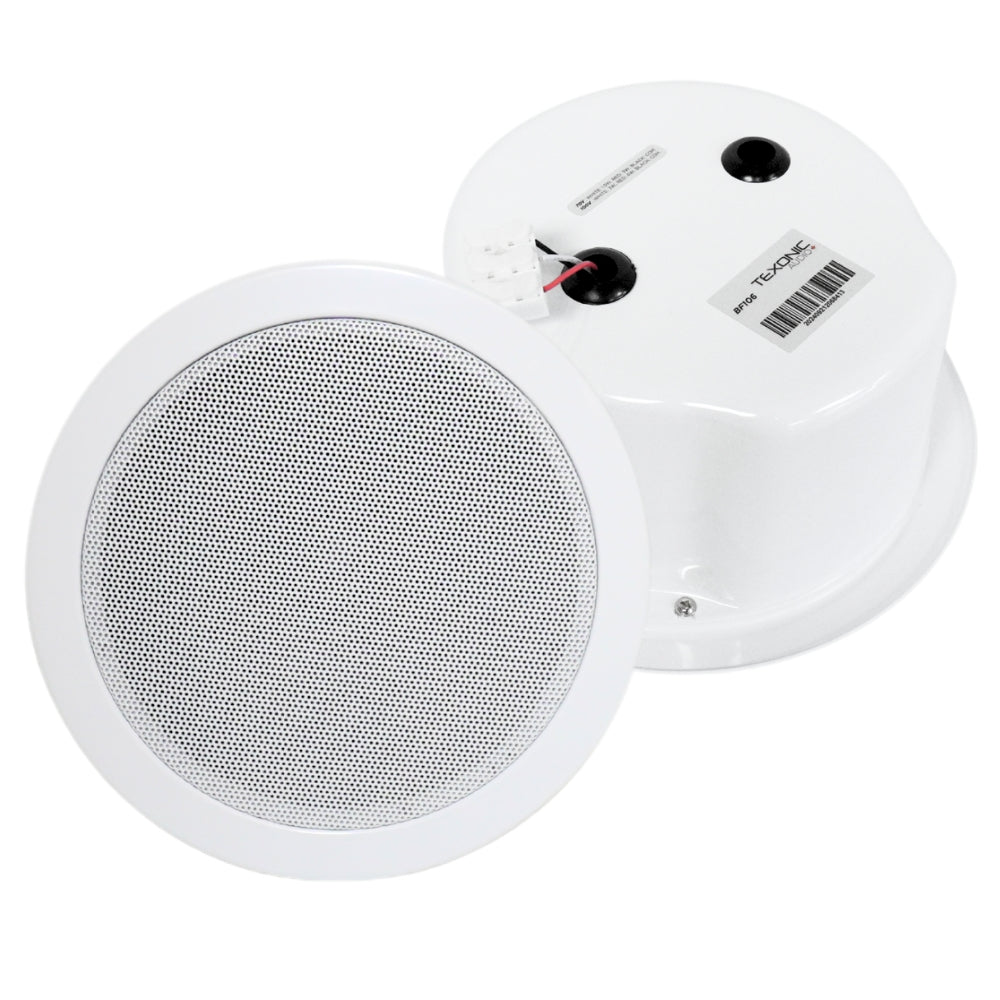

The TEXONIC BF106 is a 6-inch 70V/100V commercial ceiling speaker designed for background music and paging in commercial spaces.

It is a practical choice for pharmacies, health clinics, medical offices, offices, reception areas and other business interiors where a safe, durable ceiling speaker is needed.

6" Speaker 70V / 100V Taps Metal Housing Spring Clip Clamp
Manual

Product Overview

The BF106 is designed for commercial background music and paging applications where a ceiling-mounted speaker is required. It is suitable for low-profile installations in common business spaces.

The built-in metal housing and fire protection cover add safety and durability for commercial installations. The spring clip clamp design helps make installation quicker once the ceiling cutout is prepared.

Best For Pharmacies, health clinics, medical offices, offices, reception areas, waiting rooms and other commercial background music or paging spaces.
System Fit Compatible 70V/100V commercial audio systems for distributed background music and paging.

Key Features

  • 6-inch commercial ceiling speaker
  • Designed for background music and paging
  • 70V and 100V commercial speaker line compatibility
  • Selectable power taps for system load planning

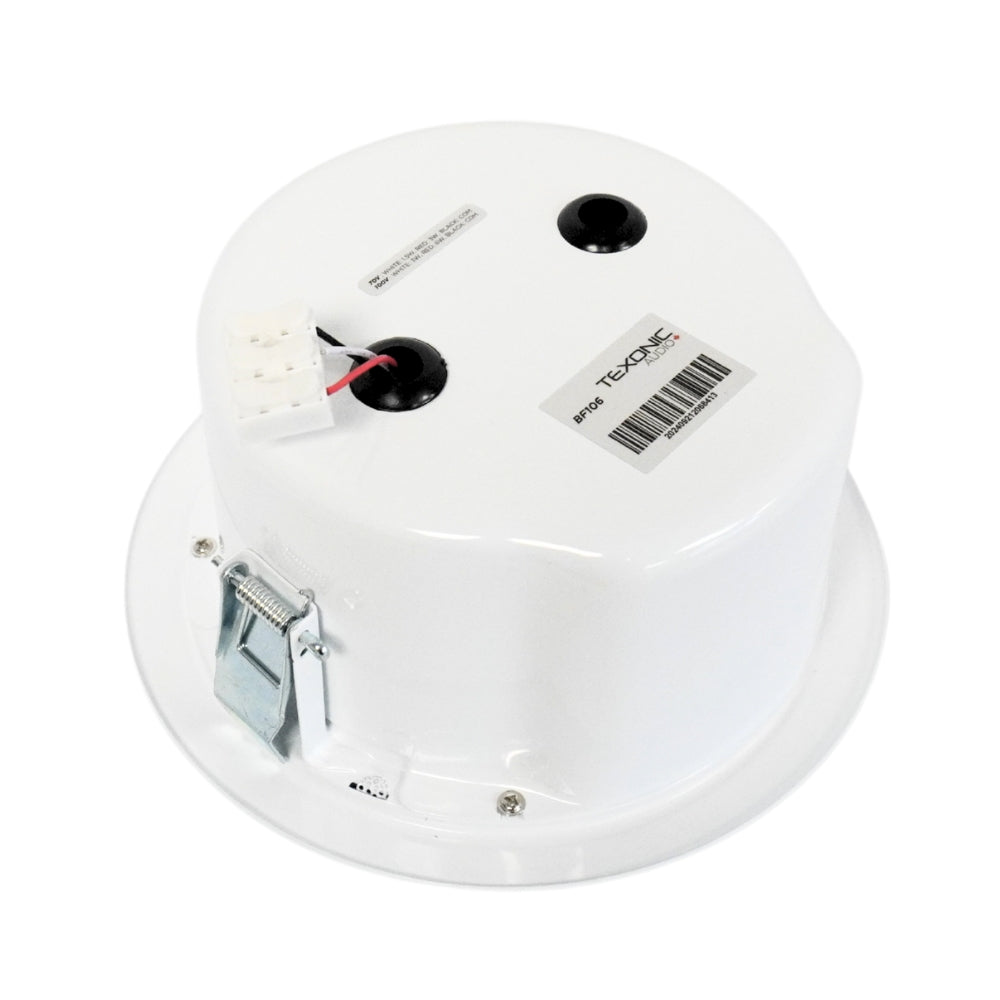

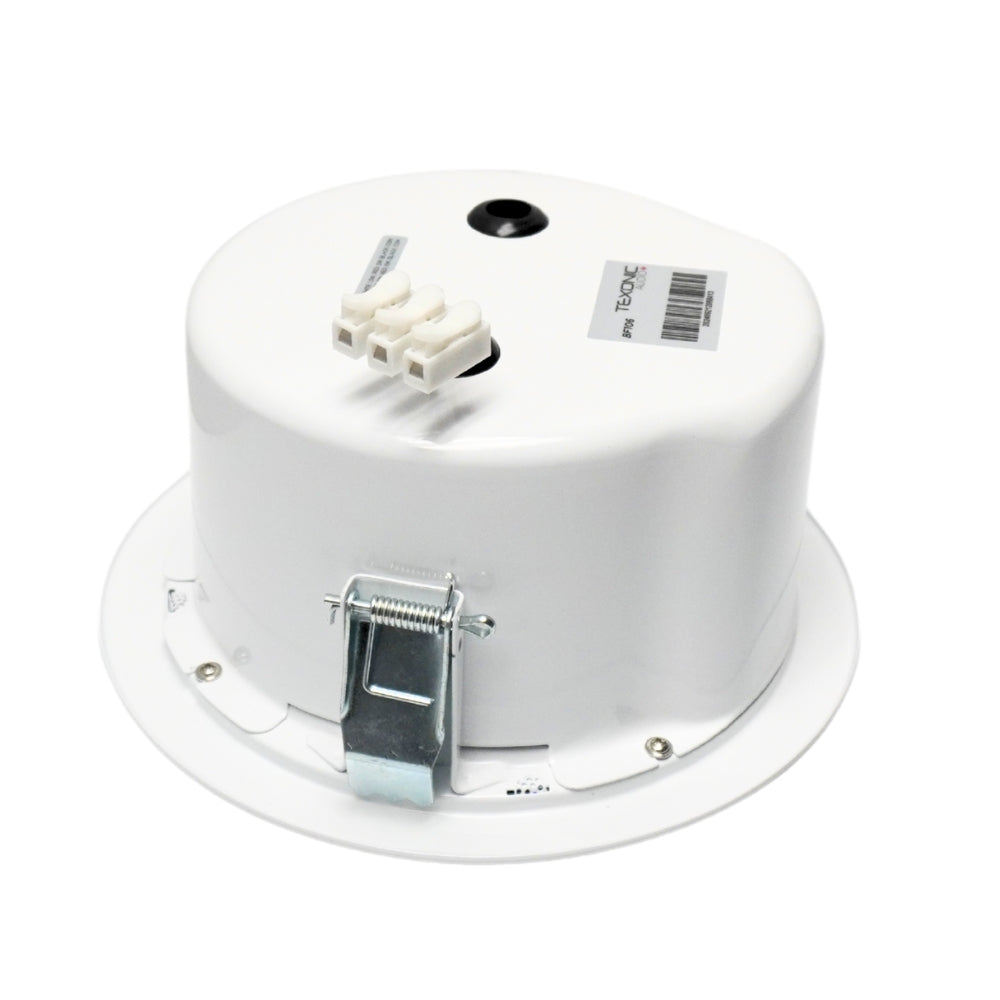

  • Built-in metal housing for durability
  • Fire protection cover for added installation safety

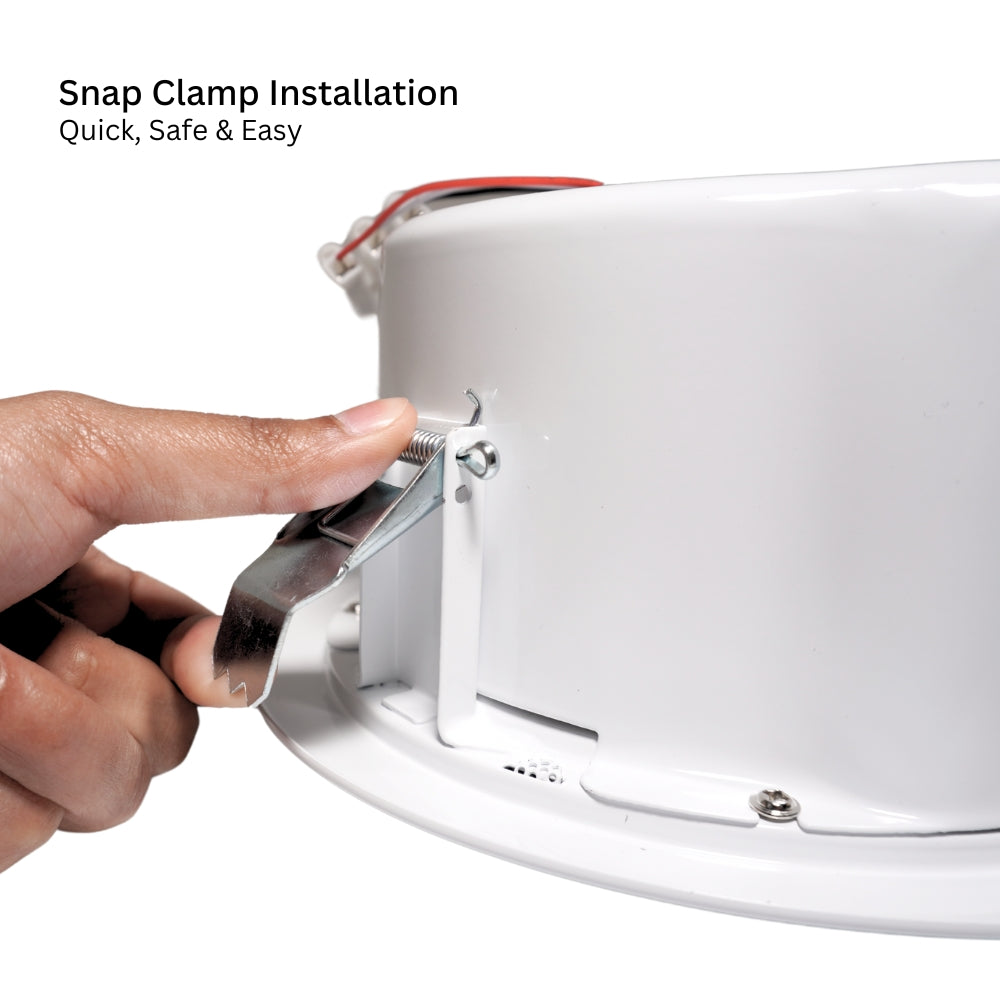

  • Spring clip clamp for easier secure mounting
  • Steel cover and grille listed in product specifications
  • Clear audio for commercial interiors
  • Suitable for pharmacies, clinics and medical offices
  • Includes speaker cutout template
  • Covered by TEXONIC manufacturing warranty

Specifications

Brand TEXONIC
Model / SKU BF106
Product Type Commercial ceiling speaker
Speaker Size 6 inches
Power Taps 100V: 3W / 6W | 70V: 1.5W / 3W
Impedance COM / 3.3KΩ / 1.7KΩ
Sound Pressure Level 90dB @ 1W / 1m
Maximum SPL 98dB
Frequency Response 110Hz – 15kHz
Materials Steel cover and grille
Housing Metal housing with fire protection cover

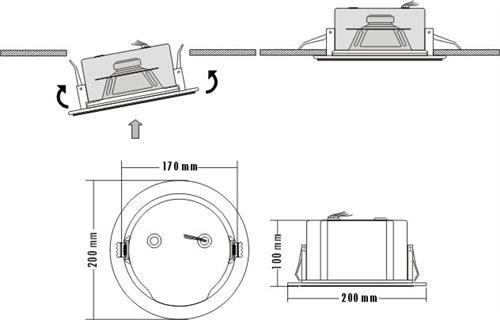

Cutout Size 170 mm / 6.7 inches

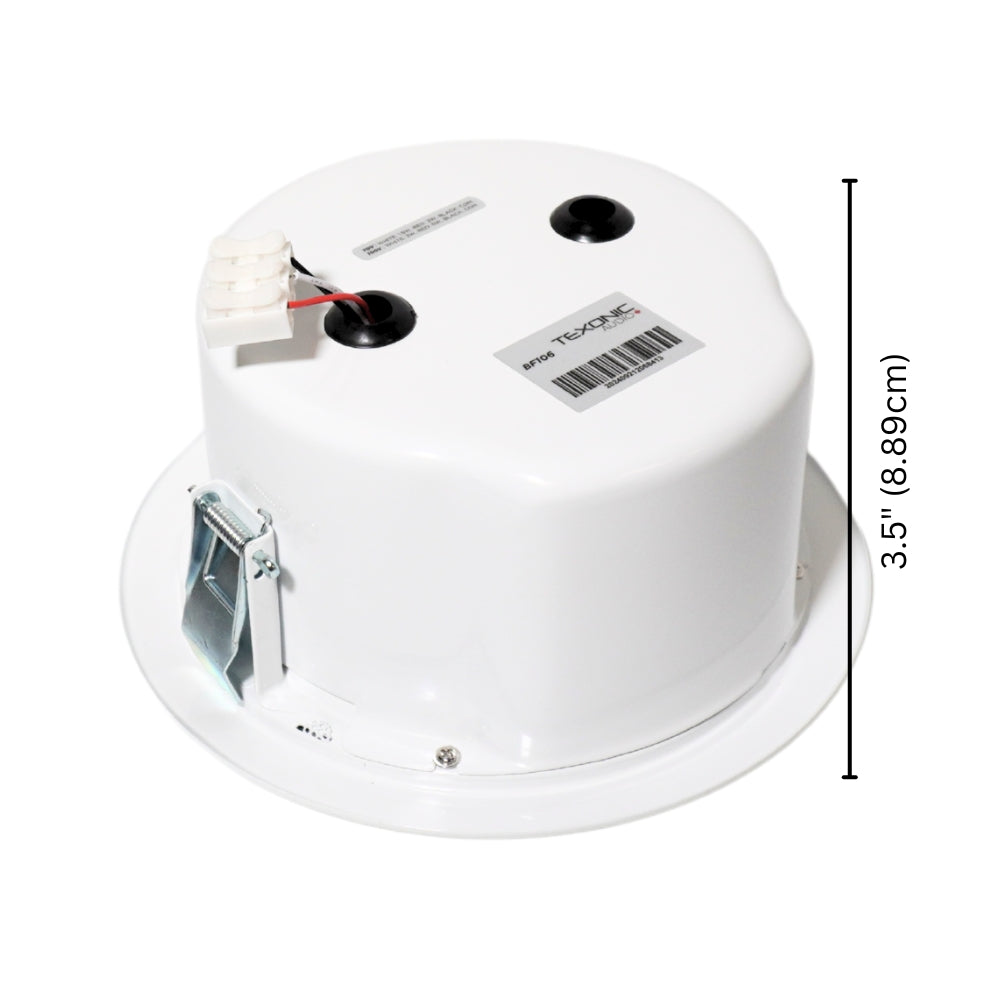

Dimensions 200 × 100 mm
Weight 1 kg

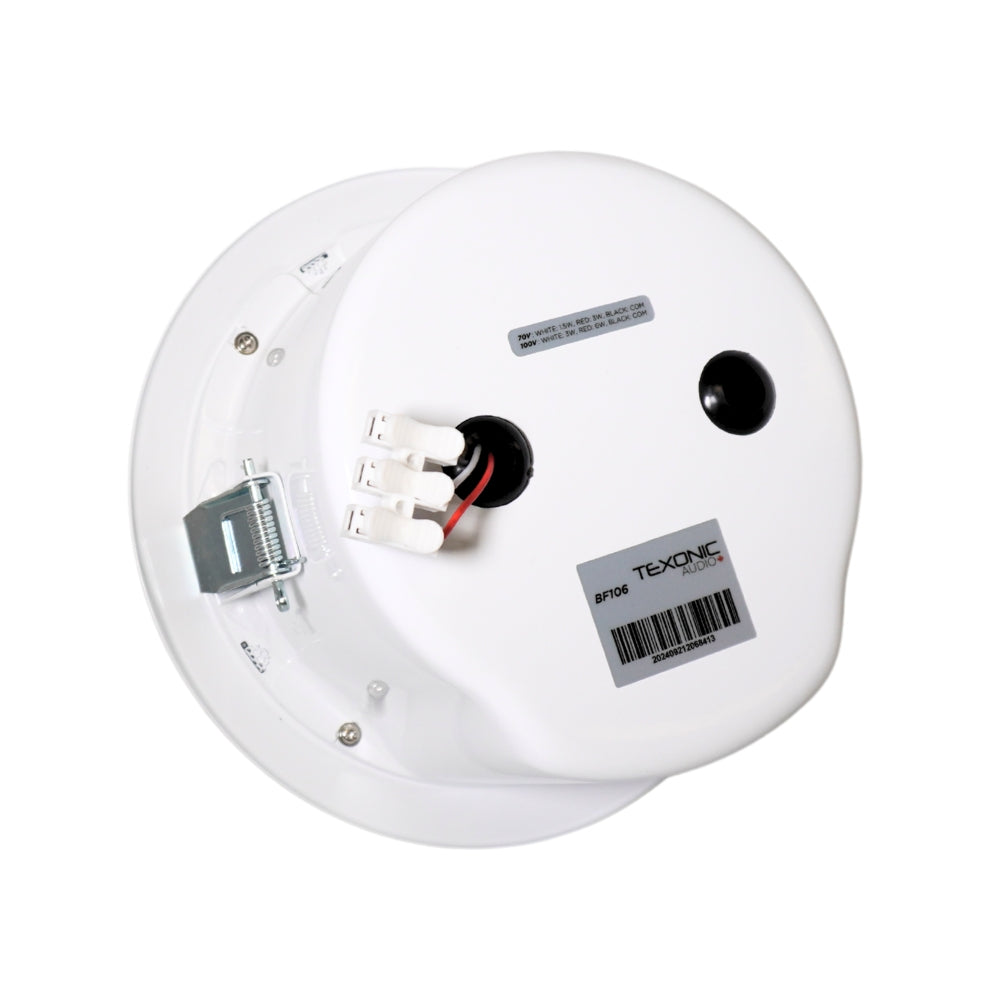

Installation Method Spring clip clamp
Recommended Applications Background music and paging in pharmacies, health clinics, medical offices and commercial environments
Specification Note: The product page is used as the main specification source. The manual provides installation guidance and wire colour tap settings.

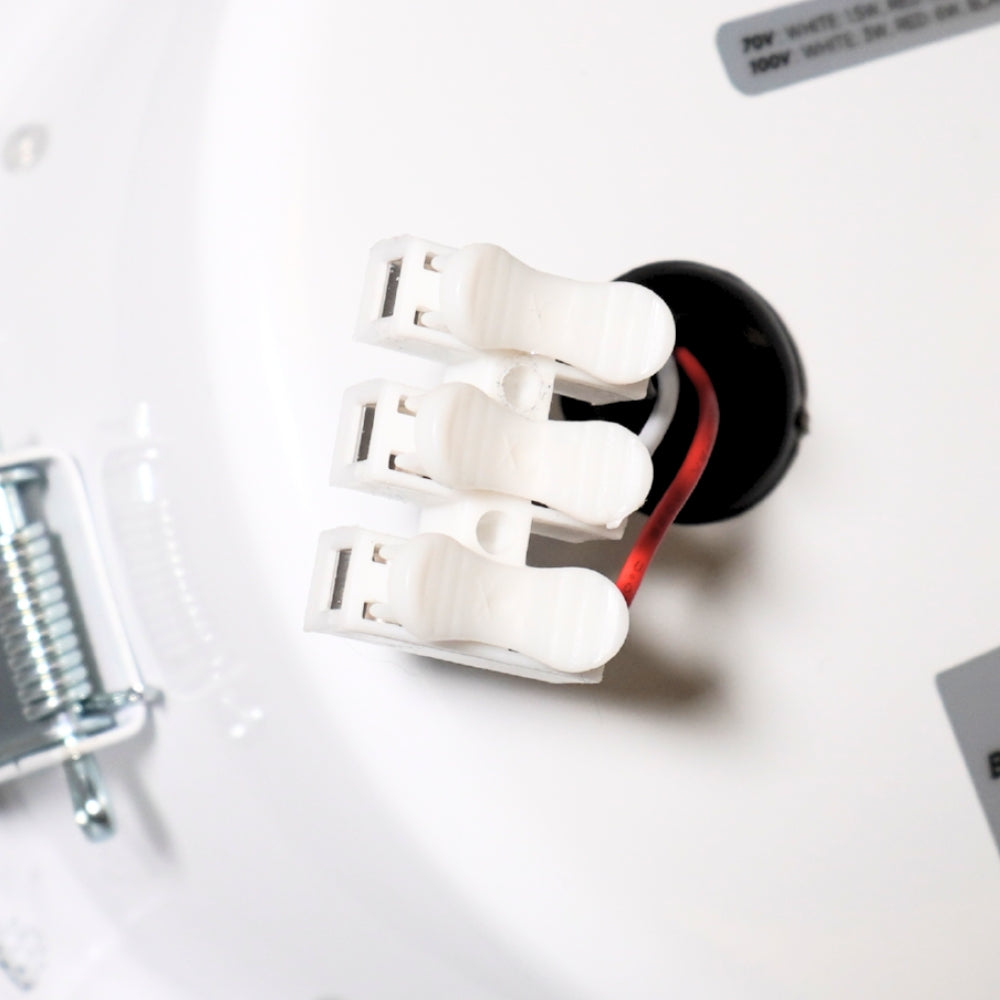

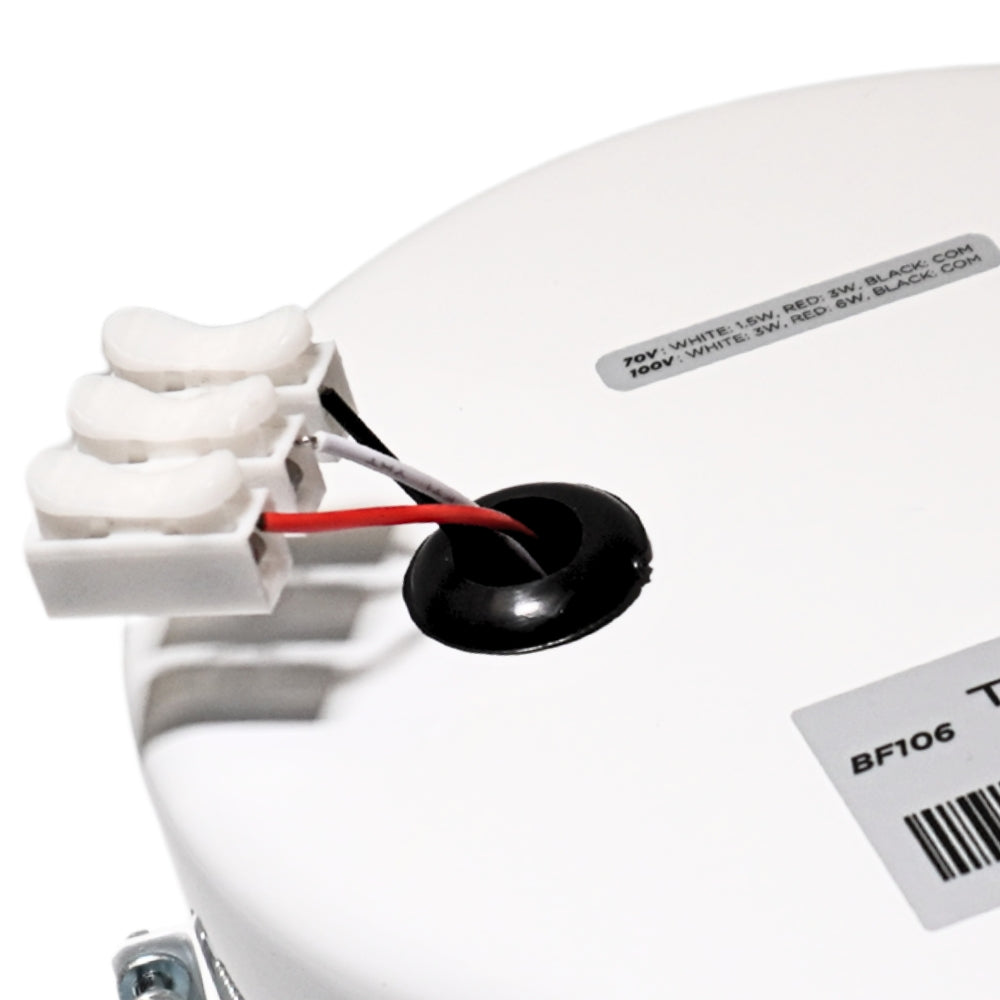

Tap Settings

Select the correct tap based on the amplifier output being used. Match the speaker wiring to the selected 70V or 100V system.

System Voltage Wire Colour Tap / Connection
70V White 1.5W
70V Red 3W
70V Black COM
100V White 3W
100V Red 6W
100V Black COM
Important: Use the matching 70V or 100V amplifier output and confirm the total connected speaker load before powering the system.

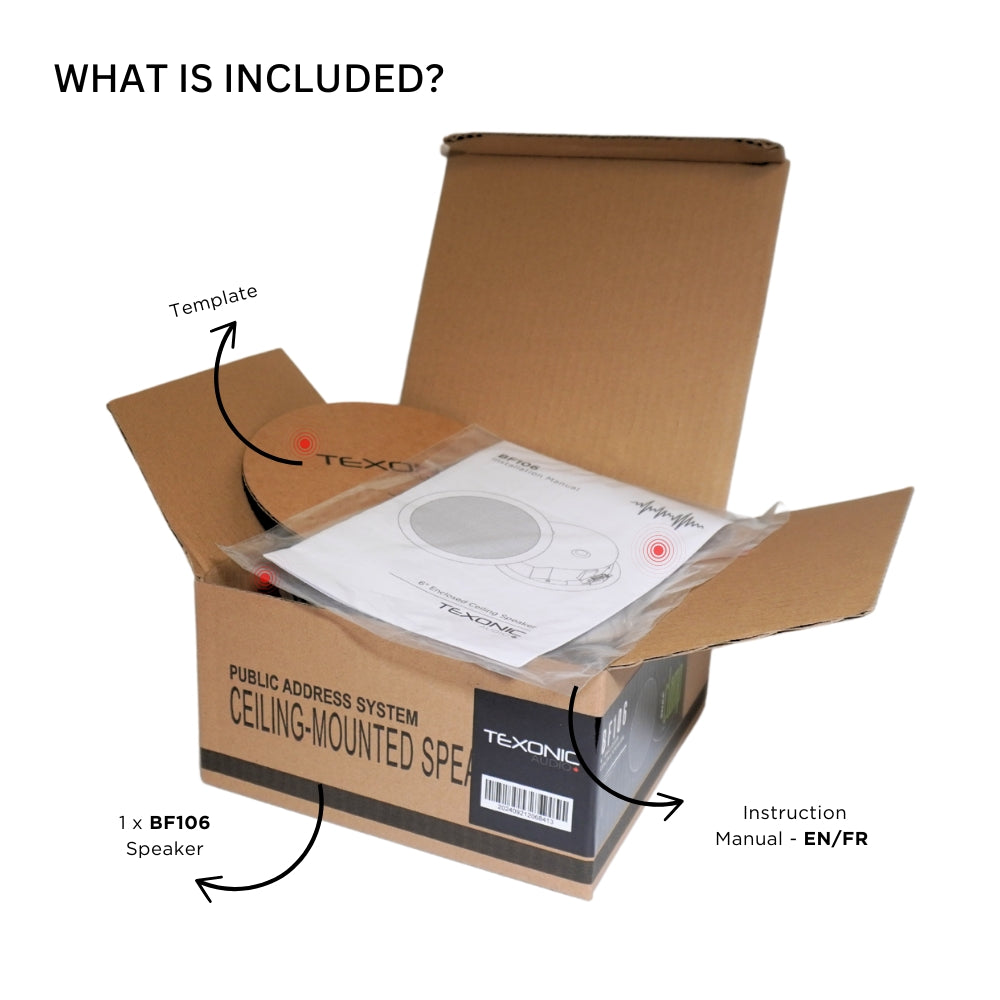

What’s Included

1 × TEXONIC BF106 ceiling speaker
User manual
Speaker cutout template
Installation Reminder: Mark the ceiling using the cutout template, cut the opening, connect the speaker wires, and secure the speaker using the spring clip clamps. Handle the spring-loaded clamps with care.
