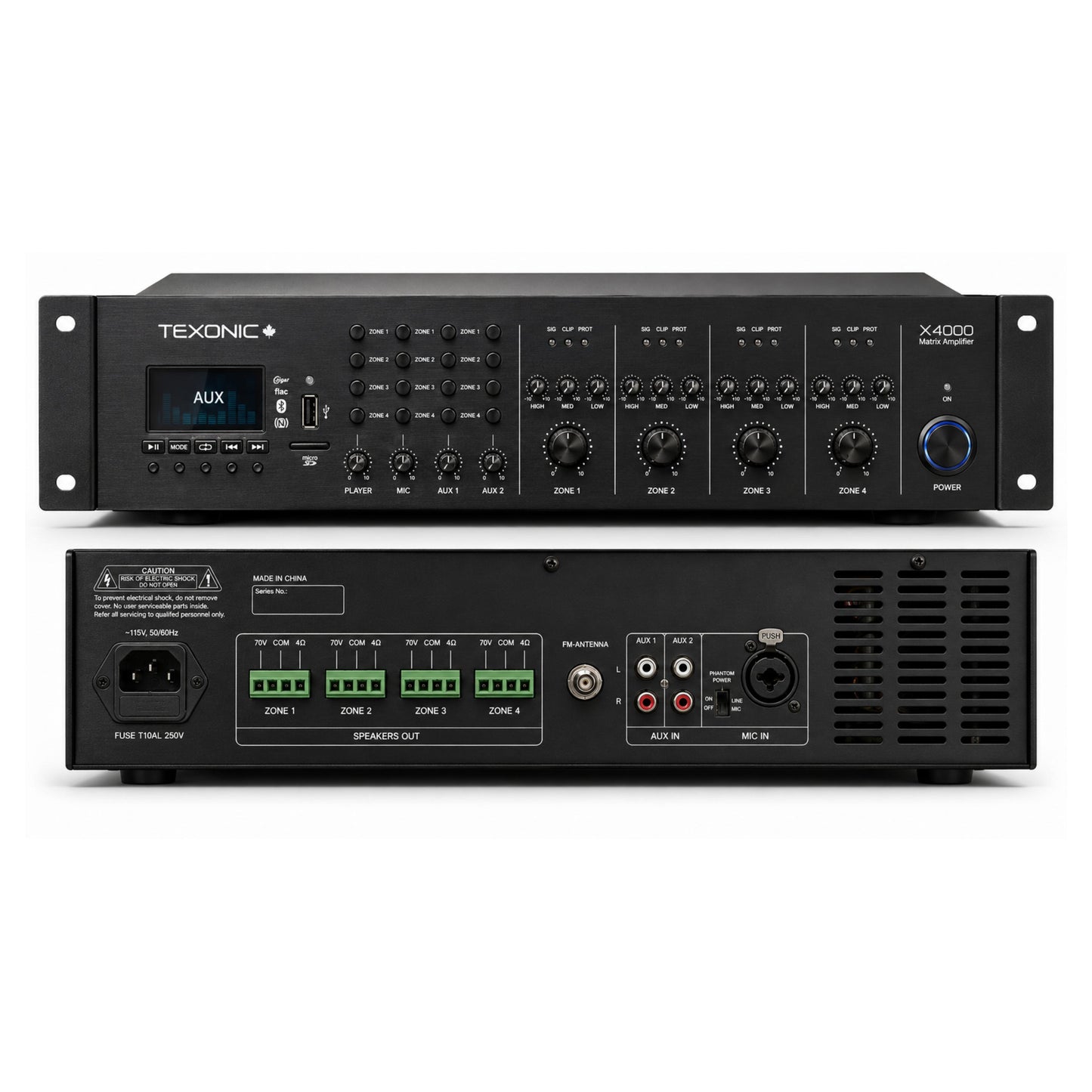

TEXONIC X4000 4-Zone 70V Matrix Amplifier

TEXONIC X4000 4-Zone 70V Matrix Amplifier

X4000

$999.99 CAD
$999.99 CAD
Sale Sold out
Shipping calculated at checkout.
4-Zone Commercial Matrix Amplifier

TEXONIC X4000 4-Zone 70V Matrix Amplifier

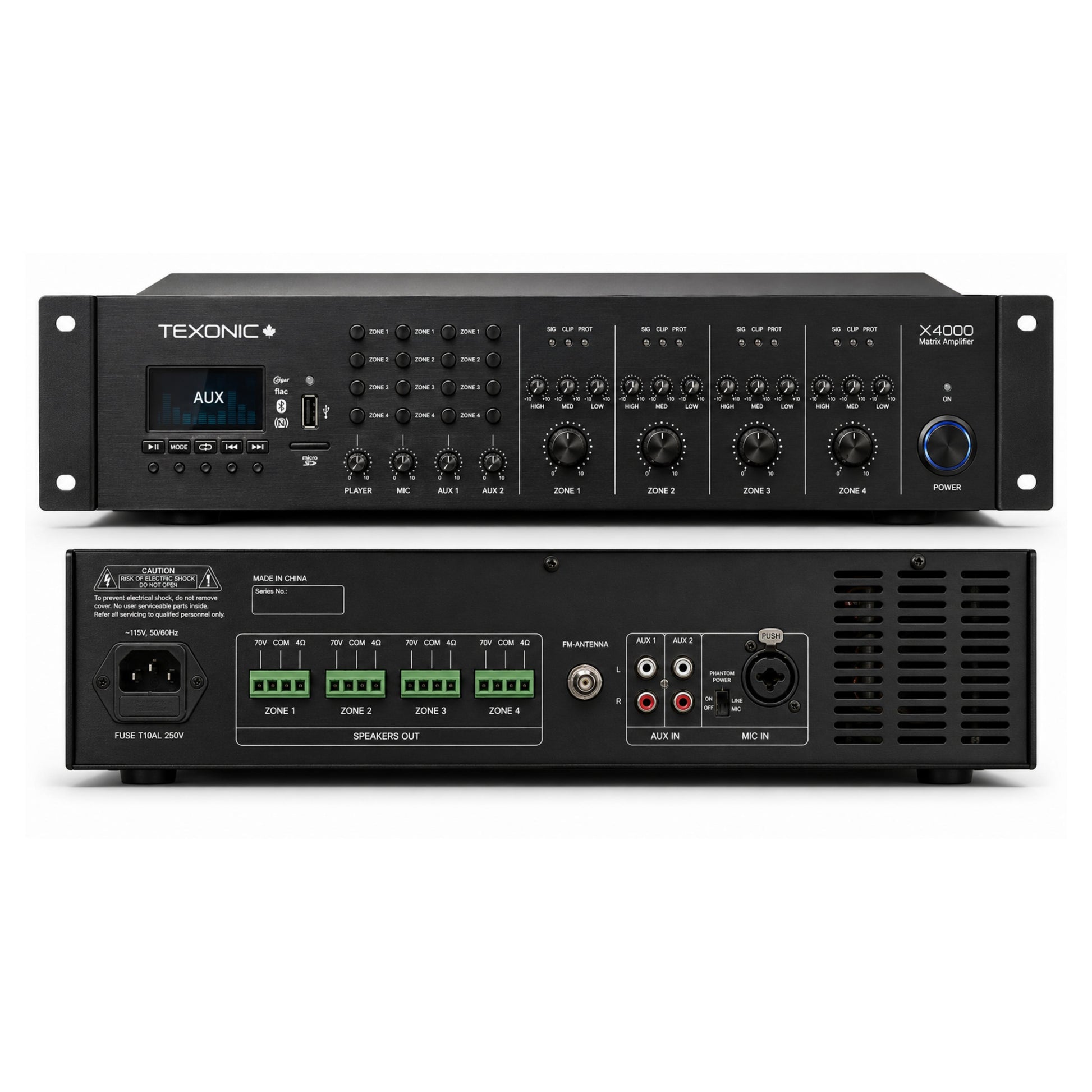

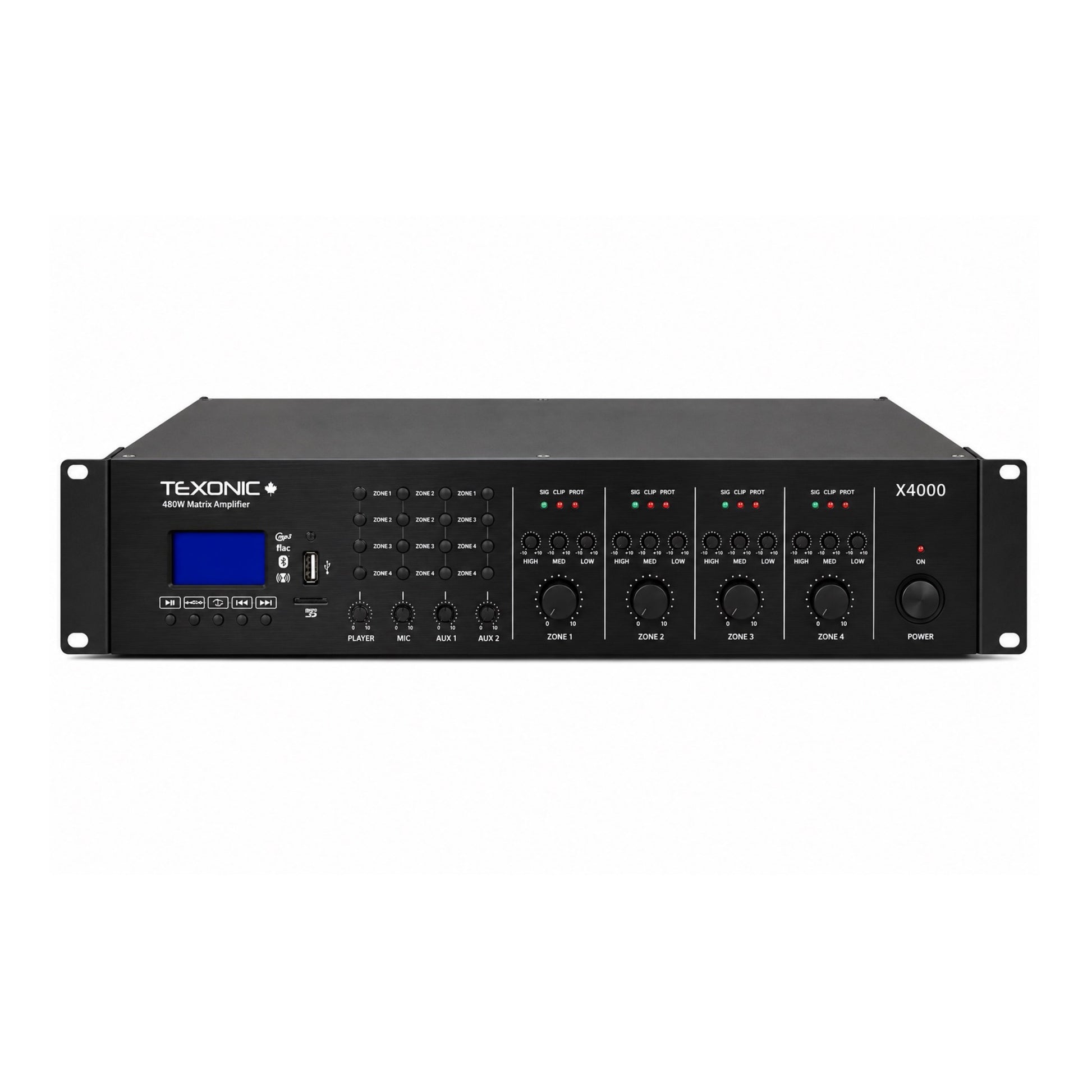

The TEXONIC X4000 is a 2U rack-mount matrix amplifier designed for commercial audio systems that need flexible source routing, independent zone control, and reliable background music or paging.

It provides four output zones with independent volume, tone control, and source selection. Each zone can be assigned to the built-in media player, microphone input, AUX 1, or AUX 2.

4 × 120W Rated Output 4 Input / 4 Output Matrix 70V or 4–16Ω Output Bluetooth / FM / USB / Micro SD
Manual

Product Overview

The X4000 is designed for commercial spaces that need different audio sources in different areas. You can play the same source across all four zones or assign different sources to each zone independently.

With 4 × 120W rated output, 70V constant-voltage output, 4–16Ω low-impedance support, and a built-in media player, the X4000 is a practical solution for multi-zone background music and paging systems.

Best For Restaurants, retail stores, offices, gyms, schools, clinics, showrooms, hospitality spaces, and multi-room commercial audio systems.
System Fit Four-zone systems where each area needs separate volume, tone, and source routing.

Key Features

  • 4-zone matrix amplifier with 4 × 120W rated output
  • Maximum power output up to 4 × 200W

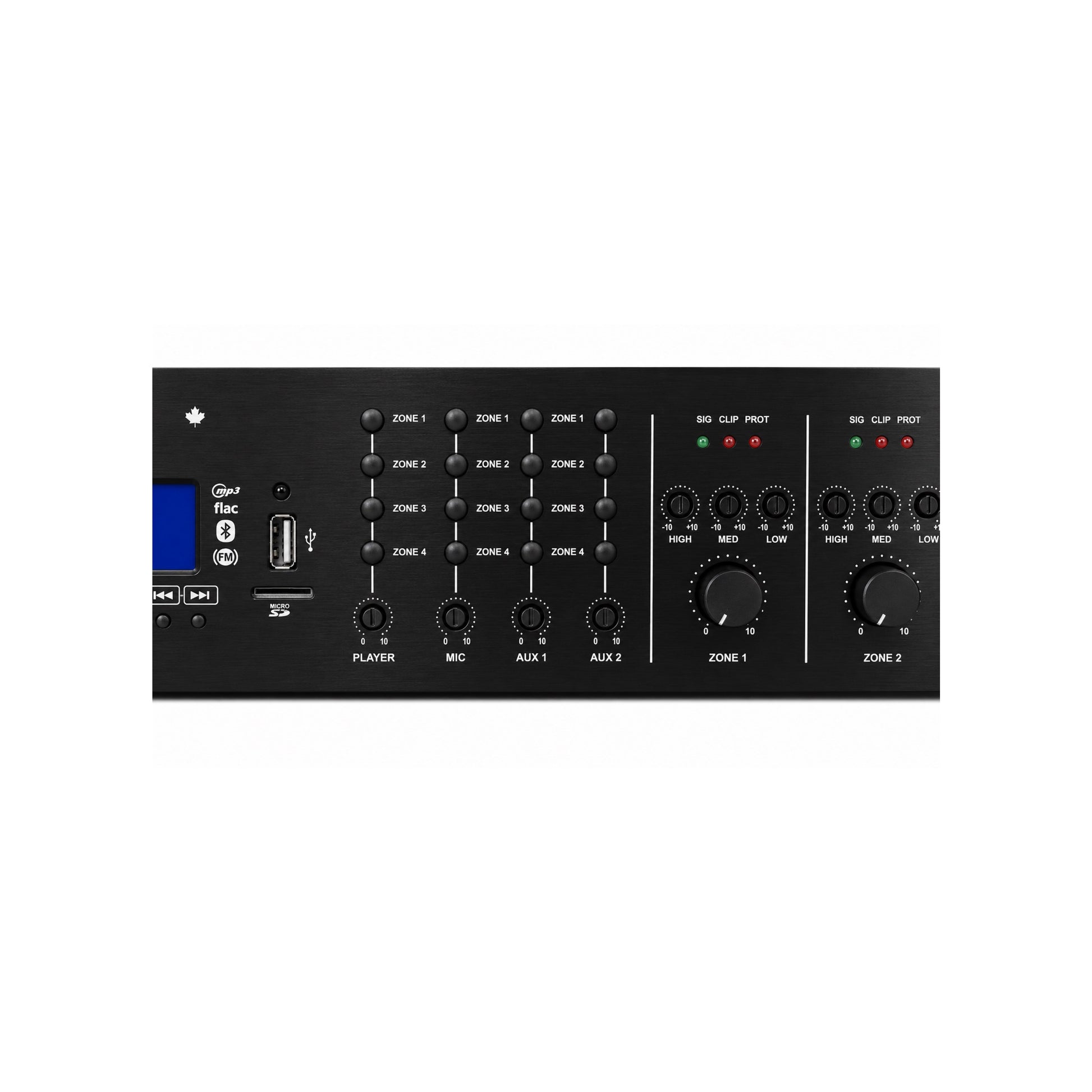

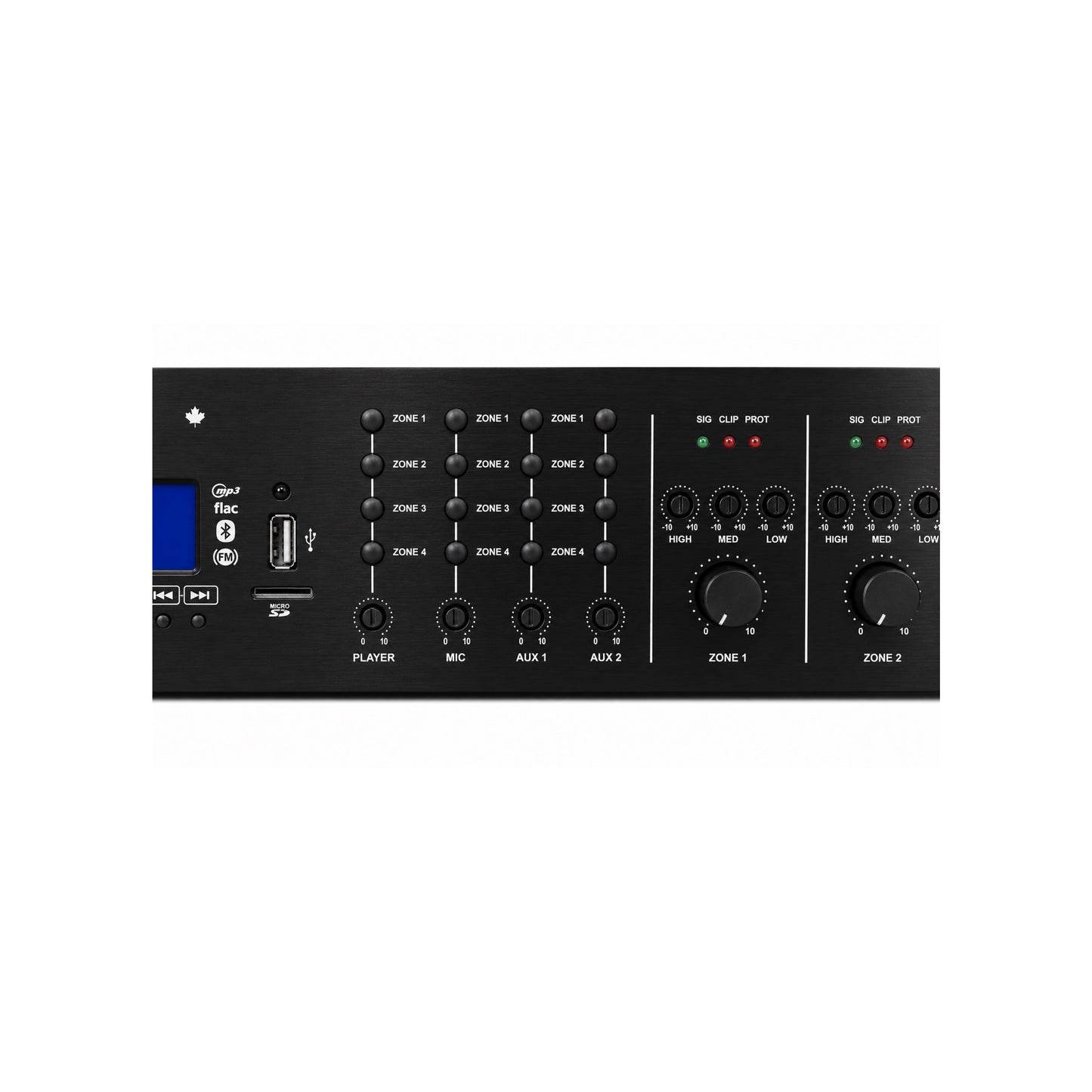

  • 4 input / 4 output matrix selector for flexible source routing
  • Each zone can select media player, microphone, AUX 1, or AUX 2
  • Supports 70V constant-voltage speaker systems
  • Supports 4–16Ω low-impedance speaker operation

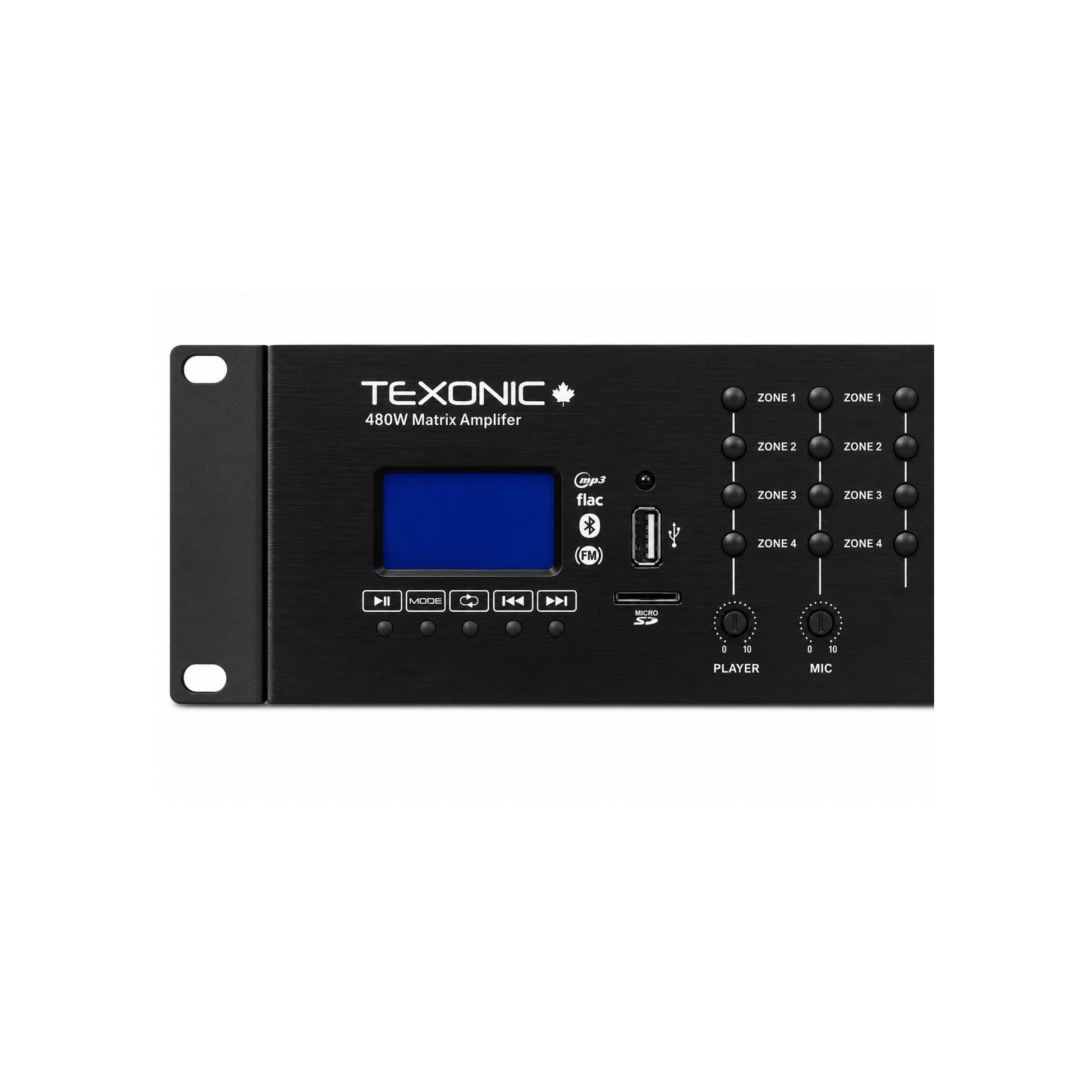

  • Built-in Bluetooth, FM tuner, USB, and Micro SD media player

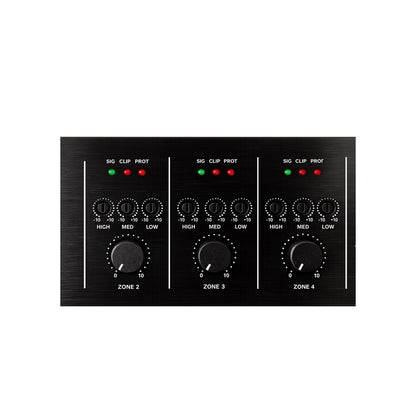

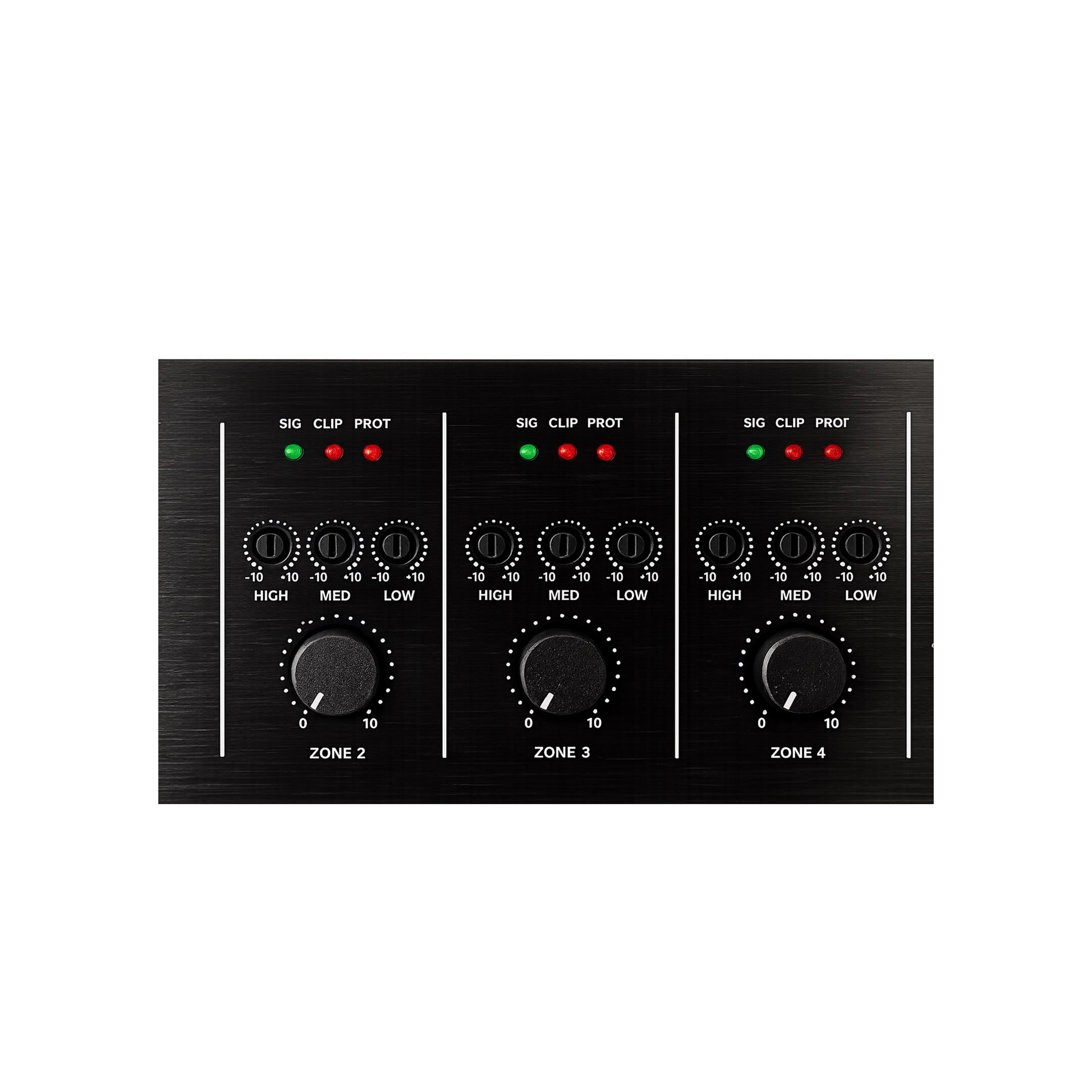

  • Per-zone HIGH, MID, and LOW tone control
  • Main output volume control for each zone

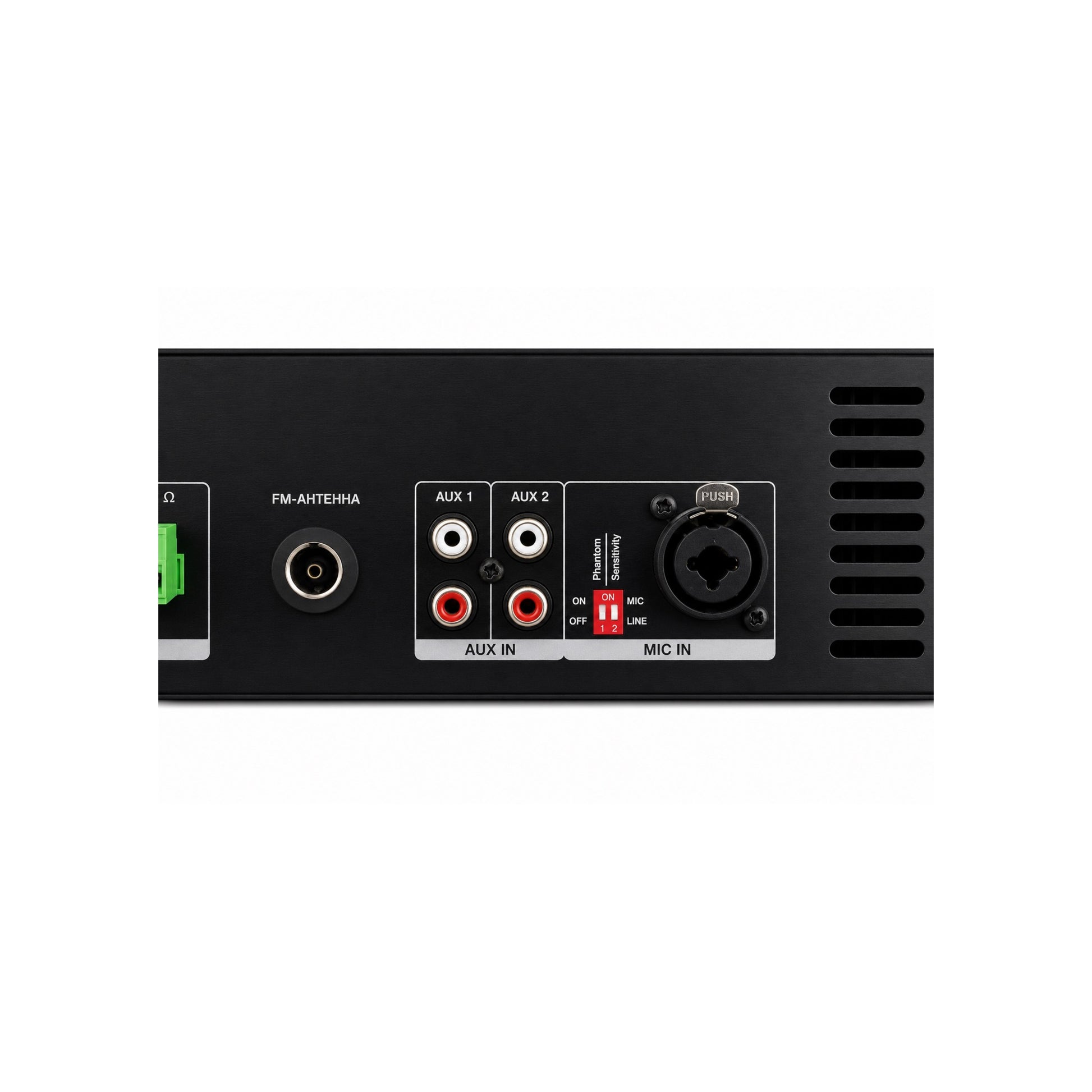

  • Balanced XLR microphone / line-level input
  • MIC/LINE sensitivity selector and 48V phantom power switch
  • SIG, CLIP, and PROT indicators for each zone
  • Standard 2U, 19-inch rack-mount chassis
  • Remote control and rack-mount hardware included

Specifications

Brand TEXONIC
Model X4000
Amplifier Type 4-zone commercial matrix amplifier
Rated Output Power 4 × 120W
Maximum Power 4 × 200W
Output Mode 70V constant voltage / 4–16Ω low impedance
70V Output Impedance 40.8Ω
Matrix Routing 4 input / 4 output source selector
Media Player Bluetooth, FM tuner, USB, and Micro SD

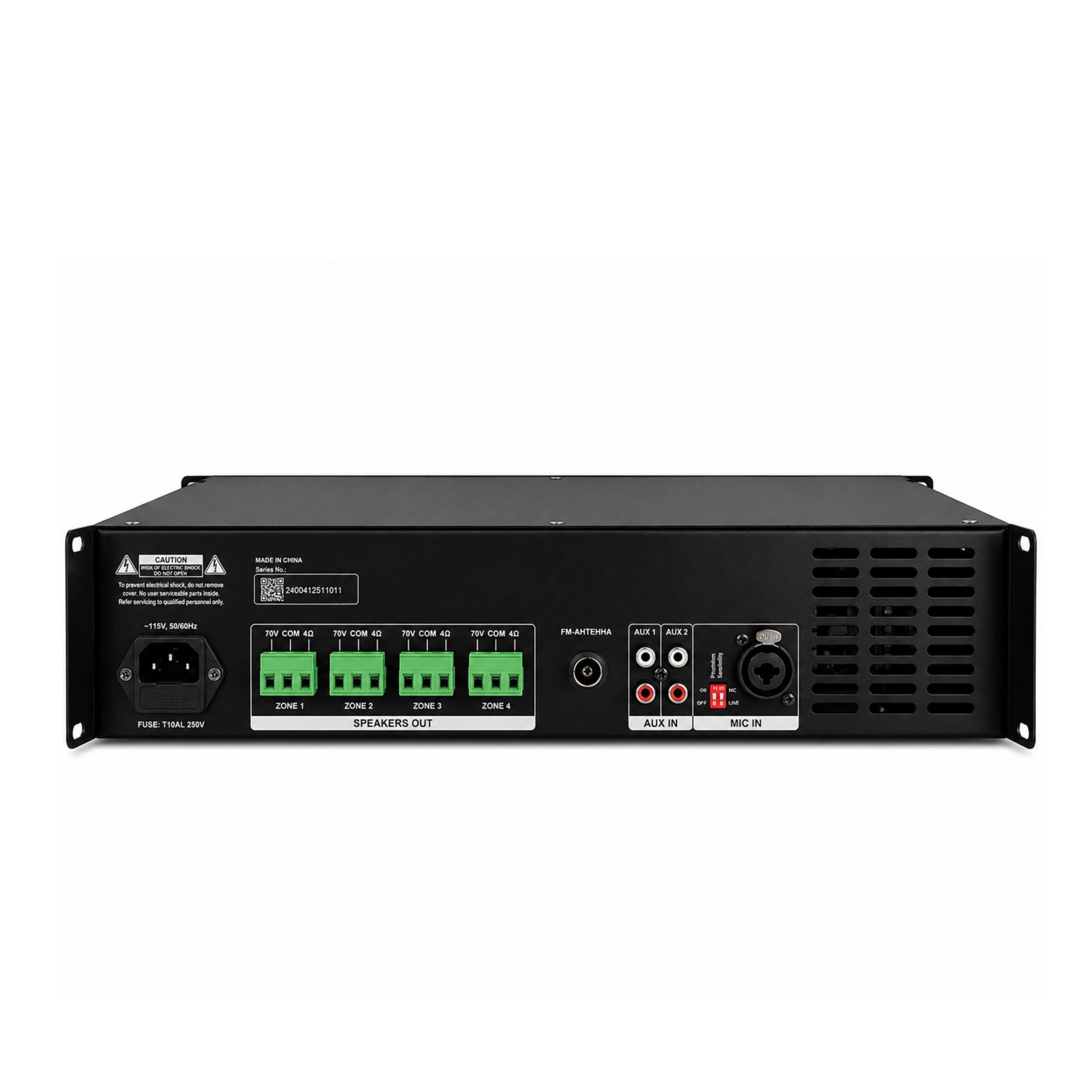

Inputs Media player, microphone / line input, AUX 1, AUX 2
Microphone Input Balanced XLR microphone / line-level input
Phantom Power 48V phantom power switch
Static Power Consumption 25W
Power Requirements 115V, 50/60Hz
Frequency Response 80Hz – 18kHz ±3 dB
Total Harmonic Distortion <0.3% @ 1kHz, 1/3 rated power
Signal-to-Noise Ratio MIC ≥66 dB / AUX ≥80 dB, A-weighted
MIC Input Sensitivity 12 mV ±0.5 dB
AUX Input Sensitivity 250 mV ±0.5 dB
High Tone Control ±9 dB @ 10kHz ±1.5 dB
Mid Tone Control ±9 dB @ 1kHz ±1.5 dB
Low Tone Control ±9 dB @ 100Hz ±1.5 dB
Rack Size 2U, 19-inch rack-mount chassis
Product Dimensions 16.9″ × 13.8″ × 3.5″ / 43 × 35 × 8.8 cm
Net Weight 27.6 lb / 12.5 kg
Connection Notice: Use the correct speaker output mode for each zone. Do not mix 70V and low-impedance speaker connections on the same output. Keep speaker wiring polarity consistent.

What’s Included

TEXONIC X4000 matrix amplifier
Remote control
Rack-mount hardware
User manual
AC power cable
Product Note: Product design and specifications may change without notice. Diagrams are for illustration purposes and may not fully represent the final product.
