TEXONIC 6-Zone 120W Commercial Mixer Amplifier with WiFi, Bluetooth, MP3 & USB

TEXONIC 6-Zone 120W Commercial Mixer Amplifier with WiFi, Bluetooth, MP3 & USB

BX12N

$849.99 CAD
$849.99 CAD
Sale Sold out
Shipping calculated at checkout.
5-Zone Wi-Fi Bluetooth Mixer Amplifier

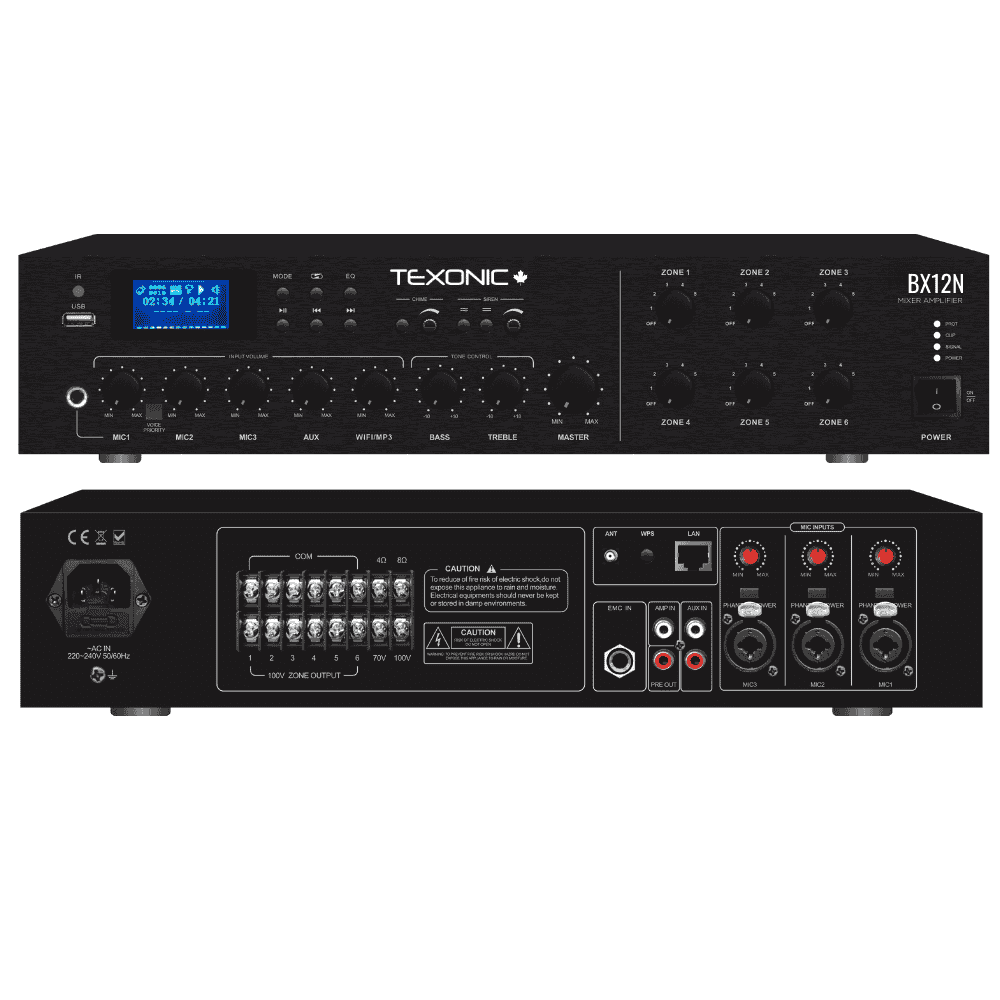

TEXONIC BX12N 120W 5-Zone Mixer Amplifier

The TEXONIC BX12N is a 120W 5-zone commercial mixer amplifier designed for background music, paging, announcements, and multi-area business audio systems.

With Wi-Fi streaming, Bluetooth, USB playback, FM tuner, microphone inputs, AUX inputs, tone controls, chime and siren functions, and 70V/100V or 4–16Ω speaker support, the BX12N is a practical solution for commercial spaces that need audio control across multiple zones.

120W Output 5-Zone Speaker Control Wi-Fi + Bluetooth 70V / 100V / 4–16Ω
Manual

Product Overview

The BX12N is designed for commercial installations that need one amplifier to manage several audio areas. The 5-zone output section allows installers to turn speaker zones on or off and adjust the system for different rooms or business areas.

Its 2U rack-mount design is useful for AV racks and equipment rooms, while built-in Wi-Fi, Bluetooth, USB, and FM playback make it easy to use as the main audio source for everyday background music.

Best For Restaurants, cafés, retail stores, offices, clinics, schools, salons, showrooms, houses of worship, and multi-zone commercial audio systems.
System Fit 5-zone commercial speaker systems using 70V/100V distributed speakers or compatible 4–16Ω low-impedance speaker loads.

Key Features

  • 120W commercial mixer amplifier for multi-zone audio systems
  • 5-zone 70V/100V speaker outputs with individual zone control
  • Built-in Wi-Fi wireless music streaming receiver
  • Bluetooth receiver for wireless audio playback
  • USB player for simple media playback
  • FM tuner for radio playback
  • RJ45 port for improved network connection in weak Wi-Fi areas
  • 3 microphone inputs for paging and announcements
  • MIC1 priority for important announcements
  • 2 AUX inputs and 1 line output
  • Bass, treble, master, MIC, and AUX volume controls
  • Built-in chime and siren circuitry with push-button control
  • High-definition display for play status monitoring
  • Short-circuit, overload, and high-temperature protection

Specifications

Brand TEXONIC
Model / SKU BX12N
Amplifier Type Wi-Fi Bluetooth 5-zone commercial mixer amplifier
Rated Power Output 120W
Speaker Outputs 5-zone 70V/100V outputs with individual volume control
Speaker Load Support 70V / 100V and 4–16Ω compatible speaker loads
Mounting Standard 19″ 2U rack-mount height with removable brackets
Playback Sources Wi-Fi, Bluetooth, USB, and FM tuner
Network Connection RJ45 port for enhanced Wi-Fi signal strength in weak areas
Microphone Inputs 3 microphone inputs with priority for MIC1
Line Inputs / Outputs 2 AUX inputs and 1 line output
Phantom Power Three 48V phantom power microphone jacks
Controls Individual MIC and AUX volume controls, master volume, bass, and treble
Zone Control 5-zone speaker outputs with separate on/off switches
Display High-definition screen for playback status
Built-In Functions Chime and siren circuitry with push-button and volume control
Protection Short-circuit, overload, and high-temperature protection
Recommended Use Commercial background music, paging, announcements, and multi-zone speaker systems
Connection Notice: Select the correct speaker output type for your system. Do not mix 70V/100V distributed speaker wiring and low-impedance speaker wiring together. Confirm total speaker load before powering the amplifier.

What’s Included

1 × TEXONIC BX12N 120W zone amplifier
Wi-Fi antenna
Remote control
User manual access
AC power cable
Product Note: Product design and specifications may change without notice.

Brand new

All our Texonic products are brand new and we don't sell refurbished items

Need assistance?

We are happy to help! You can call us at 705 999 5775 or send us an email at sales@texonic.ca

Shipping

Orders placed before 7:00 AM EST will be shipped the same business day. Orders placed after the cutoff time will be shipped on the following business day.

Please note: Free shipping is available in select provinces only. Additional shipping charges may apply to other regions.

Warranty

One of our main goals is to provide our customers with the best products and services. All our TEXONIC products are covered under 3 year of manufacturing warranty.
