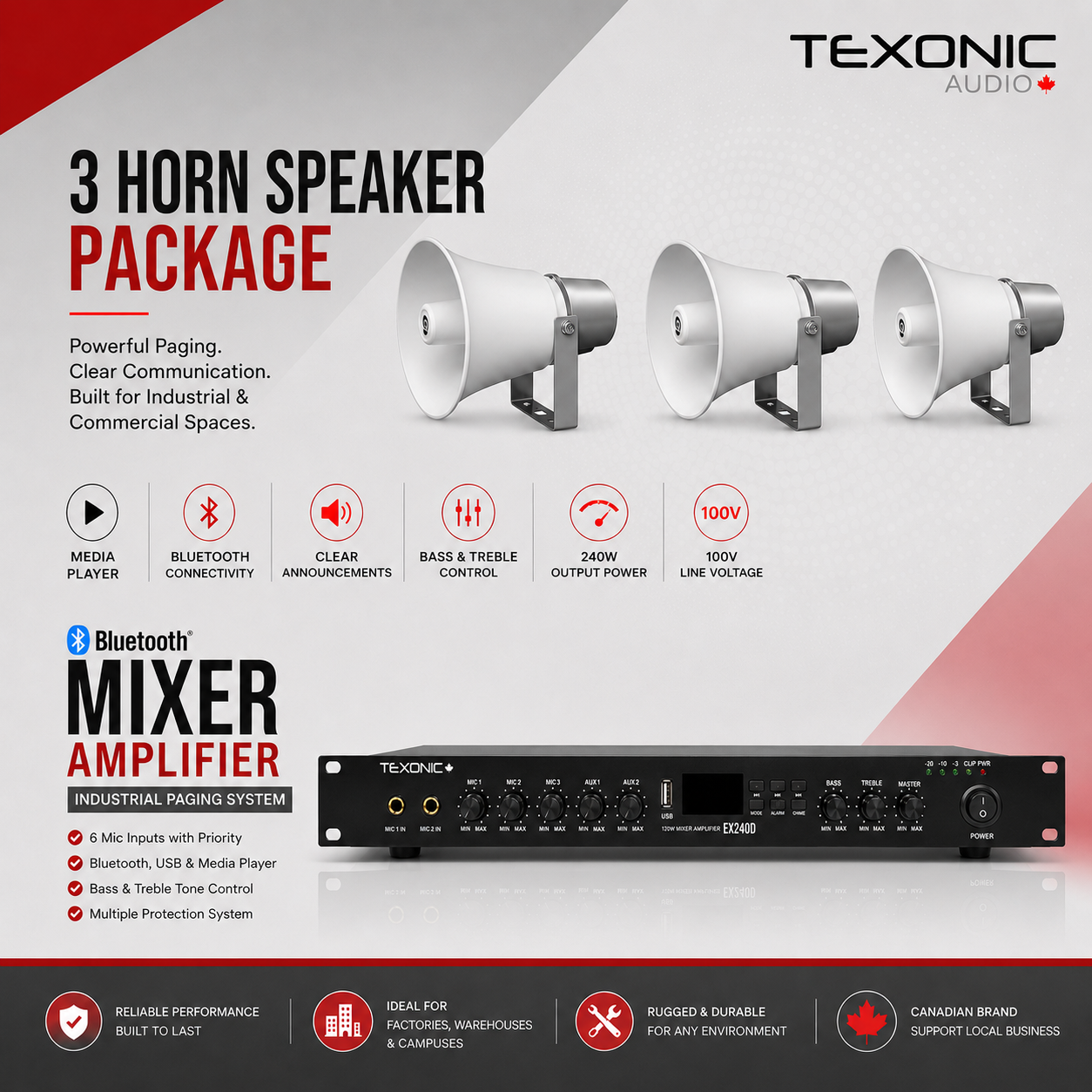

TEXONIC EX240D Paging System with 3 TOA SC-630TU Horn Speakers

TEXONIC EX240D Paging System with 3 TOA SC-630TU Horn Speakers

TXP240H03

$1,169.96 CAD
$1,169.96 CAD
Sale Sold out
Shipping calculated at checkout.
TEXONIC Commercial Paging Canada

EX240D Paging System with 3 TOA SC-630TU Horn Speakers

Deliver clear voice announcements across warehouses, workshops, loading areas, parking lots and outdoor work zones with the TEXONIC EX240D amplifier and three TOA SC-630TU horn speakers.

This commercial 100V paging package provides strong speech projection, weather-resistant speaker performance and simple speaker loading for Canadian businesses.

Clear Paging for Commercial and Industrial Areas

Horn speakers are designed to project speech across longer distances and through areas with machinery, vehicles or general workplace noise. Three speaker locations provide focused coverage for smaller commercial sites.

Strong Voice Projection

Designed for staff paging, safety messages and general announcements.

Weather-Resistant Speakers

Suitable for indoor areas and weather-exposed commercial installations.

Safe Amplifier Loading

Three speakers create an approximate 180W load on the 240W amplifier.

Commercial Paging Amplifier

TEXONIC EX240D

The EX240D provides 240W of commercial amplification through its 100V speaker output. It is suitable for distributed paging systems using multiple horn speakers connected along one speaker line.

Weather-Resistant Horn Speaker

TOA SC-630TU

The SC-630TU is a commercial horn speaker designed for clear voice paging and tone signalling in warehouses, industrial properties and outdoor work areas.

Recommended Applications

Warehouses
Workshops
Loading Areas
Service Yards
Parking Areas
Outdoor Work Zones

Simple Speaker Power Calculation

Each SC-630TU speaker is rated at 30W on a 70V line. When connected to the EX240D 100V output, each speaker uses approximately 60W.

Equipment Power Total
1 × TOA SC-630TU Approximately 60W on 100V Approximately 60W
3 × TOA SC-630TU Approximately 60W each Approximately 180W
EX240D amplifier 240W maximum output Approximately 60W capacity remaining
Recommended setup: Three SC-630TU horn speakers use approximately 180W on the EX240D 100V output. This leaves approximately 60W of amplifier capacity.

Golden Rule for Commercial Speaker Systems

The combined wattage of all connected speakers must not exceed the amplifier’s maximum output. This three-speaker package uses approximately 180W of the EX240D’s available 240W power.

Basic 100V Speaker Wiring

  1. Connect the EX240D amplifier’s 100V and COM terminals to the first horn speaker.
  2. Continue the same two-conductor speaker cable from the first horn to the second.
  3. Connect the third speaker in parallel from the second horn.
  4. Keep the speaker polarity consistent throughout the system.
  5. Confirm all connections before switching on the amplifier.

Permanent outdoor speaker wiring and mounting should follow applicable Canadian electrical, building, fire and structural requirements.

Package Includes

✓ 1 × TEXONIC EX240D 240W commercial amplifier
✓ 3 × TOA SC-630TU weather-resistant horn speakers

Canadian Commercial Audio Support

TEXONIC is a Canadian commercial audio brand based in Barrie, Ontario. This paging system ships from our Ontario warehouse to businesses across Canada, with assistance available for speaker placement, equipment selection and system planning.

Need Help Planning Your Paging System?

Share your property size, mounting locations and noise level. Our Canadian team can help review your paging coverage.

Contact TEXONIC Canada

Brand new

All our Texonic products are brand new and we don't sell refurbished items

Need assistance?

We are happy to help! You can call us at 705 999 5775 or send us an email at sales@texonic.ca

Shipping

Orders placed before 7:00 AM EST will be shipped the same business day. Orders placed after the cutoff time will be shipped on the following business day.

Please note: Free shipping is available in select provinces only. Additional shipping charges may apply to other regions.

Warranty

One of our main goals is to provide our customers with the best products and services. All our TEXONIC products are covered under 3 year of manufacturing warranty.
