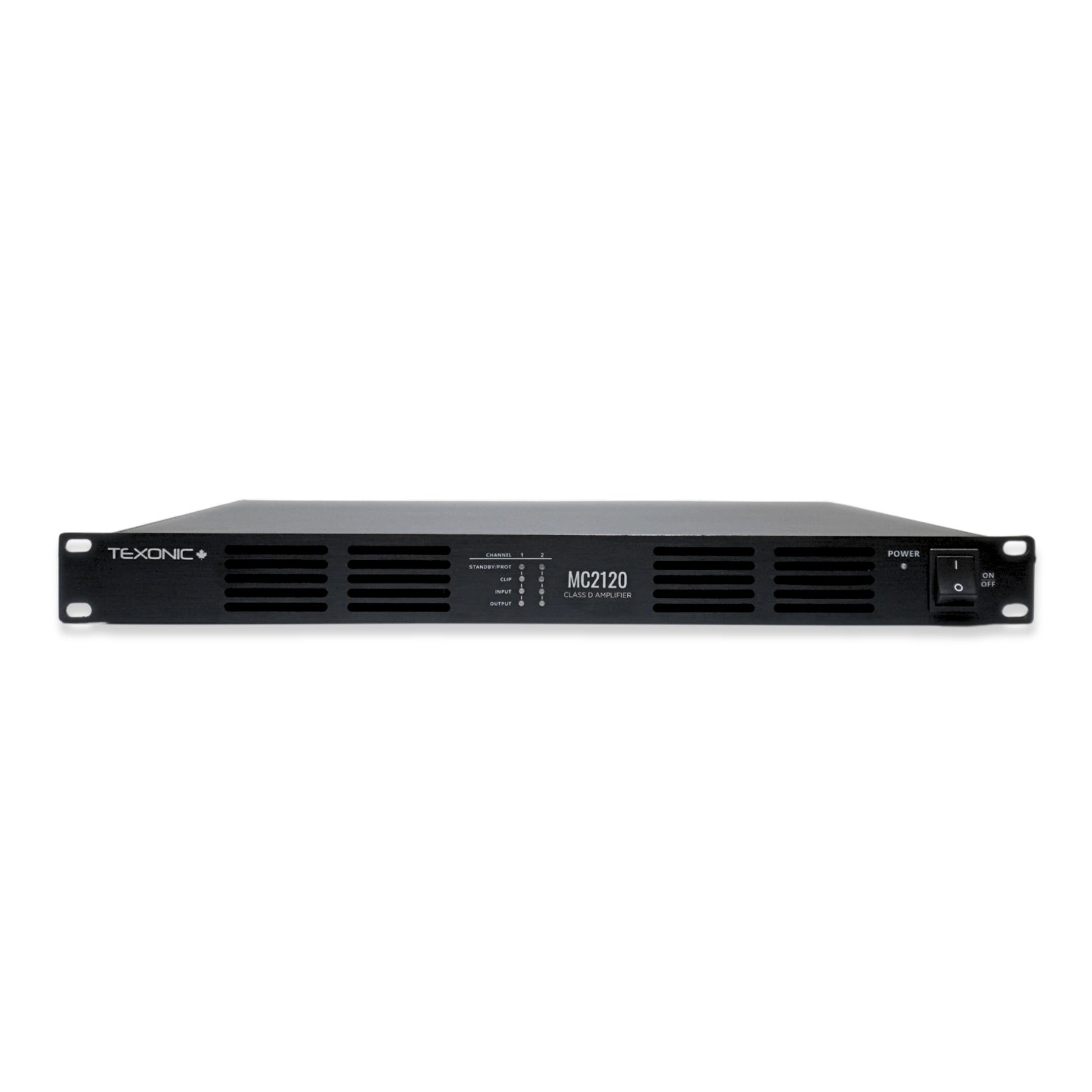

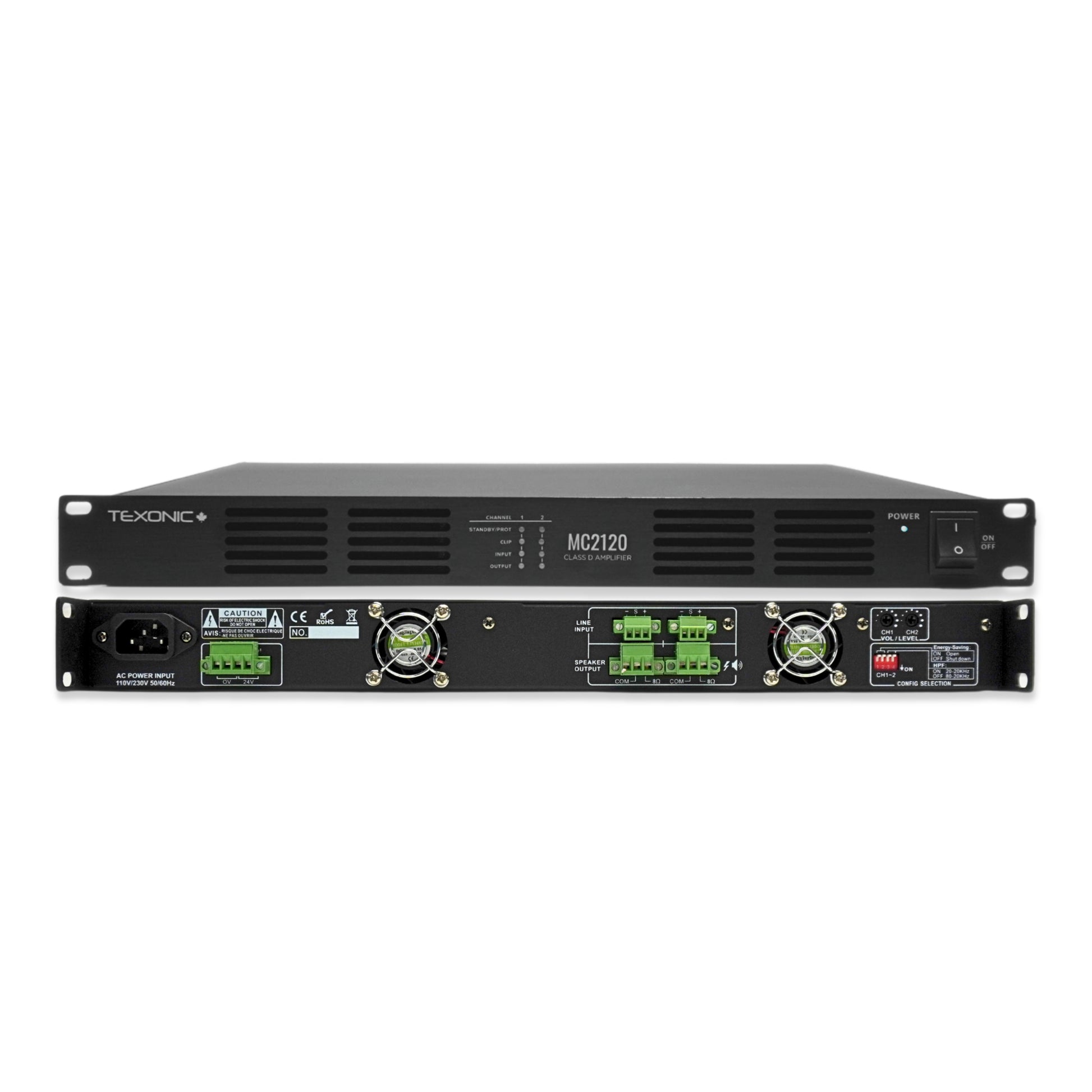

TEXONIC MC-2120 Digital Class-D Power Amplifier – 120W x 2, 70V/8Ω, High-Efficiency Dual-Channel Amplifier for Commercial Audio & Public Address Systems

TEXONIC MC-2120 Digital Class-D Power Amplifier – 120W x 2, 70V/8Ω, High-Efficiency Dual-Channel Amplifier for Commercial Audio & Public Address Systems

MC2120

$596.99 CAD
$596.99 CAD
Sale Sold out
Shipping calculated at checkout.
Digital Class-D Two-Channel Power Amplifier

TEXONIC MC-2120 2 × 120W Power Amplifier

The TEXONIC MC-2120 is a high-efficiency digital Class-D two-channel power amplifier designed for commercial audio, public address, paging, background music, and professional sound installations.

With 120W per channel, 70V and 8-ohm speaker output support, balanced Phoenix inputs, independent gain control, high-pass filter switching, auto standby, and 24V DC backup input, the MC-2120 is a practical choice for reliable business audio systems.

2 × 120W Output 70V / 8Ω Speaker Support Class-D Efficiency 24V DC Backup Input
Manual

Product Overview

The MC-2120 is designed for commercial and professional audio systems that need dependable two-channel power in a compact rack-mount format. It can be used for dual-zone audio, stereo speaker systems, distributed 70V speaker lines, or 8-ohm low-impedance speaker applications.

Its Class-D amplifier design helps reduce heat and power use, while protection circuits and LED status indicators help installers monitor system operation during everyday use.

Best For Retail stores, restaurants, offices, schools, churches, warehouses, public address systems, background music systems, and commercial AV installations.
System Fit Dual-channel 70V speaker systems or 8-ohm low-impedance speaker systems using balanced line-level audio input.

Key Features

  • Digital Class-D two-channel power amplifier
  • 120W per channel / 240W total rated output
  • Supports 70V high-impedance distributed speaker systems
  • Supports 8-ohm low-impedance speaker systems
  • High-efficiency design helps reduce heat and energy use

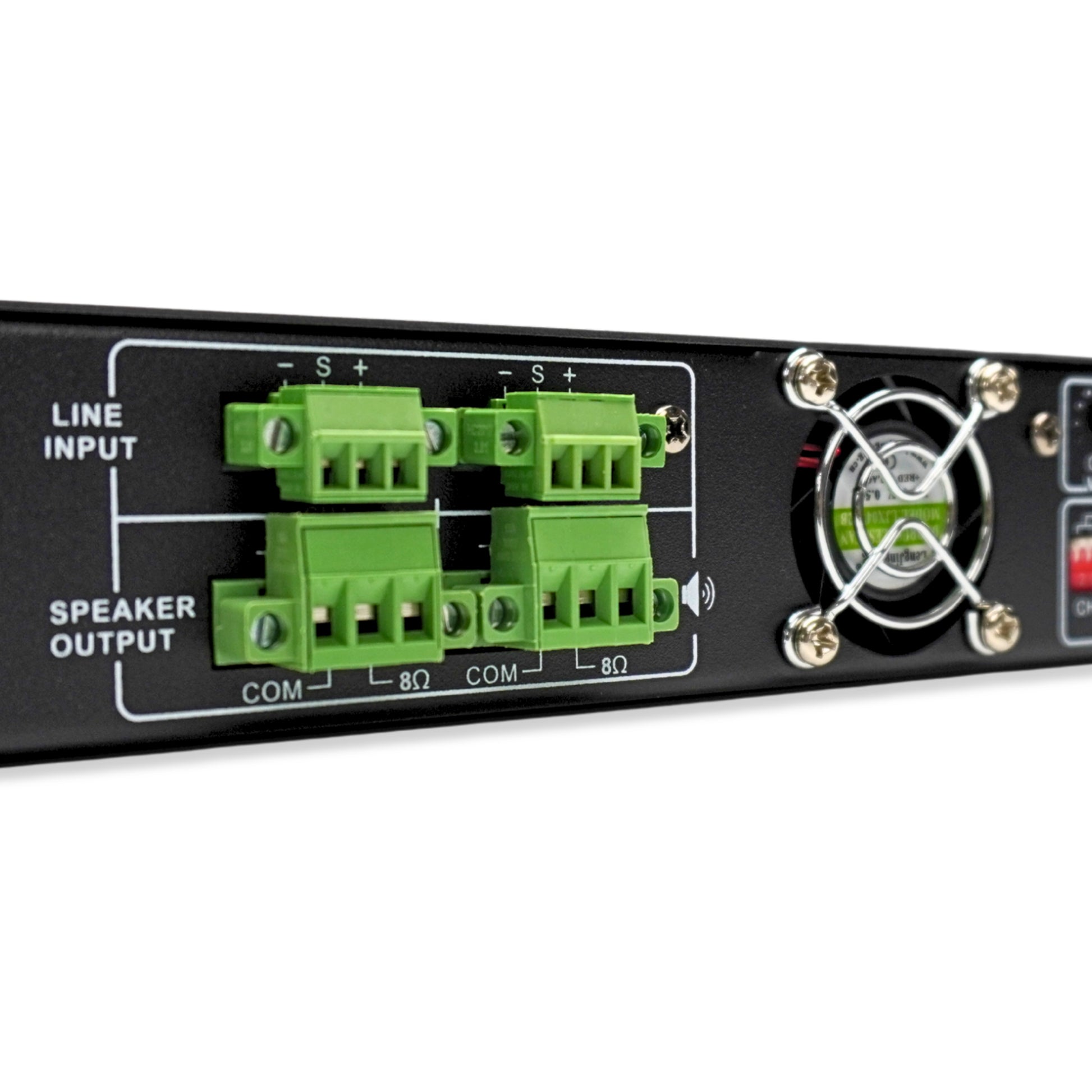

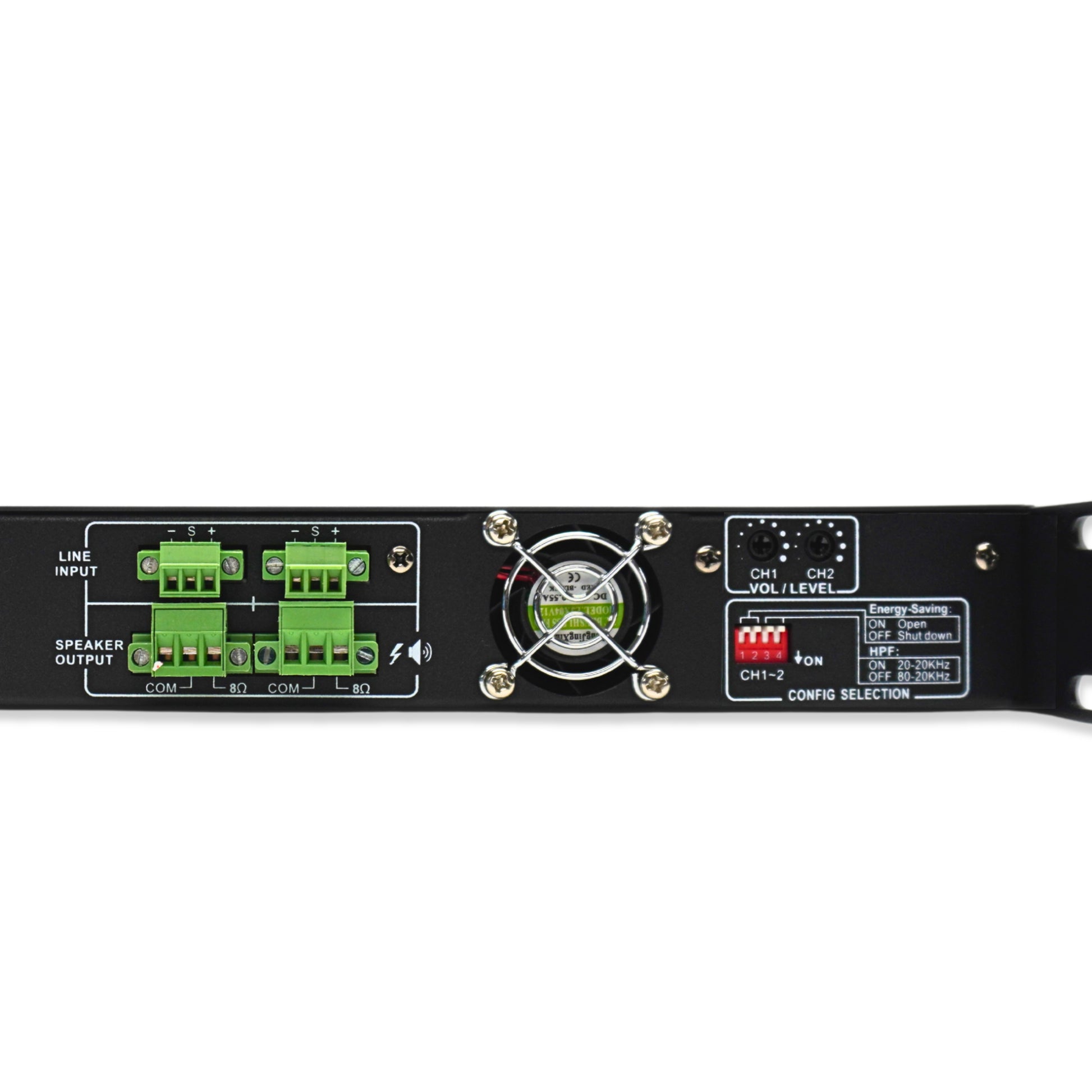

  • Balanced Phoenix line inputs for professional installation

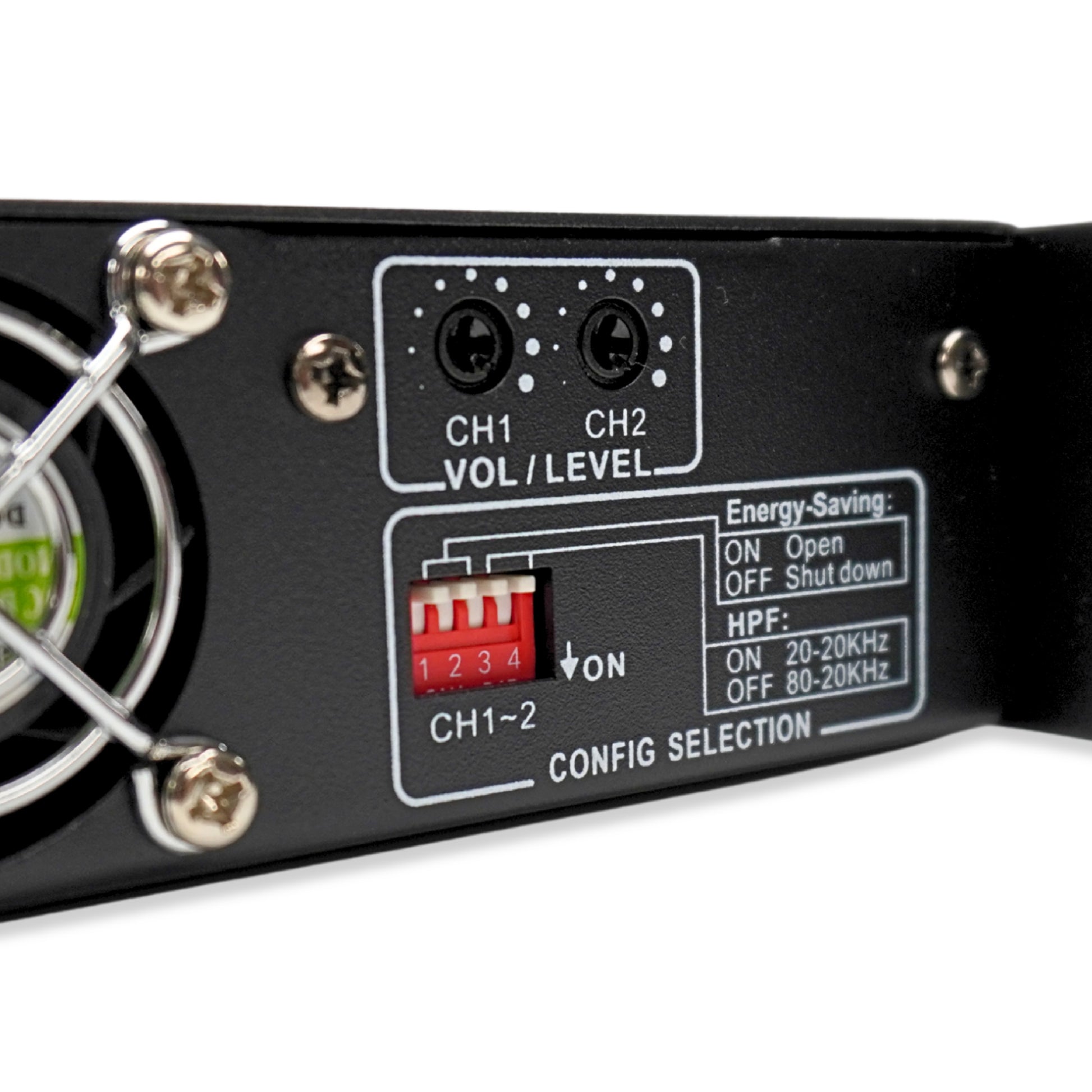

  • Independent gain control for each channel
  • Selectable high-pass filter for each channel
  • Auto standby mode helps reduce power use when no signal is detected

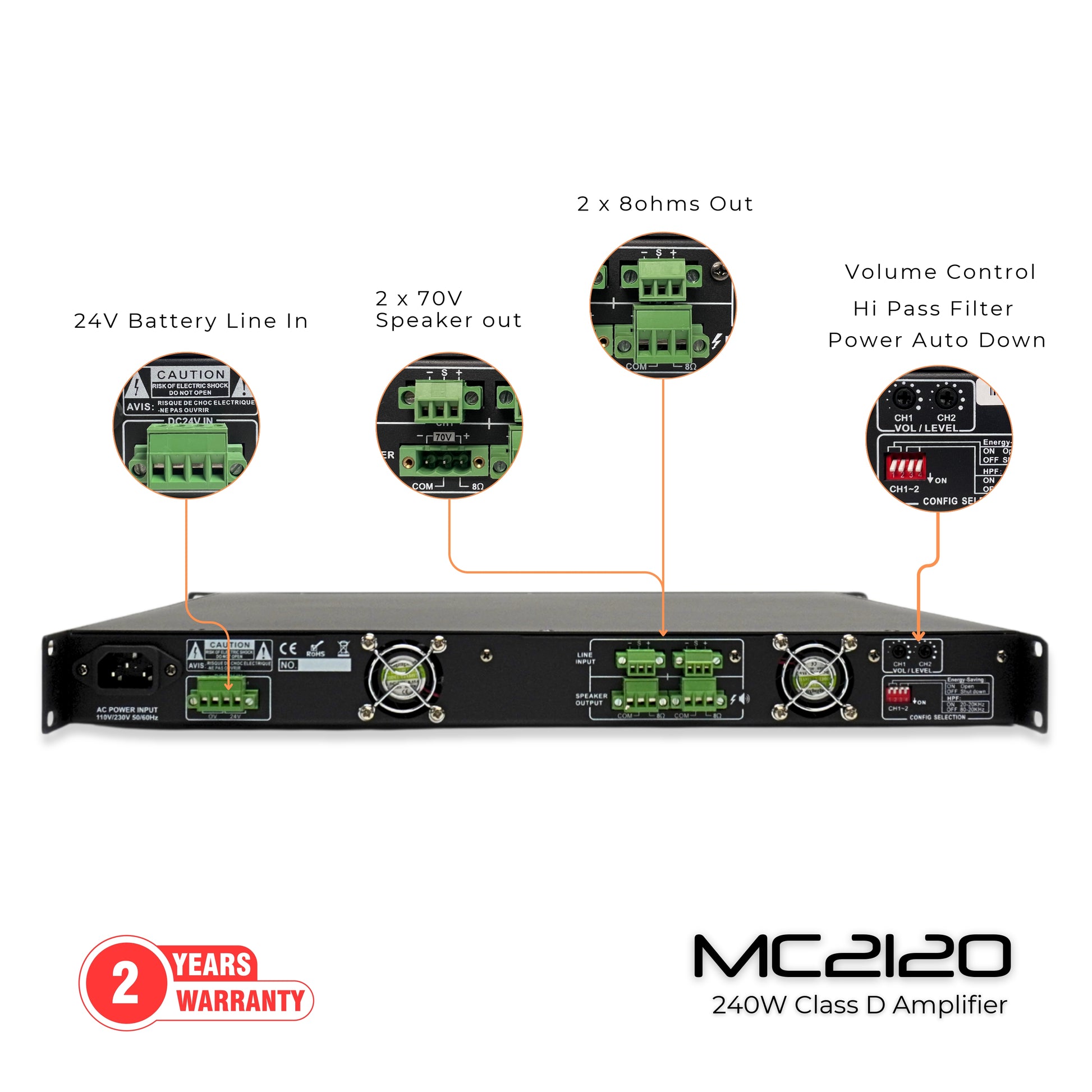

  • 24V DC backup input for emergency or backup power applications

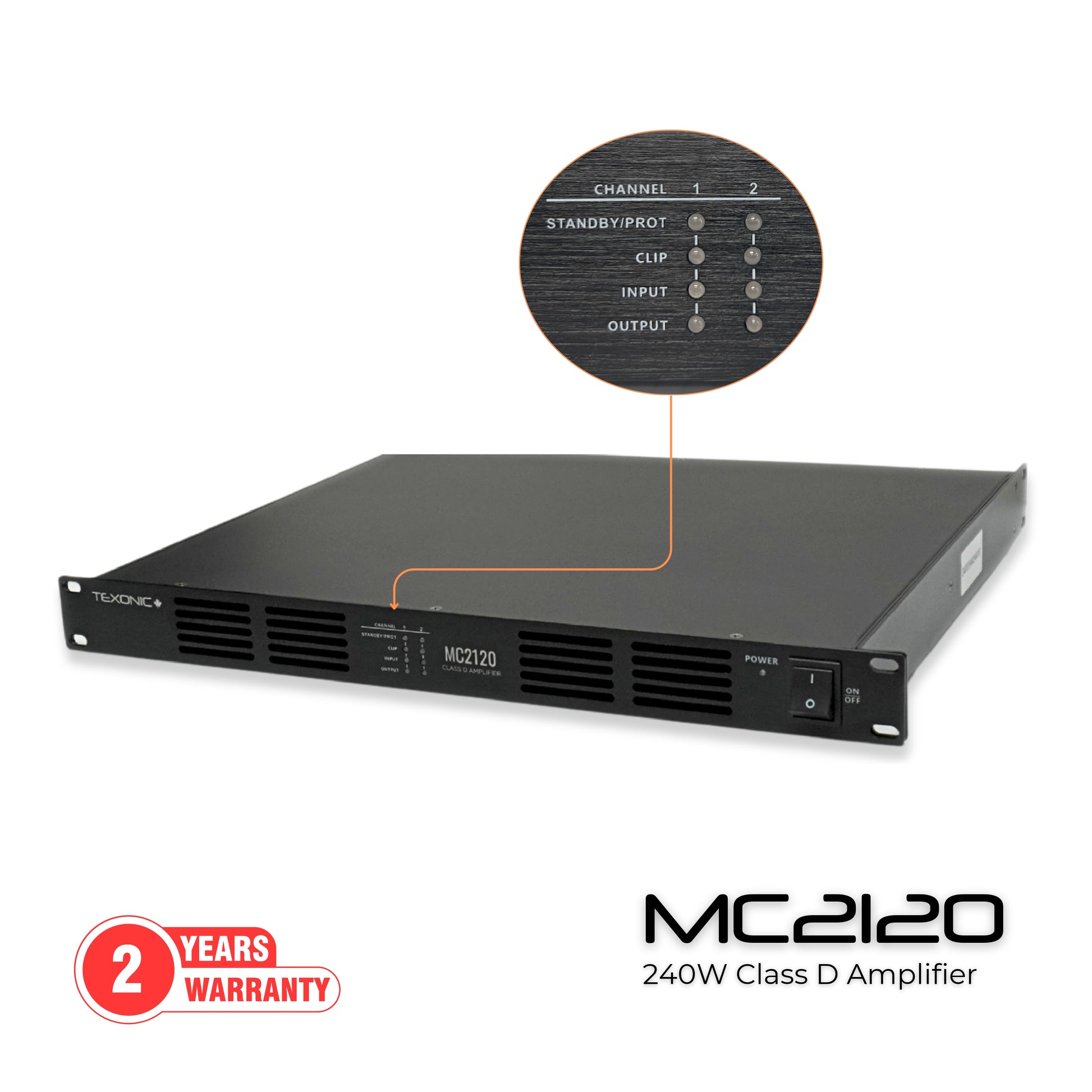

  • LED indicators for protection, clipping, input signal, output, and power status
  • Protection against short circuit, overload, high temperature, clip, and DC faults
  • Compact 19-inch rack-mountable design
  • Good for public address, paging, and background music systems

Specifications

Brand TEXONIC
Model / SKU MC-2120 / MC2120
Amplifier Type Digital Class-D two-channel power amplifier
Rated Power Output 2 × 120W
Speaker Outputs 8Ω and 70V
Input 0.775V, 0dBu, balanced Phoenix connector, 2 channels
Input Impedance 10kΩ
Frequency Response L/H Cut OFF: 20Hz – 20kHz, +1 / -2dB
High-Pass Filter Response L/H Cut ON: 70Hz – 10kHz, +1 / -3dB
THD <0.1% at 1kHz, -3dBv, 70W
Signal-to-Noise Ratio >80dB
Crosstalk >60dB at 1kHz, max output
Protection Short circuit, overload, high temperature, clip, and DC protection
Status Indicators Protection, clip, input signal, output, and power status
Power Consumption 300W

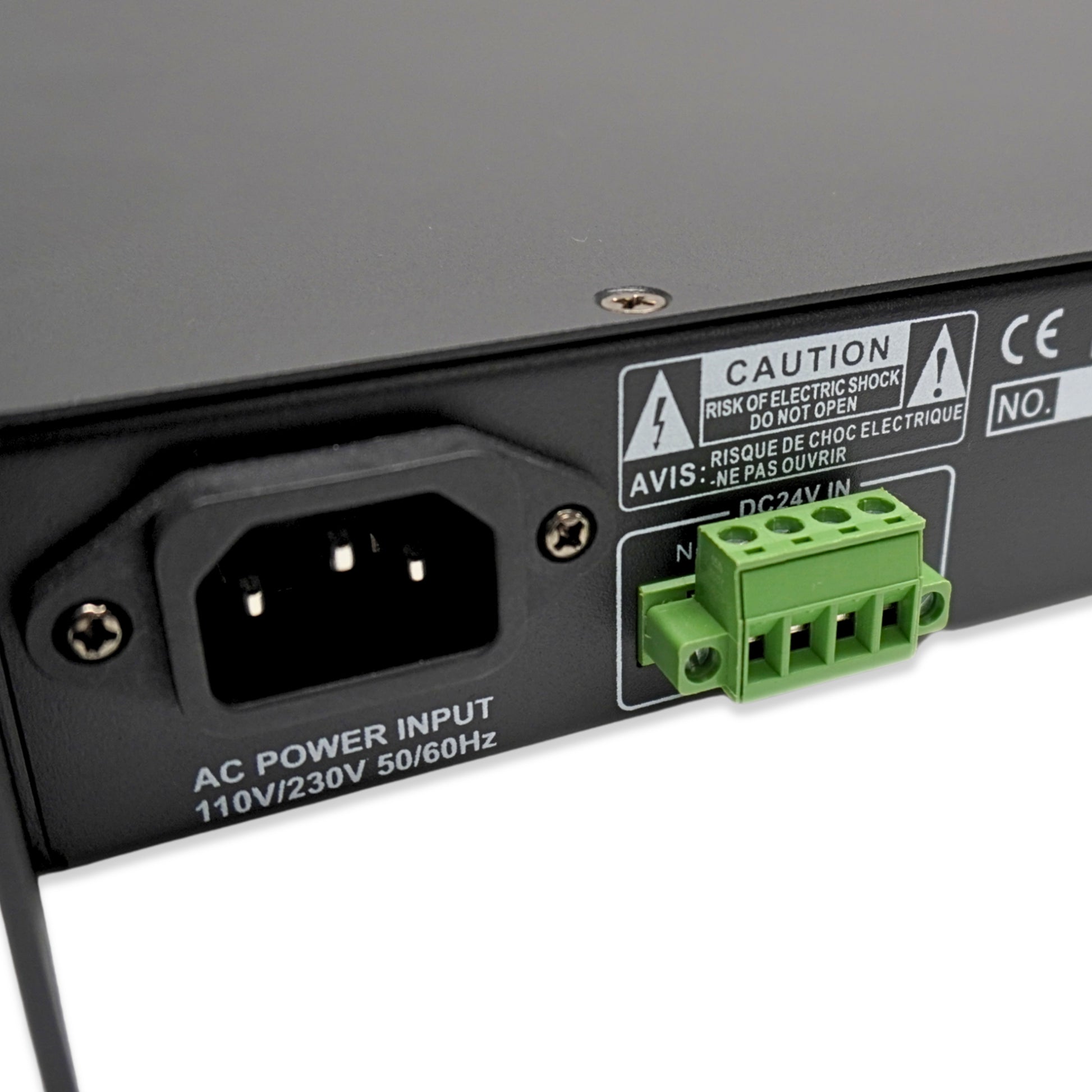

Power Supply 110VAC, 50–60Hz, with DC24V input

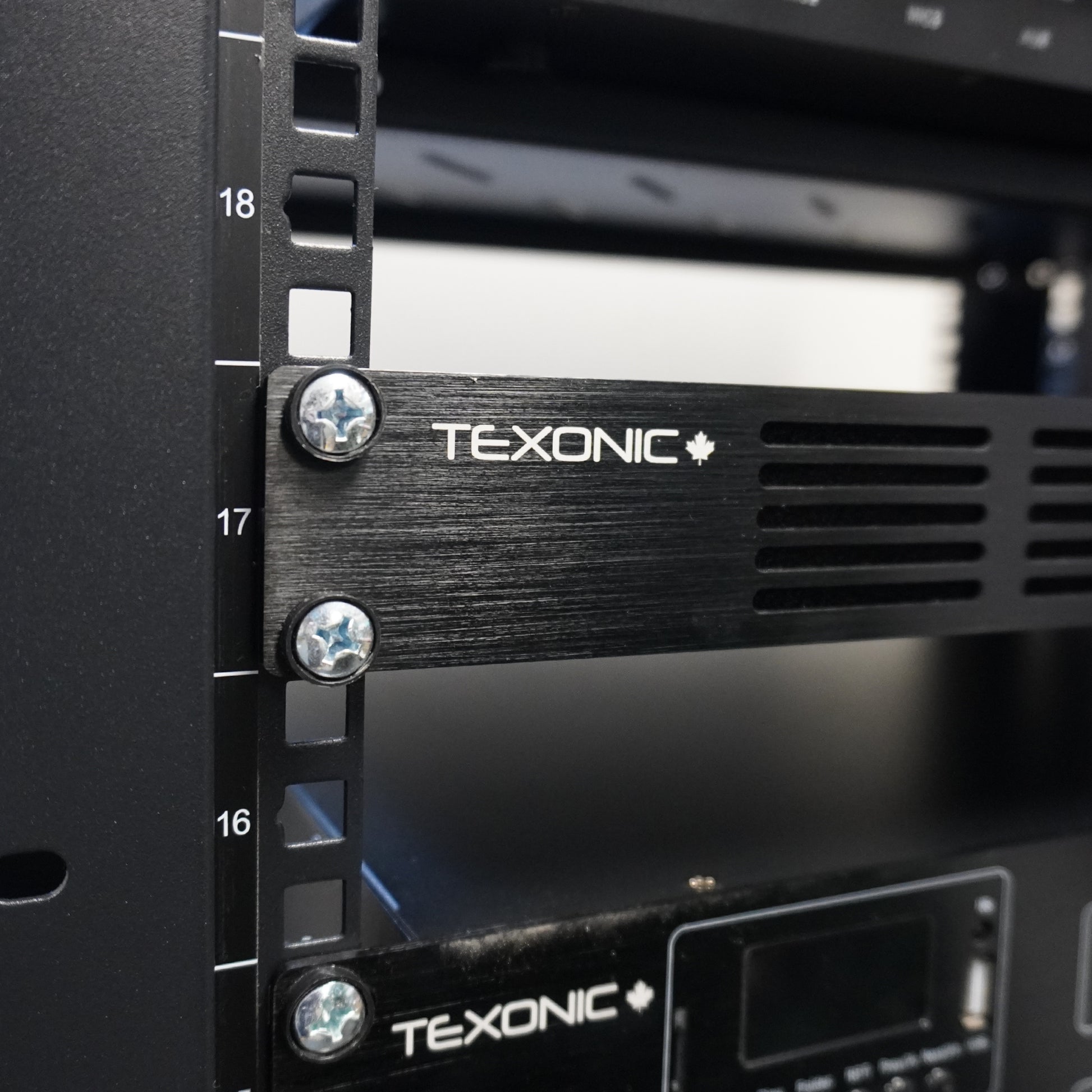

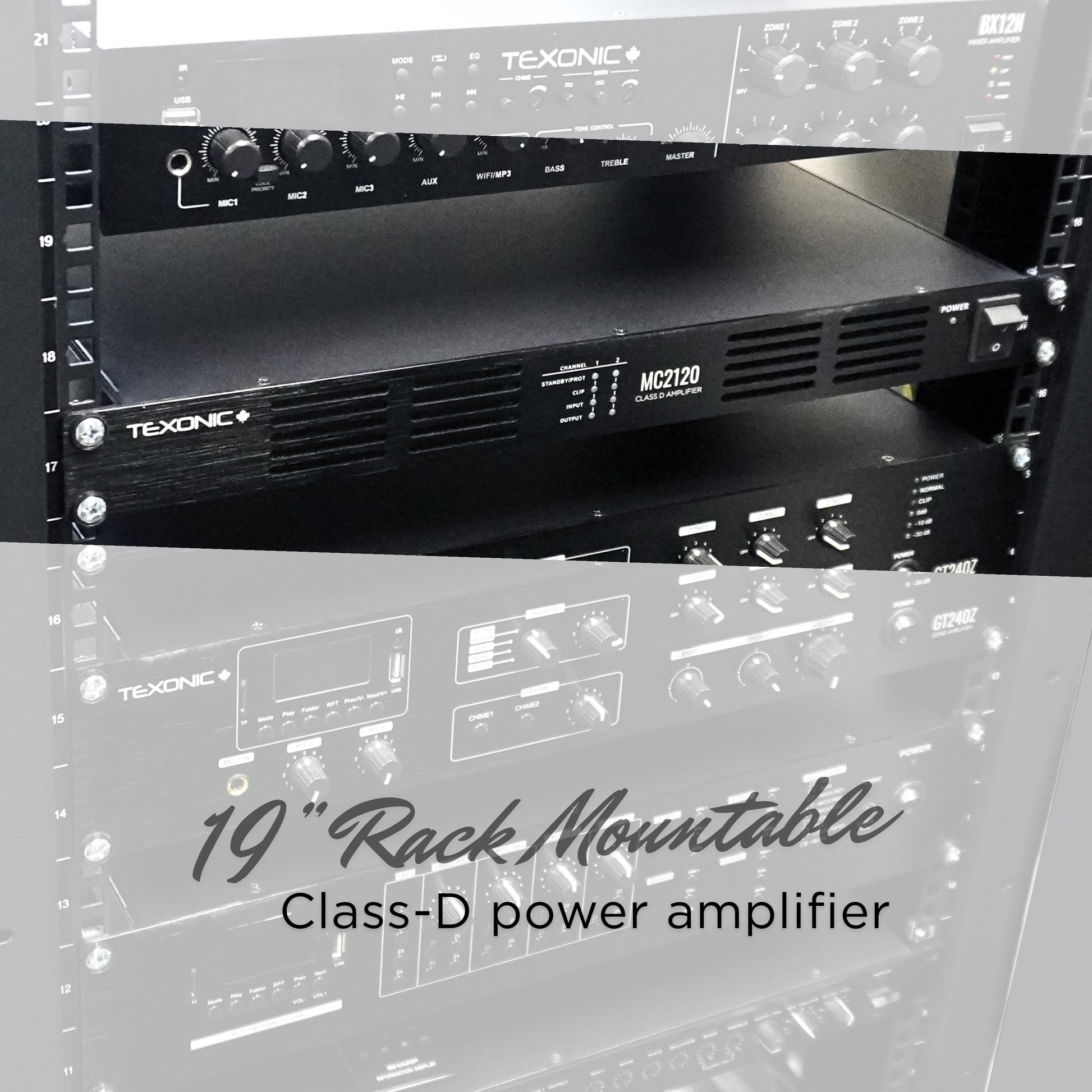

Mounting 19-inch rack-mountable chassis
Dimensions 48.2 × 42 × 4.4 cm / 18.97″ × 16.53″ × 1.73″
Weight 6.5 kg / 14.3 lb
Recommended Use Commercial audio, public address, paging, background music, and dual-zone sound systems
Connection Notice: Use the correct speaker output type for your system. Do not mix 70V distributed speaker wiring and 8-ohm speaker wiring on the same channel output. Keep speaker polarity consistent and confirm the total speaker load before powering the amplifier.

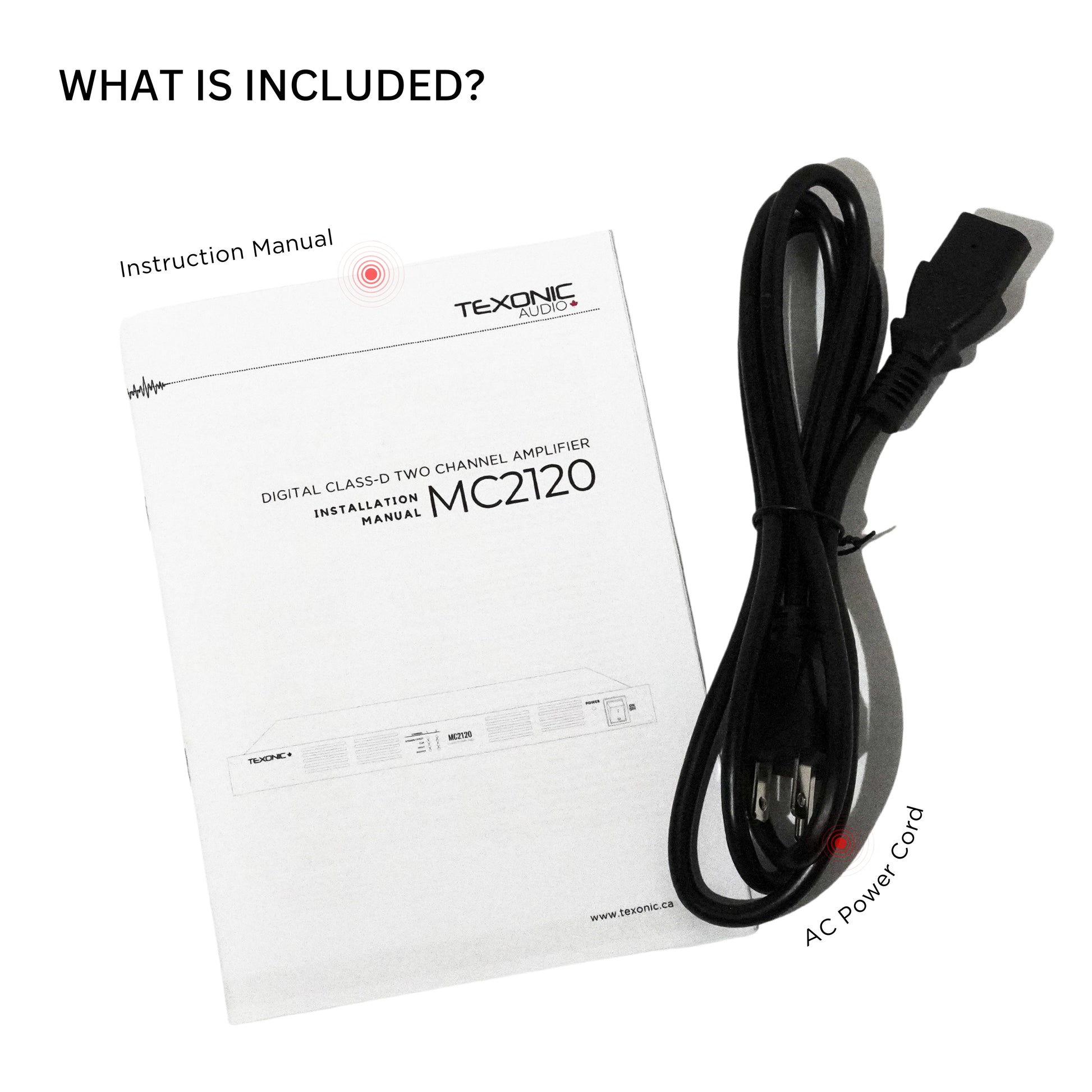

What’s Included

1 × TEXONIC MC-2120 digital Class-D power amplifier
AC power cord
User manual
Product Note: Product design, packaging, included accessories, features, and specifications may change without notice. Confirm speaker output type, speaker load, amplifier wiring, rack space, and installation requirements before installation.
