TEXONIC EX500D 500W 100V Commercial Mixer Amplifier

TEXONIC EX500D 500W 100V Commercial Mixer Amplifier

$764.99 CAD
$764.99 CAD
Sale Sold out
Shipping calculated at checkout.
High-Power Commercial Mixer Amplifier

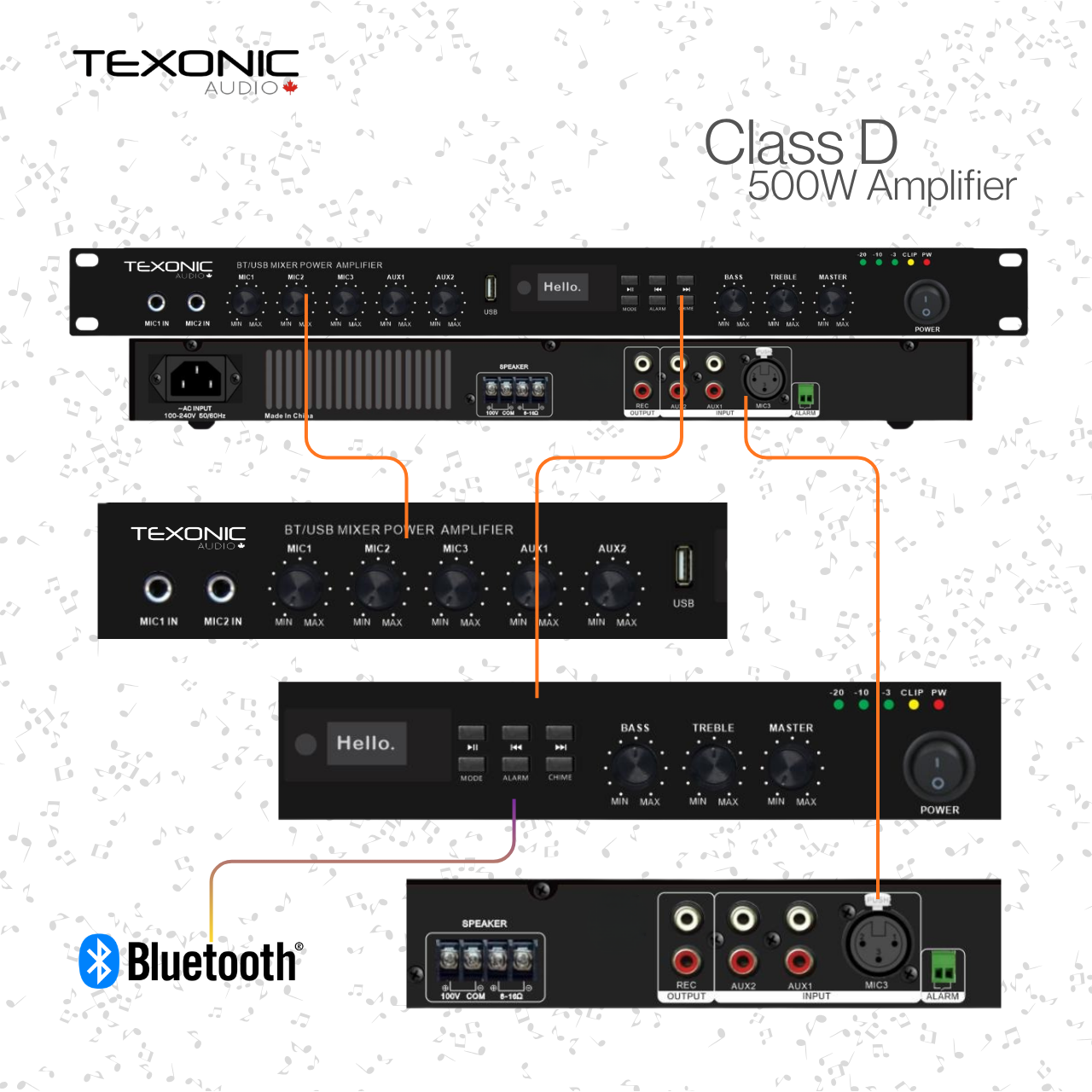

TEXONIC EX500D 500W 100V Mixer Amplifier

The TEXONIC EX500D is a high-power 500W Class-D mixer amplifier designed for commercial background music, paging, announcements, and public-address audio systems.

Its low-profile 1U rack-mount design makes it a strong choice for warehouses, gyms, banquet halls, schools, churches, large retail stores, restaurants, and public facilities.

500W Output 100V Speaker Lines Bluetooth + USB 1U Rack Mount
Manual

Product Overview

The EX500D is designed for larger commercial sound systems that need reliable music playback, microphone paging, chime tones, alarm tones, and strong 100V speaker output in one compact amplifier.

With 500W Class-D output power, support for 100V commercial speaker lines, and 8–16 ohm low-impedance output, the EX500D is suitable for larger business audio systems that need more amplifier headroom than smaller mixer amplifiers.

Best For Warehouses, gyms, banquet halls, schools, churches, large retail stores, restaurants, public facilities, and commercial paging systems.
System Fit Larger 100V speaker layouts, paging horn systems, background music systems, and rack-mounted commercial AV installations.

Key Features

  • 500W Class-D output power for larger commercial audio systems
  • 1U 19-inch rack-mount chassis
  • Supports 100V constant-voltage speaker systems
  • Supports 8–16 ohm low-impedance speaker output
  • Bluetooth playback for wireless audio streaming
  • USB playback for simple media use
  • 3 microphone inputs for paging and announcements
  • 2 AUX line inputs and 1 line-level output
  • Built-in chime and alarm tones
  • Priority override: Alarm → Mic 1 → Mic 2 / Mic 3 / AUX
  • Bass, treble, and master volume controls
  • Designed for background music, paging, and public-address systems
  • Short-circuit, overload, and high-temperature protection
  • Good option when smaller amplifiers do not provide enough headroom

Specifications

Brand TEXONIC
Model / SKU EX500D
Amplifier Type Class-D commercial mixer amplifier
Rated Output 500W
Low-Impedance Output 8–16Ω, 500W
100V Output Load 21Ω
Speaker Outputs 100V constant-voltage lines and 8–16Ω low-impedance output
Playback Bluetooth and USB playback
Microphone Inputs 3 microphone inputs: Mic 1 / Mic 2 unbalanced and Mic 3 balanced
AUX Inputs / Line Output 2 AUX inputs and 1 line-level output
Priority Override Alarm → Mic 1 → Mic 2 / Mic 3 / AUX
Frequency Response 60 Hz – 20 kHz ±3 dB
THD <0.5% at 1 kHz, 1/3 rated power
Signal-to-Noise Ratio >80 dB line, >65 dB microphone
Tone Controls Bass 100 Hz ±10 dB, treble 10 kHz ±10 dB
Protection Short-circuit, overload, and high-temperature protection
Power Supply AC 100–240V, 50–60 Hz
Power Consumption 720W
Product Size 18.9″ × 11.02″ × 1.77″ / 480 × 280 × 45 mm
Package Size 20.28″ × 14.96″ × 3.94″ / 515 × 380 × 100 mm
Net / Gross Weight 7.5 lb / 3.4 kg net, 9.5 lb / 4.3 kg gross
Connection Notice: Use only one speaker output type at a time. Do not combine 100V and 8–16Ω speaker outputs together. Incorrect wiring may damage the amplifier or connected speakers.

What’s Included

TEXONIC EX500D 500W mixer amplifier
Remote control
AC power cord
Speaker connector
Alarm Trigger Connector
Antenna Connector
Product Note: Product design and specifications may change without notice.
