TEXONIC EX350D Gym Sound System with 8 CS75 Wall Speakers

TEXONIC EX350D Gym Sound System with 8 CS75 Wall Speakers

TXOW08-2

$1,449.99 CAD
$1,449.99 CAD
Sale Sold out
Shipping calculated at checkout.
Larger Gym & Fitness Audio Package

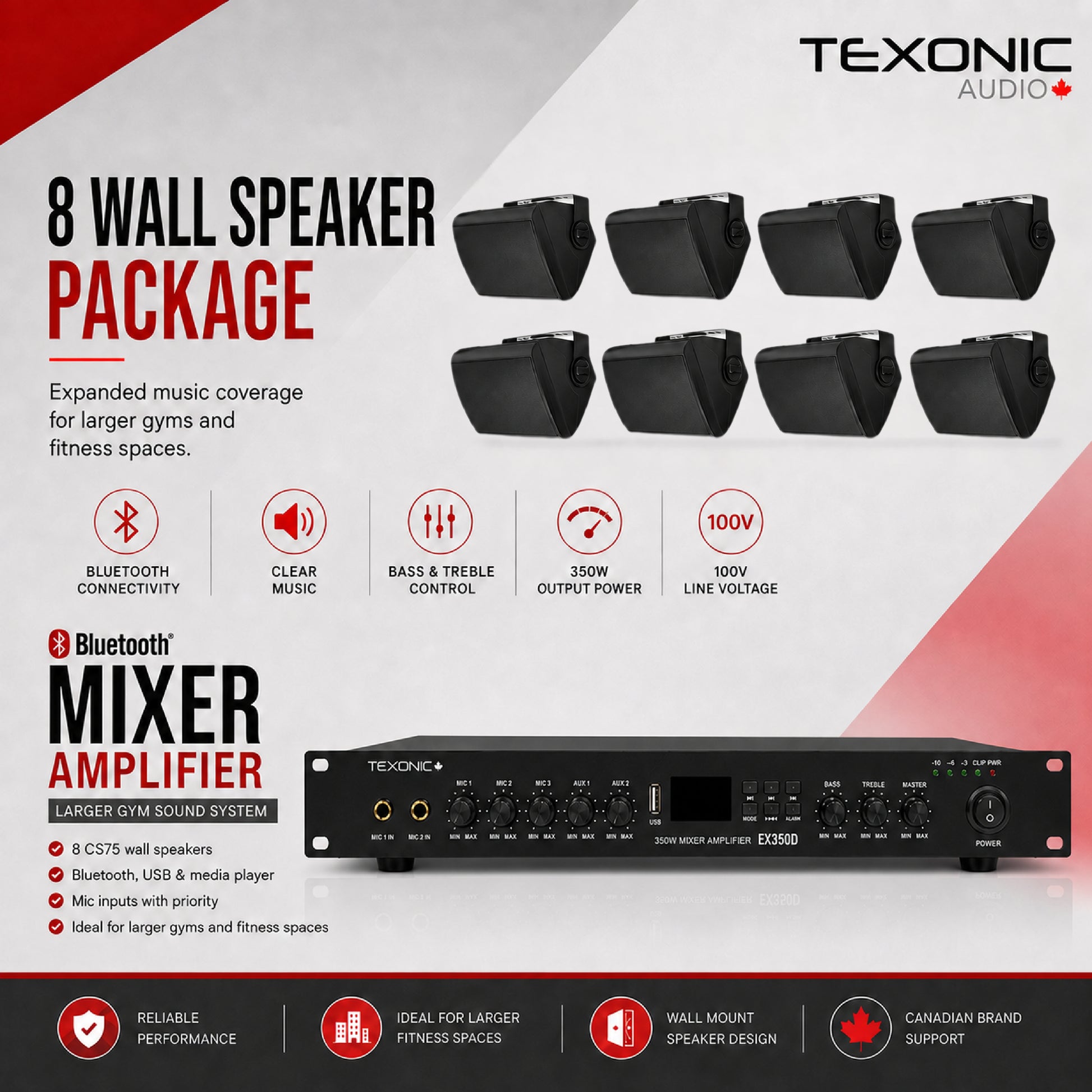

TEXONIC EX350D Gym Sound System with 8 CS75 Wall Speakers

The TEXONIC EX350D Gym Sound System is a complete commercial audio package designed for larger gyms, fitness studios and training spaces that need clear, evenly distributed music from multiple wall-mounted speakers.

The system combines the 350W TEXONIC EX350D mixer amplifier with eight CS75 5.25-inch 2-way wall speakers. Bluetooth and USB playback make everyday music simple, while microphone inputs allow the same system to handle announcements and general paging when required.

350W EX350D Amplifier 8 × CS75 Wall Speakers Bluetooth + USB Playback 100V Distributed Audio

More Coverage for Larger Fitness Spaces

Larger gyms can be difficult to cover properly with only a few speakers. This package uses eight wall-mounted CS75 speakers to distribute music around the room instead of relying on one or two speakers playing at high volume.

The CS75 adjustable wall bracket allows each speaker to be aimed toward workout areas, cardio equipment, training areas and other listening zones. This makes the package particularly useful for gyms with open ceilings or spaces where installing ceiling speakers is not practical.

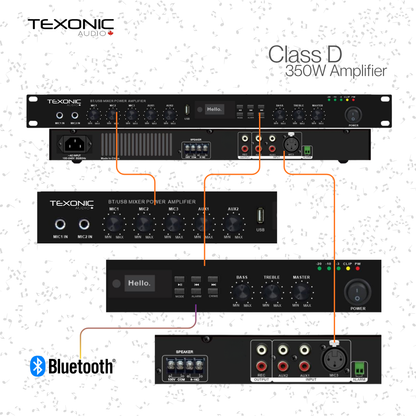

The EX350D provides 350W of commercial amplification along with Bluetooth and USB playback, microphone connectivity and tone controls in one compact system.

Best Fit Larger gyms and fitness studios, cardio and weight-training areas, group fitness and exercise rooms, training facilities, recreation centres, open-ceiling commercial spaces, and facilities needing wider speaker distribution.
System Approach Eight distributed wall speakers, 350W commercial mixer amplifier, 100V commercial speaker wiring, Bluetooth and USB music playback, microphone inputs for announcements, adjustable bass and treble, and amplifier capacity left available.
Room Planning: Coverage depends on room size, ceiling height, speaker placement, room acoustics and the music level required. Very large gyms or high-energy fitness facilities may require additional speakers, more amplifier power or supplemental bass.

Key Features

  • Complete amplifier and eight-speaker gym audio package
  • 350W TEXONIC EX350D commercial mixer amplifier
  • Eight TEXONIC CS75 5.25-inch 2-way wall speakers
  • 100V distributed audio for multi-speaker installations
  • Bluetooth wireless music playback
  • USB media playback
  • Microphone inputs for announcements and paging
  • External audio inputs for additional music sources
  • Bass, treble and master volume controls
  • Wide 120° CS75 speaker coverage
  • Adjustable wall brackets for flexible speaker aiming
  • 92dB CS75 speaker sensitivity
  • Designed for larger commercial fitness spaces

System Specifications

Brand TEXONIC
Package SKU TXOW08-2
Package Type Commercial gym and fitness sound system
Amplifier TEXONIC EX350D
Amplifier Output 350W rated output
Speaker System 100V distributed audio
Speaker Model TEXONIC CS75
Speaker Quantity 8
Recommended Speaker Tap 30W per CS75 at 100V
Total Connected Speaker Load 240W
Amplifier Capacity Remaining 110W / approximately 31%
Music Sources Bluetooth, USB and external audio sources
Speaker Type 5.25-inch 2-way wall-mount speaker
Speaker Frequency Response 60Hz – 20kHz (-10dB)
Speaker Sensitivity 92dB at 1W / 1m
Speaker Coverage 120° wide coverage
CS75 100V Tap Options 3.75W, 7.5W, 15W and 30W
Speaker Mounting Adjustable wall-mount bracket
Recommended Applications Larger gyms, fitness studios, training facilities and recreation spaces
Product Condition Brand new
Warranty 2-year manufacturing warranty listed for TEXONIC products
Connection Notice: Wire the eight CS75 speakers in parallel using the EX350D's 100V and COM speaker-line connections with consistent polarity. Do not combine the 100V speaker system with a low-impedance speaker connection on the same amplifier output.

Recommended 100V Speaker Load

For this package, each CS75 speaker can be set to its 30W / 100V tap.

8 speakers × 30W = 240W total speaker load

350W amplifier − 240W speaker load = 110W remaining

This configuration uses approximately 69% of the EX350D's rated output and leaves approximately 31% amplifier capacity available.

CS75 Tap 8-Speaker Load Typical Use
7.5W 60W total Lower-level background music
15W 120W total Moderate background music
30W 240W total Recommended starting point for this gym package
Important: Wire the eight CS75 speakers in parallel using the EX350D's 100V and COM speaker-line connections with consistent polarity. Do not combine the 100V speaker system with a low-impedance speaker connection on the same amplifier output.
Final setup note: Final speaker tap settings should be selected based on the room, speaker placement and required listening level. Turn the amplifier off before connecting speakers or changing transformer tap settings.

What’s Included

1 × TEXONIC EX350D 350W mixer amplifier
8 × TEXONIC CS75 5.25-inch wall speakers
8 × CS75 adjustable wall brackets
EX350D remote control
EX350D AC power cord
EX350D terminal connector
EX350D setup screwdriver
EX350D user manual access
CS75 user manual access
Installation Planning: Speaker cable length and mounting requirements vary by building and room layout. Choose suitable commercial speaker cable and mounting hardware for the installation.
