CLS-530 5.25″ 40W 70V/100V/8Ω Landscape Speaker

CLS-530 5.25″ 40W 70V/100V/8Ω Landscape Speaker

CLS-530W

$239.89 CAD
$239.89 CAD
Sale Sold out
Shipping calculated at checkout.
Select Colour: White
Outdoor Landscape Speaker

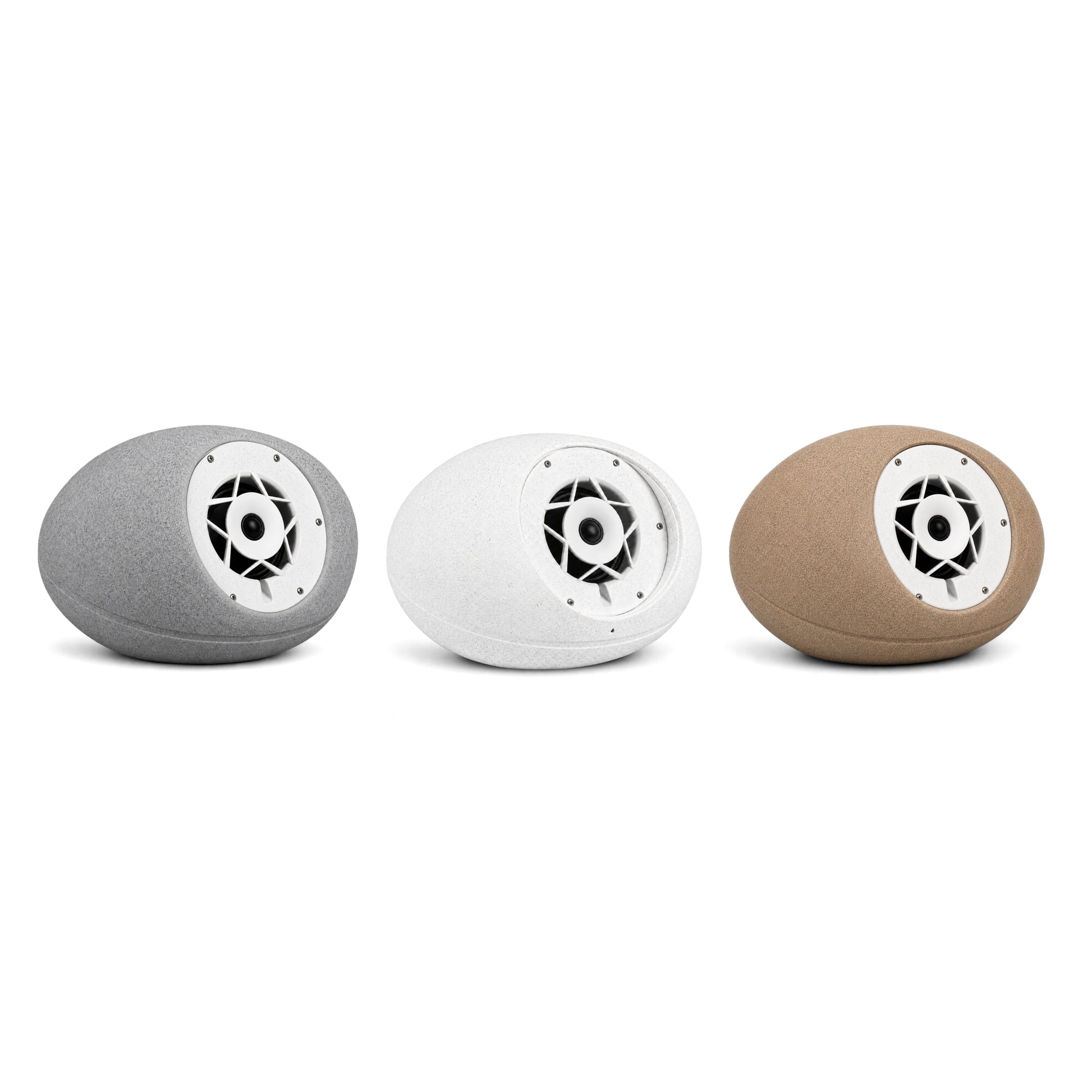

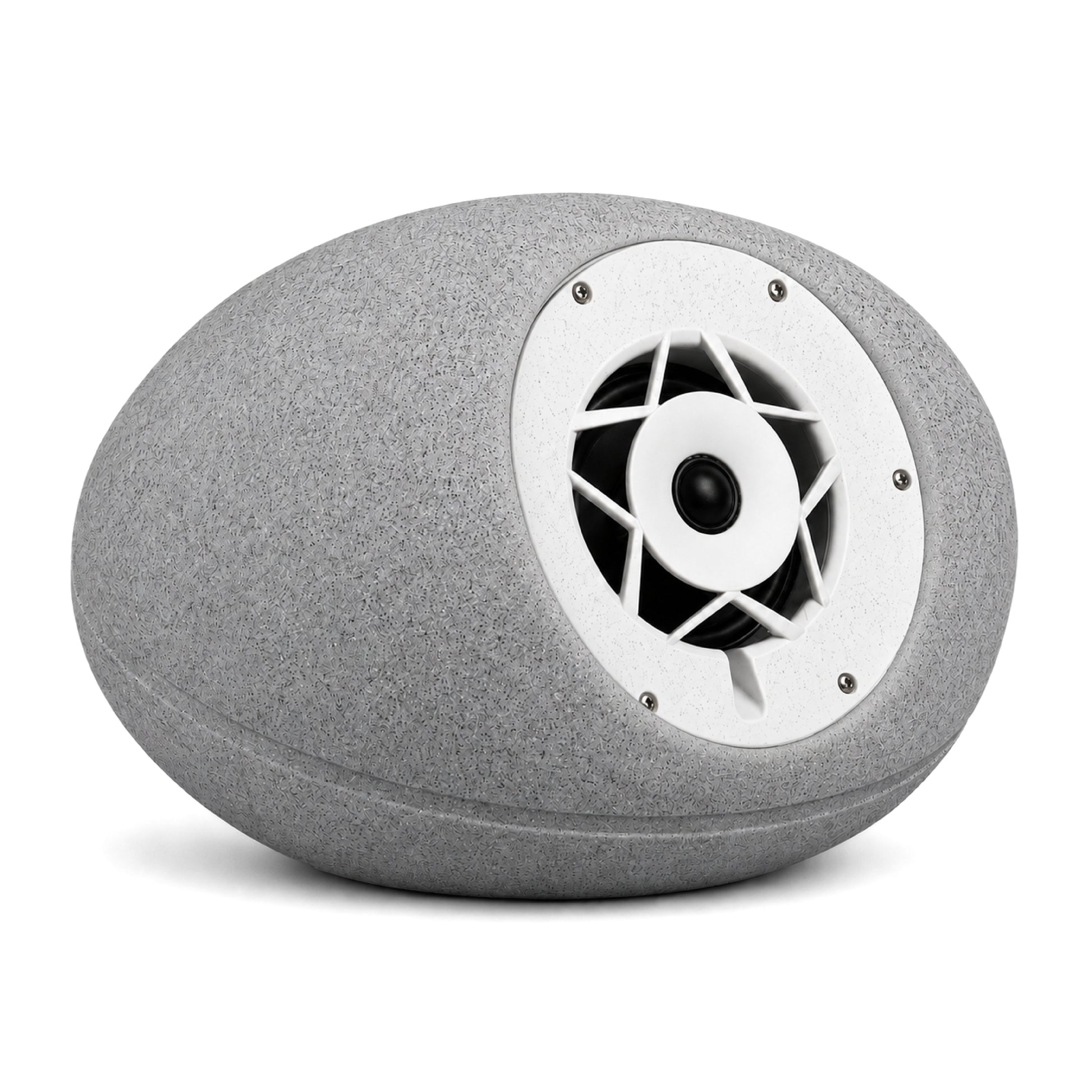

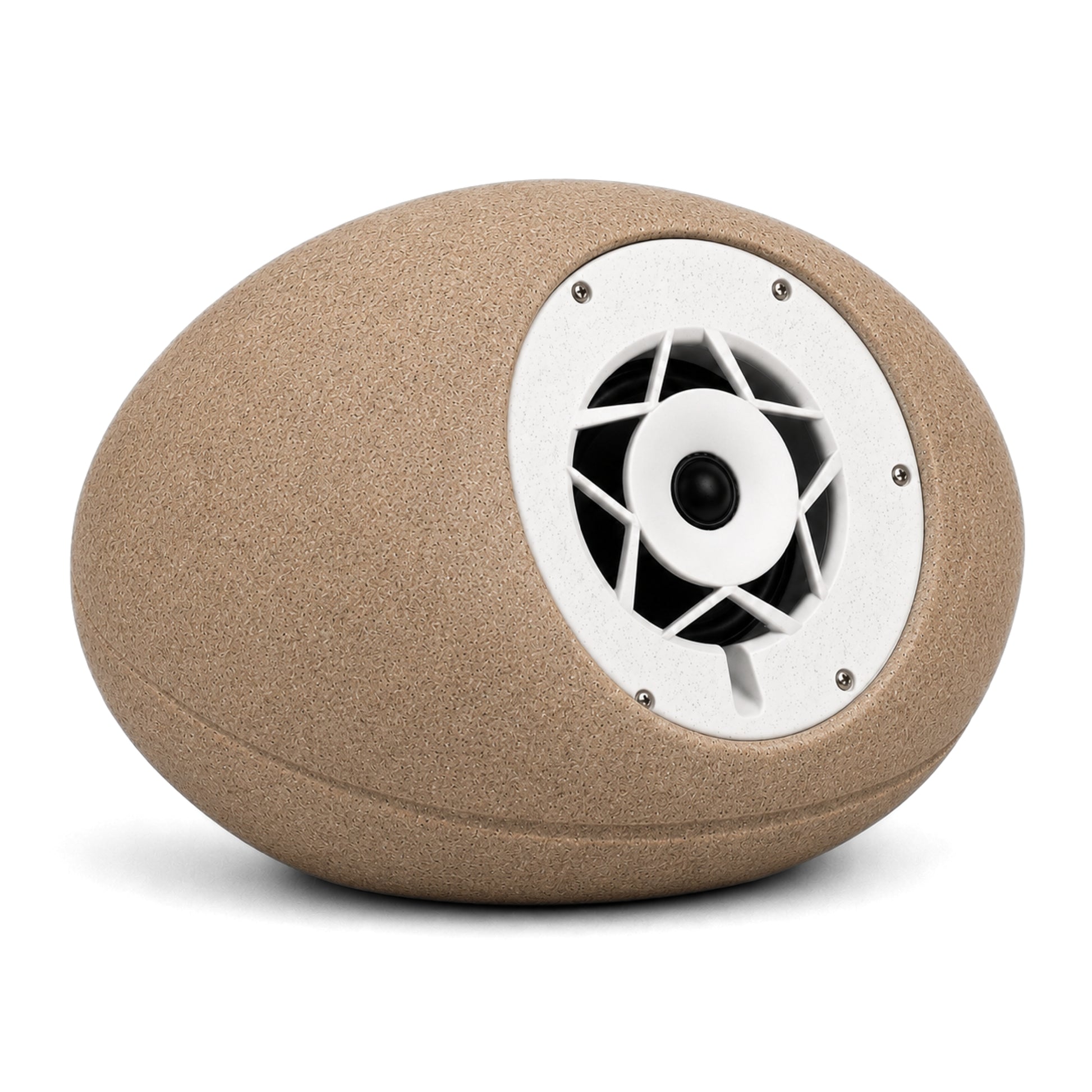

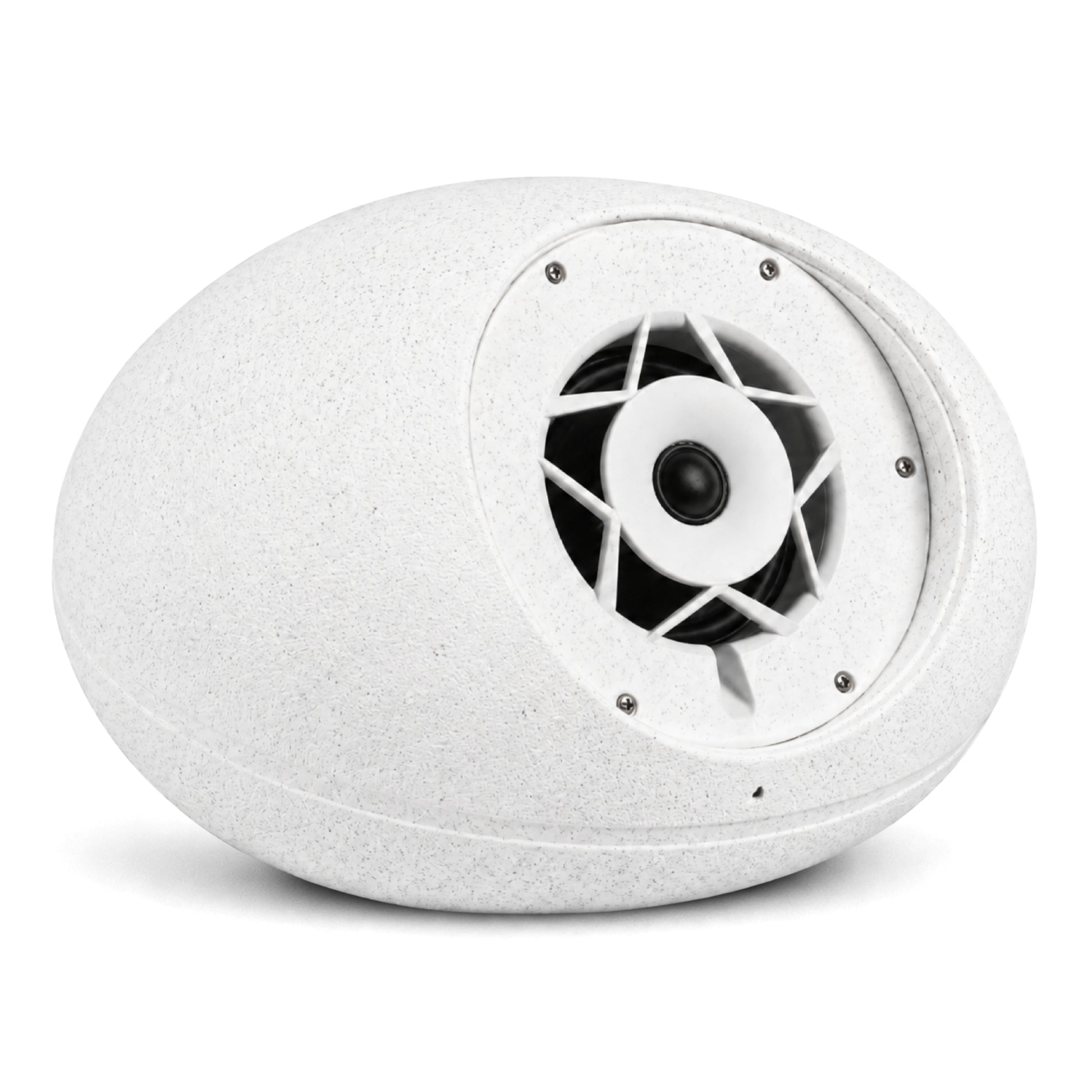

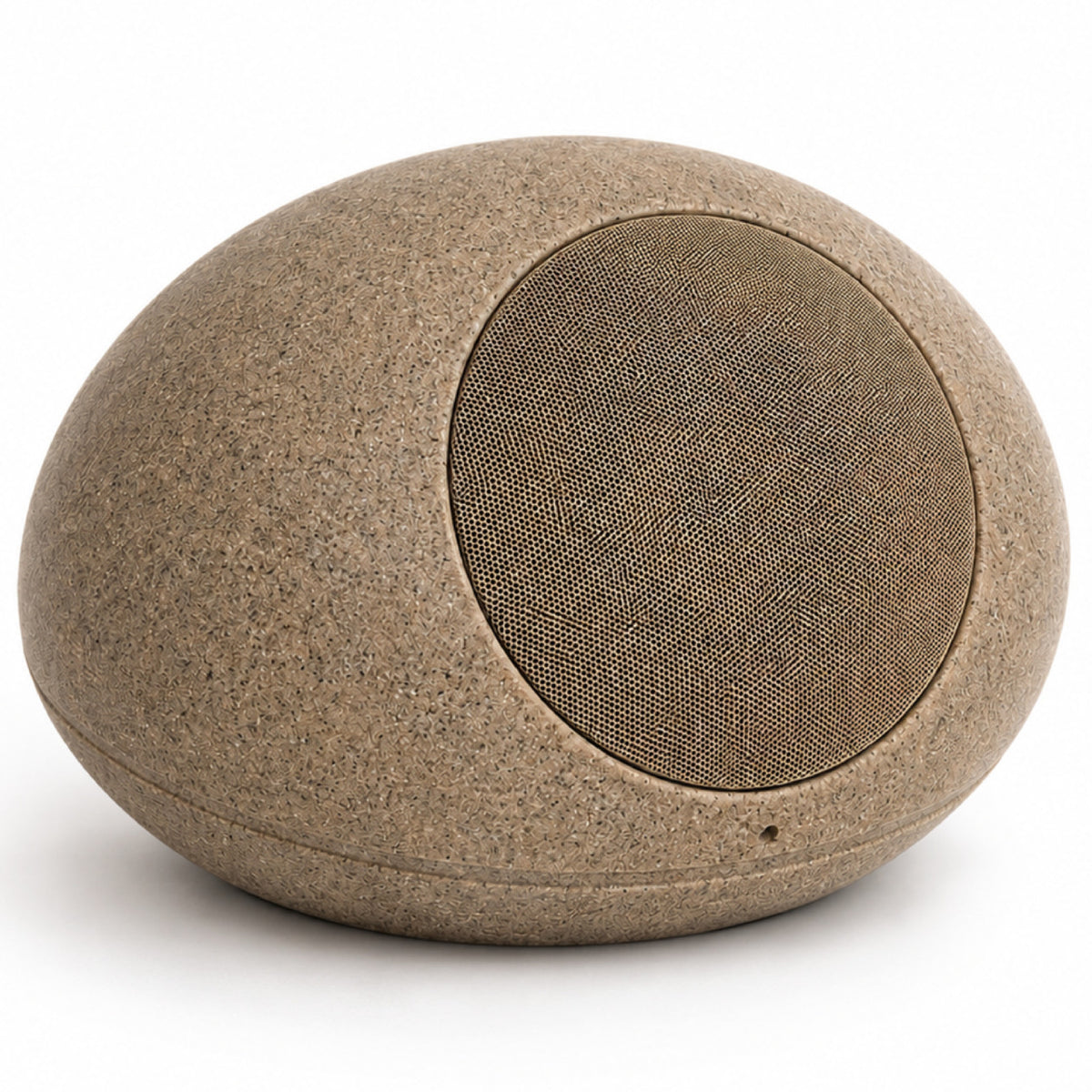

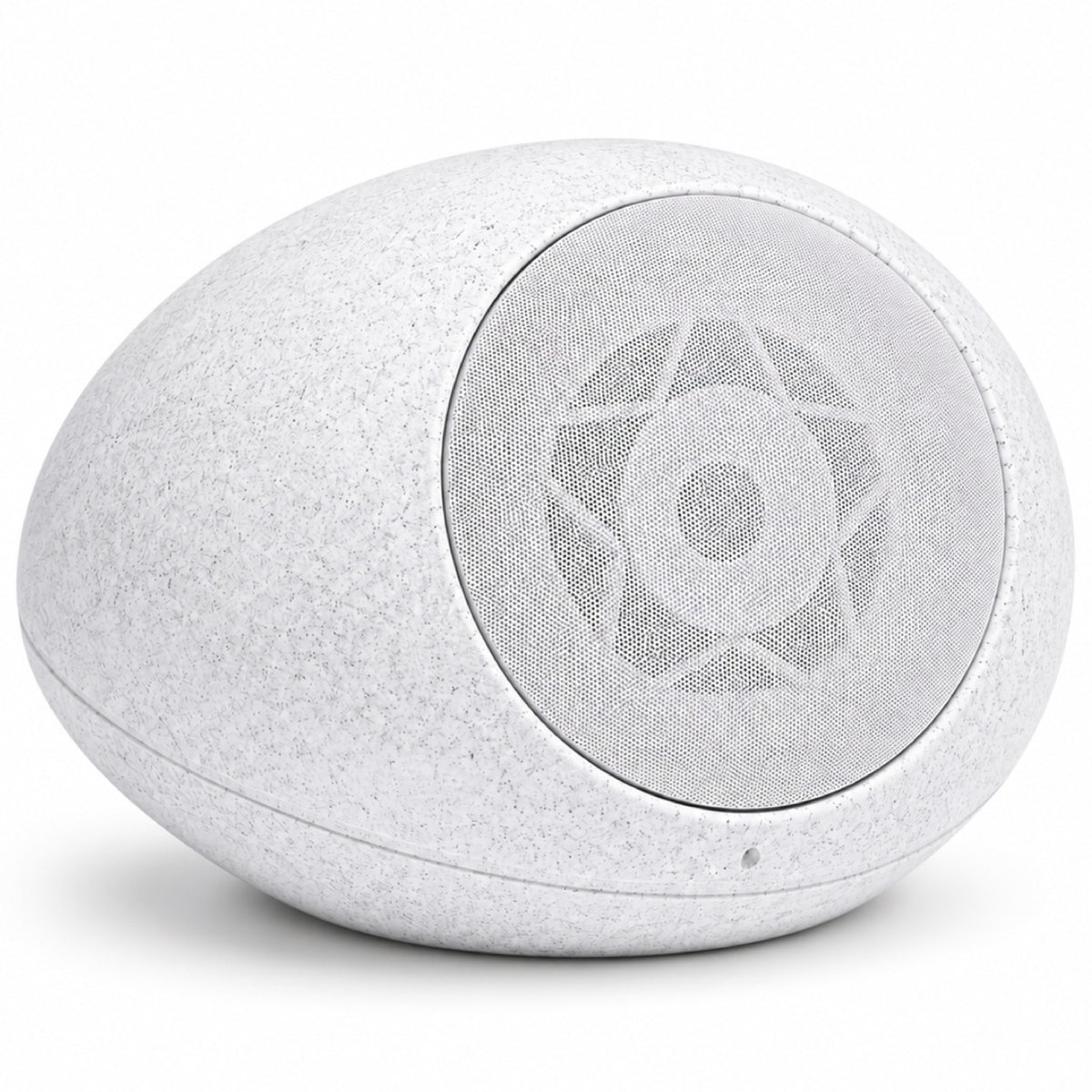

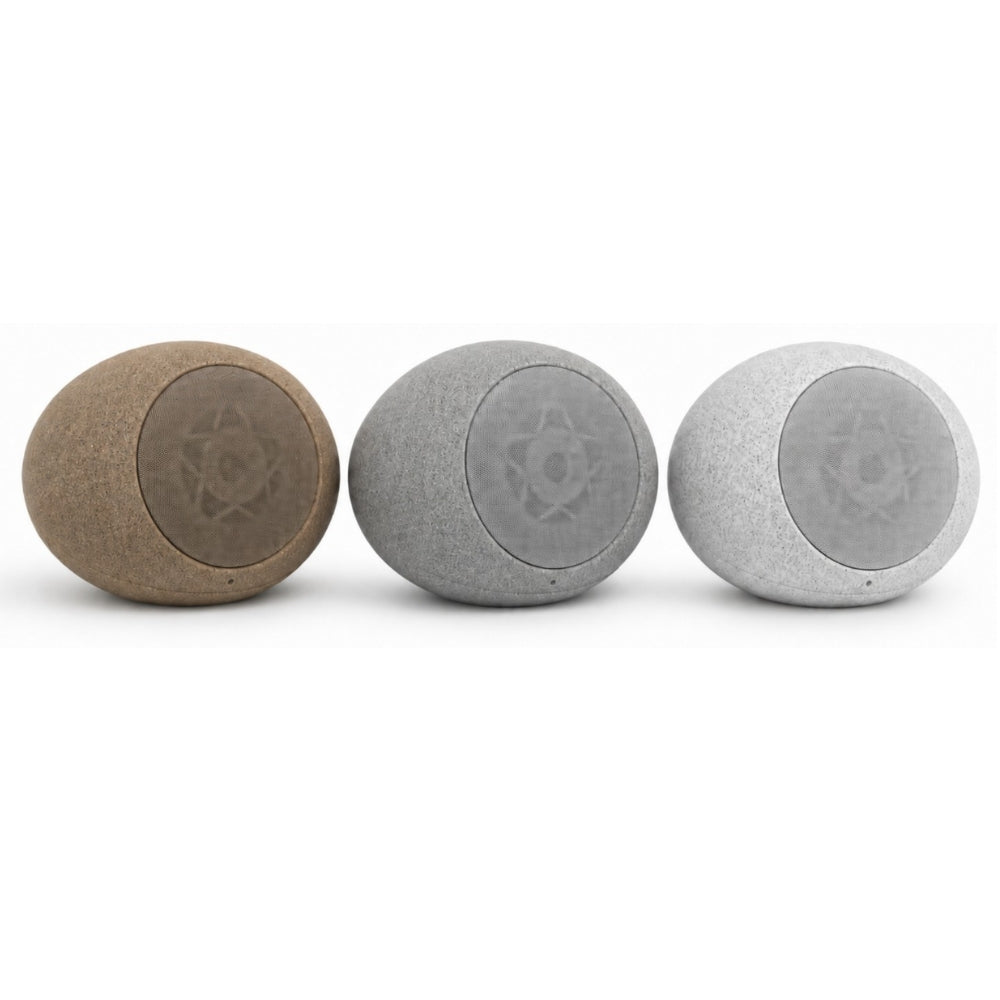

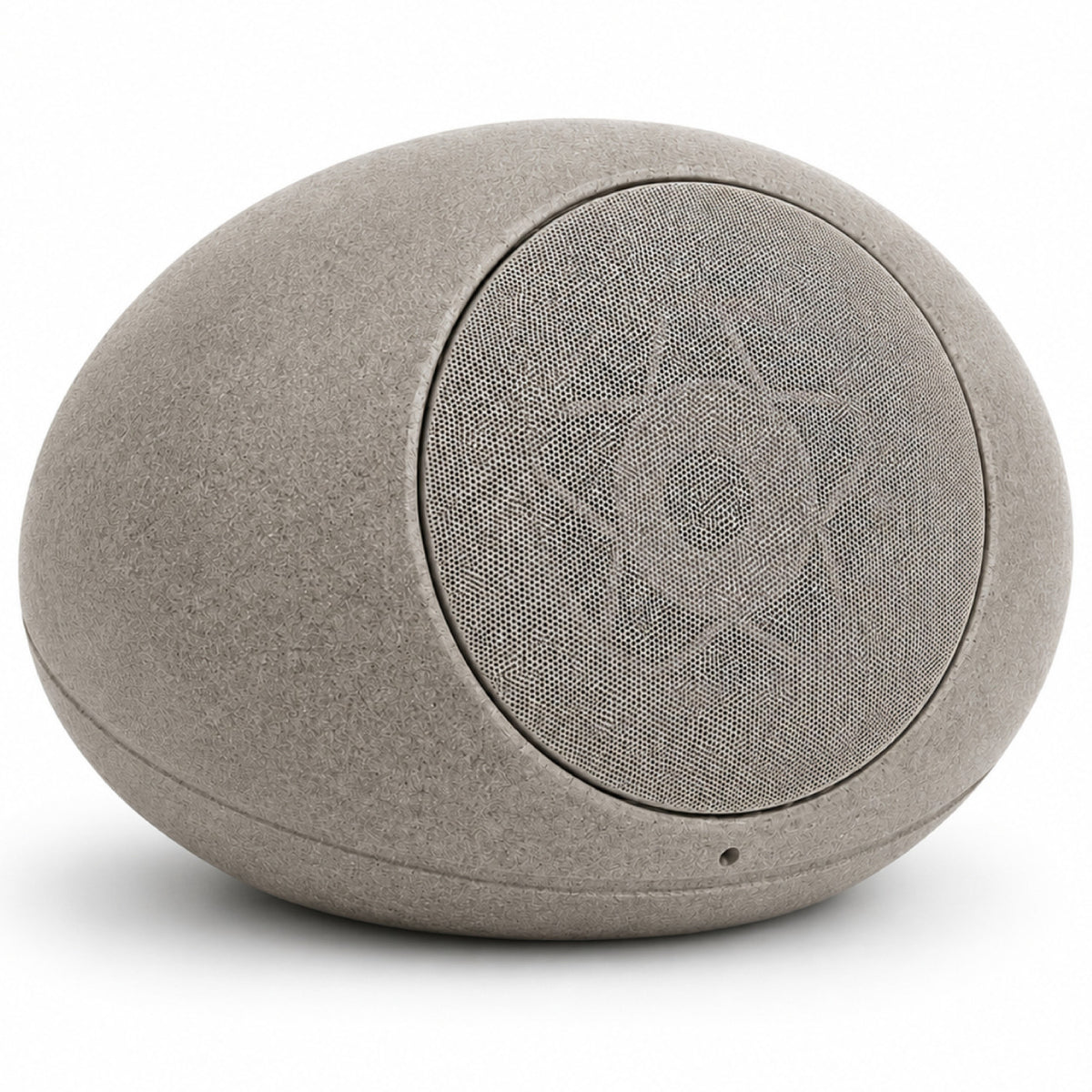

TEXONIC CLS-530 5.25" 40W 70V/100V/8Ω Landscape Speaker

The TEXONIC CLS-530 Series is a low-profile outdoor landscape speaker designed for background music and clear voice reproduction in landscaped outdoor areas.

Its stone-style enclosure helps the speaker blend into gardens, patios, courtyards, pathways and other outdoor listening areas. The CLS-530 supports 70V/100V distributed audio and 8Ω low-impedance operation, making it useful for commercial and residential outdoor audio systems.

5.25" Driver 70V / 100V / 8Ω 20W / 40W Taps HDPE Enclosure Light Brown / Grey / White
Manual

Product Overview

The CLS-530 is designed for outdoor areas where a normal box speaker may not match the landscape design. Its stone-style housing sits low to the ground and blends more naturally with garden beds, patios, courtyards and pathways.

The speaker can be used in 70V or 100V distributed audio systems where several outdoor speakers are connected to one amplifier channel. It can also be used in 8Ω mode with a compatible low-impedance amplifier.

The HDPE enclosure, aluminium mesh grille, waterproof cable connectors and included mounting hardware help support a secure outdoor installation when the speaker is installed according to the manual.

Best For Gardens, patios, courtyards, pathways, landscaped areas, outdoor seating areas, residential yards and commercial outdoor spaces.
System Fit 70V/100V commercial outdoor distributed audio systems, or compatible 8Ω residential outdoor audio systems.

Key Features

  • 5.25" outdoor landscape speaker
  • Stone-style low-profile enclosure
  • Designed to blend into gardens and landscaped areas
  • Suitable for patios, courtyards and pathways
  • Background music and clear voice reproduction
  • 20W / 40W power options
  • 70V/100V distributed-audio operation
  • 8Ω low-impedance operation with a compatible amplifier
  • 93dB ±3dB sensitivity
  • 90Hz–18kHz frequency response
  • HDPE outdoor enclosure
  • Aluminium mesh grille
  • Waterproof cable connectors included
  • Mounting brackets and hardware included
  • Light Brown, Grey and White finish options listed on the product page
  • Designed for Canadian outdoor conditions when installed correctly
  • Do not install where water can pool around the enclosure or cable entry
  • Inspect outdoor installations after freezing temperatures, snow, heavy rain or severe weather

Specifications

Brand TEXONIC
Series / Model CLS-530 Series
Visible Selected SKU CLS-530W
Product Type Outdoor landscape speaker
Driver 1 × 5.25" speaker
Rated Power 20W / 40W
Input 70V / 100V / 8Ω
70V/100V Power Connections 20W green lead / 40W white lead / COM black lead
Low-Impedance Mode 8Ω input for use with a compatible low-impedance amplifier
Sensitivity 93dB ±3dB
Frequency Response 90Hz–18kHz
Enclosure HDPE
Grille Aluminium mesh
Dimensions 11.0" H × 16.5" W × 12.2" D
Metric Dimensions 28 × 42 × 31 cm
Net Weight 10.8 lb / 4.9 kg
Colours Light Brown / Grey / White
Models Listed on Product Page CLS-530LB / CLS-530G / CLS-530W
Recommended Applications Patios, gardens, courtyards, pathways and landscaped outdoor areas
Installation Note: Install the speaker where the cable entry is protected from standing water and physical damage. Use the supplied hardware only when it is suitable for the installation surface and application.

Speaker Tap Settings

Select the correct input type before wiring the speaker. Use 70V/100V mode for commercial distributed audio systems, or 8Ω mode only with a compatible low-impedance amplifier and correct wiring design.

Connection Type Lead / Input Setting
70V / 100V Green lead 20W tap
70V / 100V White lead 40W tap
70V / 100V Black lead COM
Low-Impedance 8Ω input Use only with a compatible low-impedance amplifier
Important: Do not connect the speaker to both 70V/100V and 8Ω outputs at the same time. For 70V/100V wiring, add the wattage of all connected speakers and confirm the total load does not exceed the amplifier rating.

What’s Included

1 × CLS-530 landscape speaker in selected colour
2 × mounting brackets
3 × waterproof cable connectors
2 × M4 × 15 mm mounting screws
4 × M6 × 50 mm concrete anchor bolts
User manual
Installation Reminder: Turn off the amplifier before installing, wiring or servicing the speaker. After installation, confirm the speaker is stable, the cable connector is tight and the wiring matches the selected amplifier output before powering the system.
