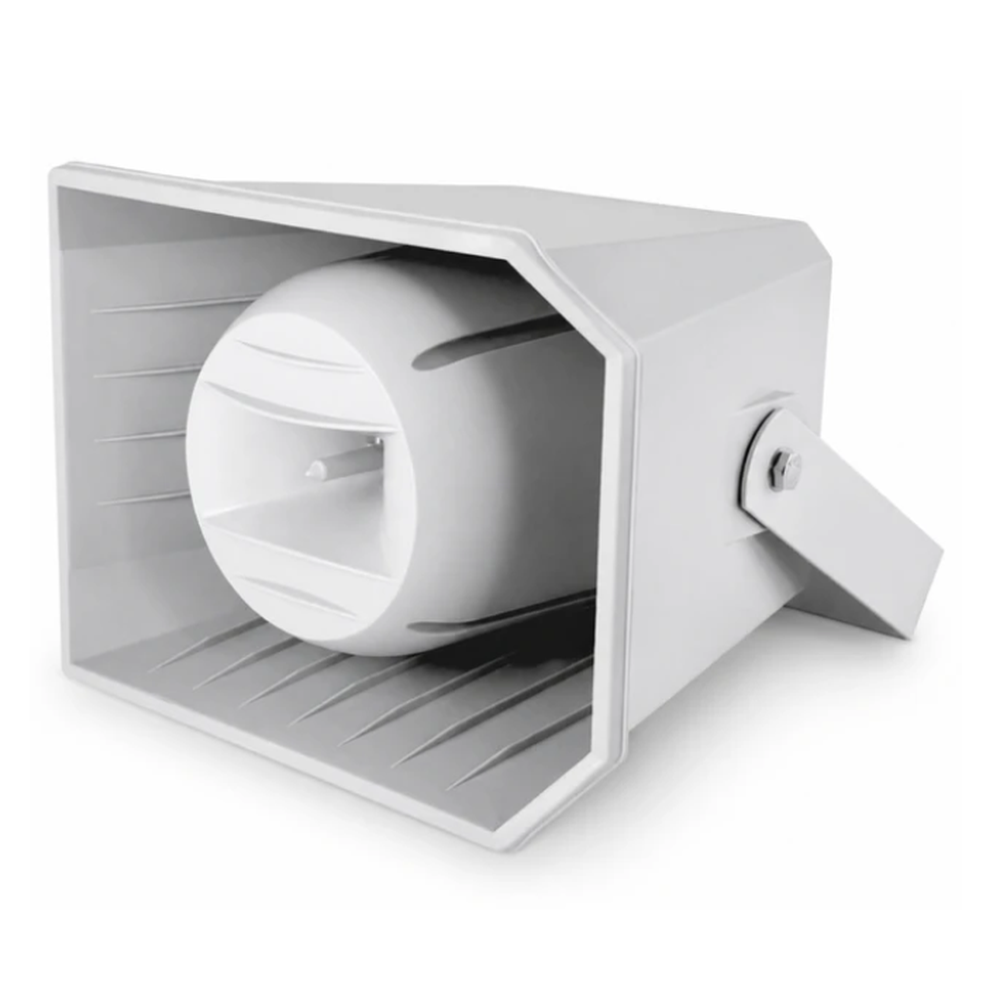

• TEXONIC CH630T 50W Full-Range 100V/8Ω Commercial Horn Speaker
1 1

NorthLine

CH630T 50W Full Range 100V/8Ω Commercial Horn Speaker

CH630T 50W Full Range 100V/8Ω Commercial Horn Speaker

CH630T

$229.99 CAD
$229.99 CAD
Sale Sold out
Shipping calculated at checkout.
Full-Range Commercial Horn Speaker

CH630T 50W Full Range 100V/8Ω Commercial Horn Speaker

The CH630T is a 50W full range commercial horn speaker designed for clear voice paging and background music in indoor and outdoor commercial installations.

Unlike a conventional speech only paging horn, the CH630T uses a reverse mounted 6.5" bass midrange woofer with a front mounted 1" dome tweeter. This two way horn design gives fuller music reproduction while keeping the directional projection needed for public address applications.

50W Full-Range Horn 100V / 8Ω 6.5" Woofer + 1" Tweeter 90° Coverage Indoor / Outdoor
Manual

Product Overview

The CH630T is designed for commercial applications that need stronger music reproduction than a traditional speech focused horn speaker can provide.

Its reverse mounted 6.5" bass midrange woofer helps reproduce lower and middle frequencies, while the front mounted 1" dome tweeter adds high frequency detail. Together, they provide a 120Hz–12kHz frequency range suited to both background music and public address announcements.

The CH630T supports six selectable 100V transformer tap levels from 3.5W to 50W. A separate 8Ω connection provides 50W low impedance operation with compatible amplifiers.

Its 90° dispersion pattern provides directional coverage, while the adjustable bracket allows the horn to be aimed toward the required listening area.

Best For Commercial outdoor areas, warehouses, schools, recreation facilities, large public spaces, industrial properties and installations requiring both paging and better music reproduction.
System Fit 100V distributed commercial audio systems or compatible 8Ω low impedance amplification.
Product Note: The CH630T supports 100V and 8Ω operation only. Confirm the correct transformer wiring or 8Ω connection before powering the speaker.

Key Features

  • 50W full range commercial horn speaker
  • Designed for background music and public address paging
  • Designed for clear voice paging and announcements
  • 6.5" reverse mounted bass midrange woofer
  • 1" front mounted dome tweeter
  • Two way full range horn design
  • Fuller sound than a standard outdoor paging horn
  • Supports 100V distributed audio systems
  • Six selectable 100V transformer tap levels
  • Supports compatible 8Ω low impedance amplifiers
  • 50W maximum output
  • 120Hz–12kHz frequency response
  • 99dB ±3dB sensitivity at 1W / 1m
  • 90° dispersion angle for directional coverage
  • UV stabilized ABS enclosure
  • Weather resistant design for indoor/outdoor commercial use
  • Angle adjustable mounting bracket
  • Long throw coverage for commercial paging areas
  • Light grey finish
  • Suitable for Canadian indoor/outdoor commercial use

Specifications

Brand NorthLine Series
Model / SKU CH630T
Product Type Full range commercial horn speaker
System Compatibility 100V / 8Ω
100V Power Taps 3.5W / 4.5W / 9W / 12.5W / 25W / 50W
8Ω Power Rating 50W
Maximum Power 50W
Low-Frequency Driver 6.5" / 16.5 cm bass-midrange woofer, reverse mounted
High-Frequency Driver 1" / 2.5 cm dome tweeter, front mounted
Frequency Response 120Hz–12kHz
Sensitivity 99dB ±3dB at 1W / 1m
Dispersion Angle 90°
Enclosure UV-stabilized ABS
Environment Indoor / outdoor commercial use
Weather Design Weather-resistant enclosure for correct outdoor installation
Colour Light grey
Dimensions 36.2 × 25.2 × 31.0 cm
Dimensions in Inches 14.25" × 9.92" × 12.20"
Net Weight 4.0 kg / 8.8 lb
Mounting Angle-adjustable mounting bracket
Recommended Use Background music, public-address paging and commercial outdoor audio
Installation Note: Choose a solid structural mounting surface capable of safely supporting the 4.0 kg / 8.8 lb speaker. Secure the adjustable bracket using hardware appropriate for the mounting surface. Connect either the required 100V transformer tap or the 8Ω input, aim the horn toward the listening area and securely tighten all bracket hardware before applying power.

100V Transformer Wiring / Tap Guide

For 100V installations, use only the wire combination that matches the required transformer wattage. Add the wattage of all connected speakers and keep the total load within the amplifier's rated 100V output.

Wire 1 Wire 2 100V Output
Red Yellow 50W
Yellow Green 25W
Green White 12.5W
Red Green 9W
Yellow White 4.5W
Red White 3.5W
Red Black 8Ω / 50W operation only
Important: The CH630T is designed for either a 100V speaker line or compatible 8Ω low-impedance operation. Do not connect the speaker to both operating modes simultaneously.
Connection Reminder: For 8Ω operation, use the Red and Black wires with a compatible low impedance amplifier. For 100V systems, do not use the 8Ω connection on the same speaker line.

What’s Included

1 × CH630T Full Range Horn Speaker
1 × Adjustable Mounting Bracket
User manual
Installation Reminder: Turn off the amplifier before installing, wiring or servicing the speaker. Confirm the correct 100V transformer wiring or 8Ω connection before powering the speaker.
