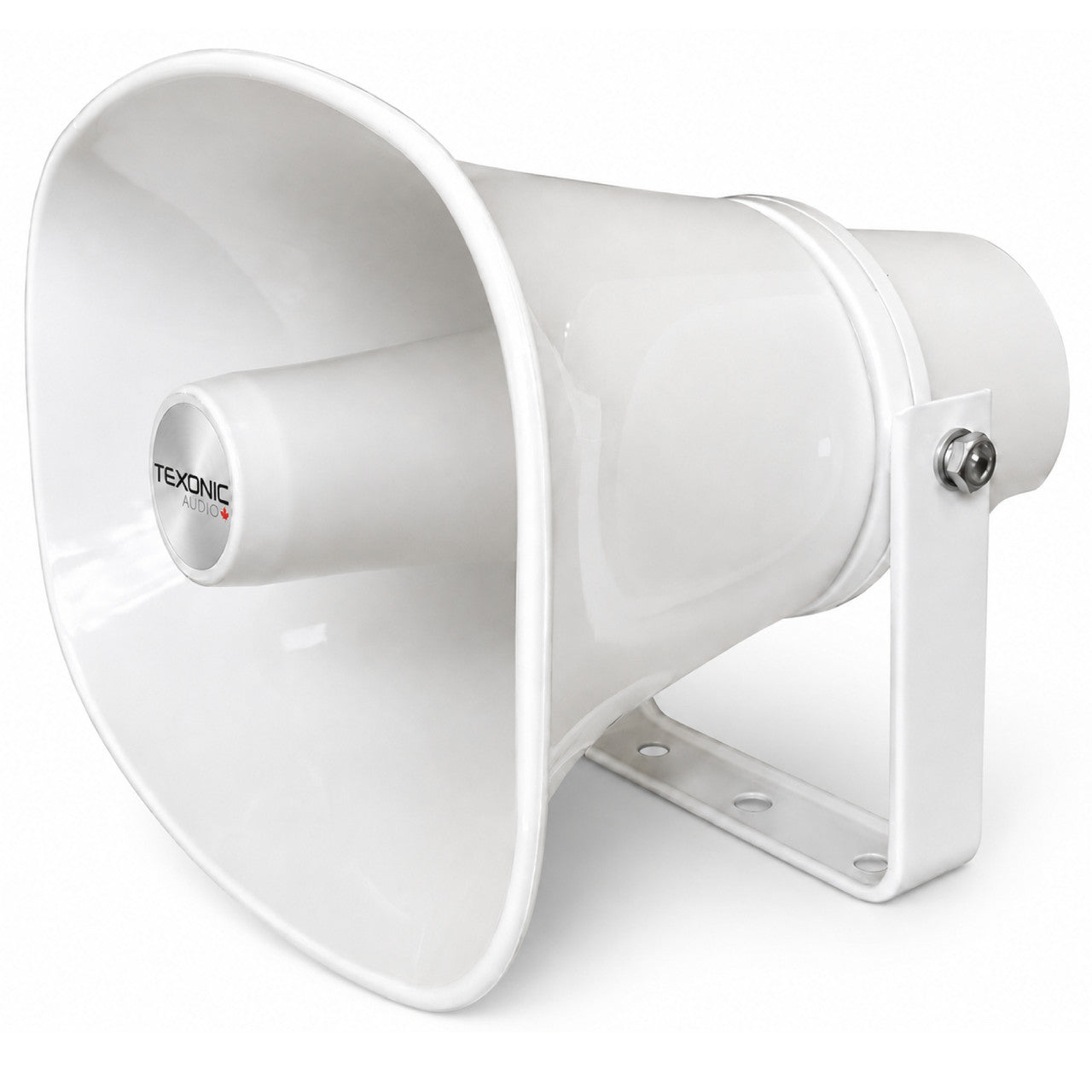

TEXONIC CH30T 30W IP65 70V/100V Paging Horn Speaker
TEXONIC CH30T 30W IP65 70V/100V Paging Horn Speaker
SKU:CH30T
Couldn't load pickup availability
TEXONIC CH30T 30W IP65 70V/100V Paging Horn Speaker
The TEXONIC CH30T is a 30W IP65 commercial paging horn speaker designed for clear voice announcements in indoor and outdoor business environments.
Its directional horn design helps project paging, safety messages and general announcements across warehouses, factories, loading areas, parking areas, commercial yards and other spaces where speech needs to remain clear over distance or higher background noise.
The CH30T supports 70V and 100V distributed audio systems with selectable transformer taps and includes an adjustable steel mounting bracket for directing sound toward the required coverage area.
Product Overview
The TEXONIC CH30T is designed primarily for voice paging, announcements and public address applications rather than full range background music.
Its focused horn design provides strong directional sound projection, making it useful in areas where conventional ceiling or wall speakers may not provide enough voice coverage.
The CH30T works with 70V and 100V commercial amplifiers. Selectable transformer taps allow installers to choose the appropriate output level based on the required coverage, number of speakers and available amplifier capacity.
An IP65 rated enclosure helps protect the speaker against dust and water exposure for properly installed indoor and outdoor applications. The adjustable steel mounting bracket allows the horn to be aimed toward work areas, loading zones, parking areas or other locations where announcements need to be heard clearly.
Key Features
- 30W commercial paging horn speaker
- Designed for clear voice announcements and public address use
- 70V and 100V commercial speaker system compatibility
- Selectable power taps for amplifier load planning
- High 113dB sensitivity for strong speech projection
- Focused directional horn coverage for busy commercial areas
- IP65-rated enclosure for dust and water exposure protection
- Suitable for properly installed indoor and outdoor commercial applications
- Powder-coated aluminium construction with ABS flare and rear cover
- Adjustable powder-coated steel mounting bracket
- White finish for clean commercial installations
Specifications
Connection Notice: Confirm whether the amplifier is operating at 70V or 100V and select the appropriate transformer tap before powering the system.
For multi speaker installations, add the wattage of all connected horn speakers and keep the combined load within the amplifier's rated output. Leave suitable amplifier headroom for reliable commercial operation.
Maintain consistent speaker line polarity throughout the installation.
Outdoor Installation: The CH30T carries an IP65 protection rating and is suitable for properly installed outdoor commercial applications. Secure the mounting bracket to a suitable structural surface and position the speaker so that cable connections and wiring are properly protected.
The operating temperature range is -40°C to +66°C.
What’s Included
CH30T Power Tap Examples
Add together the selected wattage tap of every connected CH30T horn speaker. The total speaker load must stay within the rated output of the connected 70V/100V commercial amplifier.
| Tap Selection | Total Load | Guidance |
|---|---|---|
| 1 × 7.5W at 70V | 7.5W | Suitable for a lower-output paging point |
| 1 × 15W at 70V or 100V | 15W | Recommended for many single-horn paging locations |
| 2 × 15W | 30W | Suitable for two paging locations on a compatible amplifier |
| 4 × 15W | 60W | Useful when several horn speakers are needed and amplifier capacity allows |
| 1 × 30W at 100V | 30W | Maximum CH30T tap for one horn speaker |
| 4 × 30W at 100V | 120W | Use only with a properly rated amplifier and total load calculation |
