TEXONIC AD-360 360W 100V Commercial Power Amplifier

TEXONIC AD-360 360W 100V Commercial Power Amplifier

AD-360

$699.98 CAD
$699.98 CAD
Sale Sold out
Shipping calculated at checkout.
360W COMMERCIAL POWER AMPLIFIER | 100V PA AUDIO

TEXONIC AD-360 Commercial Power Amplifier

The TEXONIC AD-360 is a 360W commercial power amplifier designed to provide dedicated speaker power for background music, public address and paging systems. It is a practical solution for installations where an external mixer, preamplifier or audio controller already handles the audio sources.

With 100V distributed speaker output and a separate low impedance connection option, the AD-360 can support properly designed commercial speaker systems using ceiling speakers, wall speakers, column speakers and paging horns.

Balanced audio connectivity, a LINK signal output, adjustable input level and ground lift functionality make the AD-360 useful for expanding existing commercial sound systems in warehouses, schools, offices, retail facilities and public spaces.

360W Rated Output 100V Commercial Audio 4–16Ω Output Option Balanced Audio Input LINK Signal Output
Manual

Dedicated Amplification for Commercial Sound Systems

When your audio system already includes a mixer, preamplifier or controller, the TEXONIC AD-360 provides the power needed to drive a compatible commercial speaker installation.

Unlike an all-in-one mixer amplifier, the AD-360 focuses on power amplification. Music source selection, microphone mixing and paging control can be handled by suitable external equipment.

Its 360W rated output allows installers to design larger 100V distributed speaker systems while keeping the combined speaker transformer tap settings within the amplifier's supported capacity.

Warehouses & Industrial Facilities Support compatible commercial paging horns, column speakers and background audio speakers for announcements and staff communication.
Schools & Training Facilities Provide amplification for distributed speakers in corridors, common spaces and other suitable facility areas.
Retail & Commercial Buildings Expand an existing music or paging system across larger customer and staff areas.
Hotels & Public Facilities Integrate with compatible central audio controllers for music and routine voice announcements.
Community Centres Add power behind an existing mixer for distributed public address speakers in shared facilities.
Houses of Worship Provide additional amplifier capacity for compatible speaker systems controlled by an external mixer or processor.
Choosing the Right Amplifier: The AD-360 is a dedicated power amplifier. It does not include built-in Bluetooth, USB music playback, microphone mixing or independent speaker-zone controls. Choose a suitable mixer amplifier if those functions must be built into one unit.

How the AD-360 Fits Into Your Audio System

The amplifier receives a compatible line-level audio signal from the source equipment, amplifies it, and sends the resulting power to the connected speakers.

1. AUDIO CONTROL Mixer, preamplifier, streamer or compatible controller
2. POWER AMPLIFIER TEXONIC AD-360 360W amplification
3. SPEAKER SYSTEM Compatible 100V distributed speakers

Expandable Audio Connectivity

A balanced audio input supports connection from compatible source or control equipment. The LINK output passes a line level audio signal to suitable downstream equipment, including an additional amplifier or an active subwoofer.

The LINK output is a signal connection, not an additional powered speaker output.

System Design: The AD-360 is particularly useful where separate audio processing and amplifier power are preferred. Final speaker quantity and layout depend on installation size, coverage requirements, ambient noise and total connected speaker load.

Key Features

  • 360W rated commercial power amplifier
  • Designed for paging and distributed audio systems
  • 100V commercial speaker output
  • Separate 4–16Ω low-impedance output option
  • Balanced audio input for compatible external equipment
  • LINK audio output for system expansion
  • Works with suitable mixers and preamplifiers
  • Supports commercial ceiling and wall speakers
  • Suitable for column speakers and paging horns
  • Rear level trim adjustment up to −12dB
  • Front panel output level indicator
  • Front panel power status LED
  • Front-panel power switch
  • Ground lift switch for ground-loop noise management
  • Earth connection terminal
  • 100Hz–15kHz specified frequency response
  • Signal-to-noise ratio of at least 90dB
  • AC 120V, 50/60Hz power operation
  • Commercial equipment chassis
  • Suitable for centralized installed-audio systems
Audio Integration Tip: If microphone paging, music selection or source mixing is required, connect the AD-360 to an appropriately configured external mixer or audio controller.

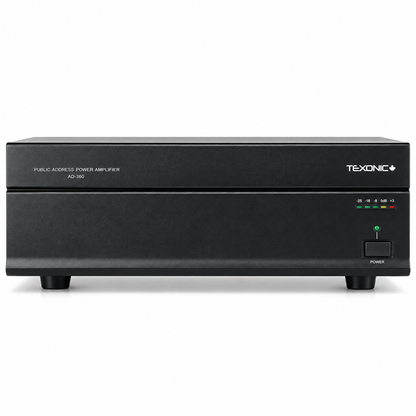

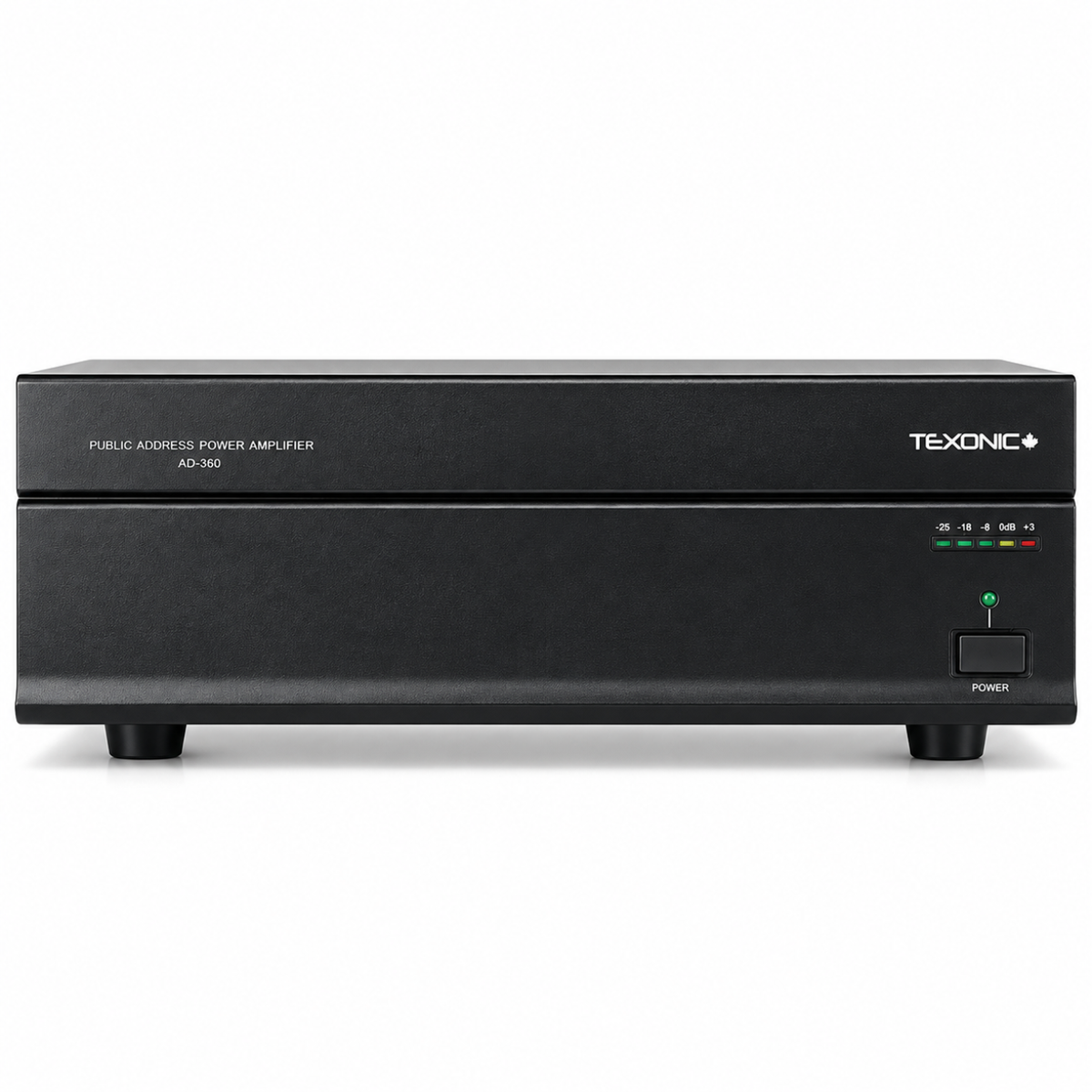

Front Panel Monitoring

The front panel includes an output level indicator, power switch and power LED. These provide basic operating information and make the amplifier straightforward to monitor.

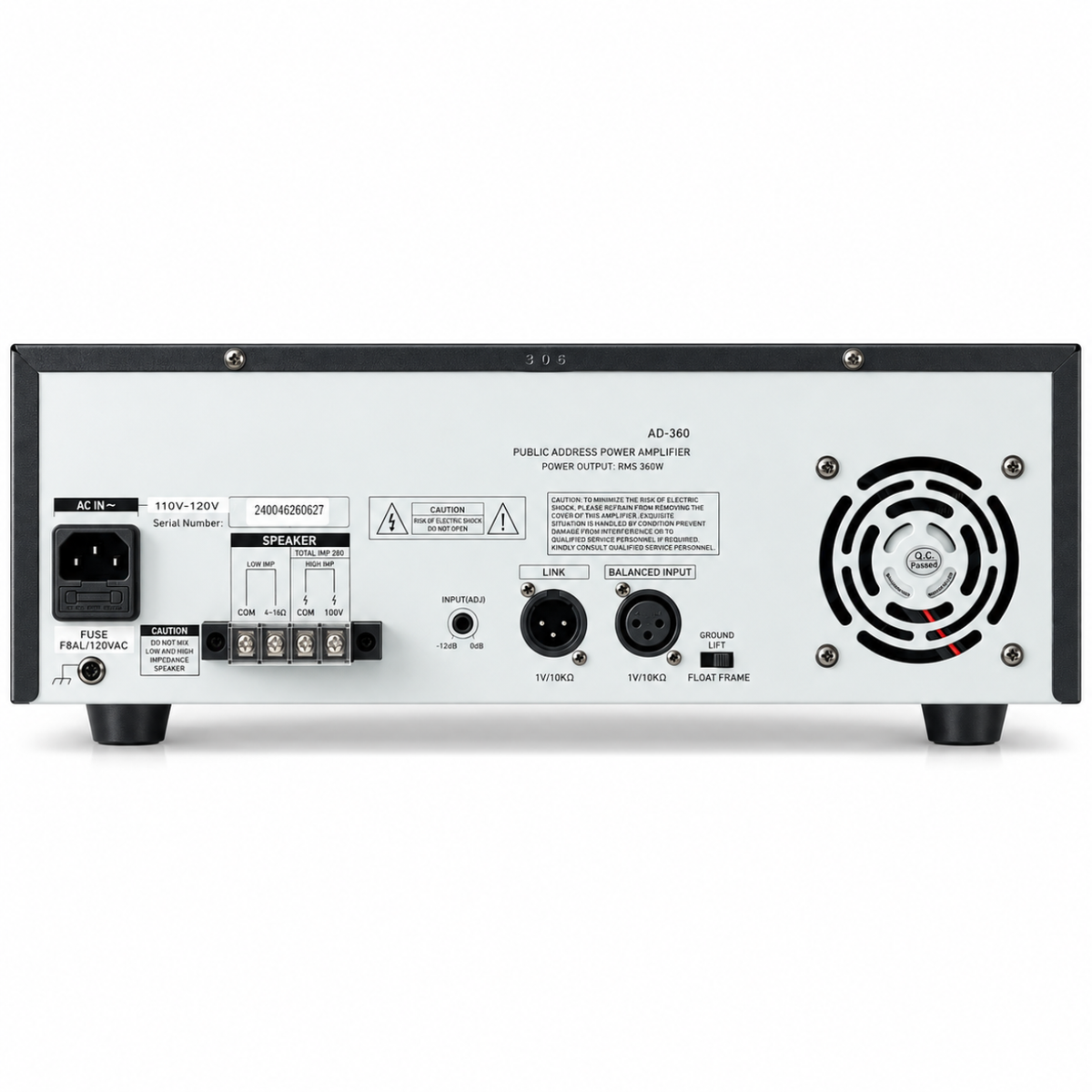

Rear Panel Configuration

The rear panel provides speaker output terminals, balanced audio connections, level adjustment, ground lift and the required AC power connection.

The level trim allows adjustment of the incoming signal level by up to −12dB, making it easier to match the amplifier to compatible source equipment.

Ground Lift Function

The ground lift switch offers an option for reducing certain unwanted ground loop noises between interconnected audio equipment. It must not be used as a substitute for proper electrical grounding.

Technical Specifications

Brand TEXONIC
Model / SKU AD-360
Product Type Commercial Power Amplifier
Amplifier Application Public Address / Background Music / Paging
Rated Output Power 360W
Commercial Speaker Output 100V
Low-Impedance Speaker Output 4–16Ω
Audio Input Balanced input
Signal Expansion LINK line-level output
Input Sensitivity / Impedance 1V / 10kΩ
Frequency Response 100Hz–15kHz (±3dB)
Total Harmonic Distortion + Noise ≤1% at 1kHz, half power
Signal-to-Noise Ratio ≥90dB
Level Adjustment Rear trim control, up to −12dB
Ground Lift Yes
Output Monitoring Front-panel output level indicator
Power Indicator Front-panel LED
Power Switch Front-panel on/off switch
Earth Connection Rear earthing terminal
Power Requirement AC 120V / 50–60Hz
Dimensions (W × H × D) 430 × 132 × 330mm
Dimensions (Inches) 16.93 × 5.20 × 12.99in
Net Weight 12.9kg / 28.44lb
Compatible System Types 100V distributed audio / suitable low-impedance systems
Speaker Output Selection: Use either the 100V commercial speaker connection or the compatible 4–16Ω low-impedance connection. Do not operate both output configurations simultaneously.
Input Connection: Refer to the rear-panel diagram in the user manual to identify the connector type and proper wiring for your particular unit.

100V Commercial Speaker System Compatibility

The AD-360 is designed to deliver 360W of amplifier power for compatible commercial speaker installations. Its 100V output is useful for distributing music or announcements to multiple speakers throughout a building.

For a 100V speaker line, calculate total connected speaker power by adding the selected transformer wattage taps of every speaker on that line.

100V Ceiling Speakers Suitable for background music and announcements in commercial offices, stores and public areas.
100V Wall Speakers Useful where ceiling mounting is impractical or additional directional coverage is required.
100V Paging Horns Suitable for compatible paging installations in warehouses, workshops and noisy facilities.
100V Column Speakers An option for distributed speech and music coverage in selected commercial and public spaces.
Important: Speaker quantity is determined by combined wattage tap loading and the audio coverage required. The 360W rating is the combined amplifier output capacity, not a per-speaker or per-zone rating.

Low Impedance Speaker Option

The AD-360 also includes a separate 4–16Ω low-impedance output for compatible speaker arrangements.

When using this connection, calculate the total speaker impedance and ensure it remains within the supported range. Do not calculate low-impedance speaker compatibility using 100V tap wattages.

Speaker Connection Notice: Do not use the 100V speaker output and low-impedance output at the same time. Turn off the amplifier before connecting or changing speaker wiring.

360W Amplifier Speaker Load Planning

For commercial 100V installations, the combined speaker wattage should remain within the amplifier's rated output power. Allowing some unused amplifier capacity provides a sensible planning margin.

Using a conservative 20% headroom allowance, the AD-360 provides a suggested initial planning target of 288W in total connected speaker transformer taps.

360W Rated amplifier output
288W Conservative planning load
72W 20% planning headroom

Example 100V Speaker Loading

Speakers 100V Tap Total Load Capacity Remaining
12 10W 120W 240W
18 10W 180W 180W
24 10W 240W 120W
12 20W 240W 120W
18 15W 270W 90W
24 15W 360W 0W
Recommended Planning Approach: Allow approximately 20% amplifier headroom when initially designing a distributed speaker system. For the AD-360, this gives a suggested combined 100V load of approximately 288W. This is a conservative design guideline, not an additional manufacturer power rating.

The 360W example in the table represents the full rated output capacity and leaves no headroom. For normal system planning, select appropriate speaker taps and amplifier capacity with some reserve.

Example: Commercial Building Speaker System

A commercial building might use 24 speakers, each set to a 10W 100V transformer tap. The total connected speaker load would be:

24 Commercial speakers
10W Selected tap per speaker
240W Total connected load

This leaves 120W of unused rated amplifier capacity before considering other connected speakers or system changes.

How Are 100V Speakers Connected?

Commercial 100V speaker systems generally connect compatible transformer-equipped speakers in parallel across the amplifier's 100V speaker line, maintaining correct polarity.

Add all transformer tap wattages and confirm the complete speaker load does not exceed the supported amplifier capacity.

Can I Use a Different Audio Source?

Yes. A compatible mixer, preamplifier, audio controller or suitable line-level media source can feed the AD-360.

Bluetooth and network music streaming can be provided by compatible external source equipment.

Can I Add Another Power Amplifier?

Yes. The AD-360 provides a LINK output for passing the incoming line-level audio signal to compatible external equipment, including another power amplifier or an active subwoofer.

Installation Reminder: The AD-360 is a single power amplifier, not an independently controlled multi-zone audio system. Use external control equipment when separate sources, zones or paging functions are required.
System Planning: Final speaker quantity, transformer tap settings, wiring and placement depend on the room layout, ceiling height, background noise and required listening level. Follow the user manual and applicable installation requirements.

What's Included

1 × TEXONIC AD-360 360W Commercial Power Amplifier
AC Power Cable
User Manual
Before Installation: Review the rear-panel connection layout, speaker output selection, input requirements and total speaker load in the user manual. The red Manual button above opens the official AD-360 documentation.
