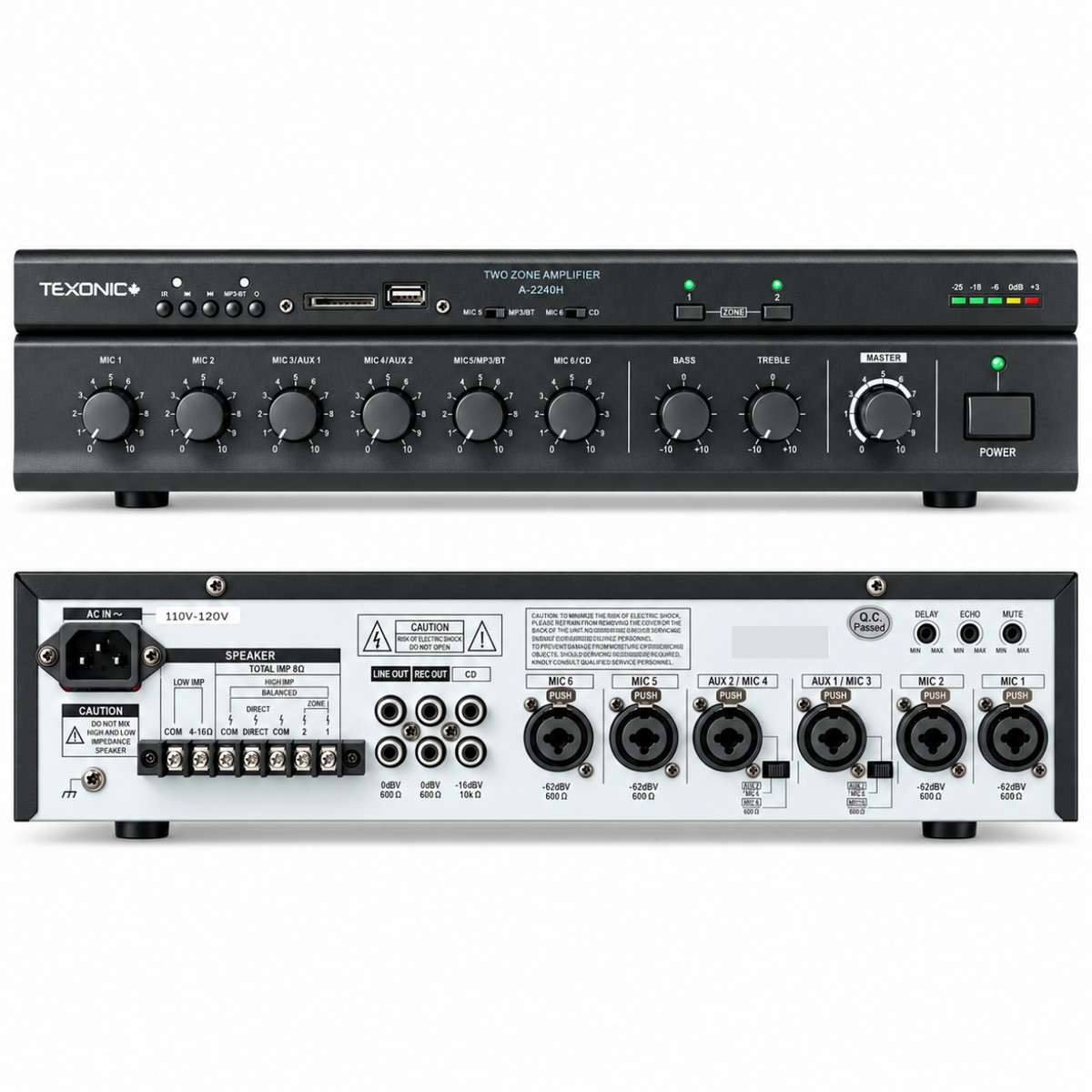

• TEXONIC A-2240H 240W 2-zone commercial mixer amplifier front panel
1 2

TEXONIC

TEXONIC A-2240H 240W 2-Zone Mixer Amplifier with Bluetooth & Paging

TEXONIC A-2240H 240W 2-Zone Mixer Amplifier with Bluetooth & Paging

A-2240H

$649.98 CAD
$649.98 CAD
Sale Sold out
Shipping calculated at checkout.
240W Commercial Music & Paging Amplifier

TEXONIC A-2240H 2-Zone Mixer Amplifier

Bring music and voice announcements together with the TEXONIC A-2240H, a 240W commercial mixer amplifier for businesses that need simple sound control across two speaker areas.

Play everyday background music through Bluetooth, USB or SD media, connect microphones for paging, and select which business areas receive sound using two front-panel zone switches.

Designed for 100V commercial speaker systems, the A-2240H is a practical solution for restaurants, retail stores, offices, clinics, warehouses and shared workplace areas.

240W Rated Output 2 Selectable Zones 100V Commercial Audio Bluetooth + USB / SD MIC1 Priority Paging
Manual

One Amplifier for Two Business Areas

The TEXONIC A-2240H combines background music playback, microphone mixing and commercial speaker power in one unit.

It is designed for businesses that want straightforward audio operation without installing a separate amplifier for each area. Use Zone 1, Zone 2 or both together depending on which areas need music or announcements.

Its 240W output supports compatible 100V distributed speakers. This allows businesses to connect multiple commercial ceiling, wall-mount, pendant or paging speakers using suitable transformer tap settings.

Restaurants & Cafés Play background music in a dining room and choose whether an additional seating or service area receives audio.
Retail & Showrooms Serve the main customer area and a secondary space, such as a stockroom or service counter.
Clinics & Offices Provide background music or announcements across waiting rooms, reception areas, hallways and shared workspaces.
Warehouses & Workplaces Use compatible speakers for routine paging and background audio across two selectable work areas.
Choosing the Right System: The A-2240H is best suited to two speaker areas that can share one music and paging programme. Different music in each area requires a suitable independent multi-zone or matrix audio system.

Key Features

  • 240W rated commercial mixer amplifier
  • Two selectable front-panel speaker zones
  • 100V distributed speaker output
  • Separate 4–16Ω low-impedance output option
  • Bluetooth wireless music playback
  • USB and SD media playback
  • MP3 and WMA audio format support
  • Microphone connections for business paging
  • MIC1 voice-priority background music ducking
  • MIC2 delay and echo adjustments
  • MIC3 and MIC4 selectable for microphone or AUX input use
  • Additional MIC5 and MIC6 connections
  • CD input for compatible external sources
  • Line output for compatible external audio equipment
  • REC output for compatible recording equipment
  • Individual input level adjustments
  • Front-panel bass and treble controls
  • Master volume adjustment
  • Front-panel LED audio level meter
  • Rack-mount hardware included
Paging Tip: MIC1 includes a priority mute function that can lower background music during voice announcements.

Technical Specifications

Brand TEXONIC
Model A-2240H
Amplifier Type 2-Zone Commercial Mixer Amplifier
Rated Output 240W
Power Rating Condition 1kHz, THD+N = 1%
Speaker Zones 2 selectable zones
Zone Operation Zone 1 / Zone 2 / both
Commercial Speaker Output 100V
Low-Impedance Output 4–16Ω
Bluetooth Built-in Bluetooth audio playback
USB / SD USB and SD media playback
Audio Formats MP3 / WMA
Microphone Inputs MIC1–MIC6, with MIC3/4 sharing selectable AUX inputs
Additional Audio Inputs AUX1 / AUX2 / CD
Audio Outputs Line output / REC output
Microphone Priority MIC1 mute / ducking
MIC2 Controls Delay / Echo
Tone Controls Bass / Treble
Volume Controls Input levels / Master volume
Frequency Response 100Hz–15kHz (±3dB, 8Ω, 1W)
Signal-to-Noise Ratio Greater than 50dB
THD+N ≤1% at 1kHz, half power
Line Input Sensitivity ≤200mV
Microphone Input Sensitivity ≤15mV
Power Requirement AC 120V / 60Hz
Dimensions (W × H × D) 430 × 88 × 330mm
Dimensions (Inches) 16.93 × 3.46 × 12.99in
Net Weight 10.8kg / 23.81lb
Output Selection: Use either the commercial 100V two-zone speaker connection or the compatible 4–16Ω low-impedance connection. Do not operate both speaker output configurations simultaneously.

How the Two Speaker Zones Work

The A-2240H uses two front-panel switches to select which connected 100V speaker areas receive sound.

Zone 1 — Main Area Example: Restaurant dining room, showroom, retail floor or main office.
Zone 2 — Secondary Area Example: Reception, secondary seating, hallway, staff area or stockroom.

Three Operating Options

Zone 1 Only Send the shared music and paging programme to Zone 1.
Zone 2 Only Send the shared music and paging programme to Zone 2.
Both Zones Enable both areas so they receive the same programme.
Shared Amplifier Power Both speaker zones operate within the amplifier's combined 240W capacity.
Important: The two zones do not play different music sources independently. They also do not have separate built-in zone volume controls.
Need Local Volume Control? Compatible commercial speaker volume controls may be considered when an installation requires different listening levels in individual rooms. The complete speaker load and control ratings must be checked.

100V Speaker Compatibility & Loading

On a 100V commercial audio system, the connected speaker load is calculated by adding the selected transformer wattage taps of all connected speakers.

The A-2240H delivers 240W of rated amplifier output shared across its connected speaker system.

240W Rated amplifier output
192W Conservative planning load
48W 20% planning headroom

Example Speaker Loading

Speakers 100V Tap Total Load Capacity Remaining
6 10W 60W 180W
12 10W 120W 120W
16 10W 160W 80W
Recommended Planning Approach: Allow approximately 20% amplifier power headroom when designing the distributed speaker system. This gives a conservative planning target of about 192W total speaker load. This is a design recommendation, not a separate manufacturer power rating.

Can I Connect Regular 8Ω Speakers?

Yes. The amplifier also provides a separate 4–16Ω output for suitable low-impedance speaker systems. The combined speaker impedance must remain within the supported range.

Can I Connect Another Amplifier?

Yes. The line output can connect compatible external audio equipment, including an additional power amplifier. The manual also identifies an active subwoofer as a possible line-output connection.

Speaker Connection Notice: Do not use the 100V zone speaker outputs and the low-impedance speaker output at the same time. Turn off the amplifier before connecting speakers or changing wiring.
System Planning: Final speaker quantity, transformer tap settings and placement depend on room layout, ceiling height, ambient noise and the required listening level.

What's Included

1 × TEXONIC A-2240H 240W 2-Zone Commercial Mixer Amplifier
Rack-mount hardware
AC power cable
User manual

Brand new

All our Texonic products are brand new and we don't sell refurbished items

Warranty

One of our main goals is to provide our customers with the best products and services. All our TEXONIC products are covered under 2 year of manufacturing warranty.

Shipping

Orders placed before 7:00 AM EST will be shipped the same business day. Orders placed after the cutoff time will be shipped on the following business day.

Please note: Free shipping is available in select provinces only. Additional shipping charges may apply to other regions.
