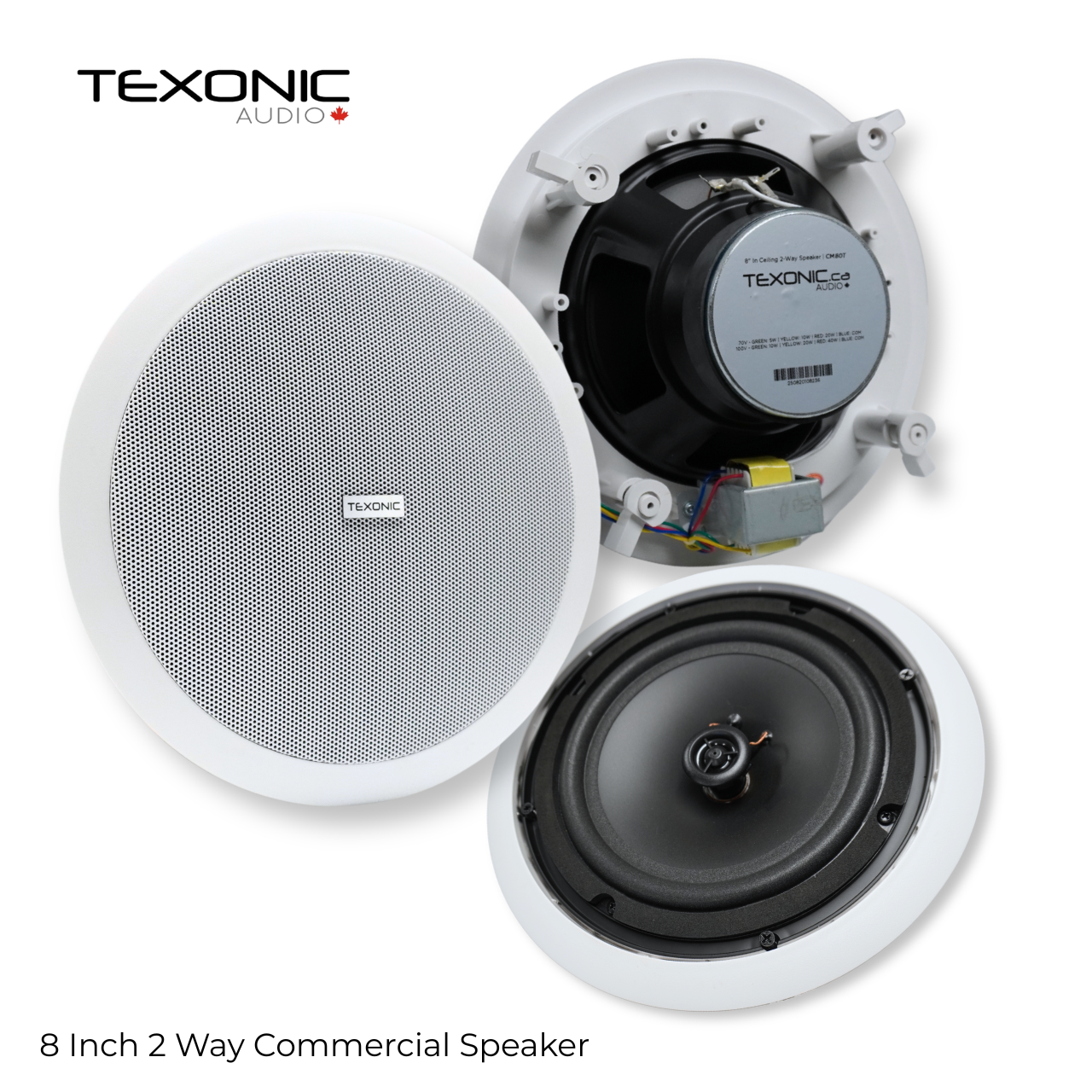

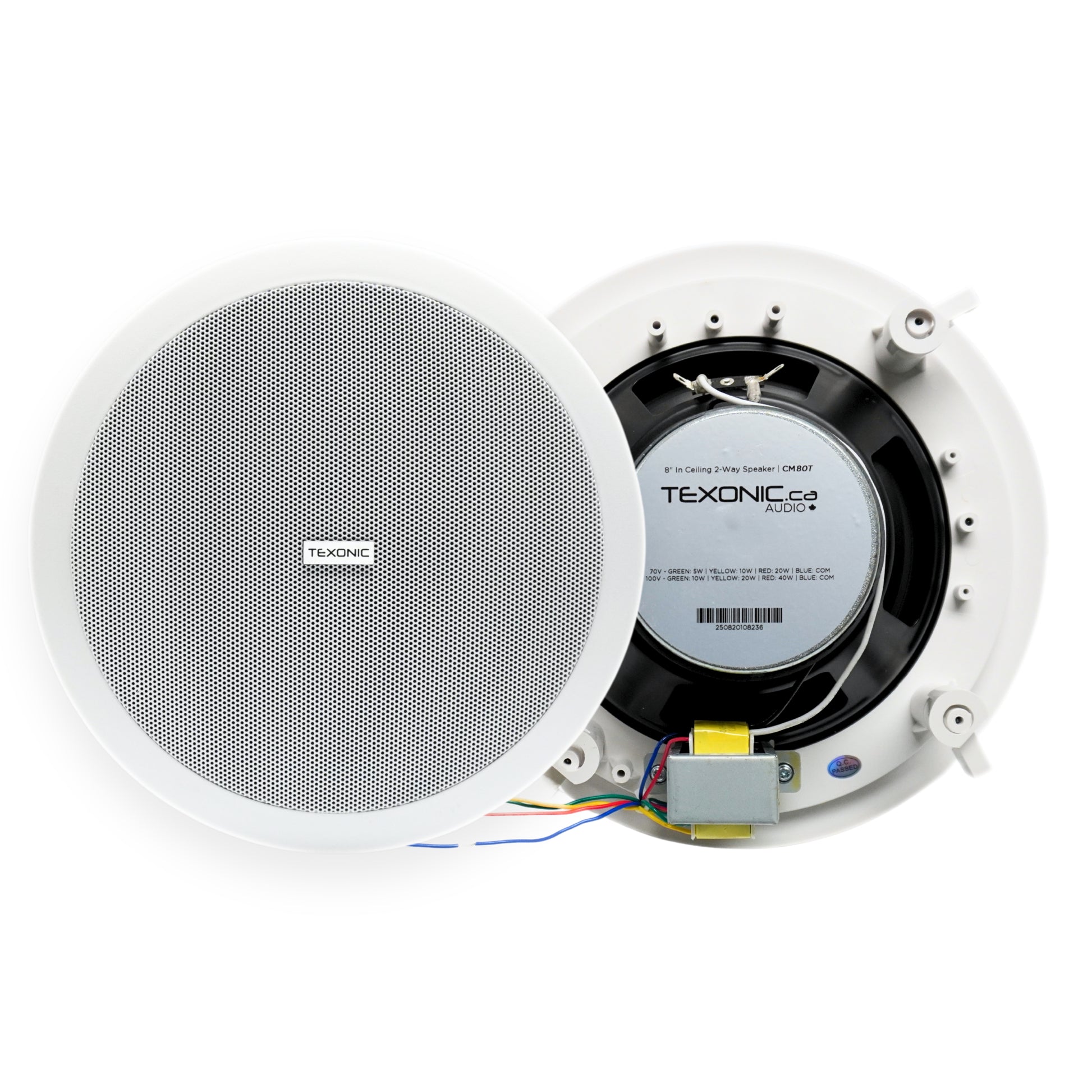

TEXONIC CM80T 8″ Coaxial Ceiling Speaker for 70V/100V Commercial Audio

Our TEXONIC CM80T 8″ Coaxial Ceiling Speaker is built for clear, reliable sound in commercial environments across Canada. Designed for background music, paging, and public announcement systems, it delivers balanced audio performance for restaurants, retail stores, offices, schools, hotels, airports, and other professional spaces.

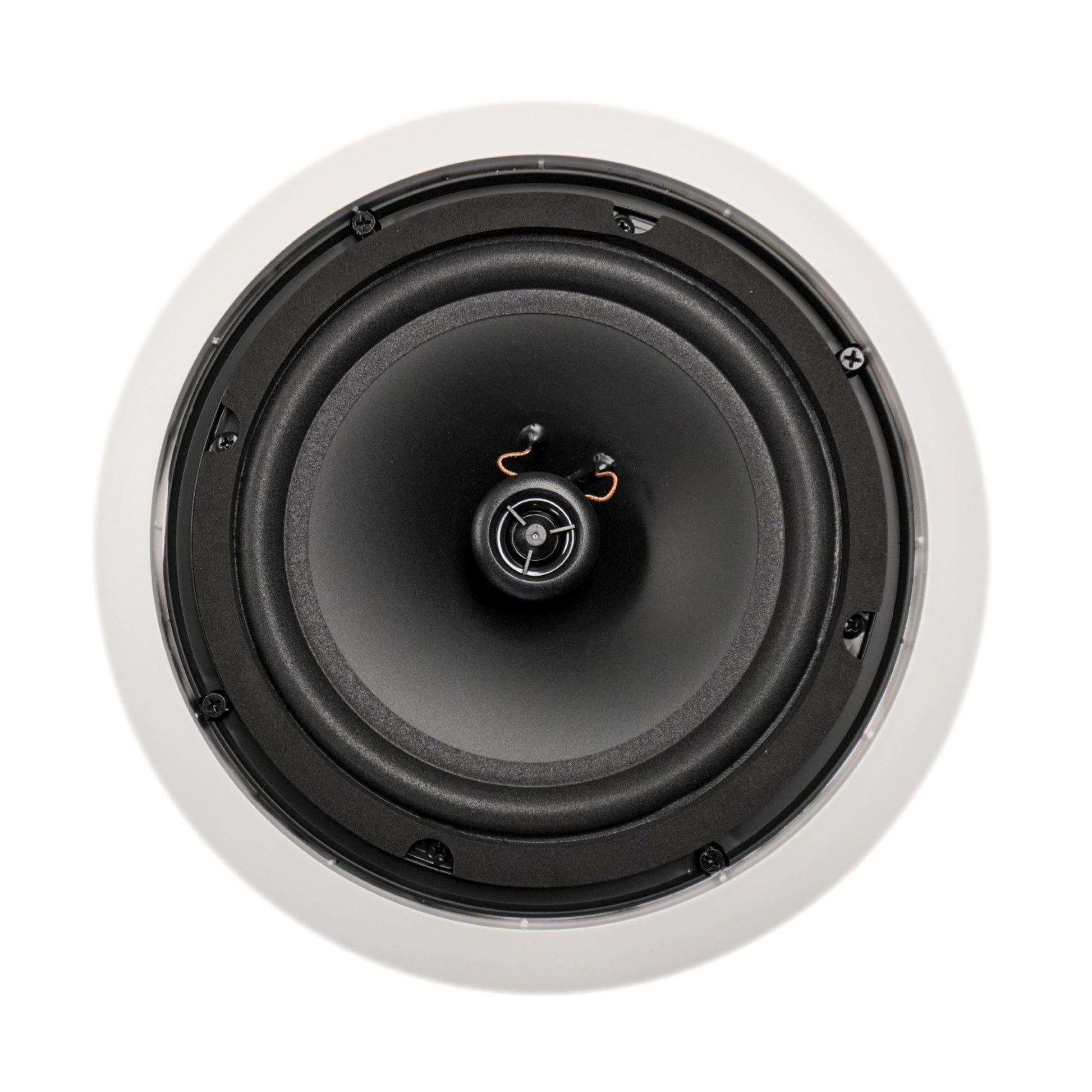

Its two-way coaxial design combines an 8″ polypropylene woofer with a 1″ coaxial tweeter to produce full-range sound with strong low-end response, clear mids, and detailed highs. Whether used for ambient music or voice announcements, the CM80T helps maintain sound clarity in busy commercial settings.

The speaker supports both 70V and 100V constant-voltage systems, with selectable power taps for flexible installation. Installers can choose the appropriate wattage setting to match room size, amplifier capacity, and coverage needs. The low-profile flush-mount design blends cleanly into ceiling spaces, while the ABS enclosure and metal grille provide durability for long-term professional use.

• Two-way coaxial sound 8″ polypropylene woofer and 1″ coaxial tweeter deliver balanced full-range audio for music and voice.
• 70V/100V commercial system compatibility Designed for distributed audio installations in commercial and institutional buildings.
• Selectable power taps Choose 10W, 20W, or 40W output depending on system requirements and coverage needs.

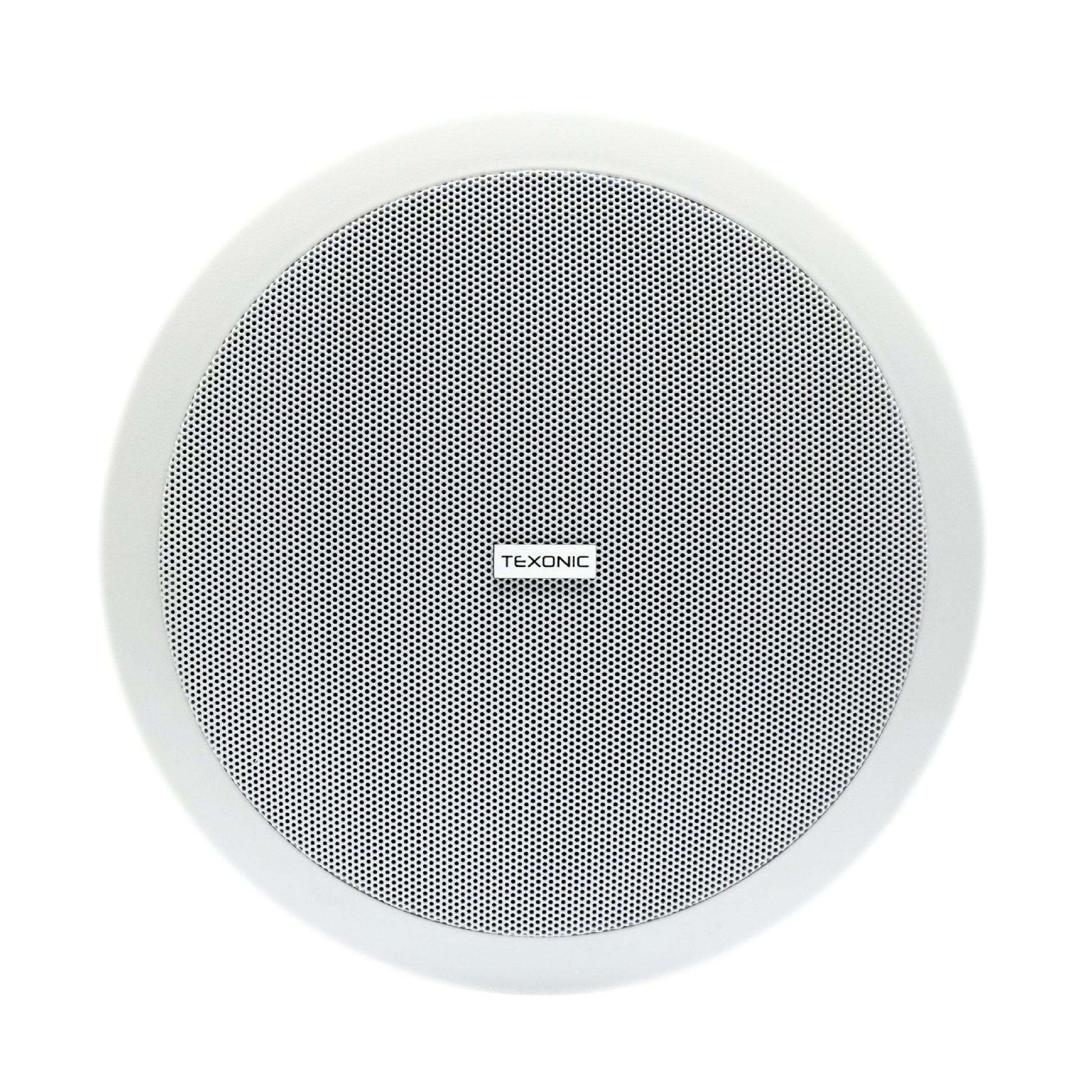

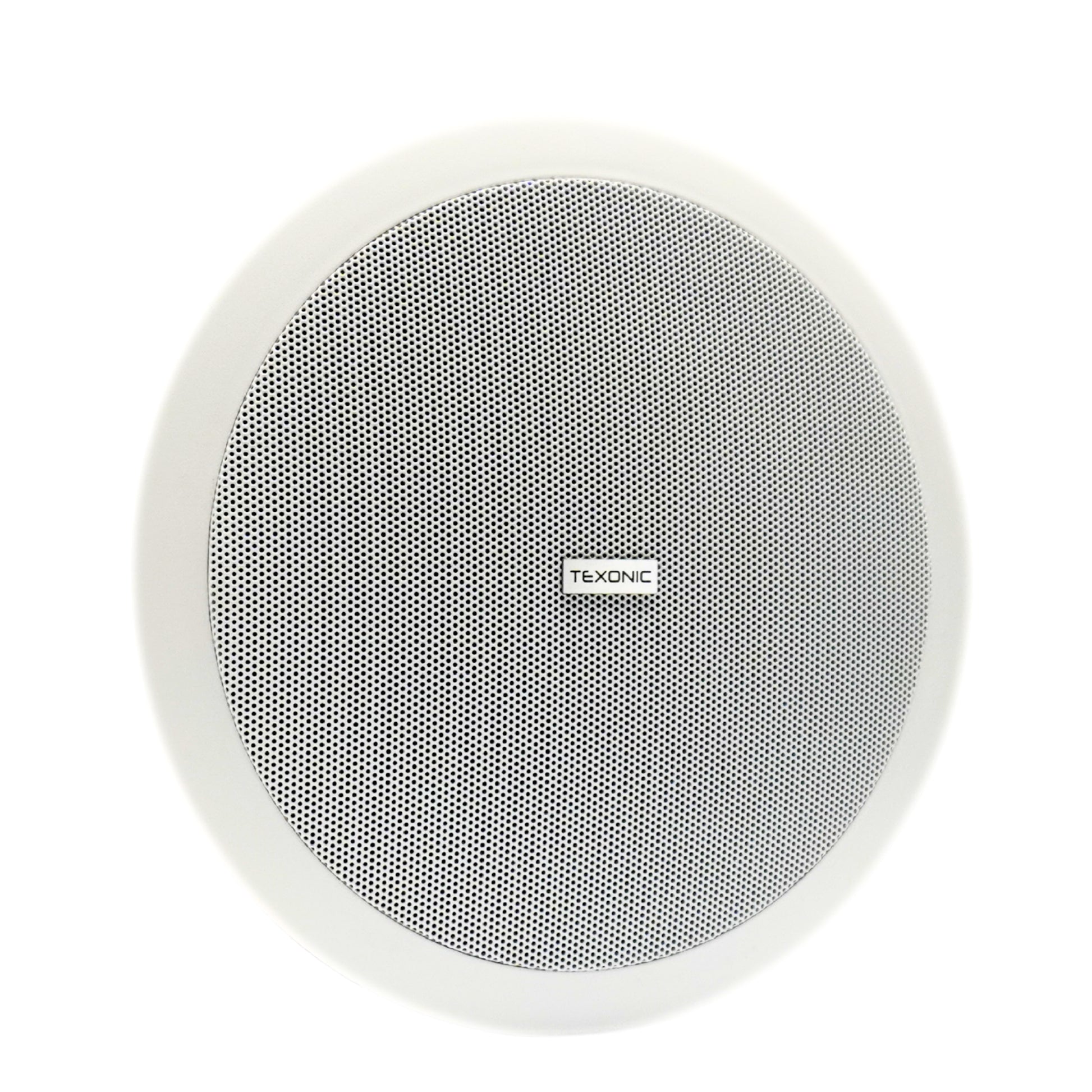

• Clean flush-mount installation Low-profile ceiling design creates a professional, discreet appearance.
• Durable commercial construction ABS enclosure and metal grille support dependable use in demanding environments.
• Ideal for multiple applications Suitable for restaurants, retail stores, offices, schools, hotels, airports, corporate AV, paging systems, and BGM installations.

SPECIFICATIONS

• Speaker Type: 8″ coaxial ceiling speaker
• Rated Power: 5W/10W/20W - 10W/ 20W/ 40W
• Line Input: 70V /100V constant voltage
• Frequency Response: 60Hz – 20kHz
• Sensitivity: 93dB ±3dB, 1W/1m

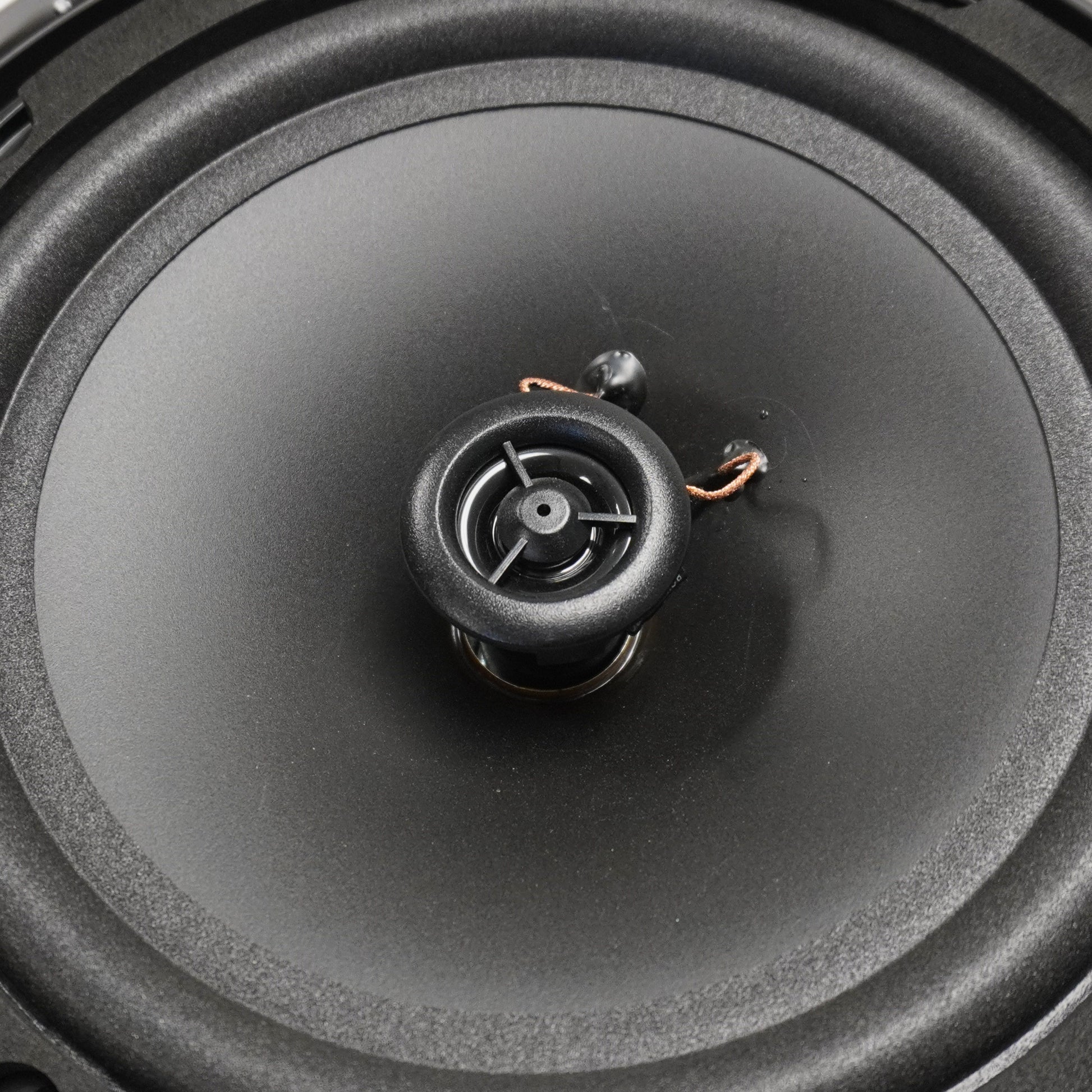

• Drivers: 8″ woofer + 1″ coaxial tweeter
• Cutout Size: 240mm / 9.45″

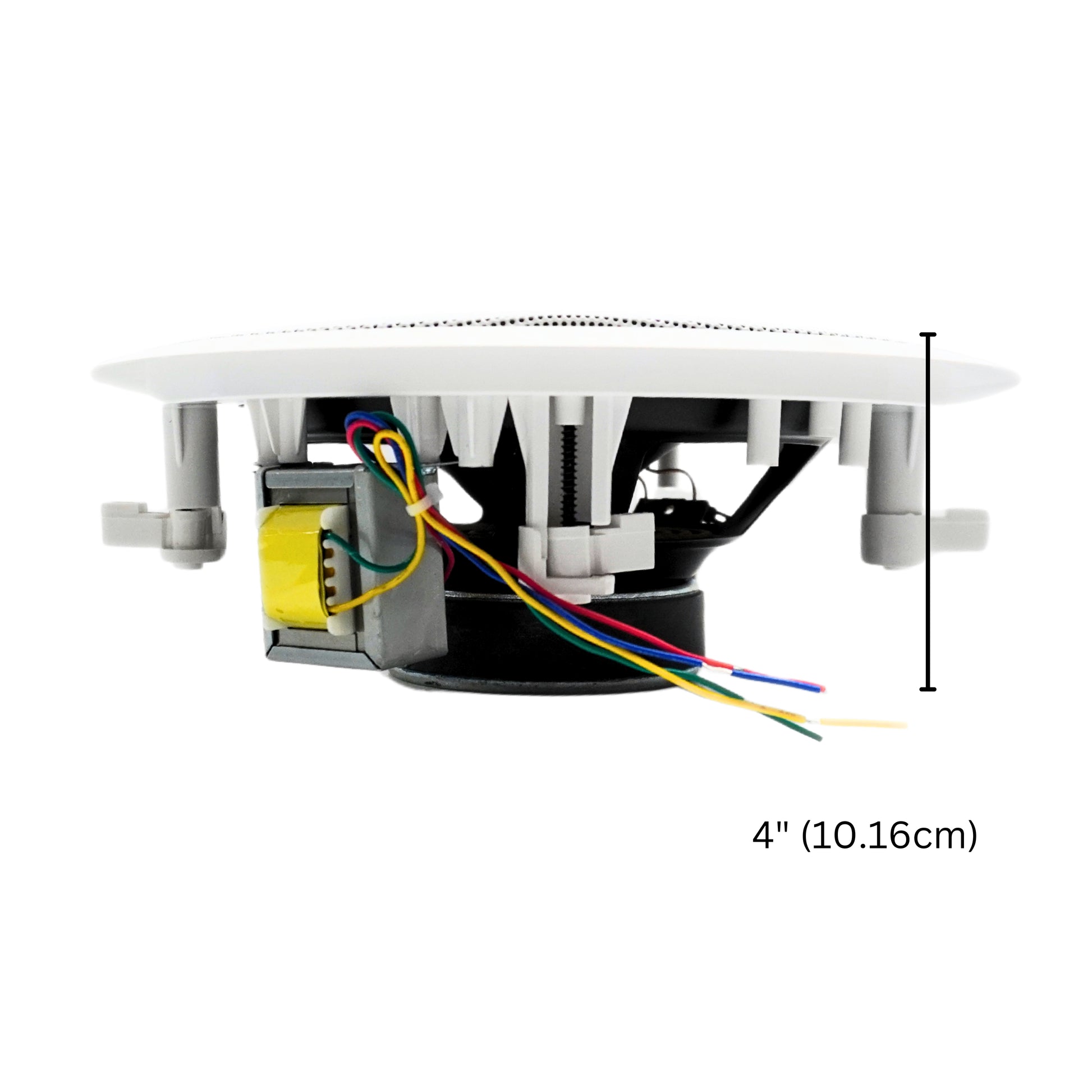

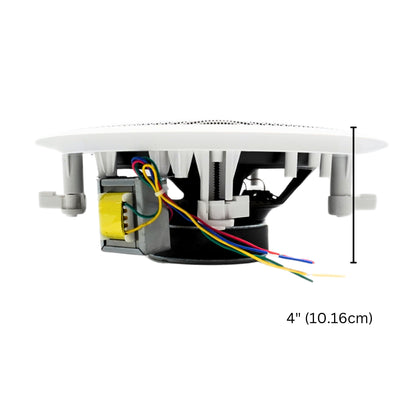

• Dimensions: 270mm diameter × 105mm height / 10.63″ × 4.13″
• Weight Approx. 2.1kg / 4.63lb

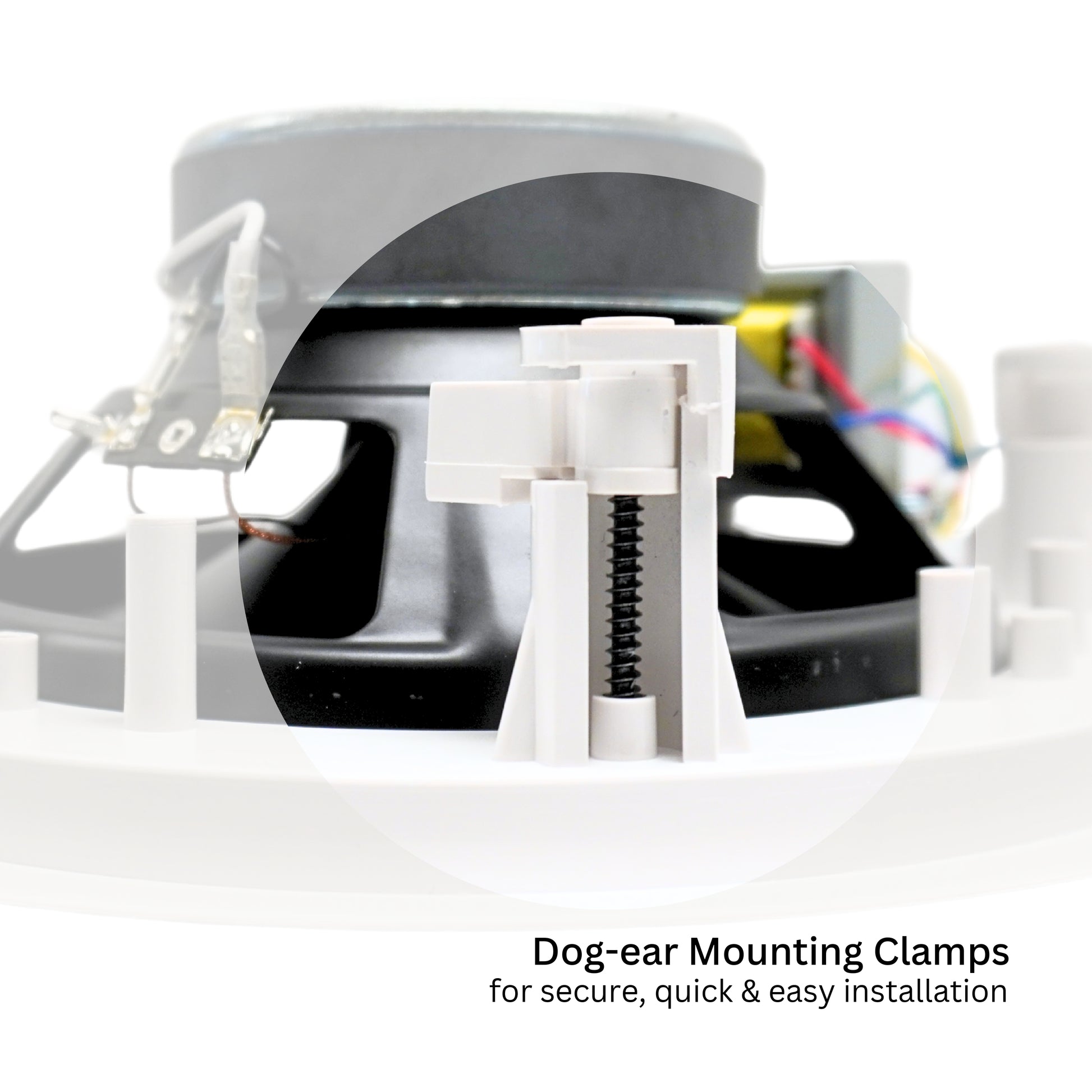

• Mounting: Flush-mount ceiling installation
• Construction: ABS enclosure with powder coated metal grille

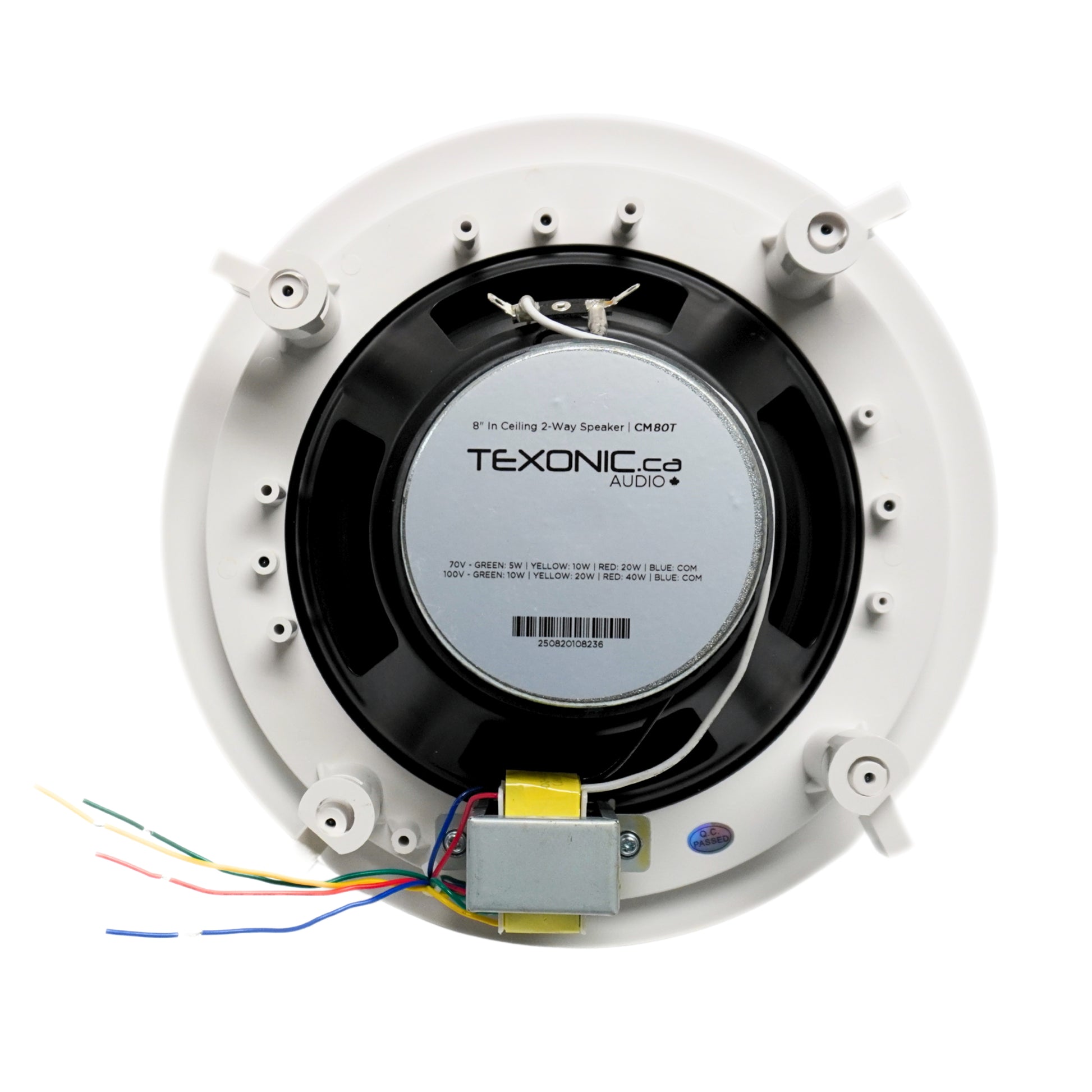

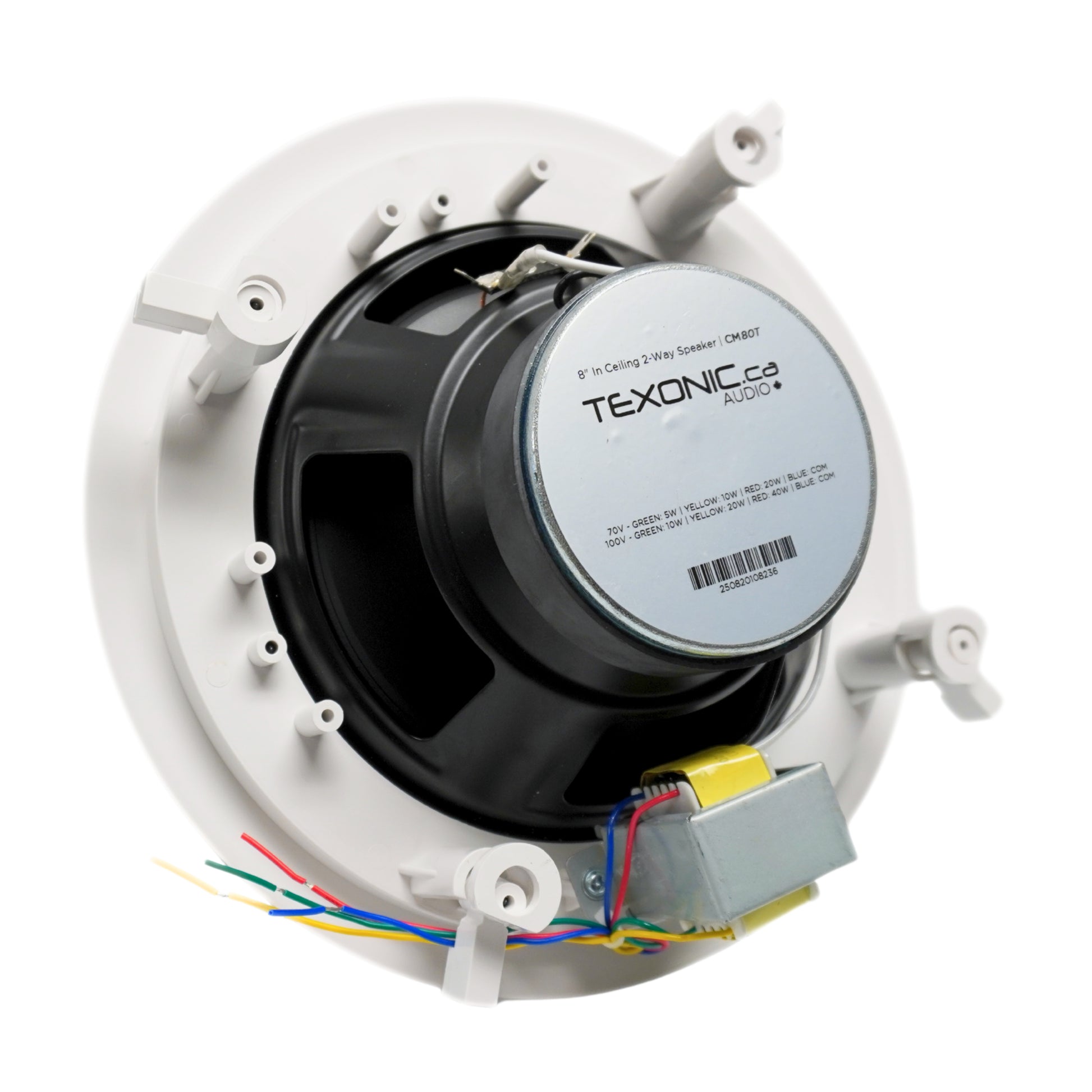

Wiring / Tap Settings

70/100V line:

• Blue: Common / GND
• Green: 5/10W
• Yellow: 10/20W
• Red: 20/40W

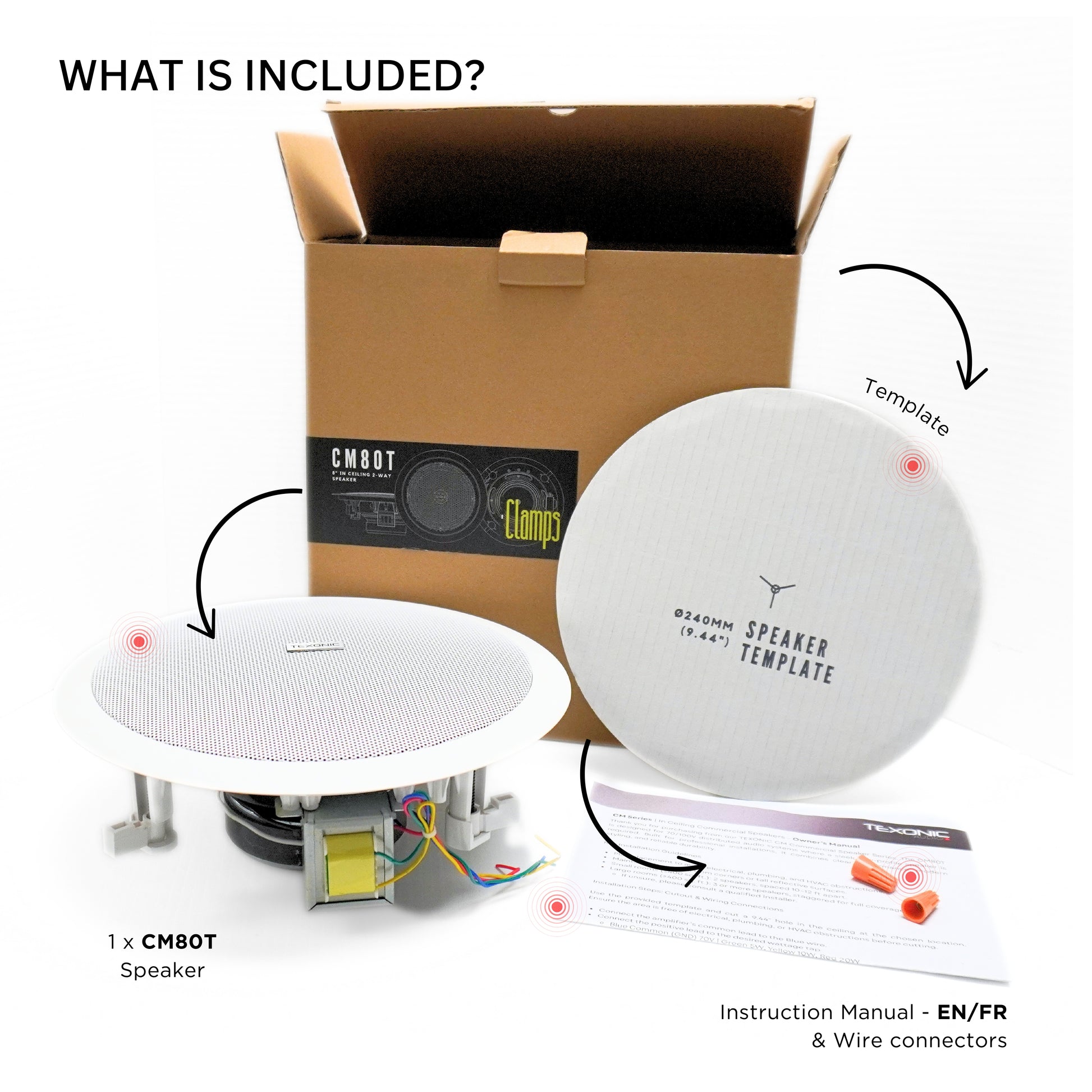

WHAT'S INCLUDED

• 1 × TEXONIC CM80T Coaxial Ceiling Speaker
• 1 × Cutout Template
• 1 × User Manual
• 2 x Wire Connectors
