TEXONIC QX200 2-Zone Wi-Fi Home & Patio Audio System with 2 CM610 + 2 CST86 Speakers
TEXONIC QX200 2-Zone Wi-Fi Home & Patio Audio System with 2 CM610 + 2 CST86 Speakers
SKU:QX200-IO4
Couldn't load pickup availability

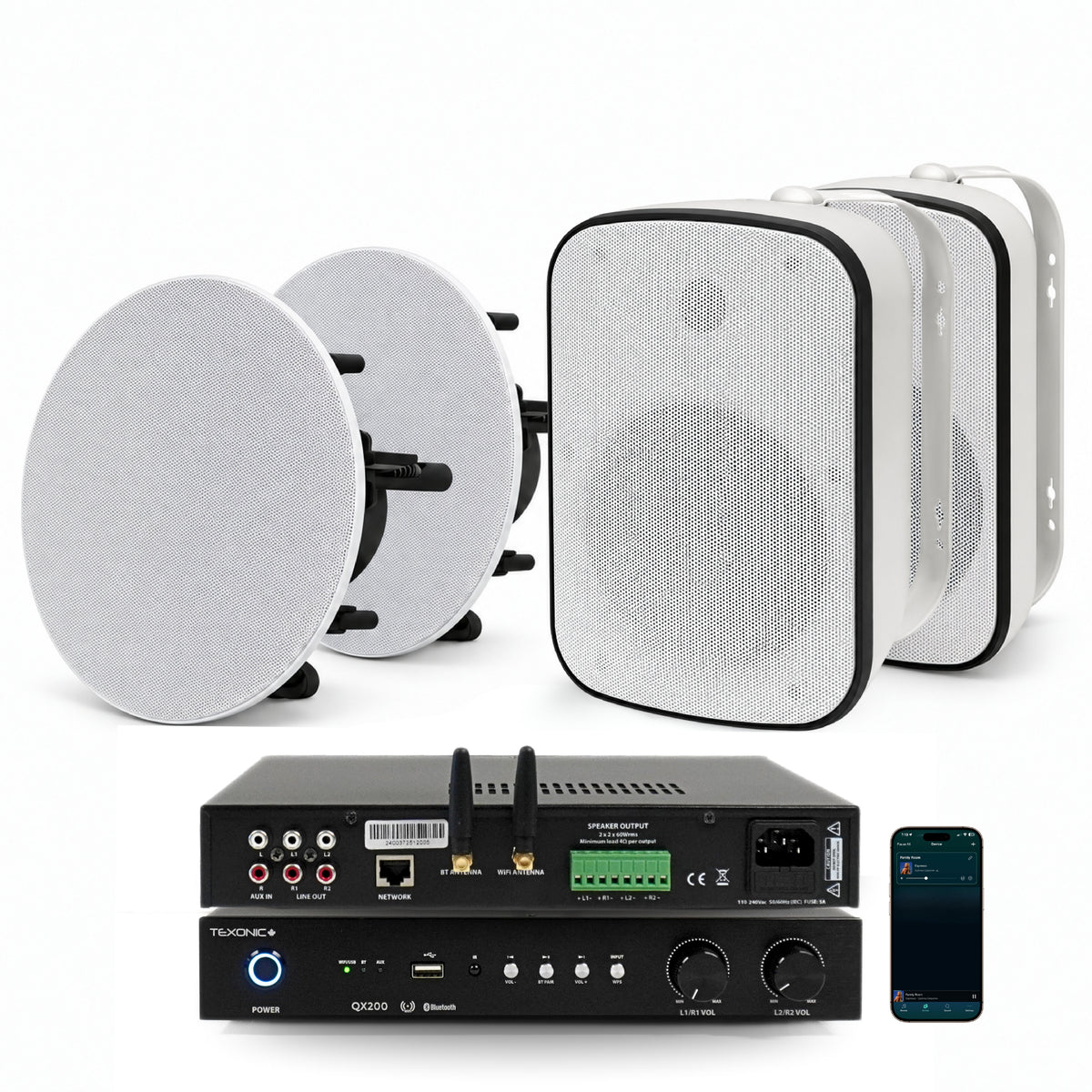

TEXONIC QX200 with 2 CM610 + 2 CST86 Speakers
The TEXONIC QX200-IO4 is a complete two zone Wi-Fi audio package designed for customers who want built in ceiling audio indoors and wall mounted audio in a patio, covered outdoor area or second room.
One QX200 dual zone network streaming amplifier powers two independent stereo speaker zones. Zone 1 uses two CM610 6.5″ in ceiling speakers, while Zone 2 uses two CST86 6.5″ indoor/outdoor wall speakers operating in 8Ω mode.
Built in Wi-Fi streaming, Bluetooth, USB playback, line input and 4Stream app compatibility provide flexible everyday music playback, while independent zone volume control lets each area be adjusted separately.
Product Overview
This system provides two separate stereo listening areas from one compact amplifier. It is particularly useful when one area requires discreet ceiling speakers while another area is better served by directional wall mounted speakers.
The indoor zone uses two TEXONIC CM610 speakers. Their low profile ceiling installation, 6.5″ polypropylene woofers and pivoting silk dome tweeters make them well suited to living rooms, kitchens, dining areas, home offices and similar indoor spaces.

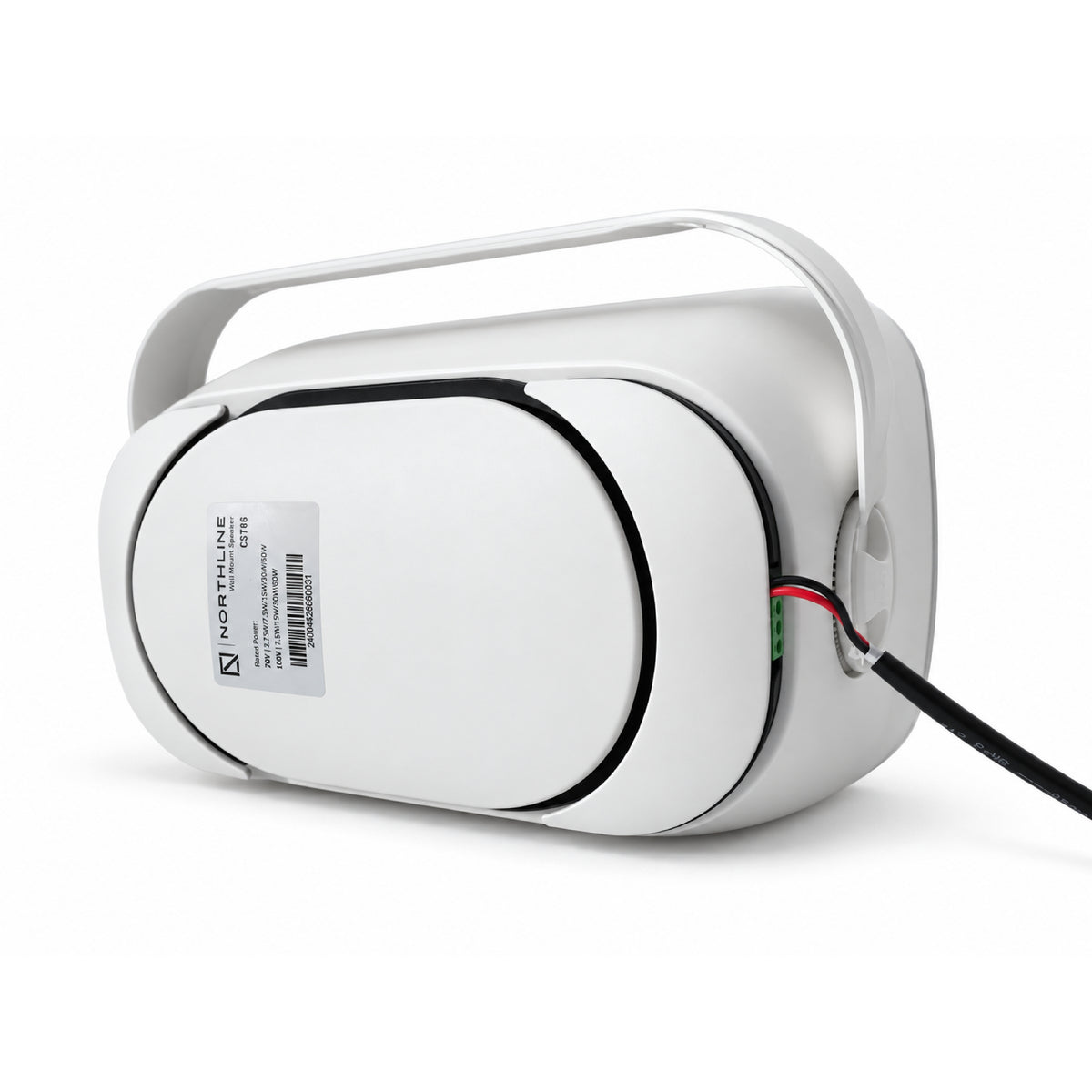

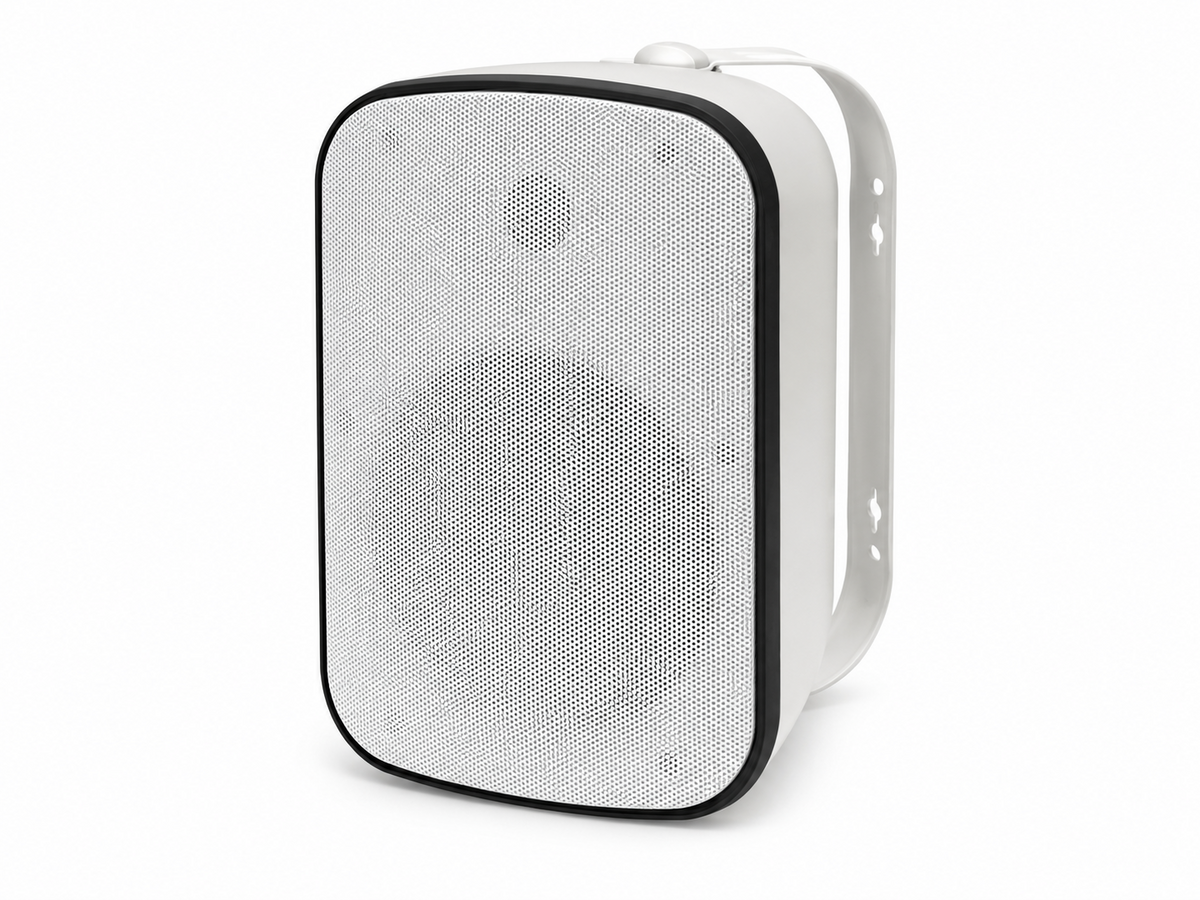

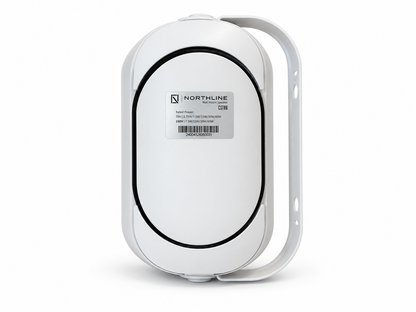

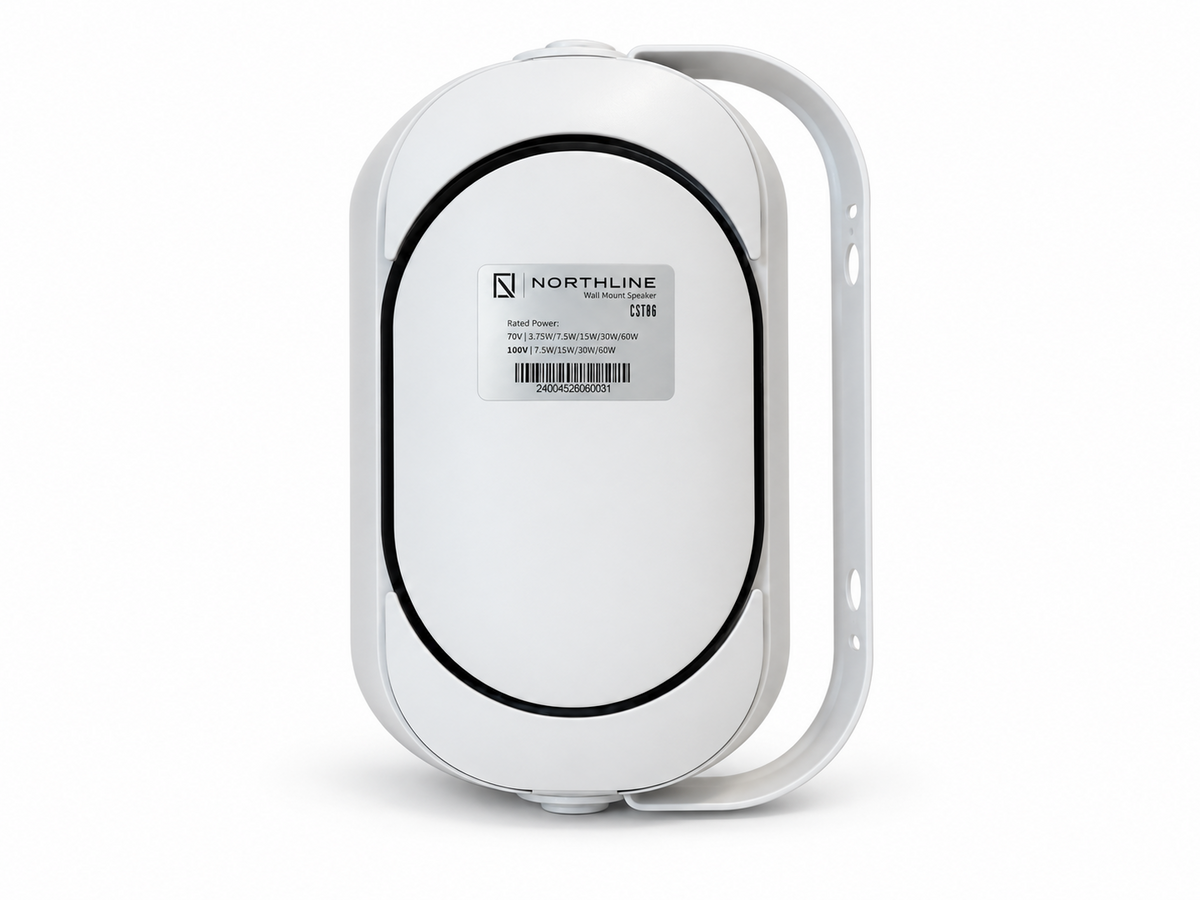

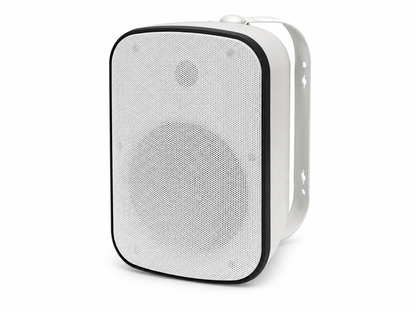

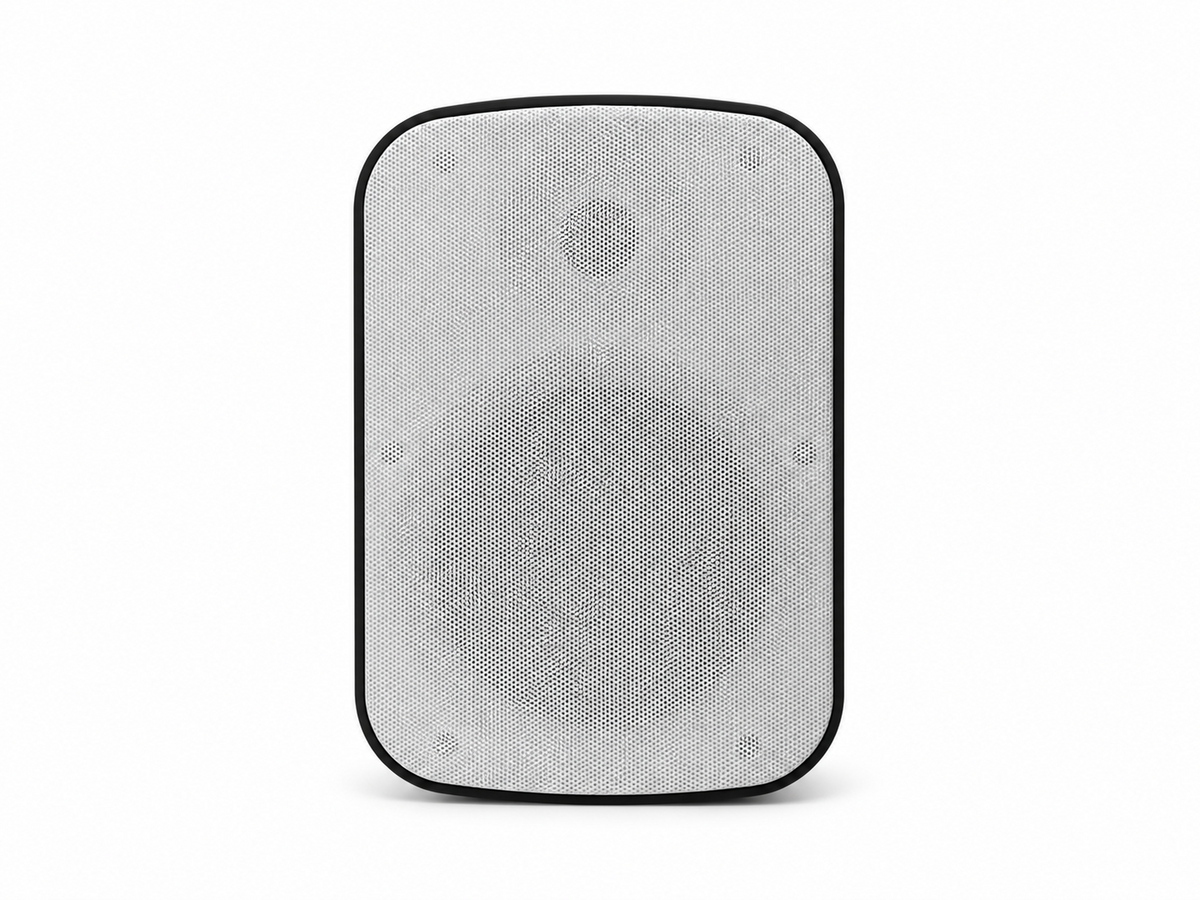

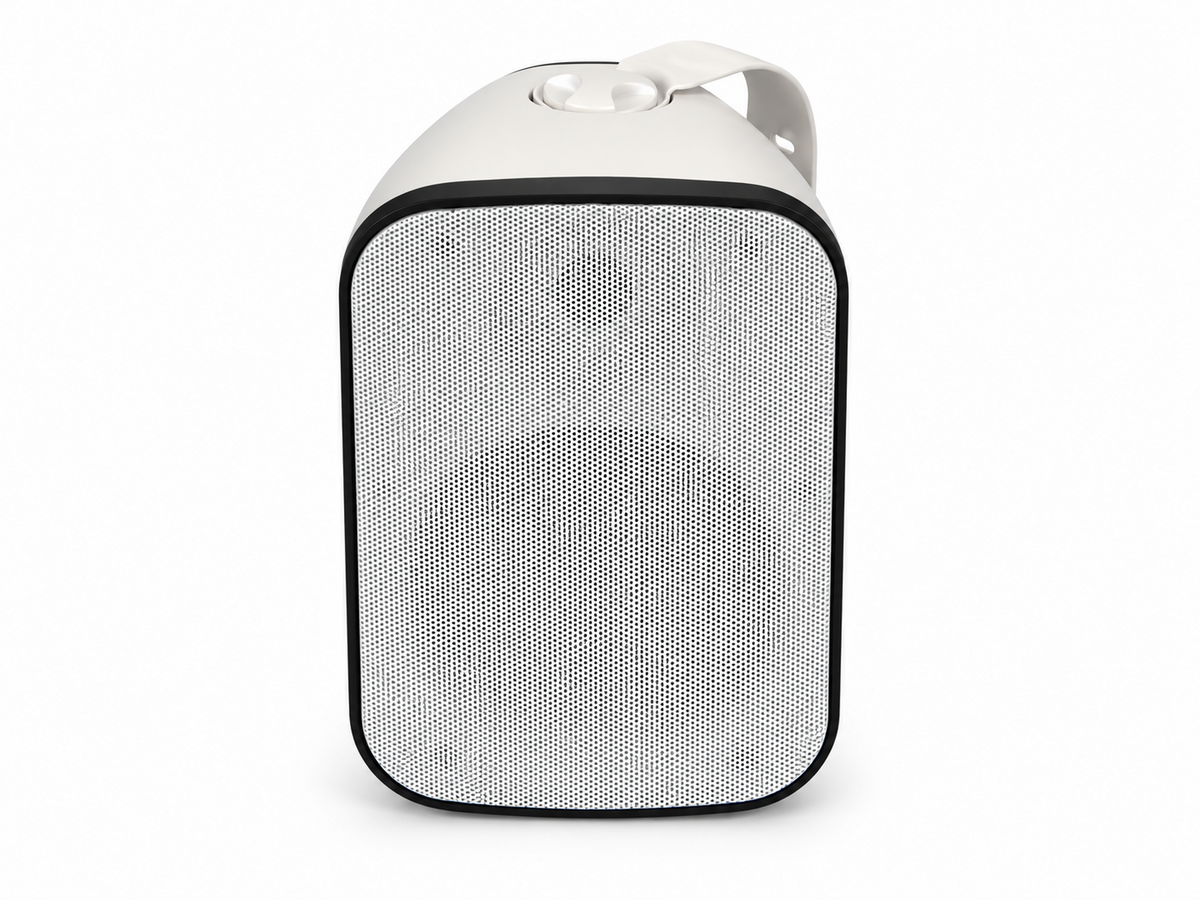

The second zone uses two TEXONIC CST86 speakers. Their 6.5″ two way design, adjustable U-brackets and indoor/outdoor construction make them suitable for patios, covered outdoor areas, garages or another indoor room where surface mounted speakers are preferred.
Key Features
- Complete two-zone Wi-Fi audio package
- One QX200 4 channel dual zone amplifier
- Independent volume control for each zone
- 30W × 4 output at 8Ω
- Built-in Wi-Fi audio streaming
- Built-in Bluetooth playback
- 4Stream app compatibility
- USB MP3 playback
- Line input for an external audio source
- 2 x CM610 6.5″ in ceiling speakers
- CM610 tool-free ceiling installation
- CM610 pivoting 0.75″ silk-dome tweeters
- 2 x CST86 6.5″ wall speakers
- CST86 speakers used in 8Ω mode
- CST86 adjustable wall-mount U-brackets
- CST86 indoor/outdoor installation capability
- Choice of black or white CST86 speakers
- Suitable for home, patio and multi area audio

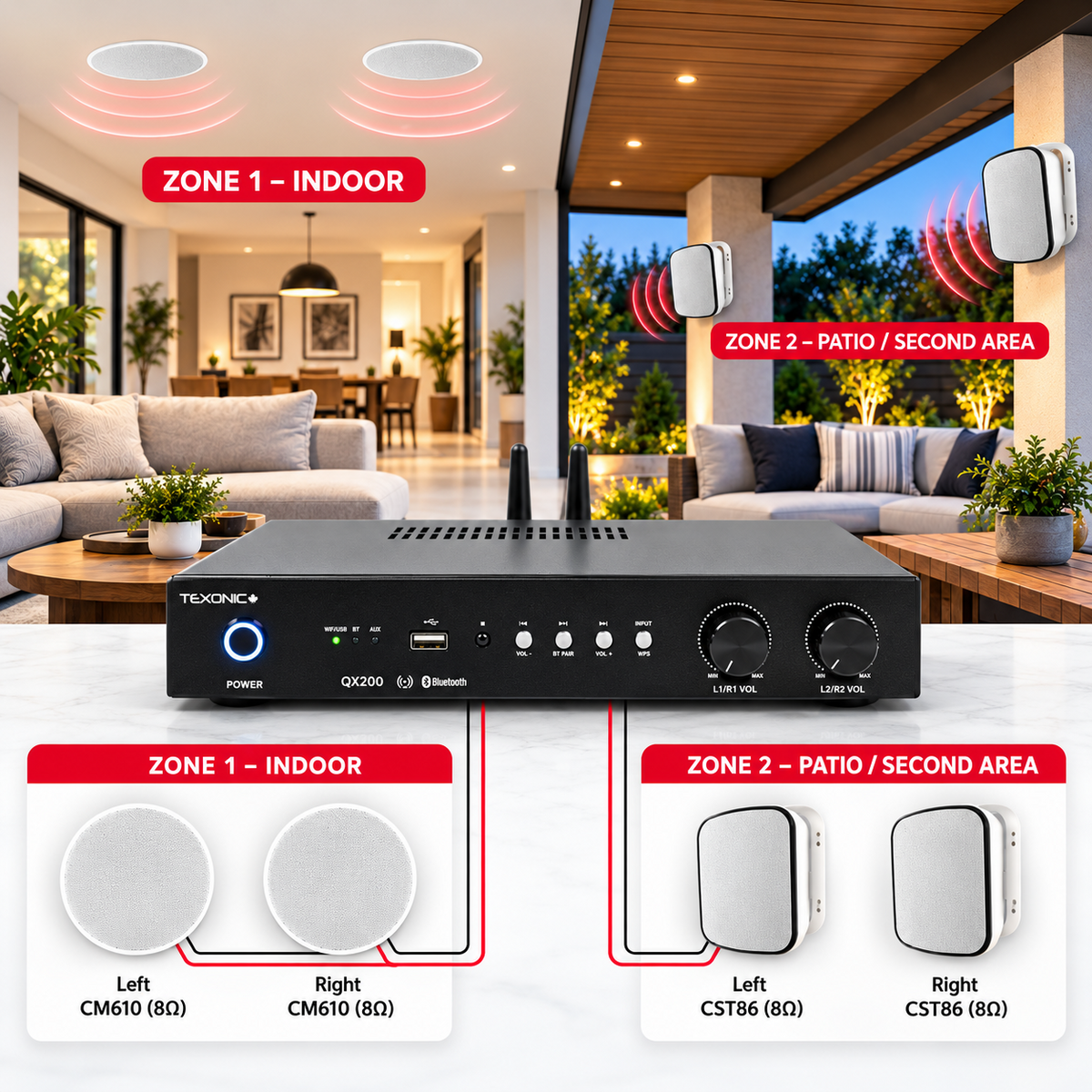

Two-Zone Speaker Configuration
The QX200 provides four amplifier channels arranged as two stereo zones. This package uses one 8Ω speaker on each amplifier channel.
Right Channel → 1 × CM610 8Ω
Right Channel → 1 × CST86 set to 8Ω
System Specifications
Setup Notes
- Choose a dry, ventilated location for the QX200 with access to AC power and your network.
- Plan two CM610 ceiling locations for the indoor stereo zone.
- Confirm the CM610 ceiling cutout, ceiling thickness and available mounting depth before cutting.
- Plan two CST86 positions for the patio, covered outdoor area or second room.
- Secure each CST86 U-bracket to a suitable mounting surface and aim the speakers toward the listening area.

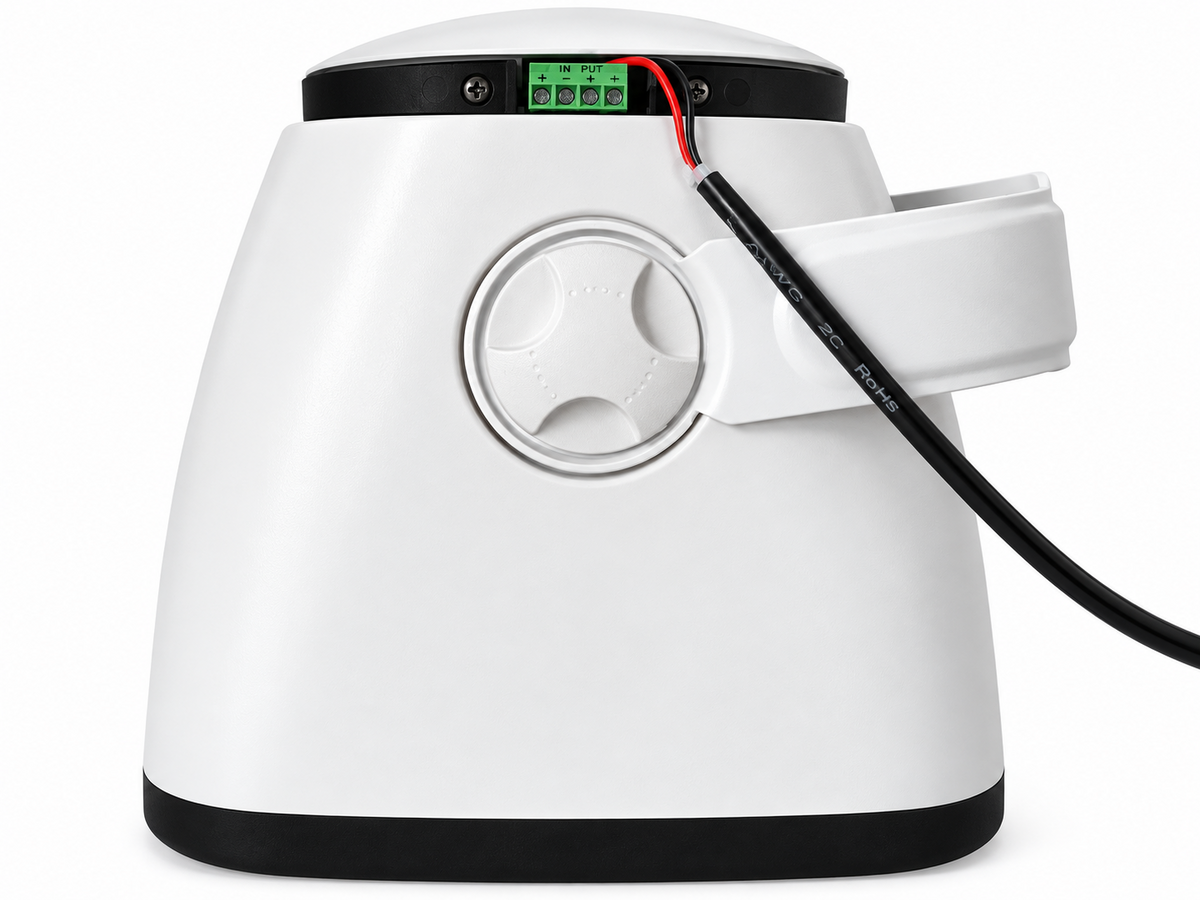

- Set both CST86 speakers to 8Ω mode before connecting them to the QX200.
- Run separate two conductor speaker cable from each QX200 amplifier channel to its corresponding speaker.
- Maintain correct positive and negative speaker polarity on all four channels.
- For outdoor installations, use appropriate weather-rated speaker cable and protect cable entries and connections from moisture.
- Connect the QX200 to Wi-Fi and configure 4Stream if app based network streaming is required.
- Begin with both zone volume levels low and gradually adjust them to the desired listening level.
