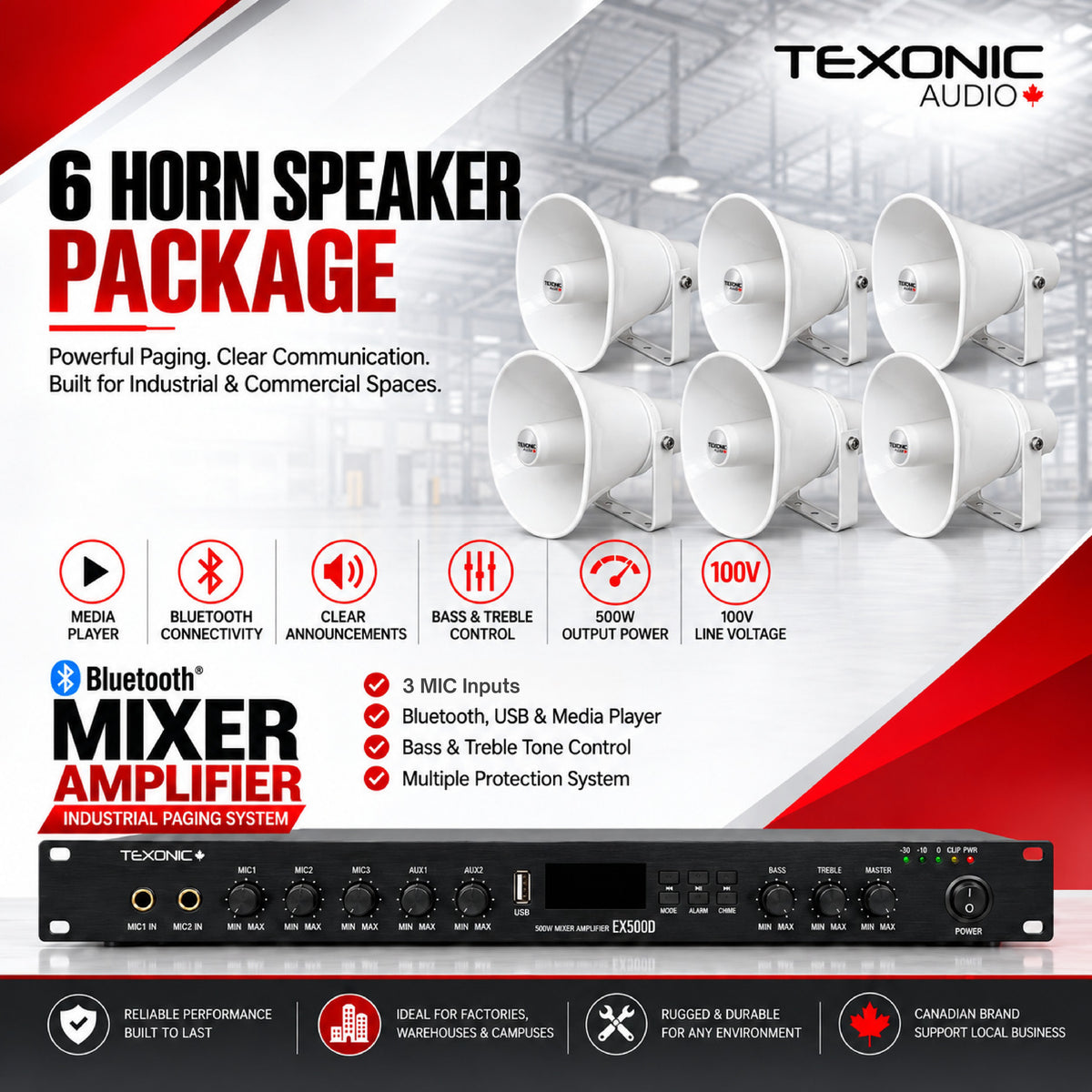

• TEXONIC EX500D paging system with 6 CH30T 30W IP65 horn speakers
  • TEXONIC EX500D 500W 100V Commercial Mixer Amplifier
  • TEXONIC CH30T 30W IP65 70V/100V Paging Horn Speaker
1 3

TEXONIC

TEXONIC EX500D Paging System with 6 CH30T 30W IP65 Horn Speakers

TEXONIC EX500D Paging System with 6 CH30T 30W IP65 Horn Speakers

TXPH06-05

$1,948.44 CAD
$1,948.44 CAD
Sale Sold out
Shipping calculated at checkout.
TEXONIC Commercial Paging System Canada

EX500D Paging System with 6 CH30T IP65 Horn Speakers

Deliver clear announcements across larger warehouses, factories, loading areas, service yards, parking areas and industrial properties with a TEXONIC EX500D 500W commercial mixer amplifier and six TEXONIC CH30T 30W IP65 paging horn speakers.

Six horn speaker locations help distribute clear voice paging across multiple work zones, while the high capacity EX500D provides substantial amplifier capacity for larger or expandable commercial paging installations.

500W EX500D Amplifier 6 × CH30T IP65 Horn Speakers Bluetooth + USB Playback 100V Distributed Paging


Product Overview

This package is designed for larger commercial and industrial properties where announcements need to reach several indoor or outdoor work areas.

Using six horn speaker locations allows paging coverage to be spread around the property instead of relying on a small number of excessively loud speakers.

The TEXONIC CH30T provides focused directional speech projection, high 113dB sensitivity and an IP65 rated enclosure for properly installed indoor and outdoor applications.

The EX500D provides 500W of Class D commercial amplification in a low profile 1U rack-mount design.

It includes Bluetooth and USB playback, three microphone inputs for paging, two AUX inputs, a line level output and built in chime and alarm functions.

MIC1 is the microphone priority input for important paging announcements. MIC2 and MIC3 operate as standard microphone inputs.

For this package, all six CH30T speakers connect to the EX500D 100V speaker output. With all six CH30T speakers set to 30W, the complete speaker load is 180W.

Best For Large warehouses, factories, loading docks, service yards, parking areas, industrial properties and outdoor work zones.
System Fit Larger commercial 100V paging systems requiring multiple directional horn speaker locations and additional amplifier capacity.

Key Features

  • TEXONIC EX500D 500W Class-D commercial mixer amplifier
  • 6 × TEXONIC CH30T 30W IP65 paging horn speakers
  • 100V distributed commercial paging system
  • CH30T selectable 15W and 30W taps at 100V
  • High 113dB speaker sensitivity
  • Strong directional voice projection
  • IP65 protection for properly installed indoor and outdoor applications
  • Designed for paging, operational messages, safety announcements and public address
  • Bluetooth wireless playback
  • USB media playback
  • 3 microphone inputs
  • MIC1 microphone priority input
  • MIC2 and MIC3 standard microphone inputs
  • 2 AUX inputs
  • Line level audio output
  • Built in chime and alarm functions
  • Bass, treble and master volume controls
  • Power, signal, clip and protection indicators
  • Short circuit, overload and high temperature amplifier protection
  • 1U 19 inch rack mount amplifier design
  • Large amount of amplifier capacity available for properly planned future expansion

System Specifications

Brand TEXONIC
Package SKU TXPH06-05
Package Type Large commercial 100V paging system
Amplifier Model TEXONIC EX500D
Amplifier Type Class D commercial mixer amplifier
Rated Amplifier Output 500W
Speaker Output Used for This Package 100V
Low-Impedance Speaker Output 8–16Ω
Microphone Inputs 3
Priority Microphone Input MIC1
Standard Microphone Inputs MIC2 and MIC3
AUX Inputs 2
Line Output 1
Media Playback Bluetooth + USB
Tone Controls Bass and Treble
Paging Functions MIC1 priority, chime and alarm
Speaker Model TEXONIC CH30T
Speaker Quantity 6
Rated Speaker Power 30W each
Speaker System 70V / 100V
70V Power Taps 7.5W / 15W
100V Power Taps 15W / 30W
Sensitivity 113dB @ 1W / 1m
Frequency Response 250Hz–10kHz
Protection Rating IP65
Colour White
Maximum Package Speaker Load 6 × 30W = 180W
EX500D Rated Output 500W
Rated Amplifier Capacity Remaining Before Maximum Approximately 320W
Expansion Note: Always leave suitable operating headroom when adding additional compatible speakers.

CH30T Speaker Tap Example

CH30T Setting Speaker Quantity Total Speaker Load
15W @ 100V 6 90W
30W @ 100V 6 180W
30W × 6 speakers = 180W total speaker load

For many paging installations, start with the 15W tap and increase individual speakers to 30W where additional output is required.

The appropriate tap depends on speaker placement, listening distance, background noise and the required paging level.

Add together the selected wattage of all connected speakers before powering the system.

Keep the combined speaker load within the amplifier's rated output and leave suitable operating headroom.

Basic 100V Speaker Wiring

  1. Connect the EX500D 100V and COM terminals to the CH30T speaker line.
  2. Connect all six horn speakers in parallel along the same 100V circuit.
  3. Maintain consistent speaker line polarity throughout the installation.
  4. Confirm the selected 100V transformer tap on every CH30T before powering the amplifier.
  5. Use only one EX500D speaker-output type at a time. Do not operate the 100V and 8–16Ω outputs together.
Important: Turn off the amplifier before connecting speakers, changing tap settings or servicing the speaker line.
Installation Note: Secure every horn speaker to a suitable load-bearing structural surface and aim each horn toward the intended listening area. Outdoor wiring, speaker cable entry and mounting should be protected appropriately and follow applicable electrical, building, fire and structural requirements.
Product Note: The CH30T is designed primarily for clear voice paging and announcements rather than full-range background music.

What’s Included

1 × TEXONIC EX500D 500W commercial mixer amplifier
1 × Remote control
1 × AC power cord
1 × Screwdriver
1 × Terminal connector
6 × TEXONIC CH30T 30W IP65 paging horn speakers
Adjustable CH30T mounting brackets
User Manual
Installation Reminder: Confirm the 100V speaker output, CH30T tap settings, speaker polarity and mounting locations before powering the system.
