Industrial PA System for Warehouses & Factories - Canada

Industrial PA System for Warehouses & Factories - Canada

TXPH06-05

$1,948.44 CAD
$1,948.44 CAD
Sale Sold out
Shipping calculated at checkout.
TEXONIC Commercial Paging System Canada

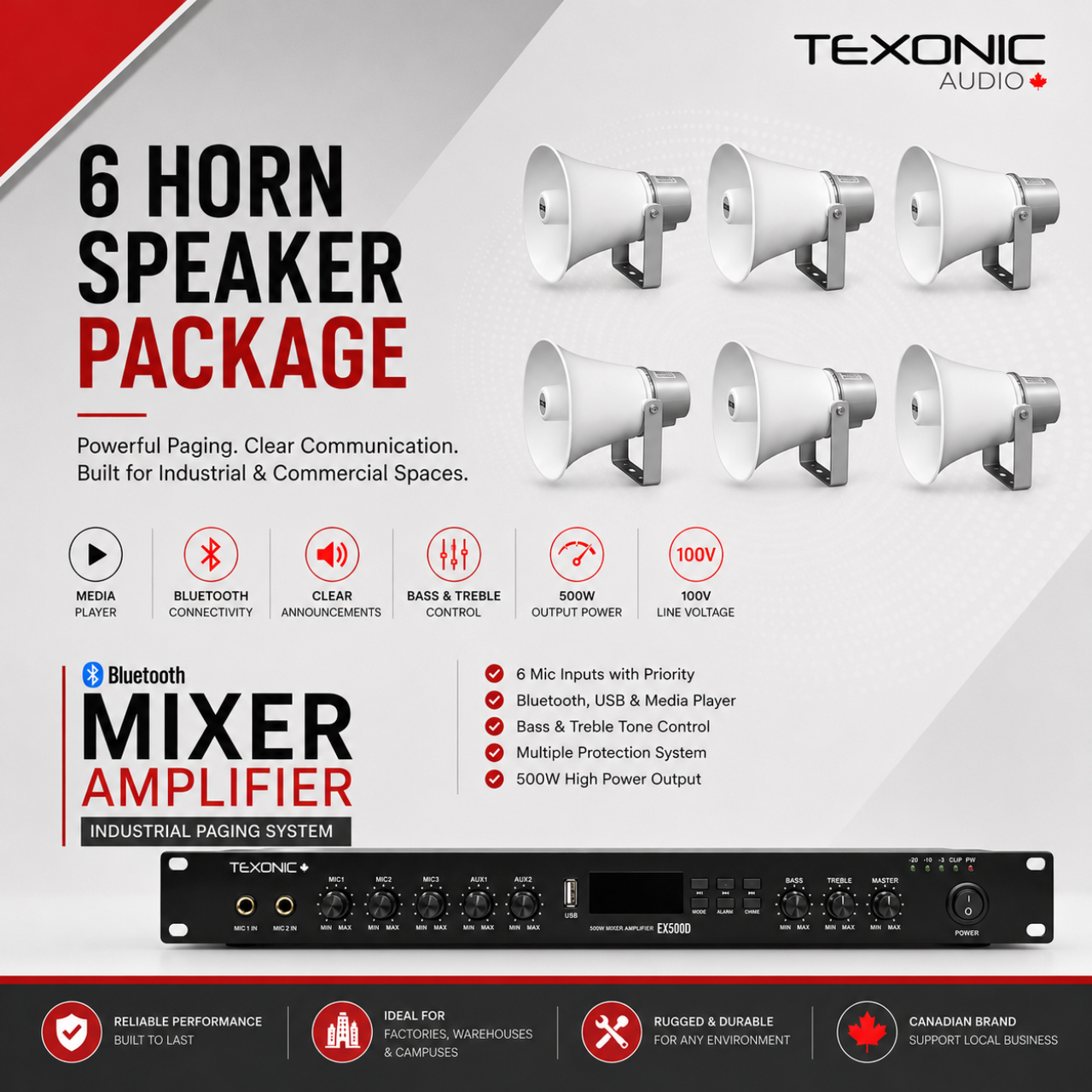

EX500D Paging System with 6 TOA SC-630TU Horn Speakers

Deliver clear voice announcements across warehouses, factories, loading docks, parking areas and service yards with a TEXONIC EX500D commercial amplifier and six TOA SC-630TU horn speakers.

This powerful 100V commercial paging package is designed for Canadian businesses that need strong speech projection, dependable operation and clear coverage across multiple indoor or outdoor work areas.

Powerful Paging for Large Commercial Properties

Horn speakers project voice across longer distances and through areas with machinery, vehicles or general workplace noise. Six speaker locations help deliver announcements to separate work zones without relying on one excessively loud speaker.

Strong Voice Projection

Designed for staff paging, operational messages and general announcements across busy commercial and industrial areas.

Weather-Resistant Speakers

The SC-630TU is suitable for indoor and weather-exposed commercial speaker installations.

Available Amplifier Headroom

Six speakers at approximately 60W each create a 360W load, leaving approximately 140W available.

Commercial Paging Amplifier

TEXONIC EX500D

The EX500D provides 500W of commercial amplification through its 100V speaker output. It is designed for larger distributed paging systems using multiple horn speakers connected along one commercial speaker line.

Weather-Resistant Horn Speaker

TOA SC-630TU

The SC-630TU is a commercial horn speaker designed for clear voice paging and tone signalling in warehouses, factories, industrial properties and outdoor work areas.

Recommended Applications

Warehouses
Factories
Loading Docks
Service Yards
Parking Areas
Outdoor Work Zones

Simple Speaker Tap Settings for the EX500D 100V Output

The SC-630TU speaker taps are marked for 70V operation. When connected to the EX500D 100V output, each tap uses approximately twice the printed wattage.

Tap printed on speaker Approximate load on 100V Recommended use
7.5W tap Approximately 15W per speaker Lower-level paging or quieter areas
15W tap Approximately 30W per speaker Normal commercial paging
30W tap Approximately 60W per speaker Full-output paging for louder areas
Recommended package setting: Set all six SC-630TU speakers to the printed 30W tap. On the EX500D 100V output, each speaker uses approximately 60W.

Golden Rule for the 100V Speaker System

Add the actual 100V wattage used by all connected speakers. The total speaker load must not exceed the amplifier’s maximum power rating.

EX500D: 500W × 80% = 400W recommended maximum load

Six SC-630TU speakers using approximately 60W each create a total system load of approximately 360W. This remains below the recommended 400W design load.

Six-Speaker Power Calculation

Equipment Approximate power Total Status
1 × SC-630TU Approximately 60W on 100V Approximately 60W Suitable
6 × SC-630TU Approximately 60W each Approximately 360W Within the recommended load
EX500D amplifier 500W maximum output Approximately 140W capacity remaining Properly matched
Six speakers × approximately 60W = approximately 360W total. The EX500D provides 500W, leaving approximately 140W of available amplifier capacity.

Basic 100V Speaker Wiring

  1. Connect the EX500D amplifier’s 100V and COM terminals to the first horn speaker.
  2. Continue the same two-conductor speaker cable from the first horn to the next speaker.
  3. Repeat the parallel connection until all six horn speakers are connected.
  4. Maintain the same wire polarity throughout the full speaker line.
  5. Set all six speakers to the printed 30W tap.
  6. Confirm the total system load is approximately 360W before switching on the amplifier.

Permanent outdoor speaker wiring and mounting should comply with applicable Canadian electrical, fire, building and structural requirements.

Package Includes

✓ 1 × TEXONIC EX500D 500W commercial amplifier
✓ 6 × TOA SC-630TU weather-resistant paging horn speakers

Canadian Commercial Audio Support

TEXONIC is a Canadian commercial audio brand based in Barrie, Ontario. This paging system ships from our Ontario warehouse to businesses across Canada, with assistance available for amplifier loading, horn placement and paging-system planning.

Need Help Planning Your Paging Coverage?

Share your property size, horn mounting locations, ambient-noise level and paging requirements. Our Canadian team can help review the speaker layout and system loading.
