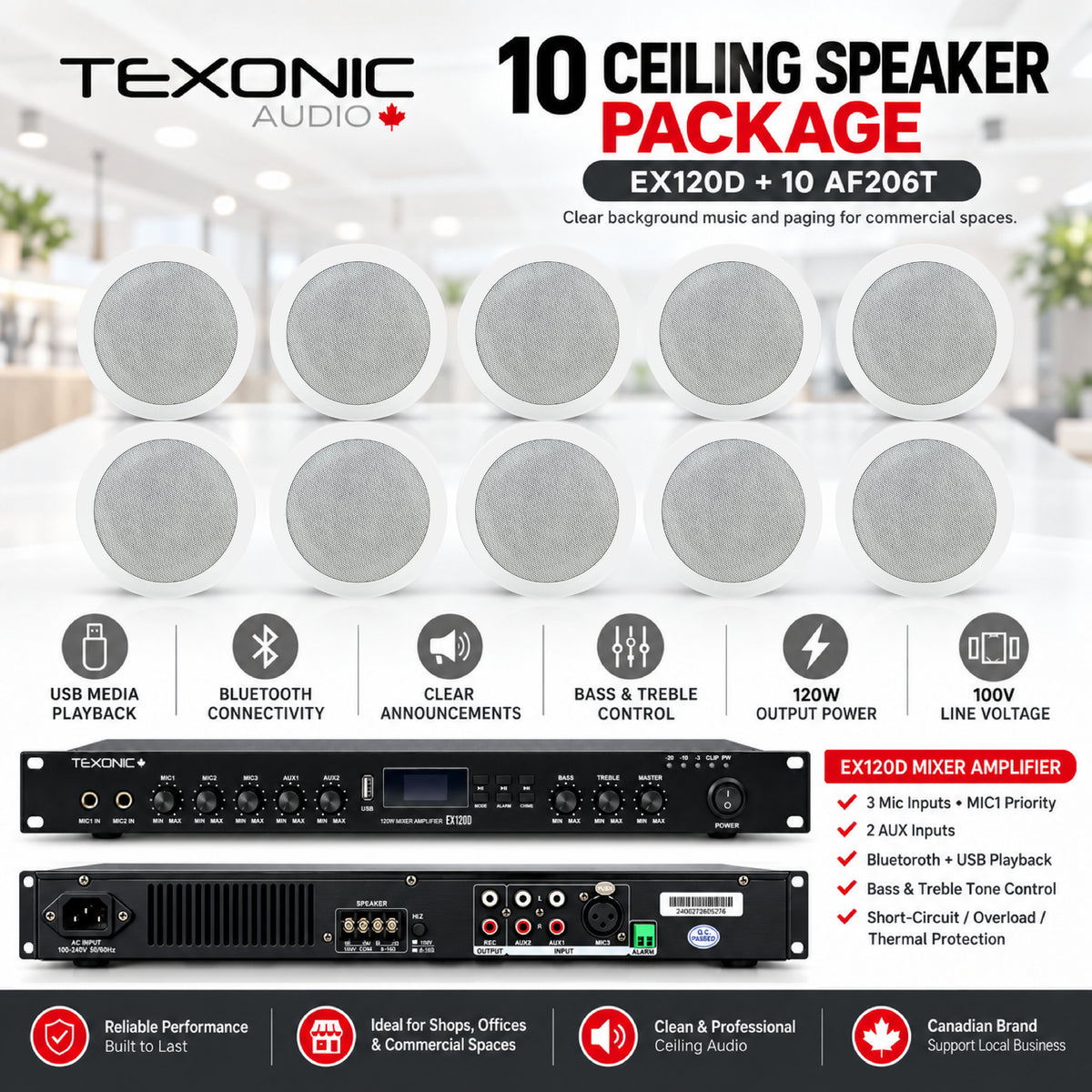

• TEXONIC EX120D commercial sound system with 10 AF206T ceiling speakers
  • TEXONIC AF206T 6″ Two-Way 70V/100V Commercial Ceiling Speaker
  • TEXONIC AF206T 6″ Commercial Ceiling Speaker Front View
  • TEXONIC EX120D 120W 100V Commercial Mixer Amplifier
  • TEXONIC AF206T Ceiling Speaker Metal Back Enclosure
  • TEXONIC AF206T 70V/100V Commercial Ceiling Speaker Rear View
1 12

TEXONIC

TEXONIC EX120D 120W Bluetooth Commercial Sound System with 10 AF206T Ceiling Speakers

TEXONIC EX120D 120W Bluetooth Commercial Sound System with 10 AF206T Ceiling Speakers

TX120EC10

$1,024.99 CAD
$1,024.99 CAD
Sale Sold out
Shipping calculated at checkout.
Commercial 100V Music & Paging System

120W Bluetooth Commercial Music & Paging System with 10 AF206T Ceiling Speakers

The TEXONIC TXP120C10 combines the EX120D 120W commercial mixer amplifier with ten AF206T two-way ceiling speakers to create a practical background music and paging system for medium size commercial spaces.

The EX120D provides Bluetooth wireless playback, USB media playback, AUX connections for external audio sources and microphone inputs for paging and announcements. MIC1 provides voice priority so important announcements can be heard clearly over normal background music.

120W EX120D Amplifier 10 × AF206T Ceiling Speakers Bluetooth + USB Playback 100V Music & Paging

Product Overview

This package is designed for clear background music and everyday paging in restaurants, cafés, retail stores, offices, clinics, salons, showrooms, reception areas and other commercial spaces.

Each AF206T combines a 6-inch woofer with a separate 1-inch tweeter for clear speech and balanced music reproduction. The metal back enclosure and white metal grille provide a clean installation for commercial ceilings.

For this package, the speakers connect to the EX120D 100V output. Each AF206T can be set to either 3W or 6W on a 100V system, allowing the installer to select the output level that best suits the room and required coverage.

Best For Restaurants, cafés, retail stores, offices, clinics, salons, showrooms, reception areas and other commercial spaces.
System Fit Distributed 100V ceiling speaker systems requiring background music together with microphone paging and announcements.

Key Features

  • Complete 120W commercial background music and paging package
  • TEXONIC EX120D 120W Class-D commercial mixer amplifier
  • 10 × TEXONIC AF206T 6″ two-way commercial ceiling speakers
  • 100V distributed commercial speaker system
  • Bluetooth wireless audio playback
  • USB media playback
  • AUX inputs for external audio sources
  • 3 microphone inputs for paging and announcements
  • MIC1 voice-priority function for important announcements
  • Bass, treble and master volume controls
  • Built-in chime and alarm functions
  • AF206T uses a 6″ woofer plus 1″ tweeter
  • AF206T selectable 3W or 6W taps at 100V
  • Metal back speaker enclosure and metal grille
  • Spring clip ceiling mounting
  • Suitable for both background music and speech reproduction
  • Amplifier overload, short-circuit and thermal protection
  • Good amplifier headroom for the included speaker quantity

System Specifications

Brand TEXONIC
Package SKU TXP120C10
Package Type Commercial 100V background music and paging system
Amplifier TEXONIC EX120D
Amplifier Type Class D commercial mixer amplifier
Rated Amplifier Output 120W
Speaker Output Used 100V constant-voltage output
Other Amplifier Output 8–16Ω low-impedance output; use only one output type at a time
Audio Sources Bluetooth, USB, AUX and microphone inputs
Microphone Inputs 3 total; MIC1 provides priority
Speakers 10 × TEXONIC AF206T
Speaker Type 6″ two way commercial ceiling speaker
Speaker Drivers 6″ woofer + 1″ tweeter
100V Speaker Taps 3W / 6W per speaker
Total Speaker Load 30W at 3W taps or 60W at 6W taps
AF206T Frequency Response 100Hz–18kHz
AF206T Sensitivity 92dB at 1W / 1m
Ceiling Cutout 175mm

Speaker Load & Amplifier Headroom

The AF206T provides two selectable power settings when used on a 100V system.

AF206T Tap Setting Speaker Quantity Total Speaker Load
3W @ 100V 10 30W
6W @ 100V 10 60W
10 speakers × 6W = 60W total speaker load

The EX120D provides 120W of rated output. Even with all ten speakers set to 6W, the package uses only 60W of amplifier capacity, leaving substantial headroom for dependable operation.

A conservative 80% system-planning target for a 120W amplifier is approximately 96W. The maximum 60W load of this package remains well below that level.

Important: Use the AF206T 100V transformer tap when connected to the EX120D 100V output. Do not use the EX120D 100V and 8–16Ω outputs at the same time.
Keep speaker polarity consistent and add the wattage of all connected speakers before powering the system.

Setup Notes

  1. Install the EX120D in a dry, ventilated location with suitable access for operation and service.
  2. Plan ten ceiling speaker positions to provide even coverage throughout the listening area.
  3. Use the supplied AF206T cutout template and confirm the 175mm ceiling cutout before installation.
  4. Connect the AF206T speakers in parallel on the 100V distributed speaker line.
  5. Select either the 3W or 6W 100V tap on each AF206T according to the required sound level.
  6. Confirm the total speaker wattage before connecting the system to the EX120D 100V output.
  7. Connect Bluetooth, USB, AUX or microphone sources as required.
  8. Begin with volume controls low, then adjust individual source levels, tone controls and master volume gradually.
For larger or unusually shaped spaces, speaker positioning and tap selection should be planned around ceiling height, room layout, background noise and the required listening level.

What’s Included

1 × TEXONIC EX120D 120W Commercial Mixer Amplifier
10 × TEXONIC AF206T 6″ Two Way Commercial Ceiling Speakers
Speaker Cutout Templates
1 × EX120D Remote Control
1 × AC Power Cord
1 × Screwdriver
1 × Terminal Connector
User Manual
Product Reminder: Confirm the room size, ceiling layout, speaker tap settings and total speaker load before powering the system.
