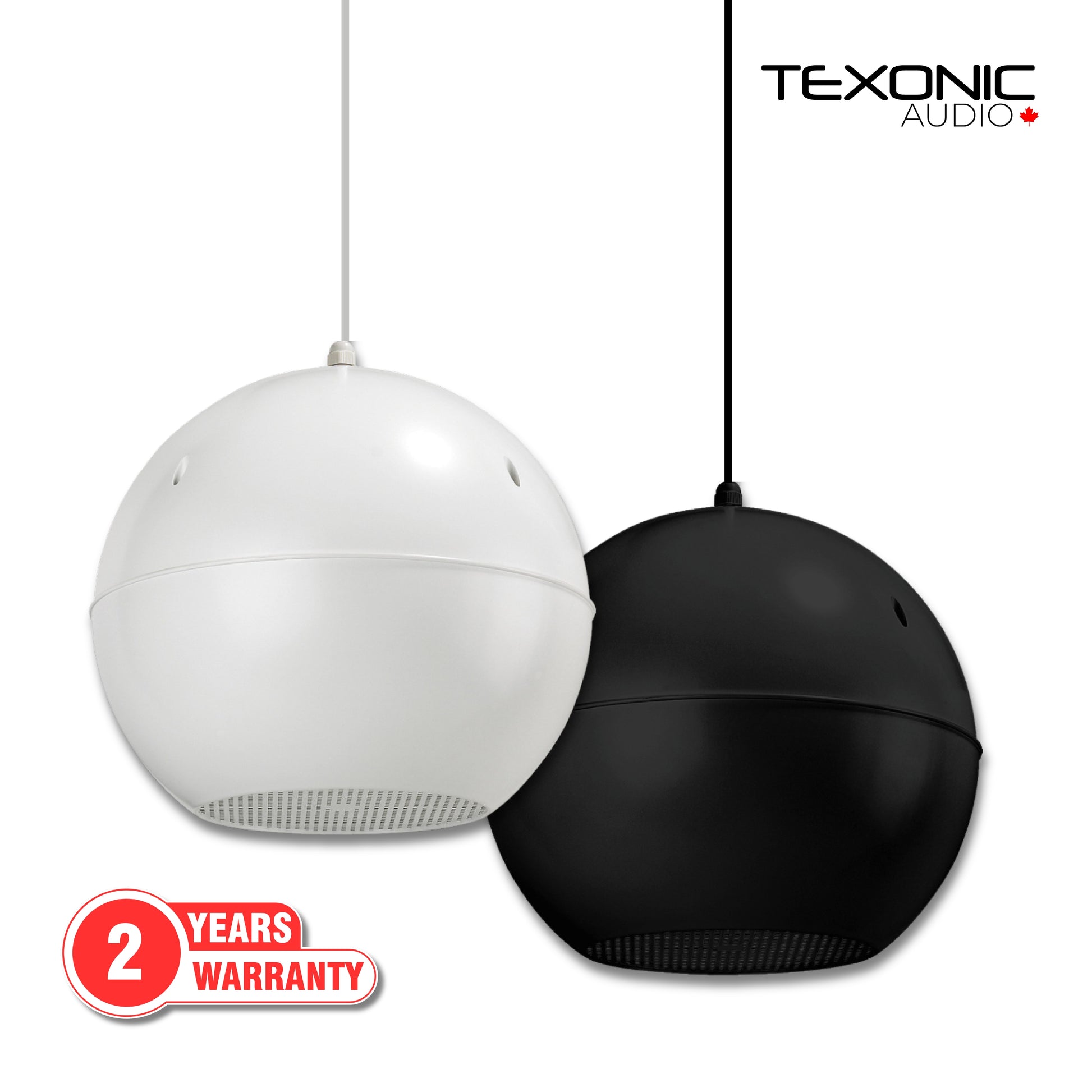

TEXONIC PZ50 5″ 70V/100V Commercial Pendant Speaker – Black or White
TEXONIC PZ50 5″ 70V/100V Commercial Pendant Speaker – Black or White
SKU:PZ50W
Couldn't load pickup availability
TEXONIC PZ50 70V / 100V Pendant Speaker
The TEXONIC PZ50 is a 5″ two-way commercial pendant speaker designed for clear background music and voice reproduction in open-ceiling and high-ceiling spaces.
It combines a 5″ woofer with a 1.5″ tweeter and supports 70V/100V distributed audio systems with selectable transformer taps. At 70V, the speaker provides 1.25W, 2.5W and 5W settings. At 100V, it provides 2.5W, 5W and 10W settings.
Available in black or white, the PZ50 is a practical choice for restaurants, cafés, retail stores, offices, lounges, showrooms, gyms and hospitality spaces.
Product Overview
The TEXONIC PZ50 is designed for commercial spaces where conventional flush mounted ceiling speakers are not practical or where a suspended speaker better suits the interior.
Its two-way design combines a 5″ woofer for mid and lower frequencies with a 1.5″ tweeter for high frequency detail. This makes the PZ50 suitable for both comfortable background music and general voice announcements.
The speaker works with 70V and 100V distributed audio systems. Selectable transformer wiring allows the installer to choose the appropriate power level based on room size, speaker spacing and available amplifier capacity.
For a 70V system, the available taps are 1.25W, 2.5W and 5W. For a 100V system, the available taps are 2.5W, 5W and 10W.

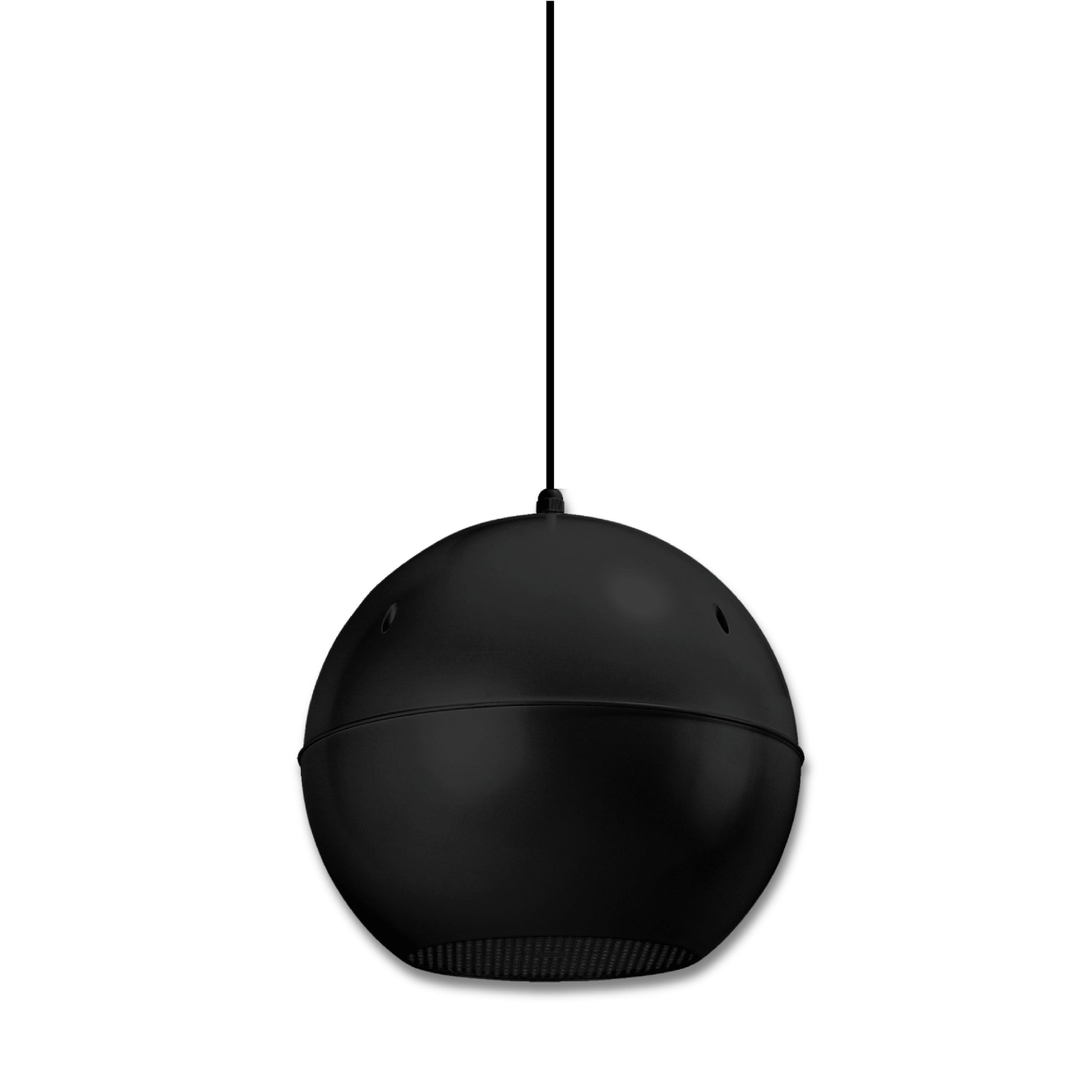

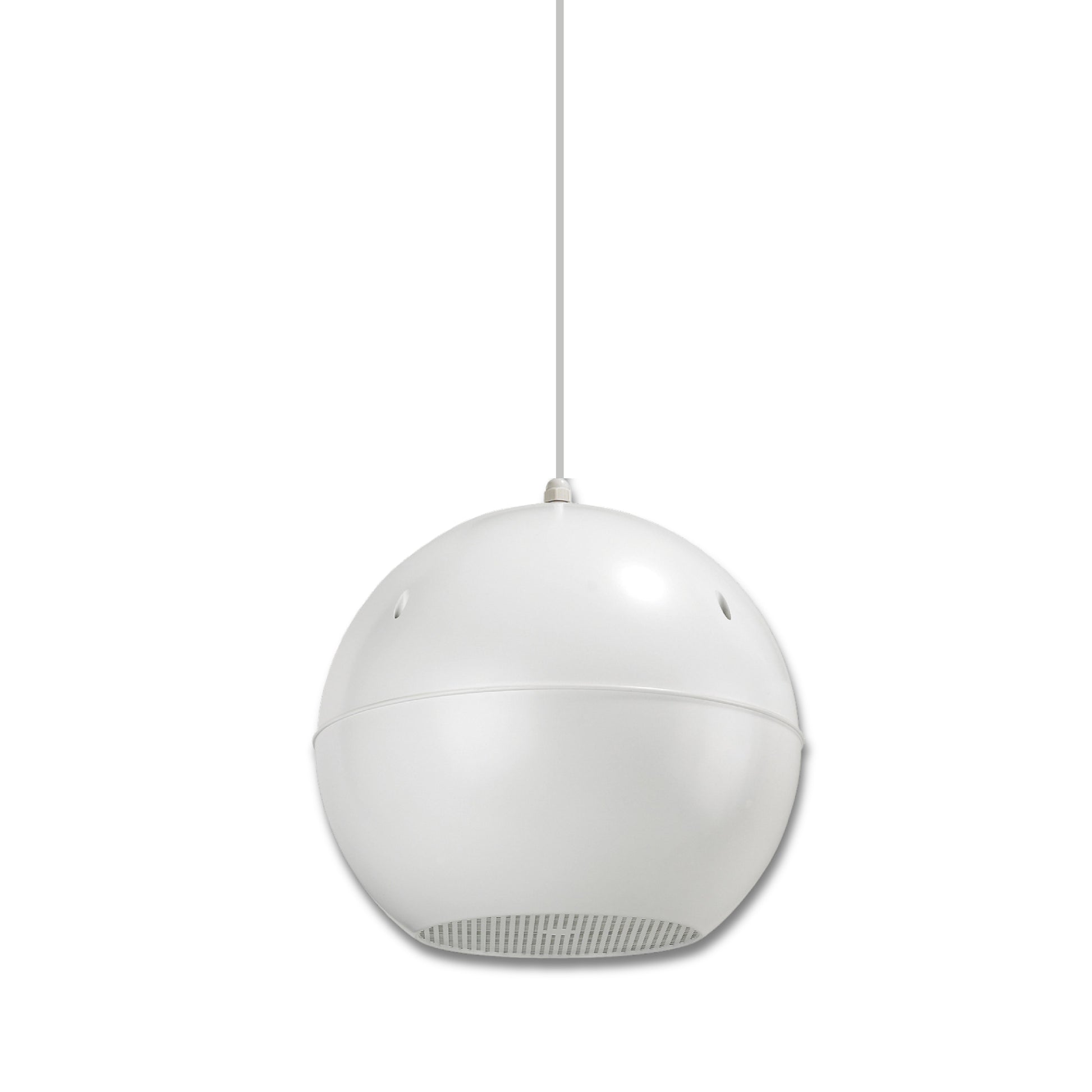

The suspended design works particularly well with exposed ceilings, open structures and modern commercial interiors. PZ50B provides a black finish for darker or industrial style ceilings, while PZ50W provides a white finish for brighter interiors.
Key Features
- 5″ two-way commercial pendant speaker
- 5″ woofer with 1.5″ tweeter
- Designed for open and exposed ceiling installations
- Suitable for background music and voice announcements
- Supports 70V and 100V distributed audio systems
- 70V power taps: 1.25W / 2.5W / 5W
- 100V power taps: 2.5W / 5W / 10W
- 92dB sensitivity
- 150Hz–20kHz frequency response
- Available in black PZ50B and white PZ50W
- Includes 2m / 79″ suspension cable with steel guide
- Compact spherical pendant design
- Suitable for single-zone and multi-speaker commercial systems
- Practical for restaurants, cafés, retail, offices and hospitality spaces
Specifications
Connection Notice: Blue is the common connection. Select the Green, Yellow or Red wire based on the required wattage and whether the amplifier is operating at 70V or 100V.
Add the wattage of all connected speakers and keep the combined speaker load within the amplifier's rated output. Leave suitable amplifier headroom for reliable commercial operation.
Do not use the 70V tap values when calculating a 100V installation, or the 100V values when calculating a 70V installation.
