6 Zone 12-Channel Digital Amplifier - 80W/Channel

Perfect for Distributed Audio & Home Theater Systems.

Unleash the full potential of your audio experience with the TEXONIC 6 Zone 12-Channel Digital Amplifier, a powerhouse of sound delivering 80 watts per channel into 4 Ohms and 50 watts into 8 Ohms. This high-performance, slim yet robust amplifier is the ideal core for both residential and commercial audio systems, whether you're setting up a sophisticated distributed audio system or aiming for cinema-quality sound in your 5.1 or 7.2 home theater setup.

Versatile Use: Designed for both residential and commercial applications, it seamlessly integrates into any audio distribution system or for 5.1 or 7.2 home theater setup.

Audiophile-Level Amplification: Experience high-resolution music playback with superior sound quality, thanks to its 80 Watts per channel power output (1KHz into 4 Ohms) and 50 Watts per channel into 8 Ohms.

Class D Efficiency: Employing Class D amplifier technology, it offers low distortion and high efficiency while special protection circuitry ensures your setup is safeguarded from thermal overload and short circuits.

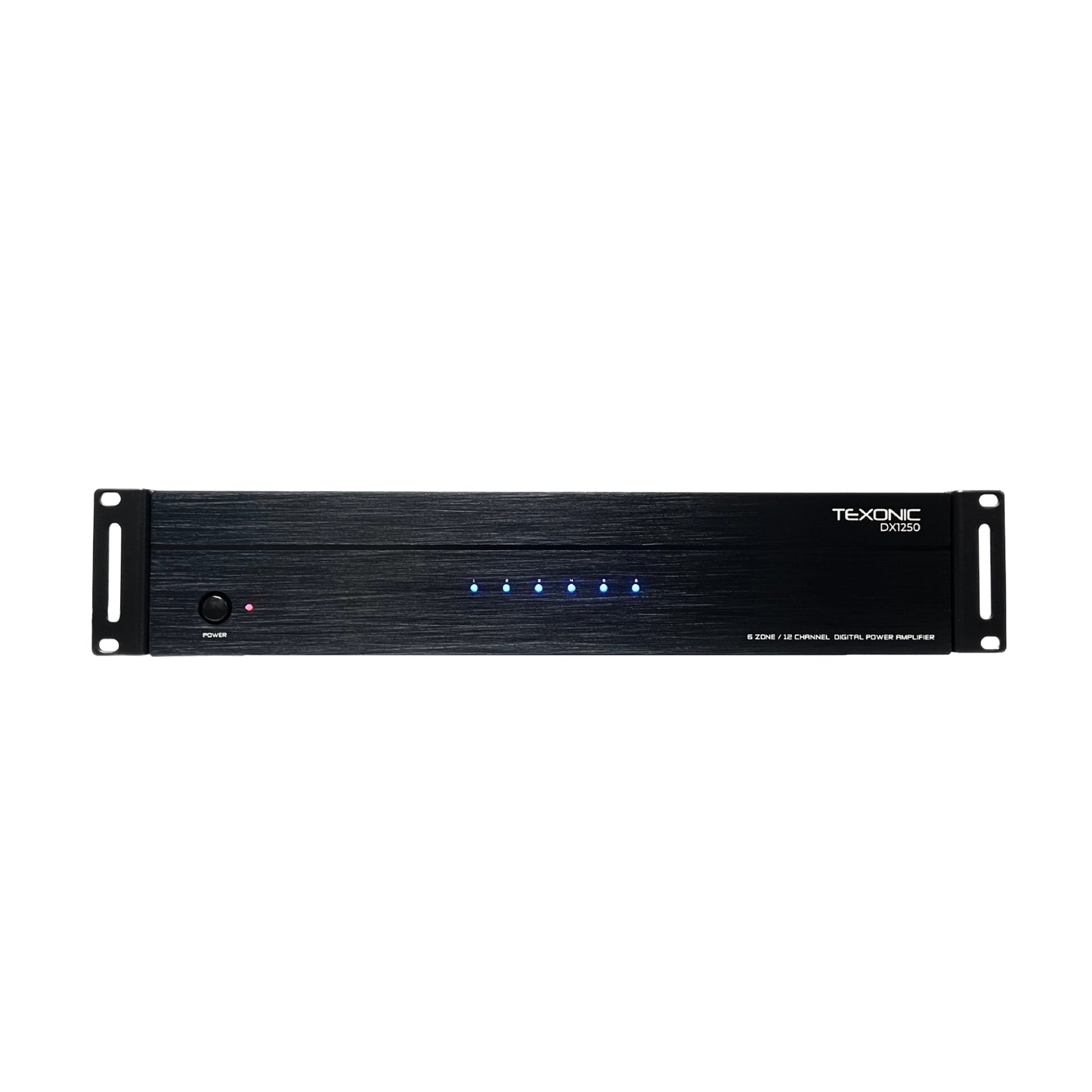

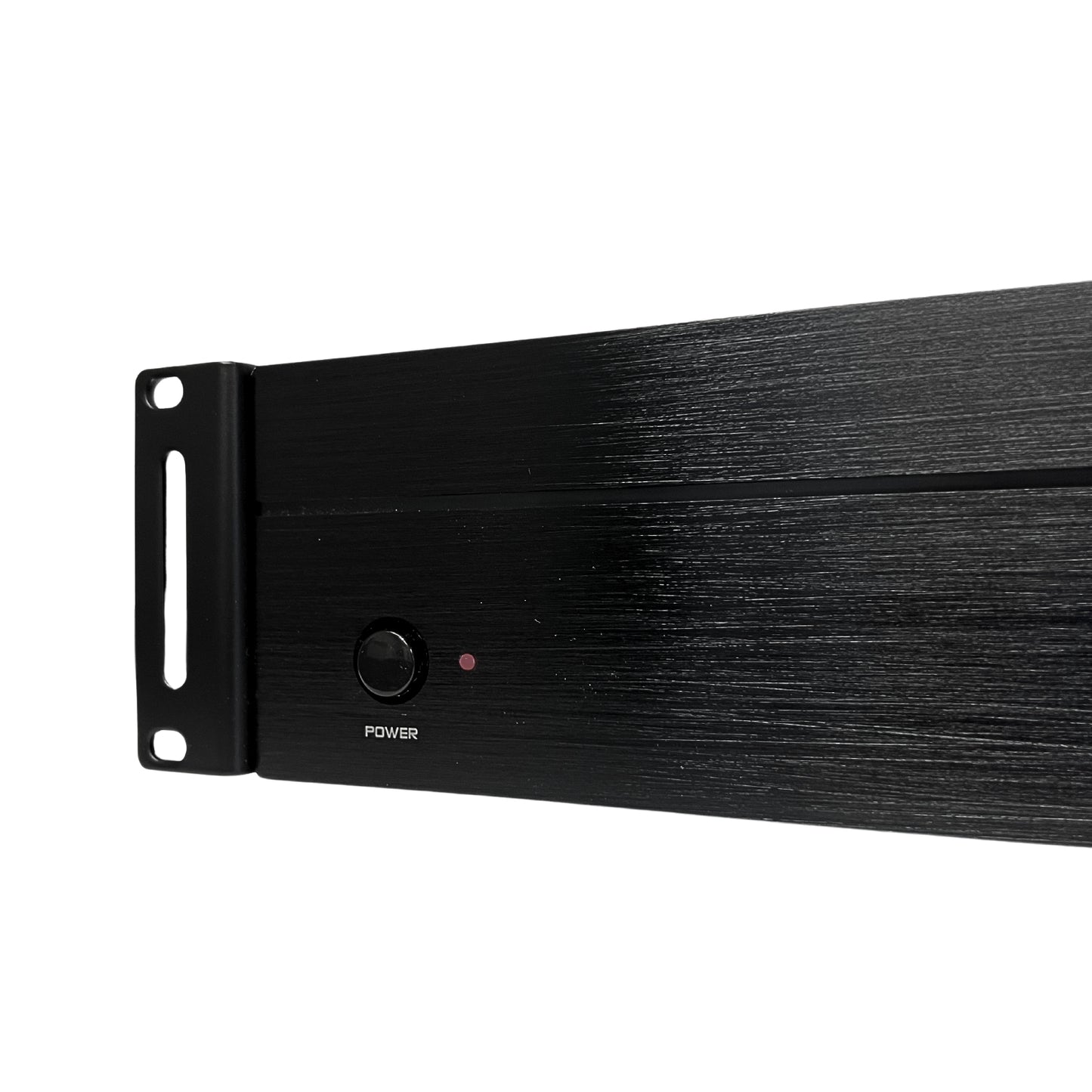

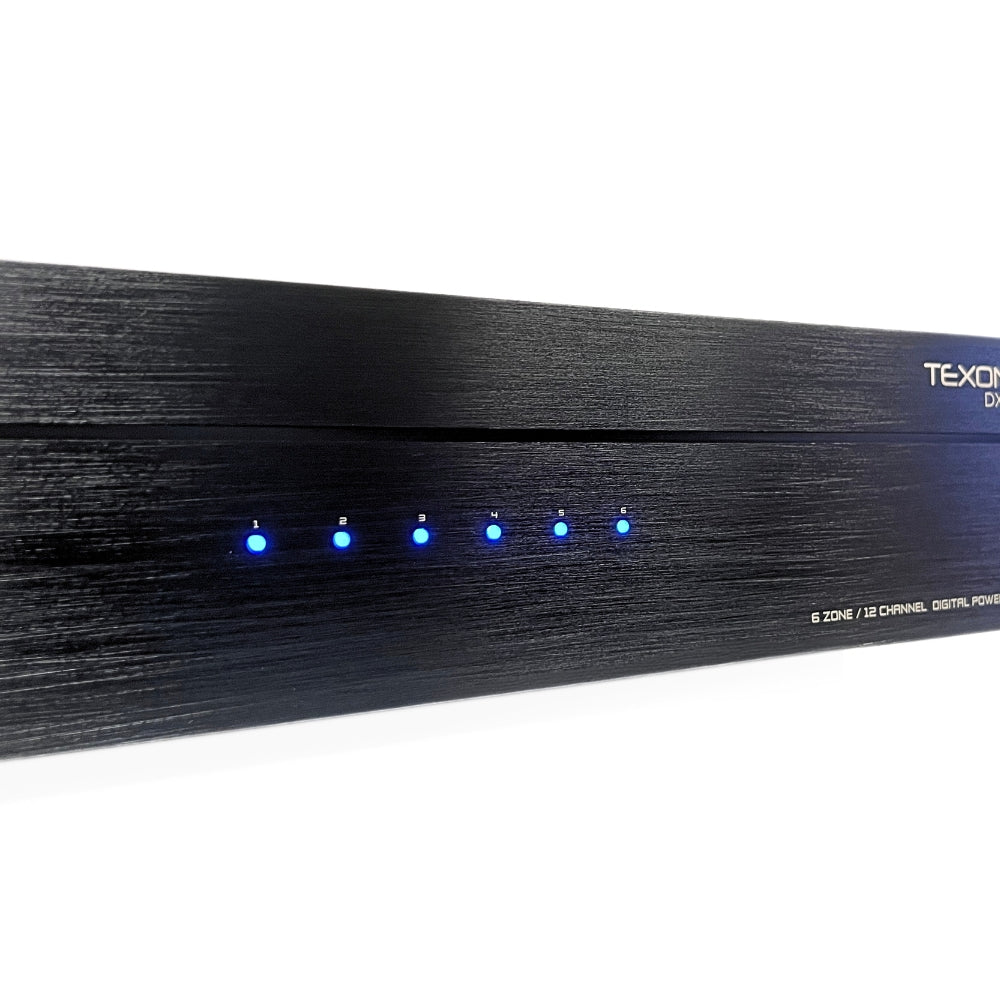

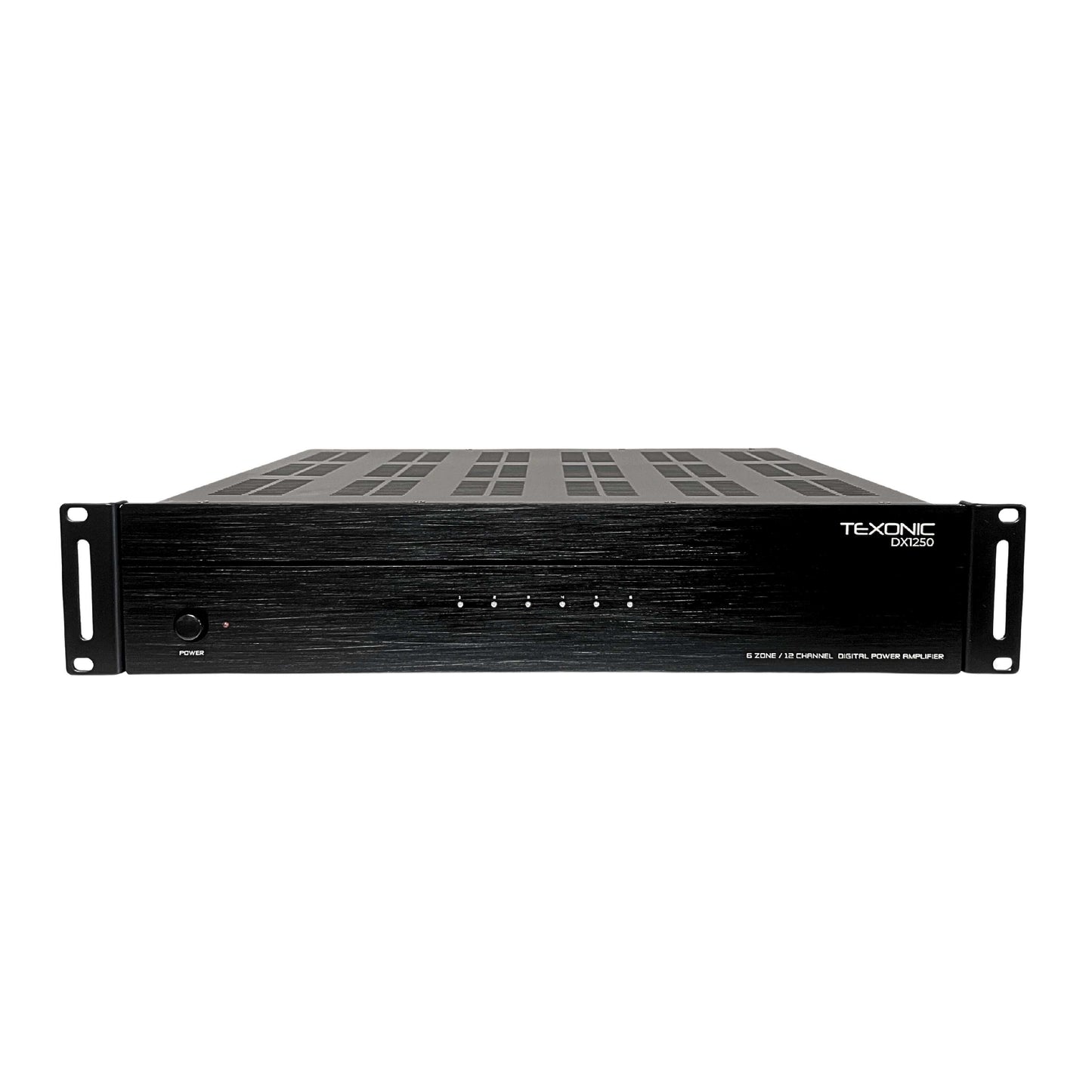

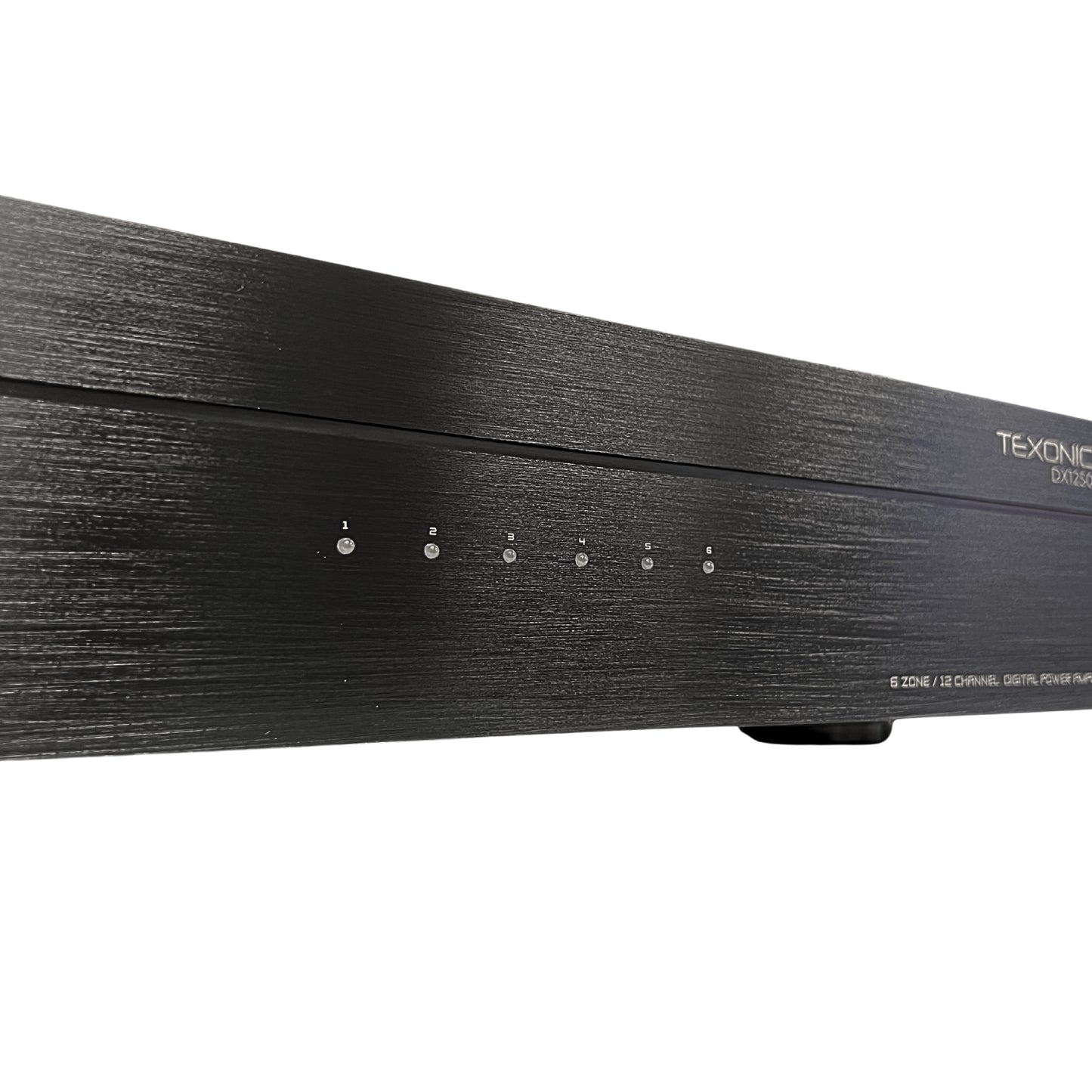

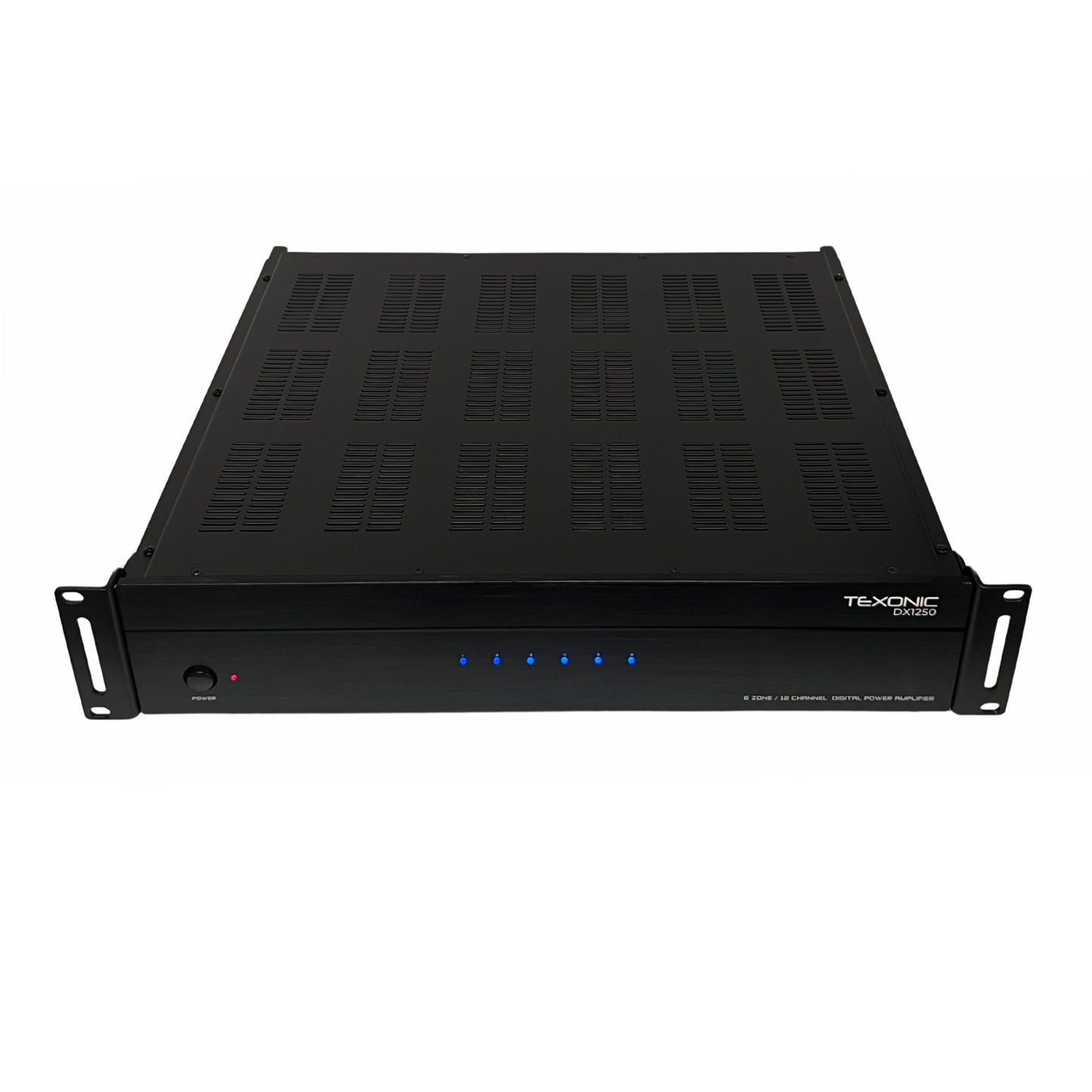

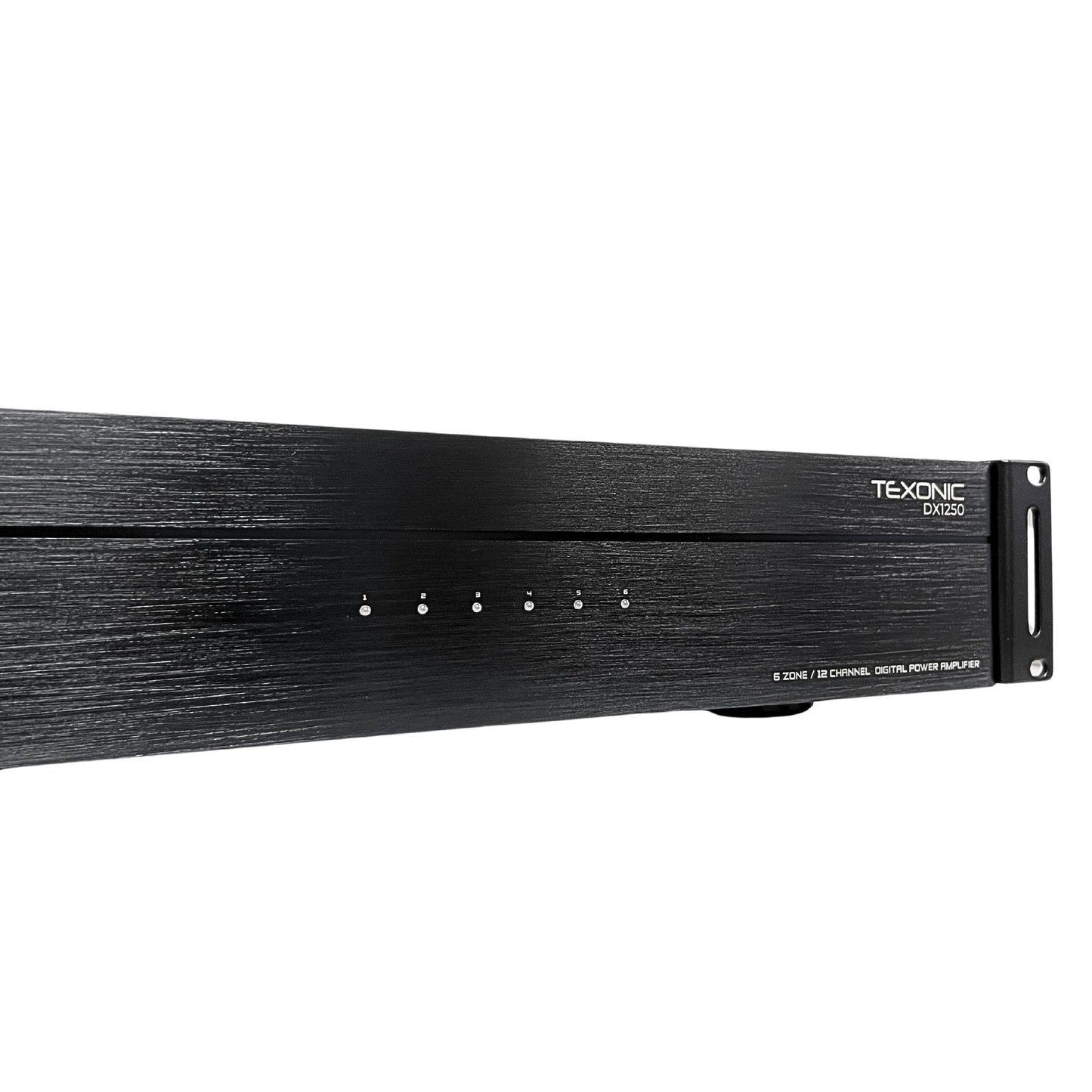

Sleek Design: With a slim form factor, front-panel status indicators, and 2U rack-mountability (hardware included), it's designed to fit perfectly into your audio rack while maintaining a clean aesthetic.

SPECIFICATIONS

• Stereo Power:8 ohms 50 watts x 2 per channel
• Stereo Power:4 ohms 80 watts x 2 per channel
• Bridged (mono) Power: 8 ohms 120 watts per
• S/N Ratio: >90dB
• THD: <0.1%
• Frequency Response: 20Hz to 20kHz ±1 dB at 1-watt output into 8 ohms
• Input Impedance: >47 K ohms
• Input Sensitivity : 250mV
• Systems ON Trigger Voltage: +12 VDC
• External Mute Trigger Voltage: +12 VDC
• Speaker Connectors: Detachable phoenix speaker terminals support up to 14 AWG wire
• Input Power: 115 VAC, 60Hz
• Dimensions: 16.8" x 3.5" x 16.1" (42.7 x 8.8 x 41.0 cm)
• Shipping Weight: 27.00 lbs. (12.24kg)

• Instruction Manual
• 1x Rack mounting kit
• 1x AC power cord
