4 Zone 8-Channel Digital Multi Room Amplifier 80W/Channel

Discover the perfect blend of performance and versatility with our 4 Zone 8-Channel Digital Amplifier. Designed for both residential and commercial environments, it excels in delivering high-resolution audio across multiple zones. Offering 80W per channel into 4 ohms and 50W into 8 ohms, this slim, rack-mountable amplifier is engineered for audiophiles seeking to enhance their home theater or distributed audio systems. Featuring Class D efficiency for minimal distortion and built-in protection circuitry for safety, it integrates seamlessly into any setup.

FEATURES

• High-Performance Multi-Zone Amplification: Ideal for powering up to four distinct audio zones with crystal-clear sound.
• Versatile Application: Suitable for both residential and commercial audio systems, including use in 5.1 or 7.2 home theater setups.
• Audiophile-Level Sound Quality: Provides high-resolution music playback, delivering 80 Watts per channel into 4 Ohms and 50 Watts into 8 Ohms.
• Class D Efficiency: Incorporates Class D amplifier technology for reduced distortion, higher efficiency, and protection against thermal overload and short circuits.

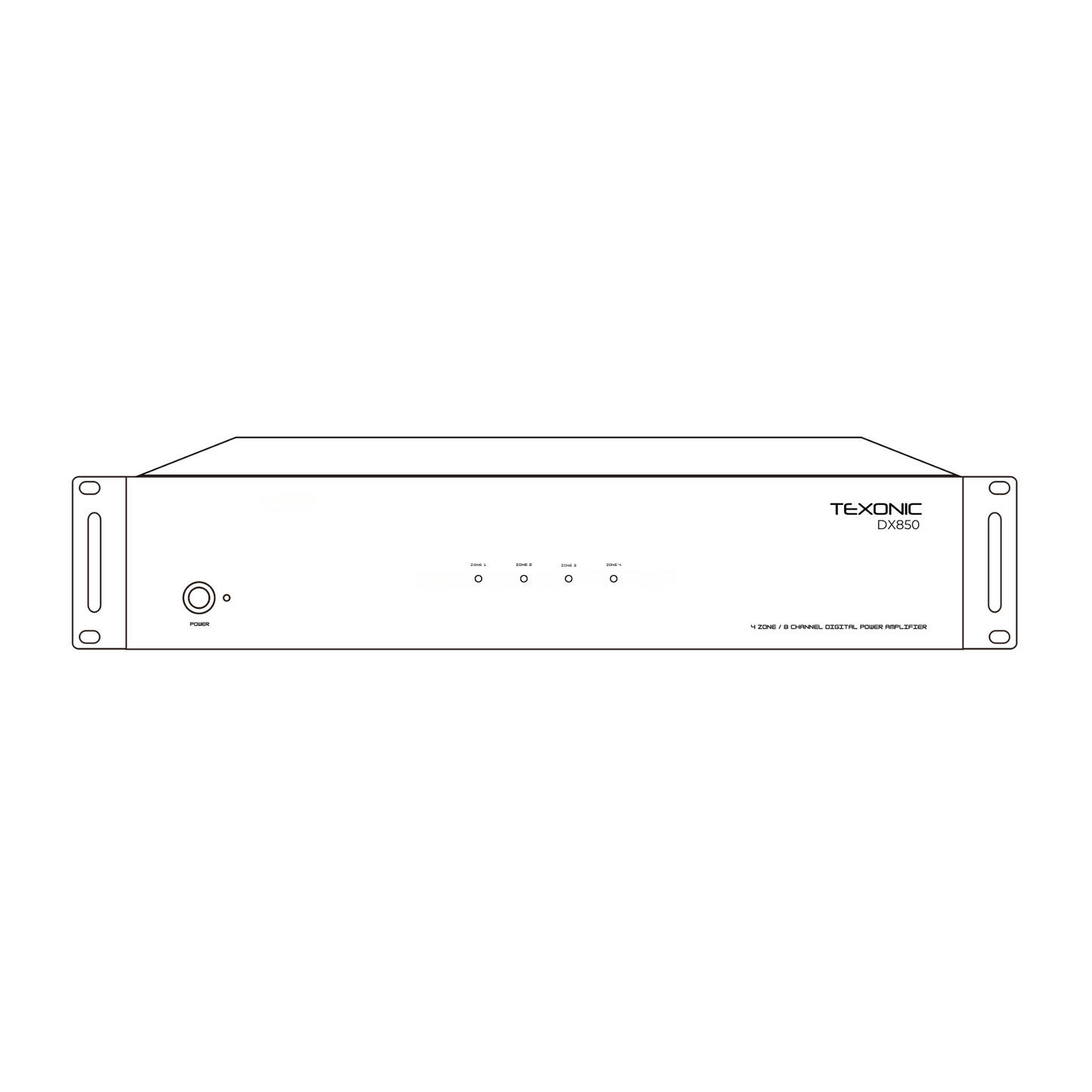

• Sleek, Rack-Mountable Design: Features a slim form factor with front-panel status indicators, designed to be 2U rack-mountable for a tidy and efficient setup.

SPECIFICATIONS

• Stereo Power:8 ohms 50 watts x 2 per channel
• Stereo Power:4 ohms 80 watts x 2 per channel
• Bridged (mono) Power: 8 ohms 120 watts per
• S/N Ratio: >90dB
• THD: <0.1%
• Frequency Response: 20Hz to 20kHz ±1 dB at 1-watt output into 8 ohms
• Input Impedance: >47 K ohms
• Input Sensitivity : 250mV
• Systems ON Trigger Voltage: +12 VDC
• External Mute Trigger Voltage: +12 VDC
• Speaker Connectors: Detachable phoenix speaker terminals support up to 14 AWG wire
• Input Power: 115 VAC, 60Hz
• Dimensions: 16.8" x 3.5" x 16.1" (42.7 x 8.8 x 41.0 cm)

INCLUDED

Instruction Manual
1x Rack mounting kit
1x AC power cord
