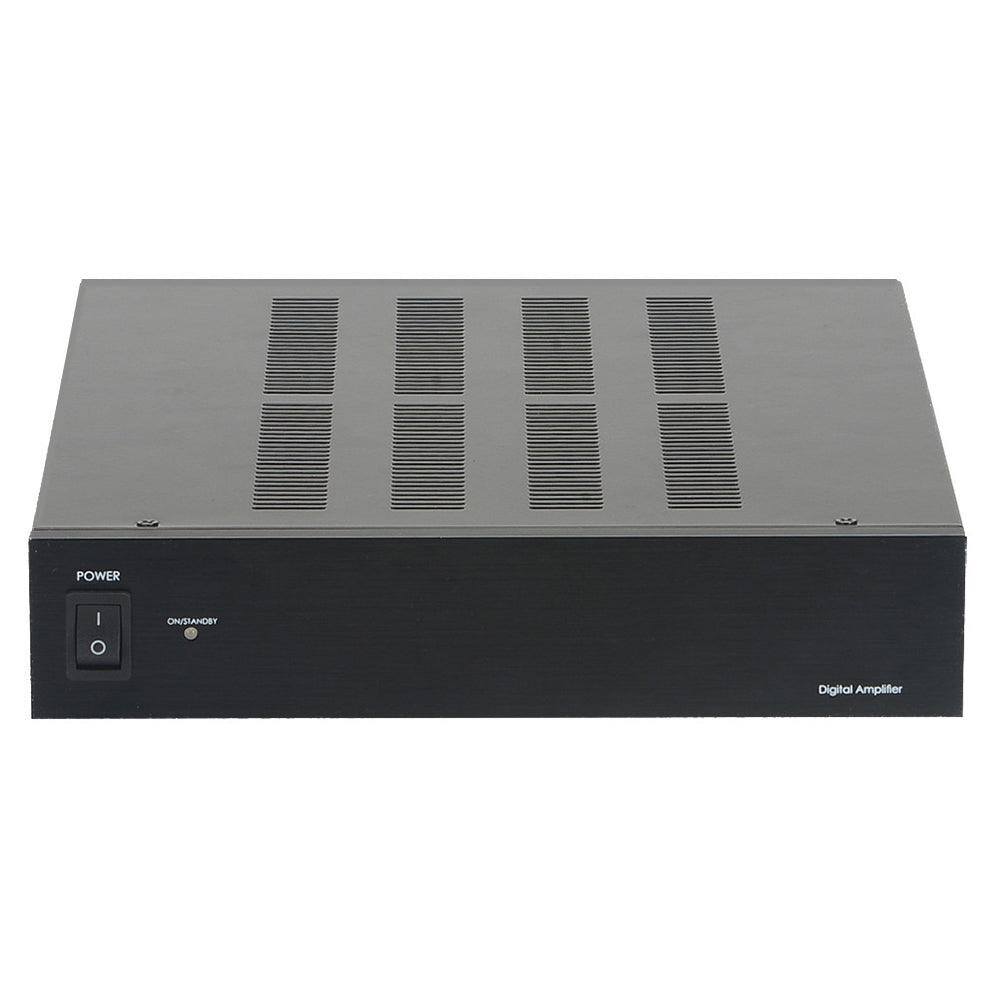

2-Channel 100W Class D Stereo Amplifier - Compact, High-Power Audio Boost

A versatile 2-channel Class D stereo amplifier designed to enhance your audio experience. Whether you're looking to amplify sound in larger rooms or integrate it into a whole-house audio system, the RXD100 delivers 100 watts of power per channel, ensuring high-quality sound amplification. Its compact 1/2-rack design not only saves space but also allows for easy installation and flexibility in system configuration. Featuring advanced technology like 12V trigger control, audio sensing, and volume gain adjustment, this amplifier ensures seamless integration and performance.

Additionally, the buffered line output allows for further expansion of your audio setup. With trim level adjustment and multiple turn-on modes, the RXD100 is engineered for both convenience and performance. Rack mount ears for versatile mounting options are included, making it an ideal choice for audiophiles seeking a powerful yet space-efficient amplification solution.

FEATURES

• High Power in Compact Form: 100 watts per channel in a space-saving design.
• Flexible Integration: Perfect for standalone use or as part of a distributed audio system.
• Advanced Control: Features like 12v trigger control and audio sensing ensure a smart, user-friendly experience.
• Expandable: Buffered line output allows for additional amplification of the same audio signal.
• Reliable Performance: Equipped with short circuit and thermal protections for durability.
• Versatile Mounting: Includes rack mount ears for both 1/2-rack and full-rack width mounting, providing flexibility in setup.

• Output Power: 100W @ 4Ω THD1% RMS

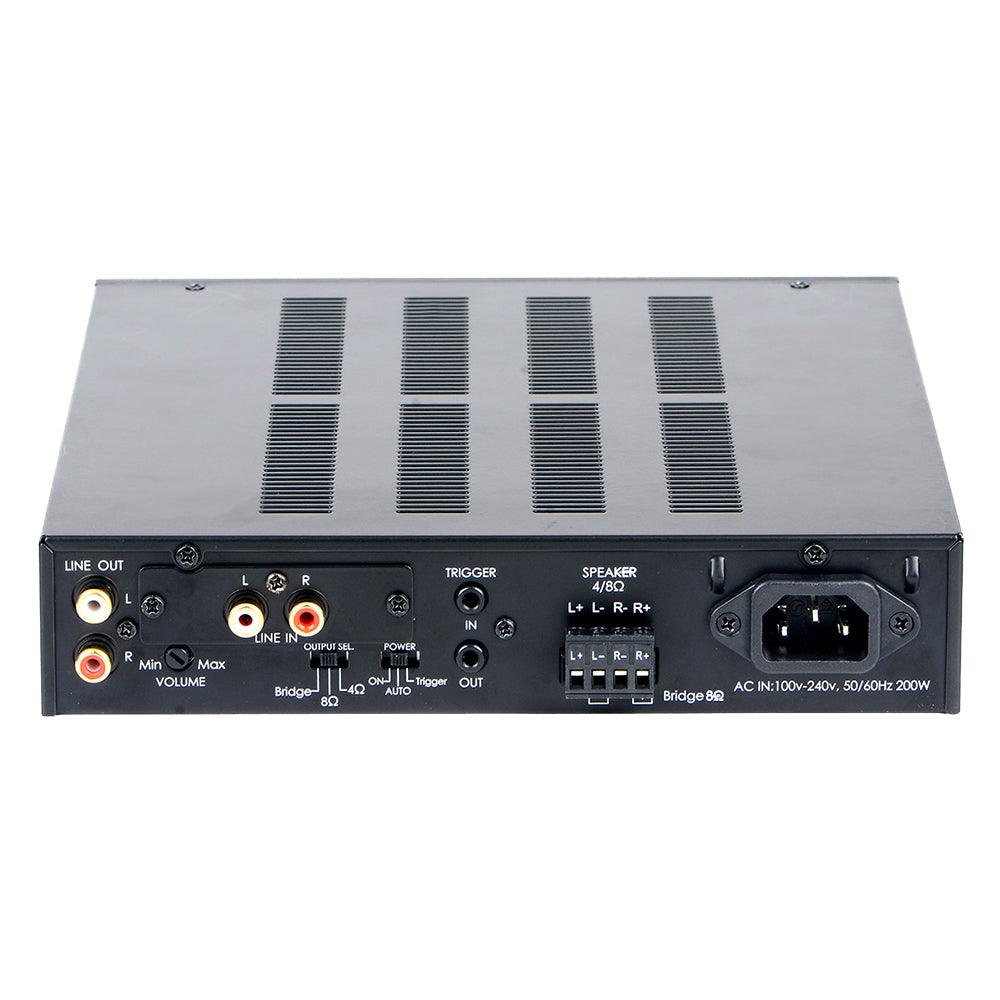

• Connectivity: RCA jacks for audio input and signal loop out, 12VDC Trigger Input and Output
• Features: Trim level adjustment, audio sensing inputs, selectable turn-on modes, short circuit and thermal protections
• Frequency Response: 10Hz~50KHz(-3dB)
• Input Sensitivity: 300mV for optimal output
• Power: AC 100~240 V 50/60Hz, with a consumption of 70W
• Dimensions: 10.7” x 7.1” x 1.8” (271 x 180 x 45 mm)
• Weight: 1.85kg
