TEXONIC

Full-Motion TV Wall Mount for 37”–90” | Heavy-Duty Swivel Bracket for Flat & Curved TVs - up to 75kg (165lbs)

Full-Motion TV Wall Mount for 37”–90” | Heavy-Duty Swivel Bracket for Flat & Curved TVs - up to 75kg (165lbs)

MX14

$69.99 CAD
$119.99 CAD $69.99 CAD
Sale Sold out
Shipping calculated at checkout.
Heavy-Duty Full-Motion TV Wall Mount

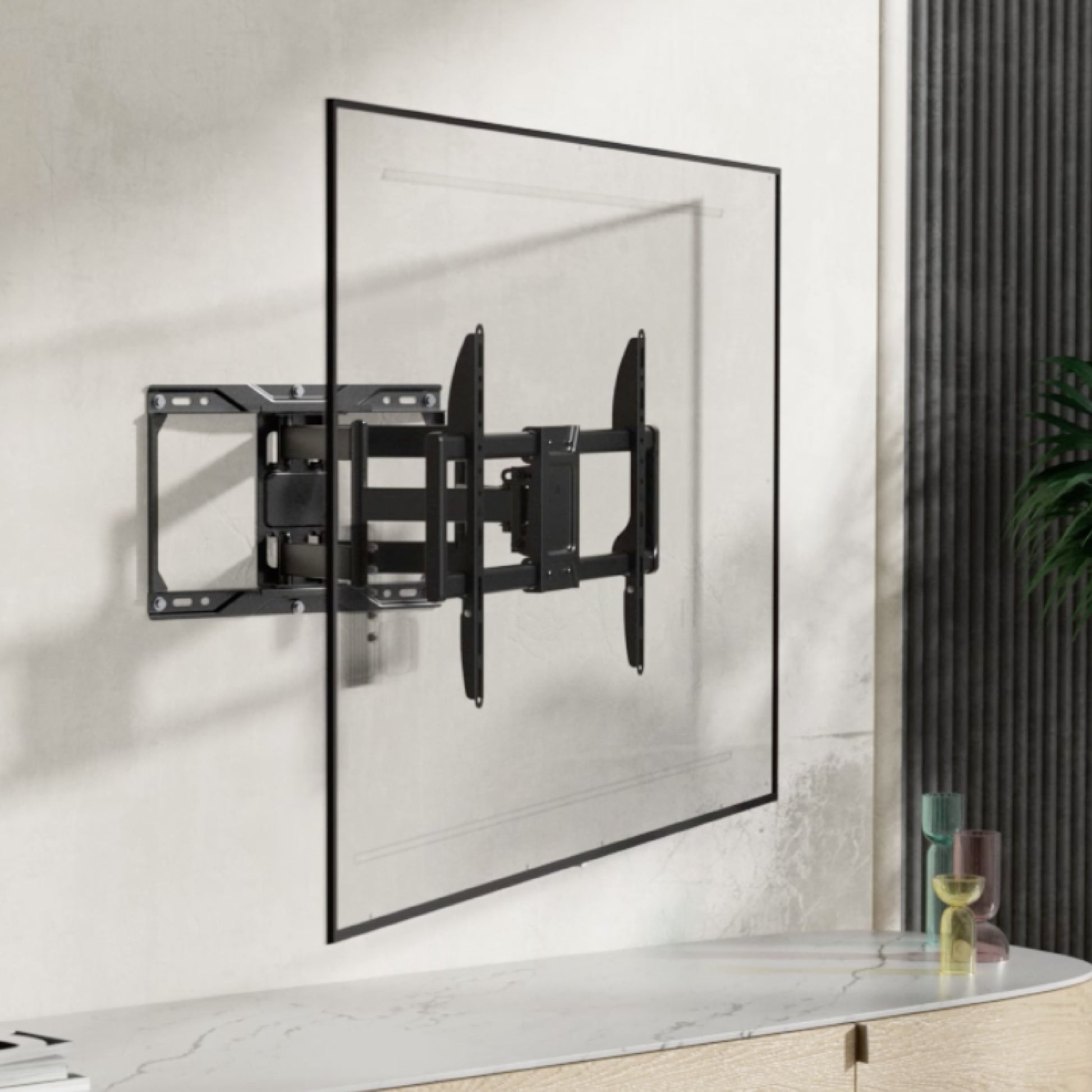

TEXONIC MX14 Full-Motion TV Wall Mount

The TEXONIC MX14 is a heavy-duty full-motion TV wall mount designed for most 37″ to 90″ flat or curved TVs. It provides strong support, flexible viewing adjustment, and a clean wall-mounted installation.

With swivel, tilt, level adjustment, extension, and integrated cable management, the MX14 is a strong choice for home theatres, offices, retail spaces, classrooms, meeting rooms, and commercial display installations.

Fits 37″–90″ TVs Up to 75 kg / 165 lb VESA up to 600×400 Extends up to 422 mm / 16.6″
Manual

Product Overview

The MX14 is designed for large flat-screen or curved TVs where strength, range of motion, and clean installation are important. It allows the display to extend from the wall, swivel left or right, tilt for glare control, and retract close to the wall when not in use.

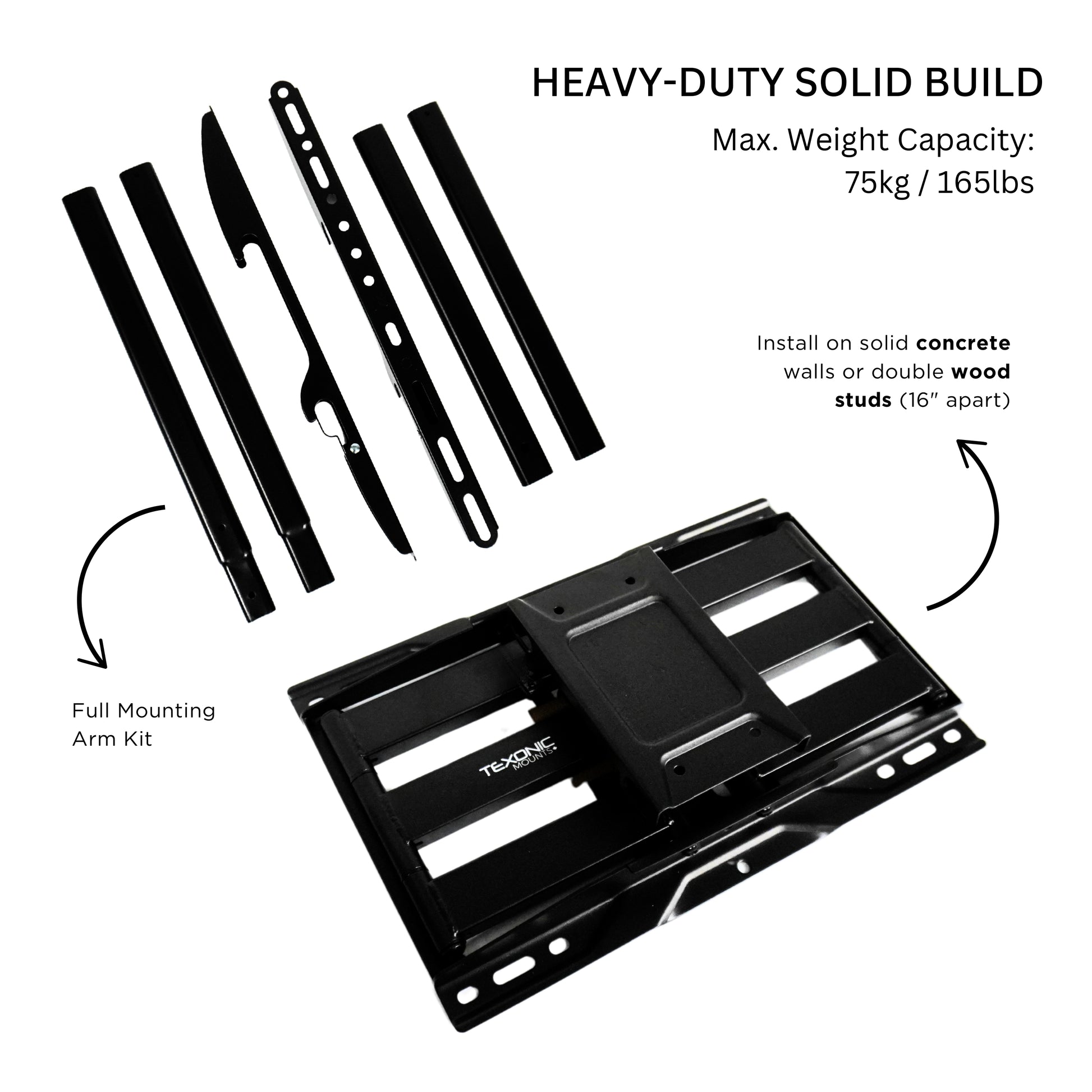

The mount is suitable for solid concrete walls or double wood studs spaced 16″ apart. Its included hardware kit, bubble level, mounting template, and cable management ties help make installation easier and cleaner.

Best For Home theatres, living rooms, offices, boardrooms, classrooms, retail spaces, waiting rooms, and commercial displays.
System Fit 37″ to 90″ flat or curved TVs with compatible VESA patterns up to 600×400 mm and weight up to 75 kg / 165 lb.

Key Features

  • Heavy-duty full-motion TV wall mount
  • Fits most 37″ to 90″ flat or curved TVs
  • Supports TVs up to 75 kg / 165 lb
  • Compatible with VESA patterns up to 600×400 mm

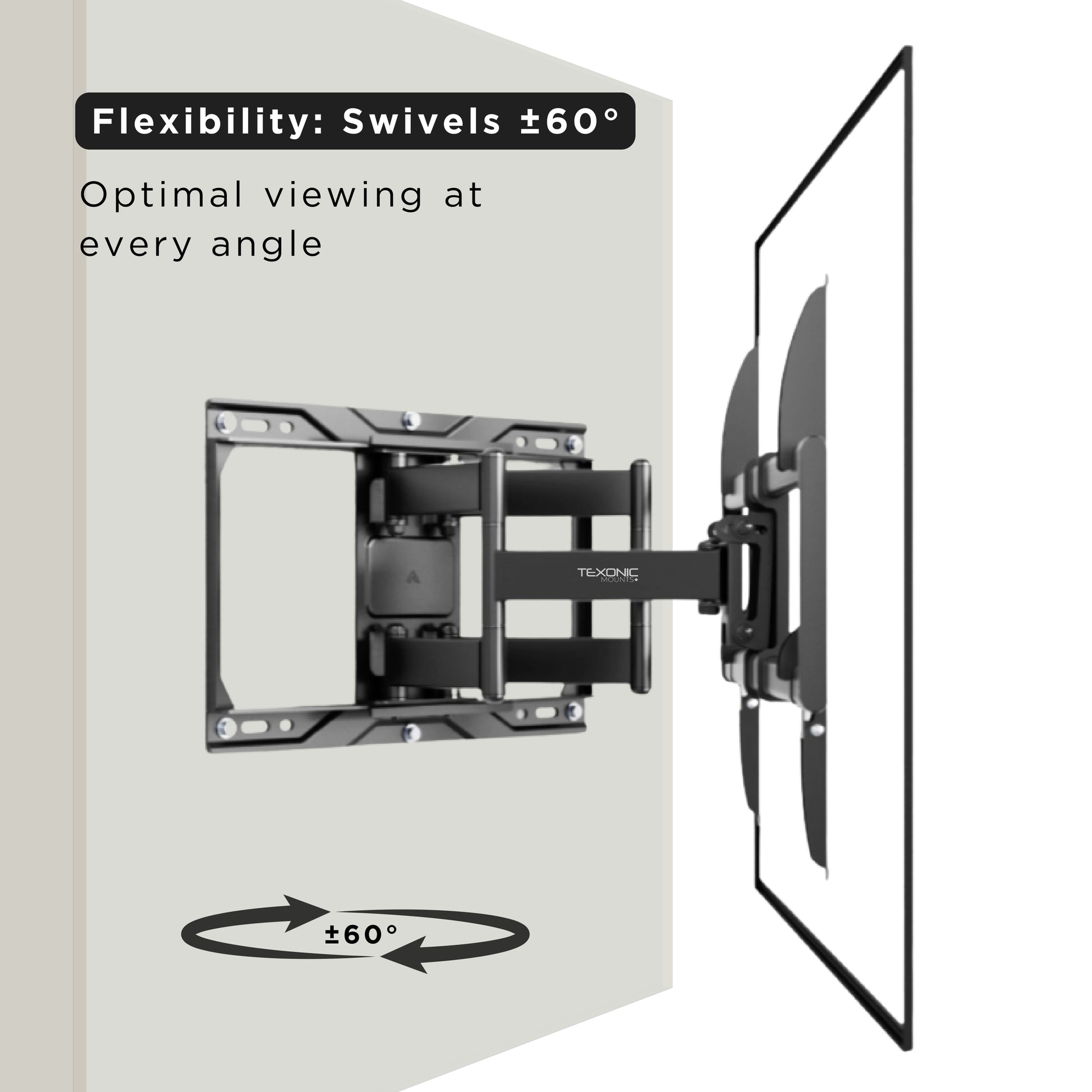

  • Swivels left or right up to ±60°

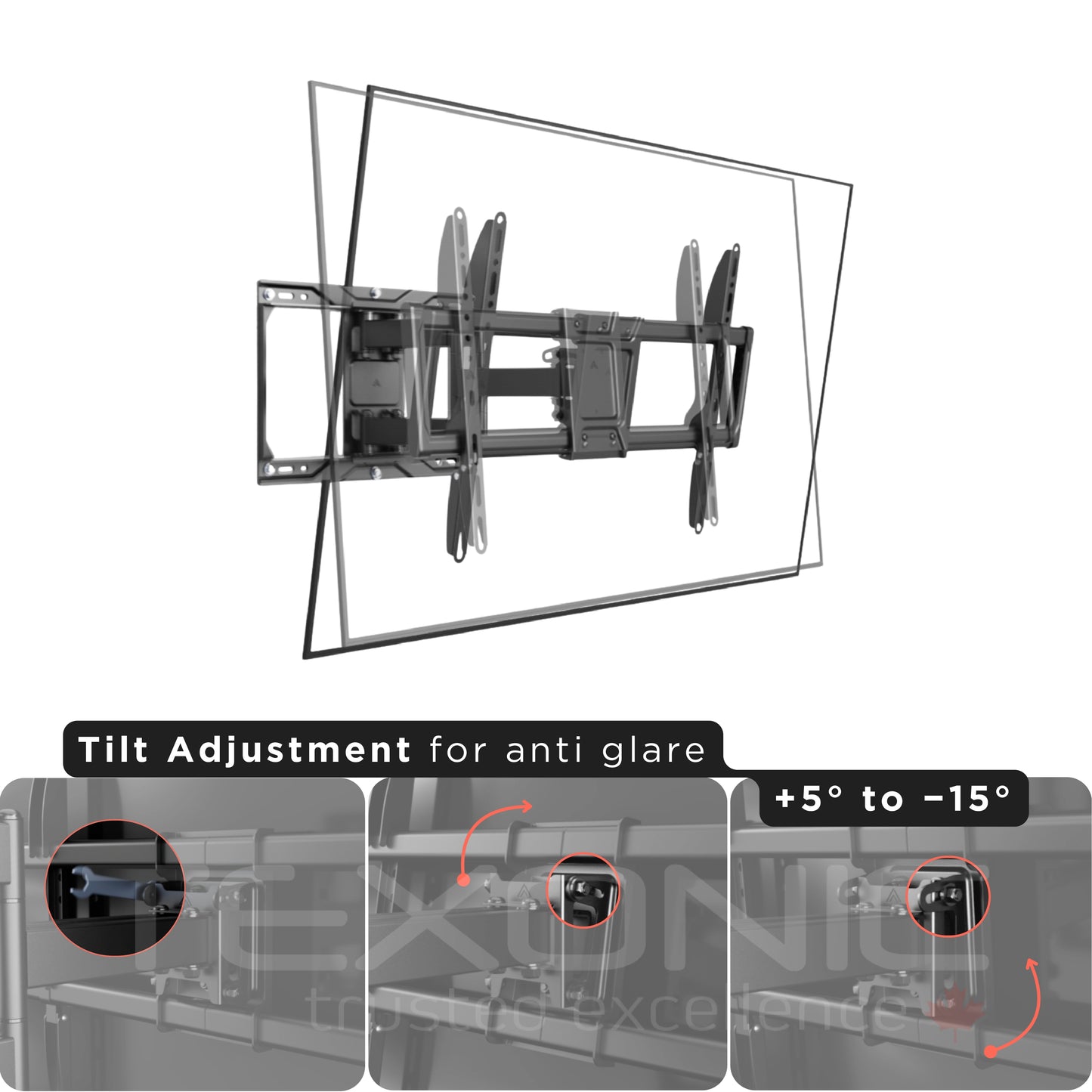

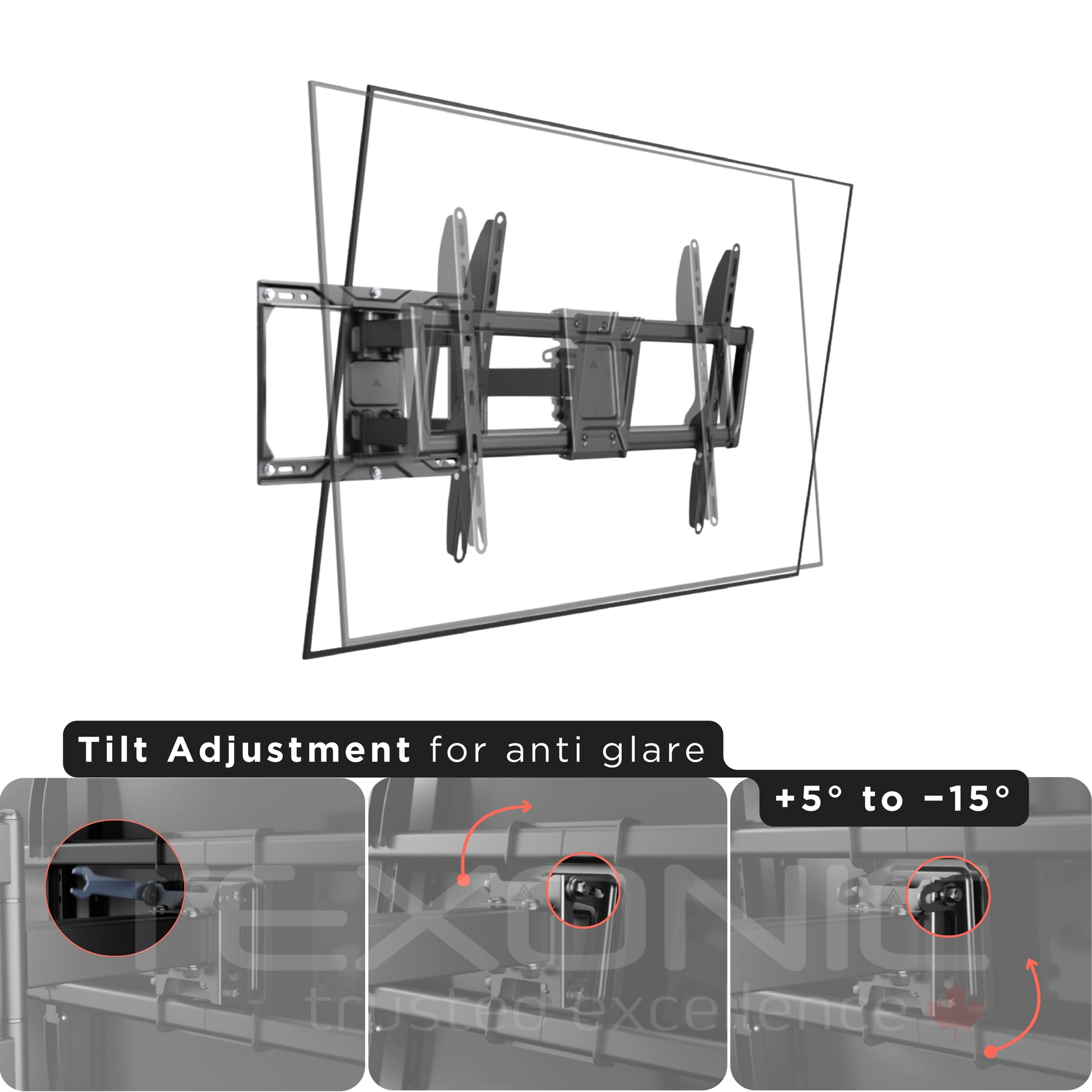

  • Tilts +5° to -15° to help reduce glare

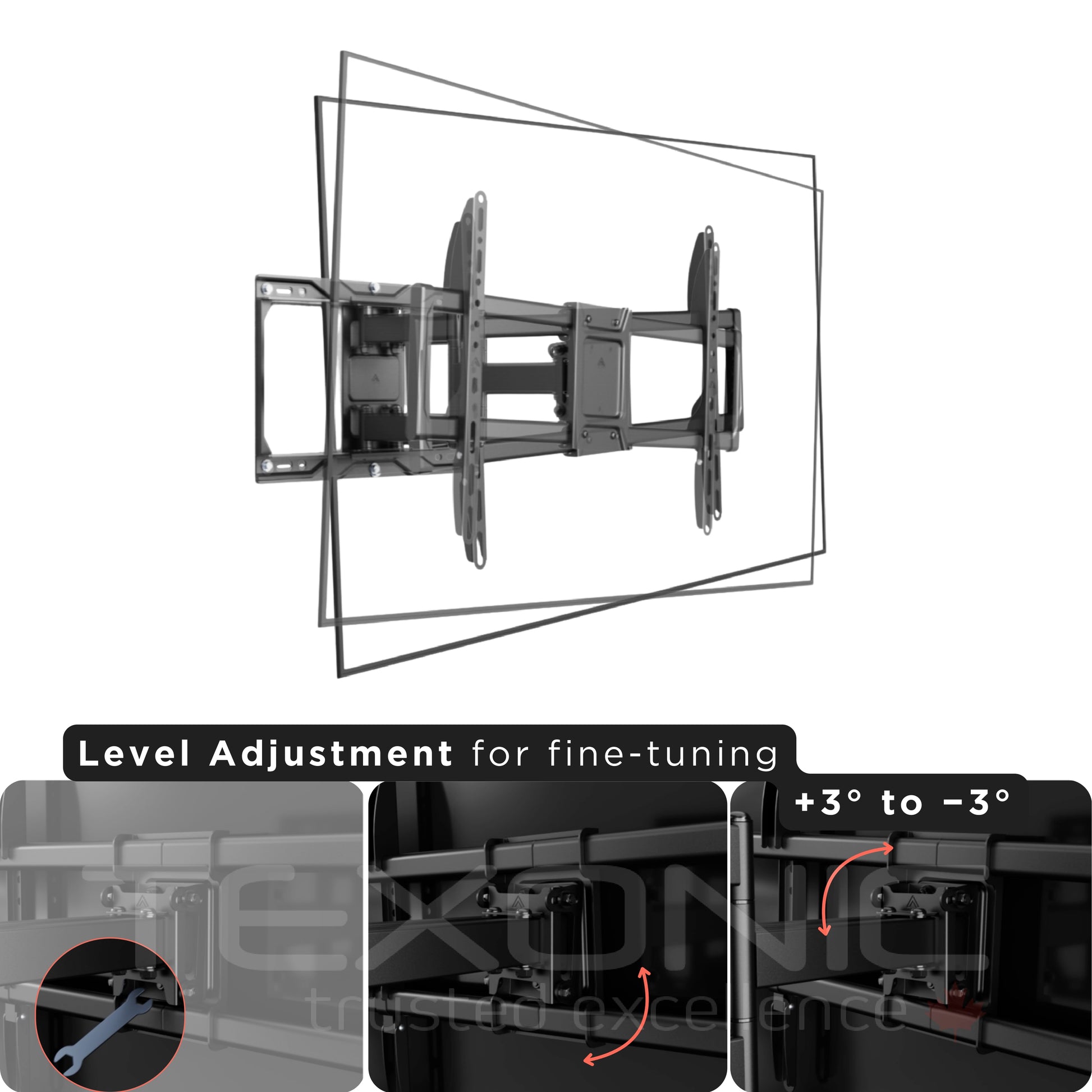

  • Level adjustment of ±3° for final screen alignment

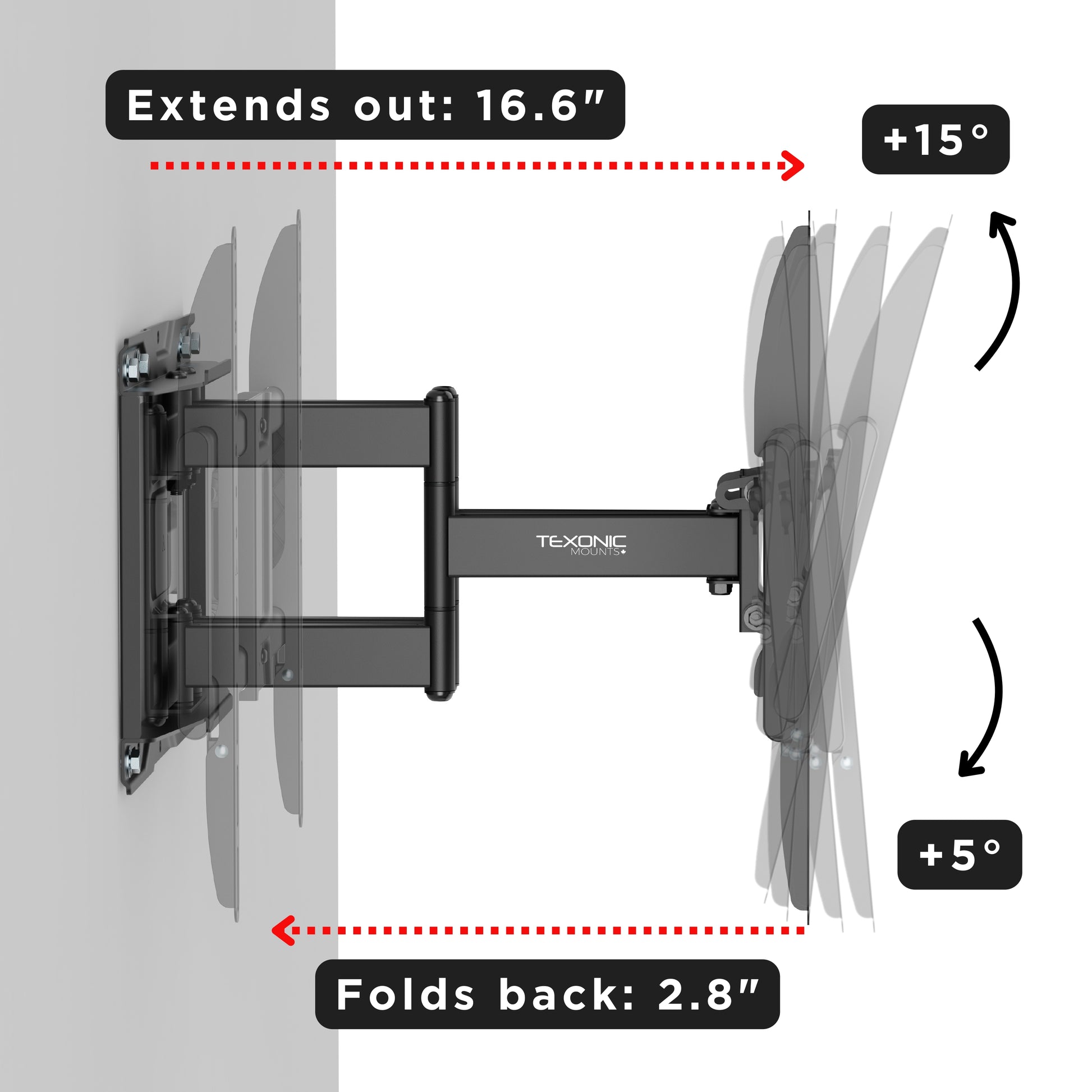

  • Extends from 70 mm to 422 mm / 2.8″ to 16.6″
  • Retracts close to the wall for a clean low-profile look
  • Integrated cable management with Velcro ties
  • Installs on solid concrete walls or 16″ spaced wood studs
  • Includes mounting template and installation hardware
  • Includes Samsung M8×45 screws
  • English and French manual included

Specifications

Brand TEXONIC
Model / SKU MX14
Product Type Heavy-duty full-motion TV wall mount
Recommended TV Size 37″ – 90″ flat or curved TVs
Weight Capacity 75 kg / 165 lb
Tilt Range +5° to -15°
Swivel Range ±60°
Level Adjustment ±3°

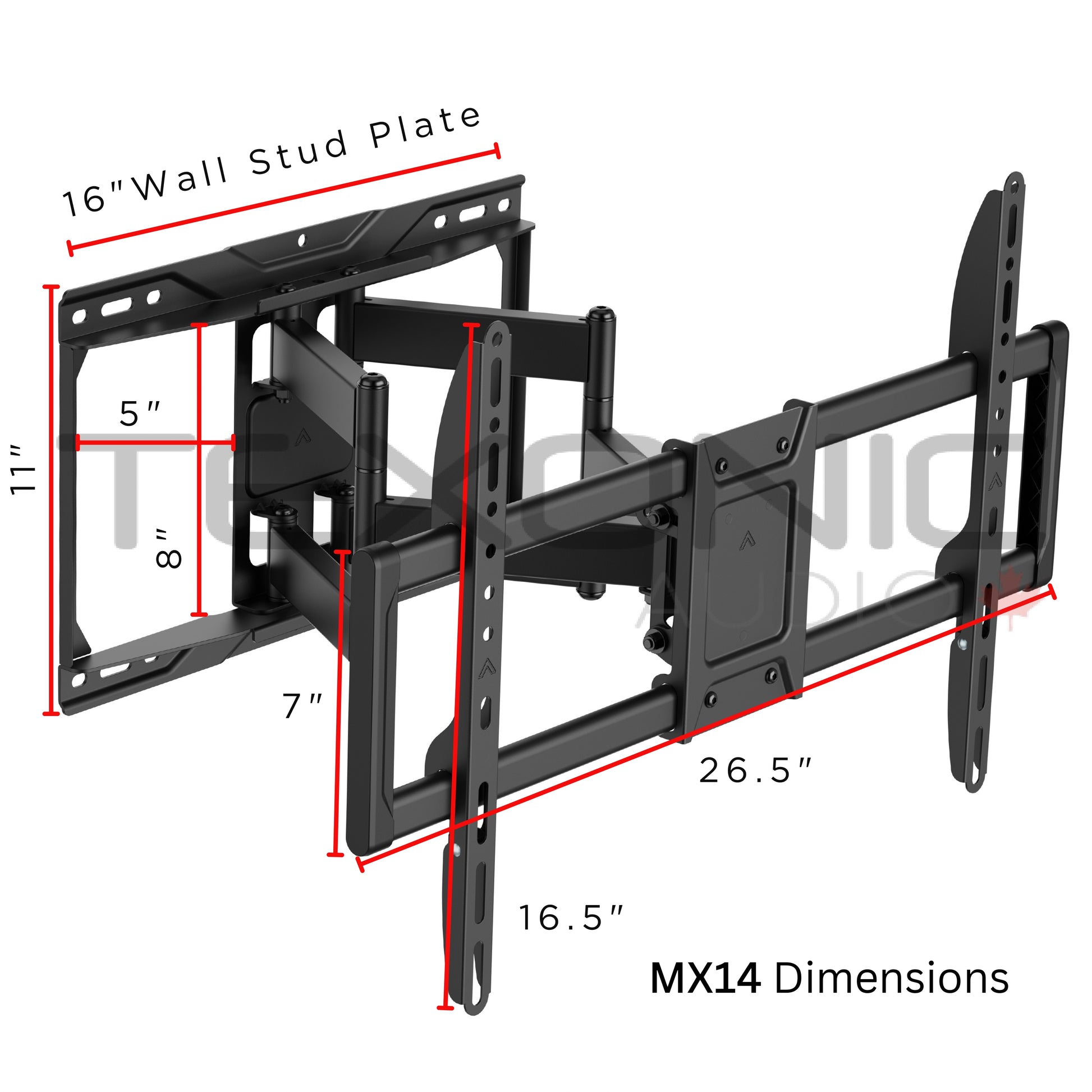

Extension Range 70 mm – 422 mm / 2.8″ – 16.6″

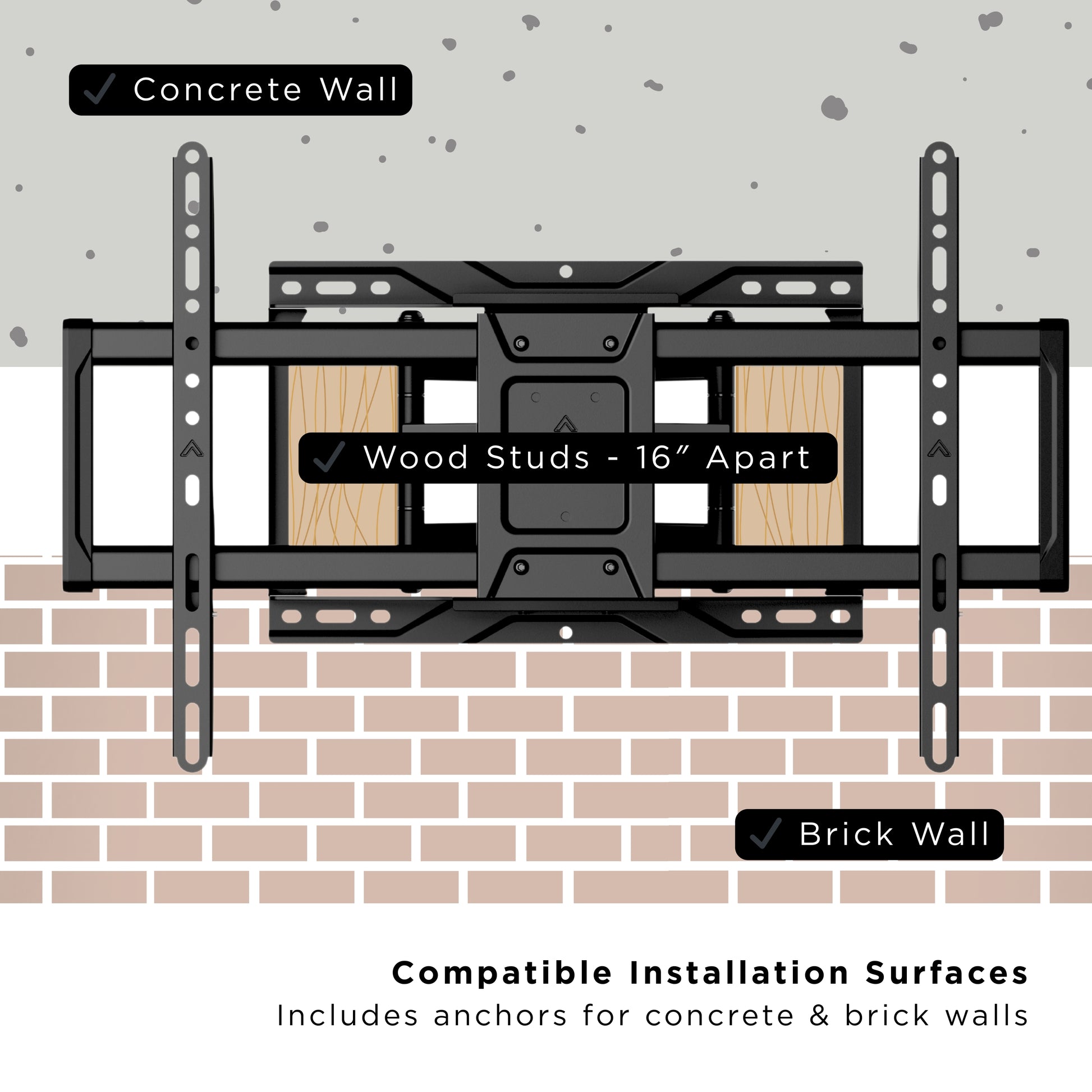

Wall Compatibility Solid concrete wall or wood studs spaced 16″ apart

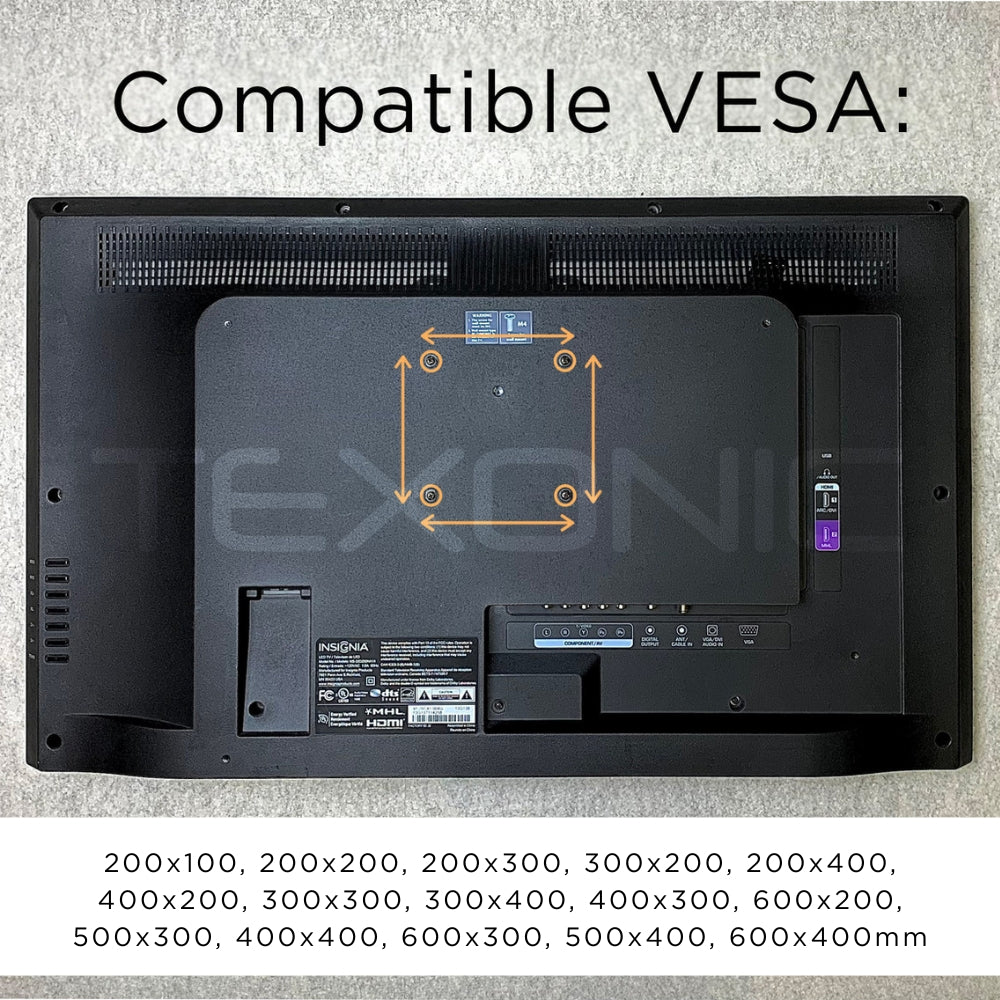

VESA Compatibility 200×100, 200×200, 200×300, 300×200, 200×400, 400×200, 300×300, 300×400, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400, 600×400 mm
Max Mount Hole Pattern 609 × 402 mm

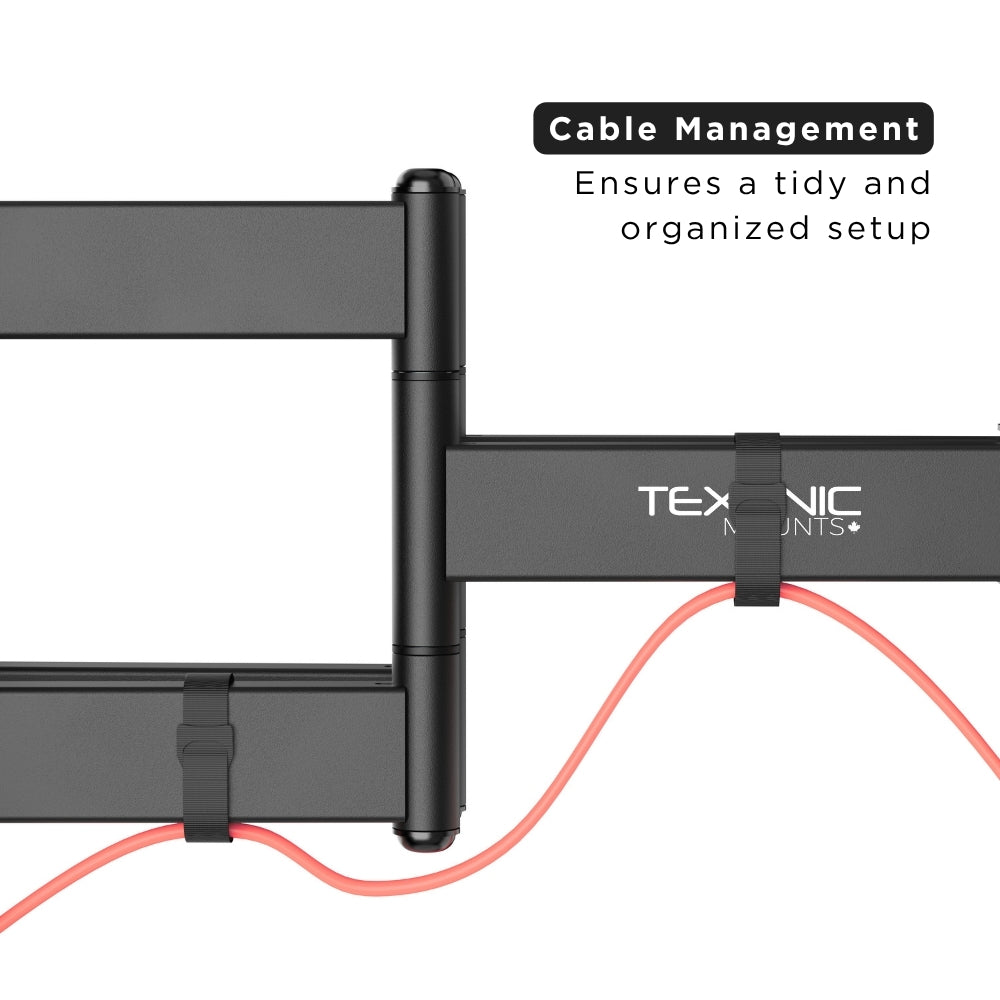

Cable Management Velcro cable management ties included
Manual Language English and French
Installation Notice: TV screen sizes are approximate. Always confirm your TV’s VESA pattern and weight without the stand before installation.

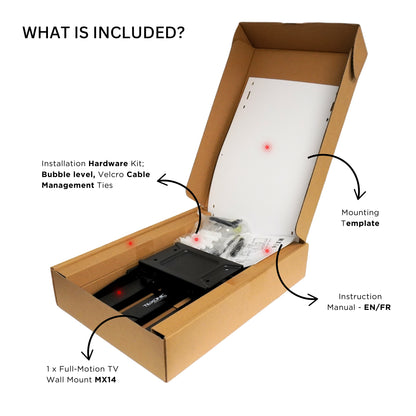

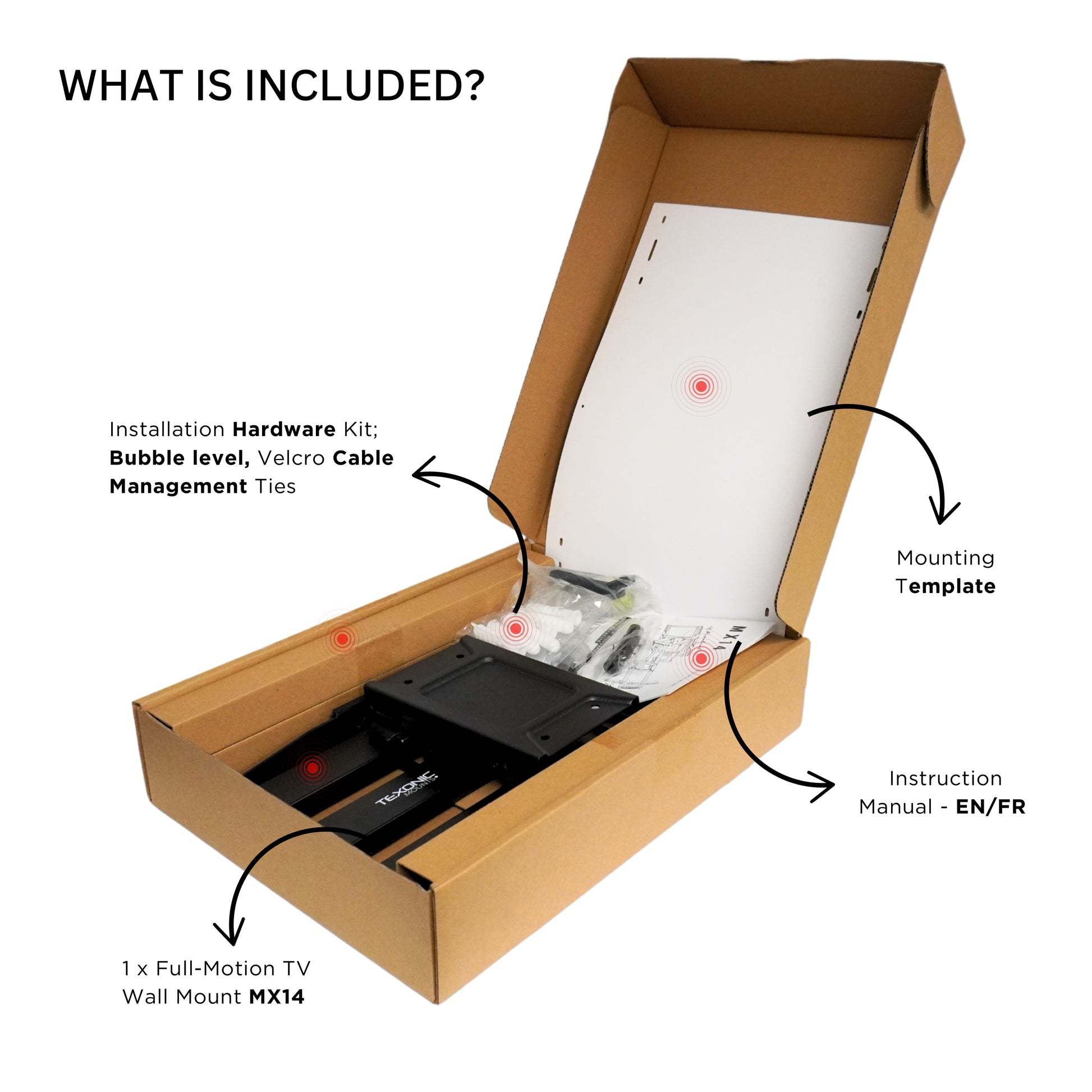

What’s Included

1 × TEXONIC MX14 full-motion TV wall mount
Velcro cable management ties
Bubble level
Mounting template

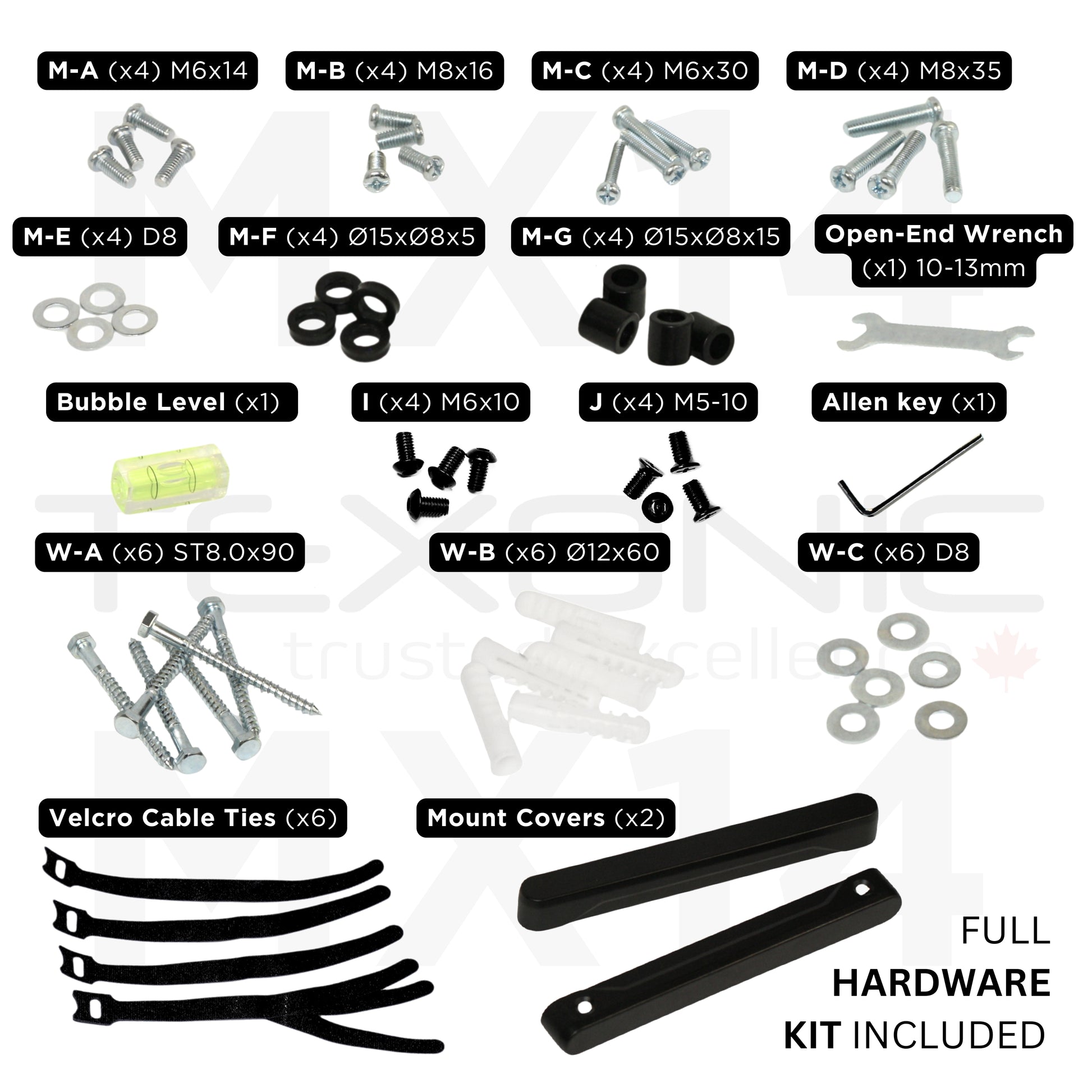

Installation hardware and screws
Samsung M8×45 screws
User manual in English and French
Product Note: Product design and included hardware may vary slightly without notice. Check the manual and your TV specifications before installation.

Brand new

All our Texonic products are brand new and we don't sell refurbished items

Need assistance?

We are happy to help! You can call us at 705 999 5775 or send us an email at sales@texonic.ca

Shipping

Orders placed before 7:00 AM EST will be shipped the same business day. Orders placed after the cutoff time will be shipped on the following business day.

Please note: Free shipping is available in select provinces only. Additional shipping charges may apply to other regions.

Warranty

One of our main goals is to provide our customers with the best products and services. All our TEXONIC products are covered under 3 year of manufacturing warranty.
