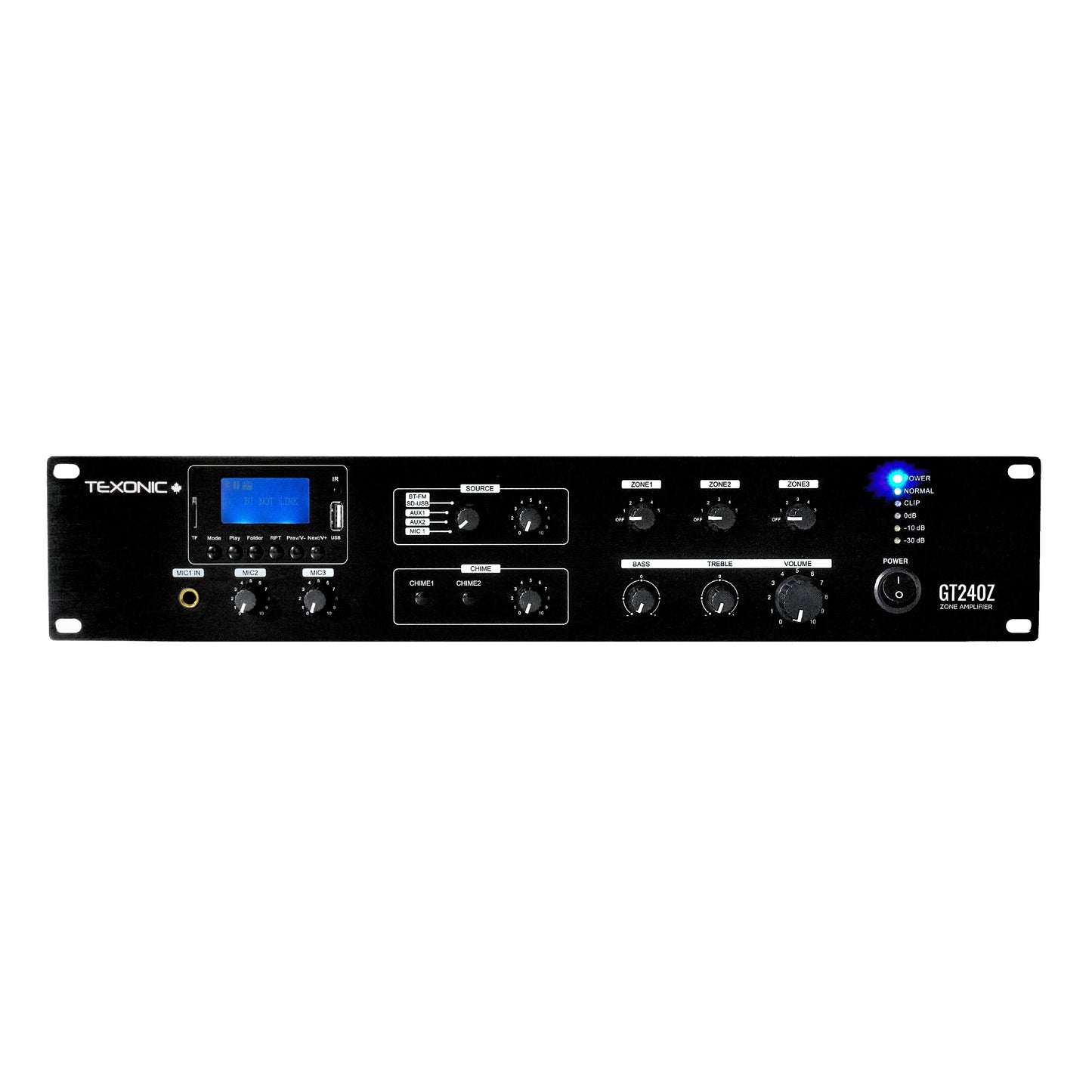

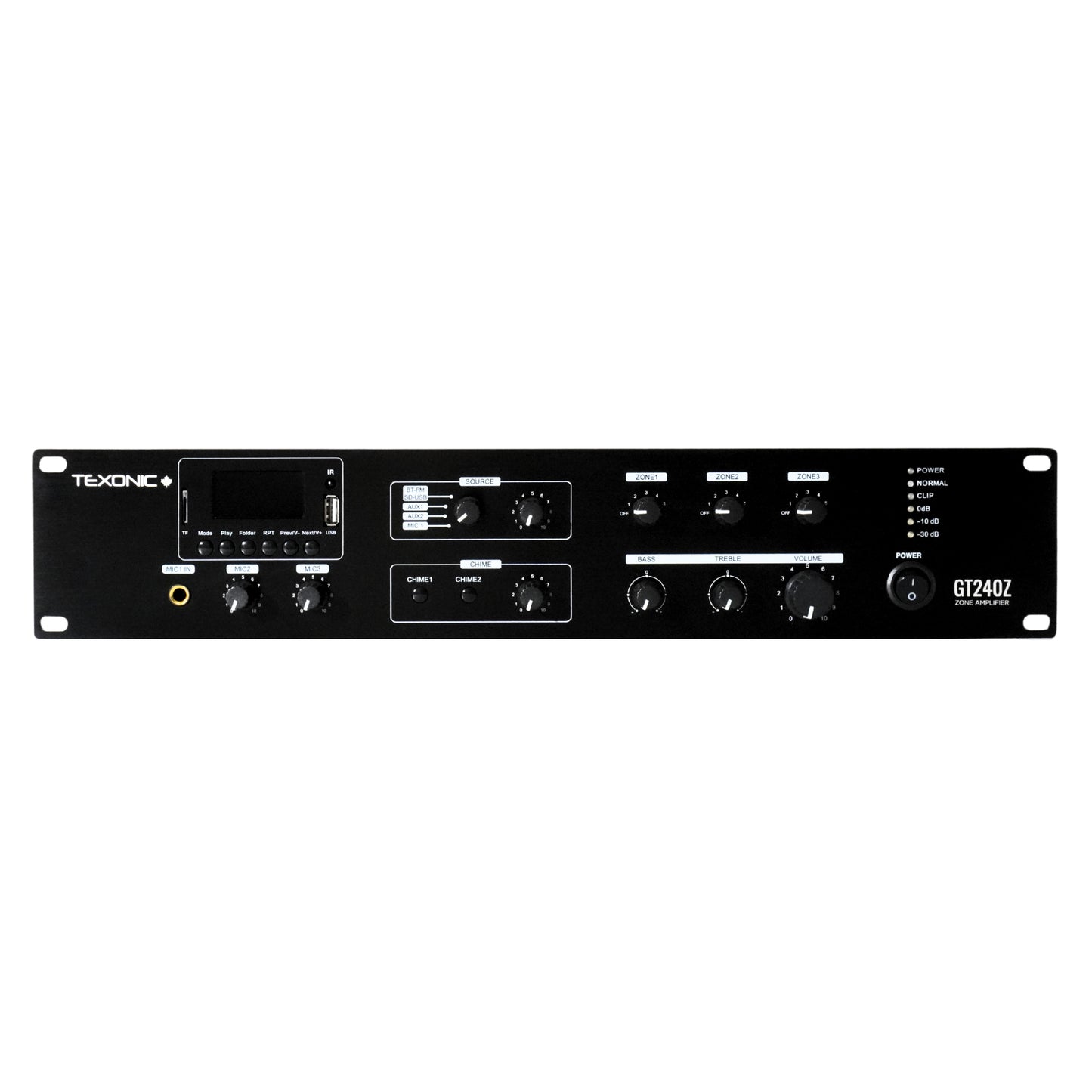

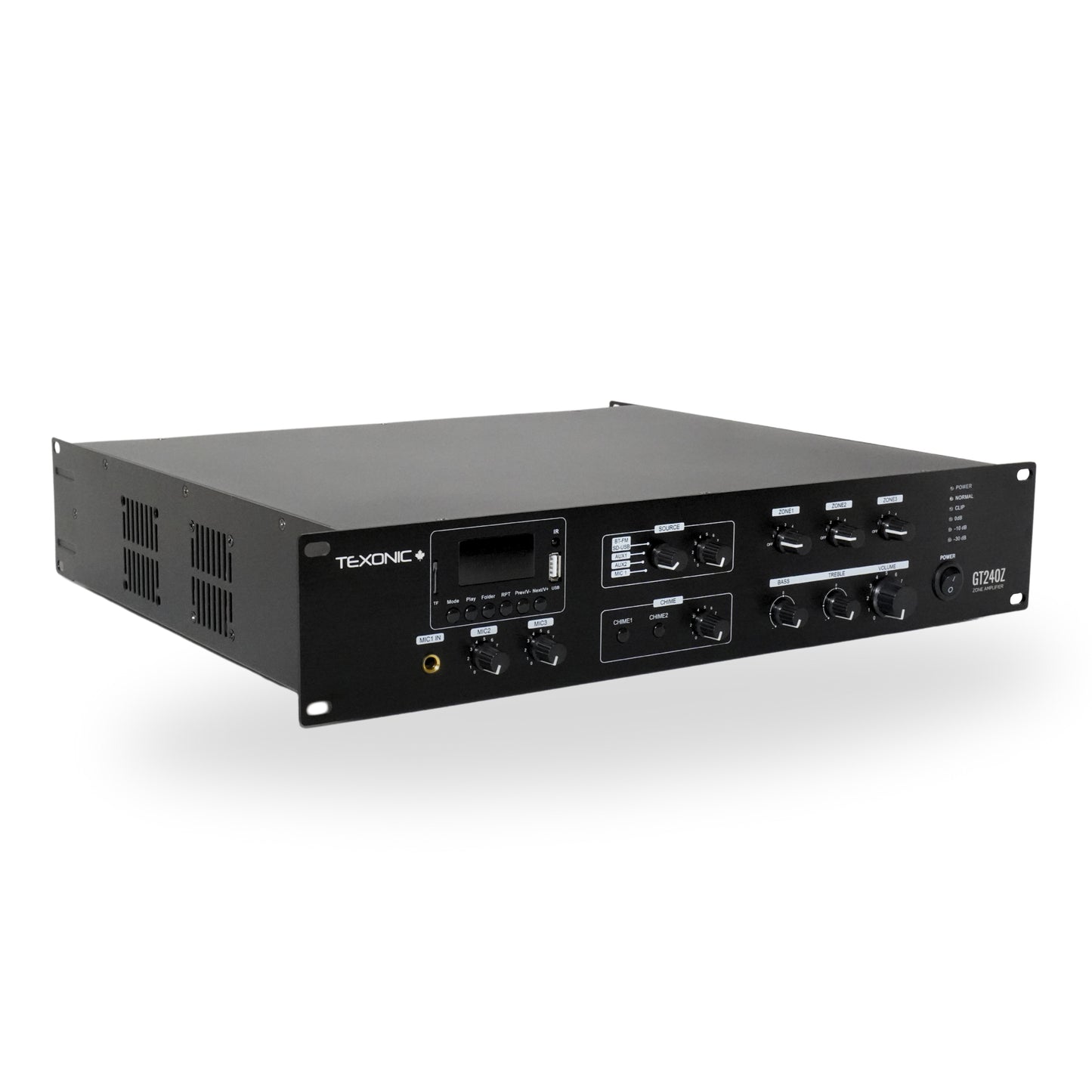

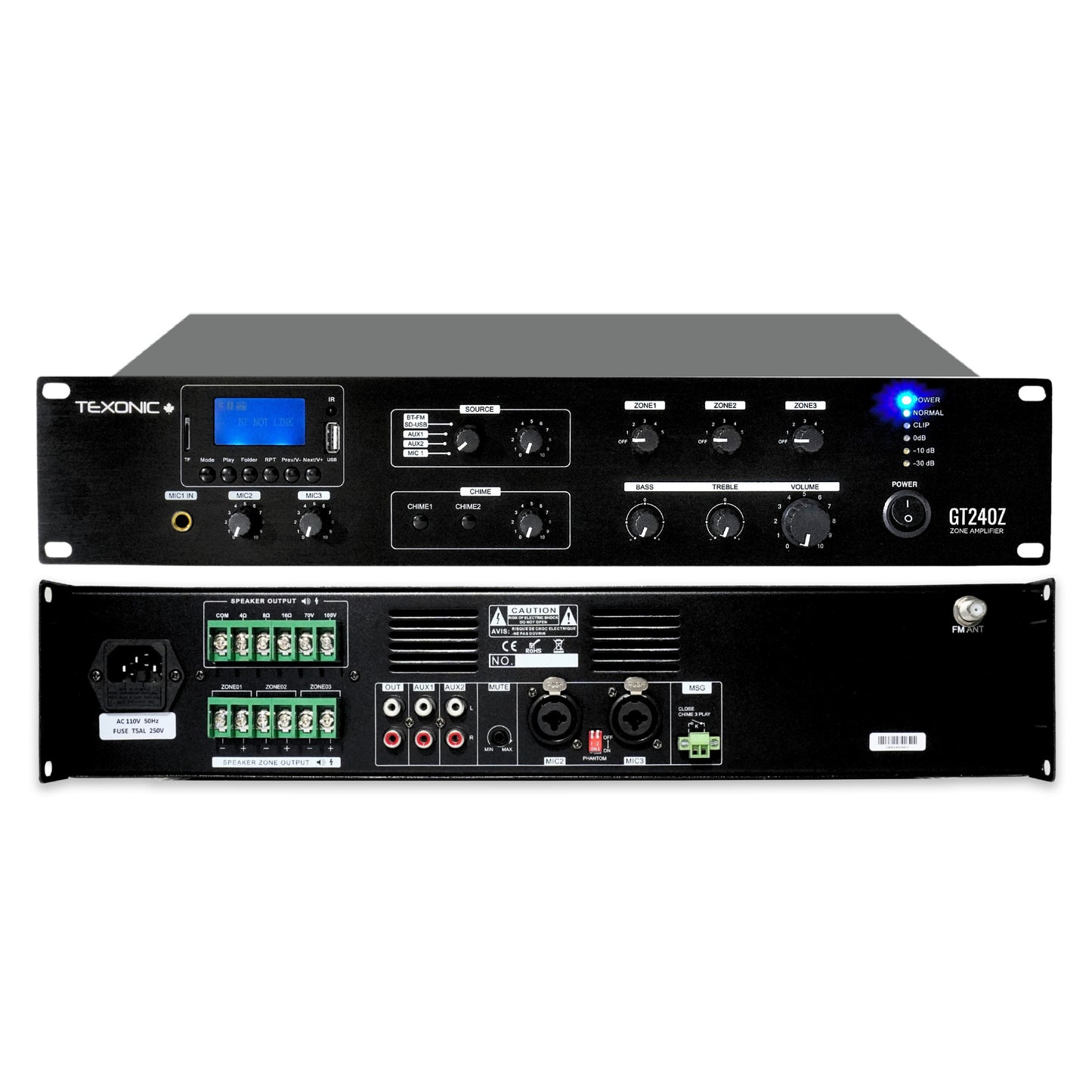

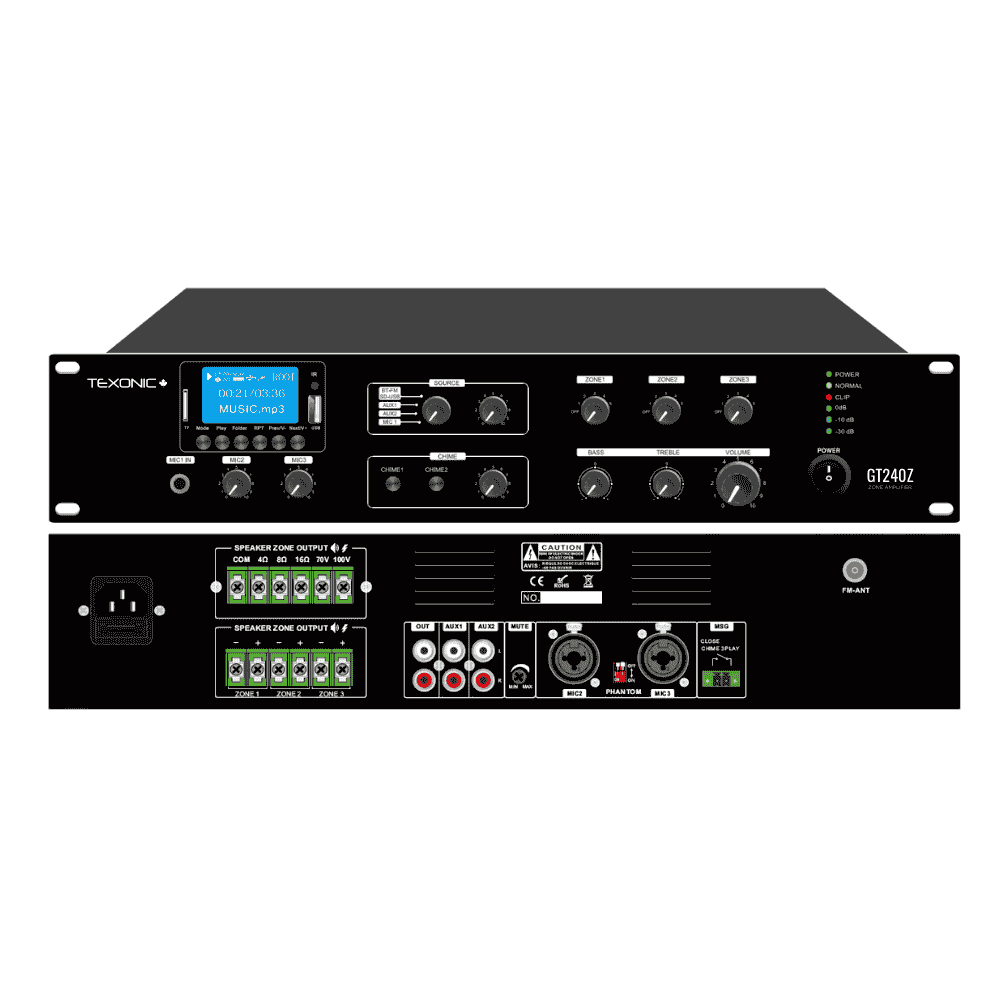

TEXONIC GT Series 240W 3-Zone Mixer Amplifier

The TEXONIC GT Series 240W Mixer Amplifier is an all-in-one audio solution designed for businesses that need efficient multi-zone sound control. This compact, 19" rack-mountable amplifier combines a powerful 240W output, a 3-zone paging controller, and a built-in media player in a space-saving 2U design. Compatible with both 70V/100V and 4-16 Ohm speaker systems, it offers flexibility for various installations. Ideal for commercial settings, it delivers reliable performance for background music, paging, and zone-specific audio management.

Key Features of the TEXONIC GT Series Amplifier:

• Independent Zone Control: Adjust volume independently for up to 3 zones.

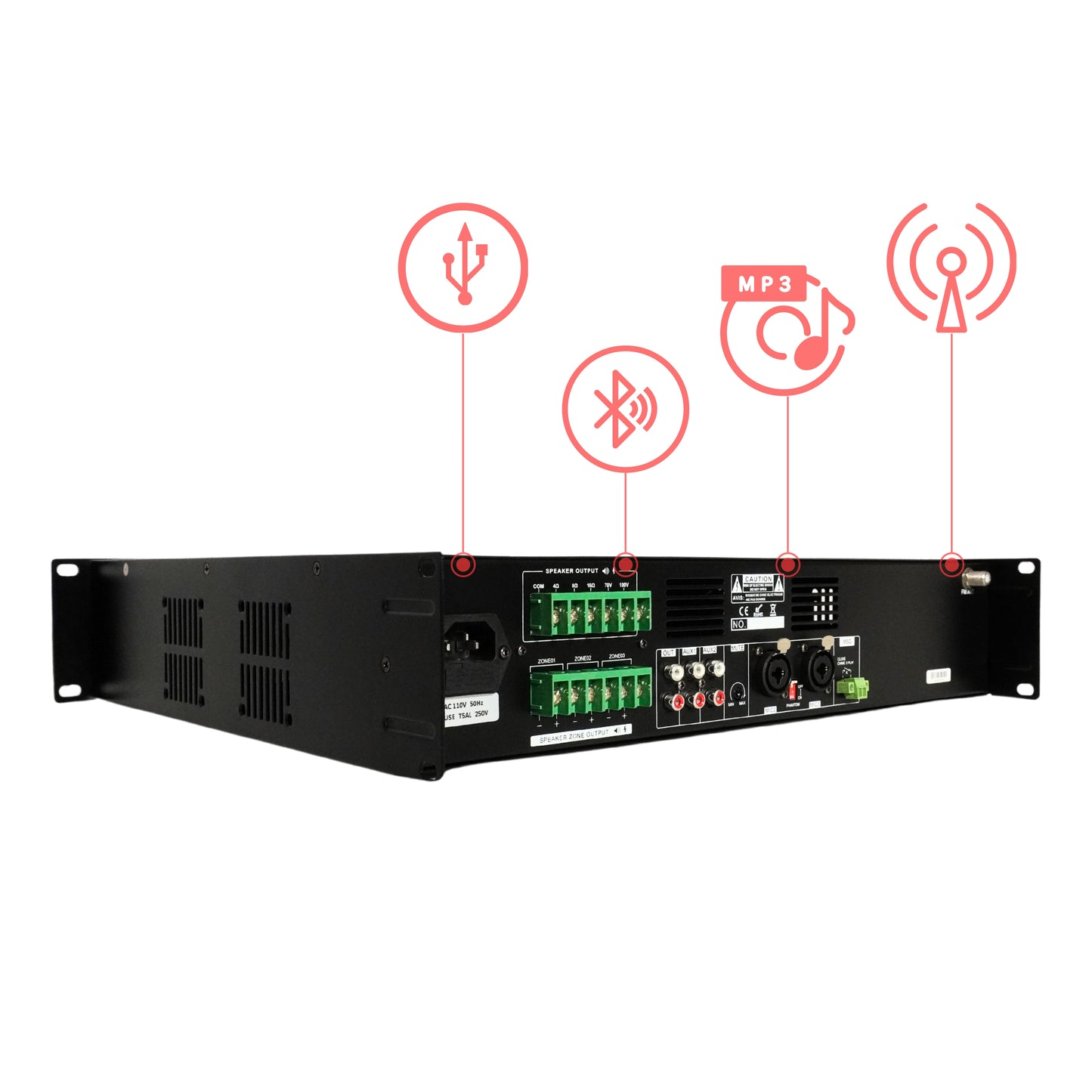

• Versatile Media Player: Supports USB, SD, FM tuner, and Bluetooth for seamless audio playback.
• Multiple Input Options: Includes 3 microphone inputs (1 with priority) and 2 auxiliary RCA inputs for added flexibility.
• Wide Compatibility: Works with 70V/100V and 4–16 Ohm loudspeaker systems.
• Robust Protection: Safeguards against overload, short circuits, and high temperatures for reliable operation.

Perfect for: Restaurants, retail stores, schools, and other commercial spaces, offering dependable performance and effortless audio management.

SPECIFICATIONS

• Power Output: 240W

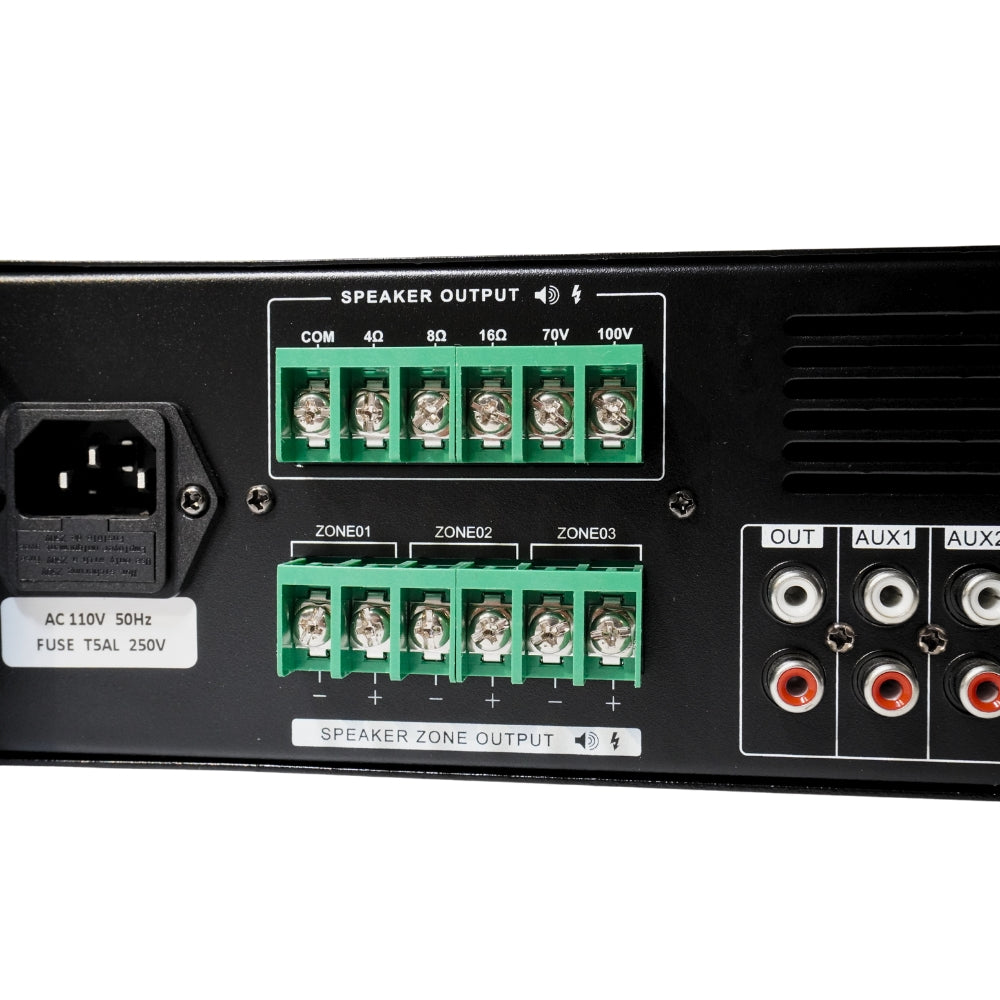

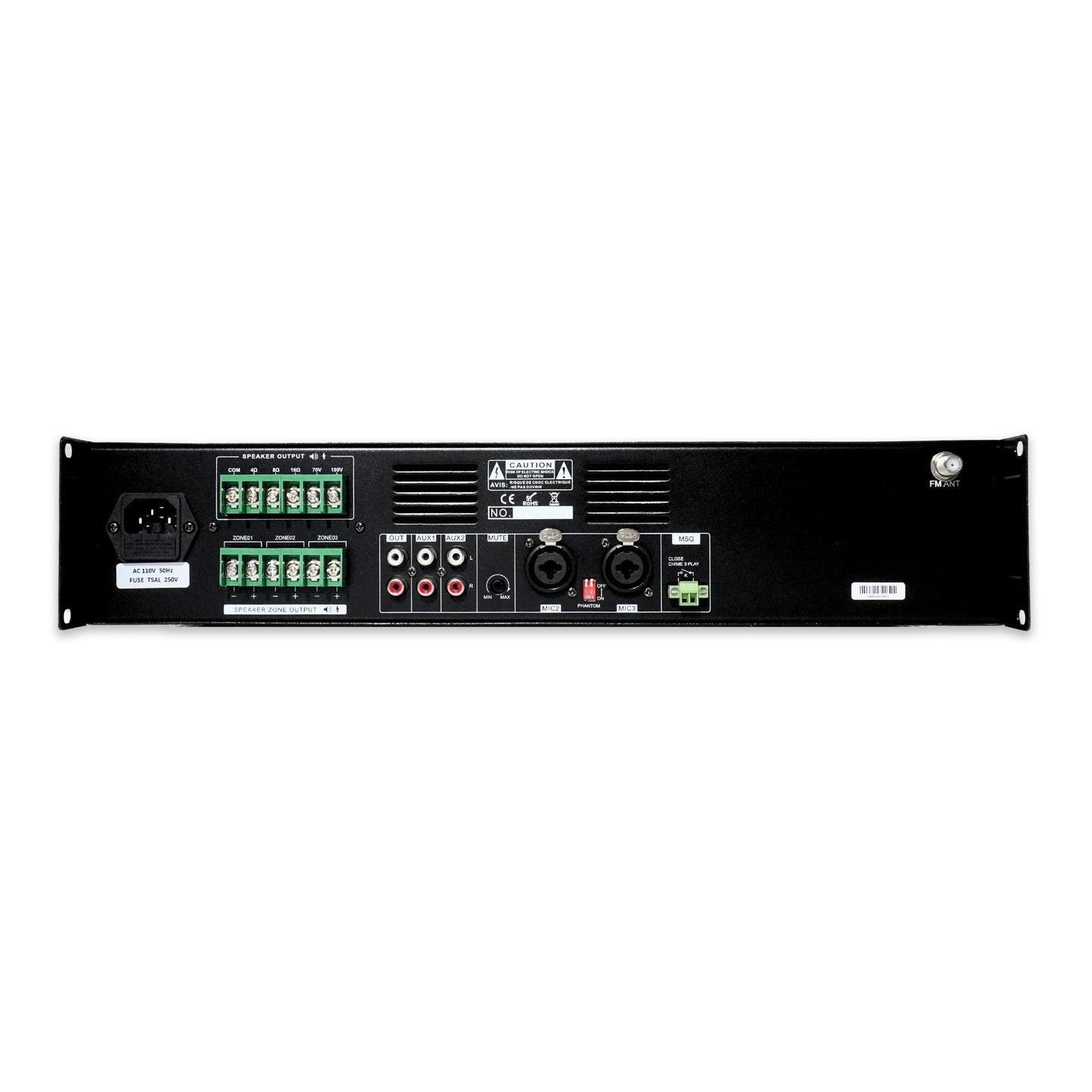

• Speaker Outputs:
  • 100V for 3 zones
  • Common output: 70/100V, 4–16 Ohms
• Inputs:
  • Microphone (Mic1–3): 2.5mV
  • Line (Line1–2): 250mV
• Frequency Response: 80Hz–16kHz
• Total Harmonic Distortion (THD): <0.1%
• Signal-to-Noise Ratio (S/N): >70dB
• Protection Features: High temperature, short circuit, clipping, and overload protection
• Power Supply: AC 110–230V, 50–60Hz
• Power Consumption: 400W
• Dimensions: 48 x 40 x 9 cm (19.05 x 15.94 x 3.54 inches)
• Weight: 9.5 kg (20.9 lbs)

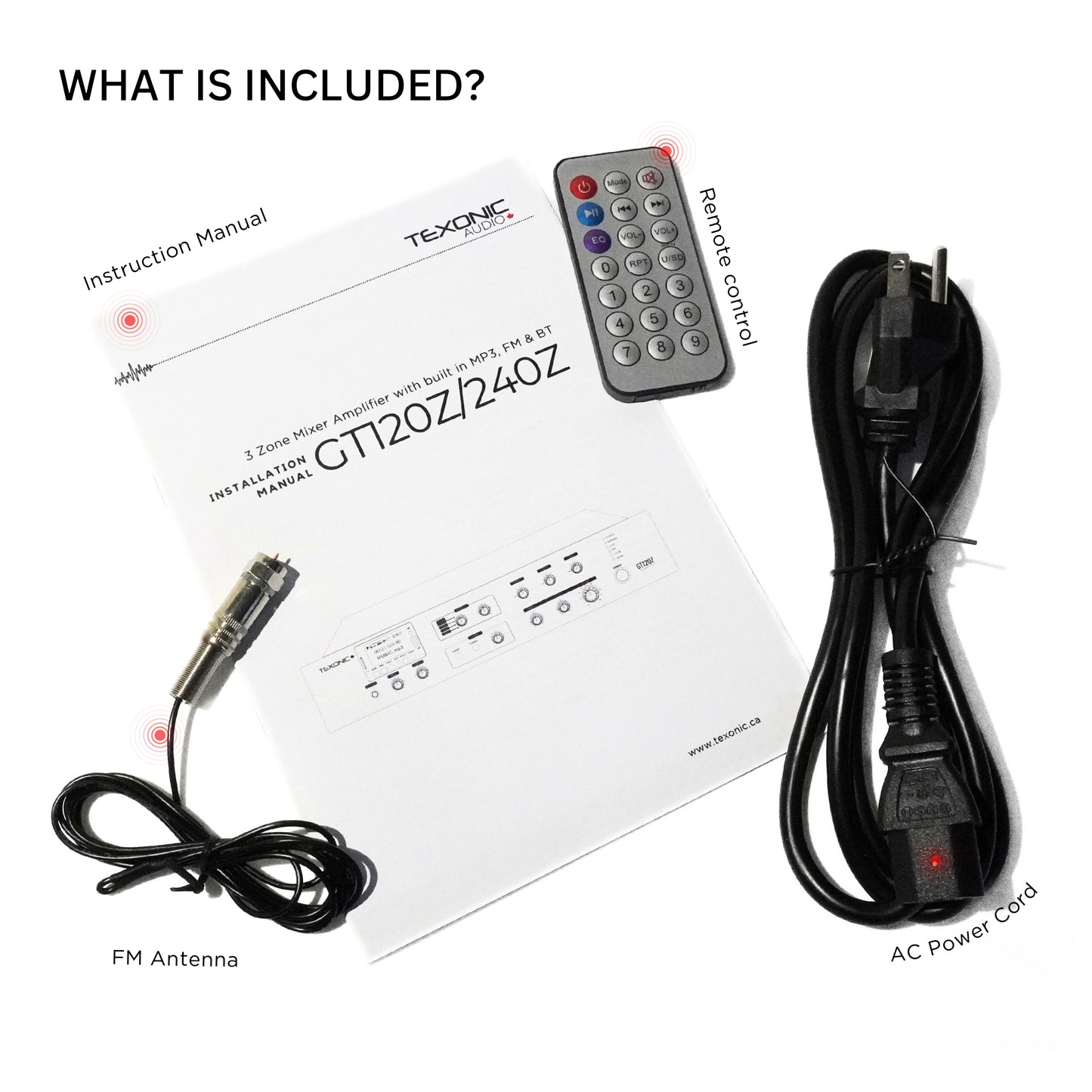

INCLUDED

• Instruction Manual
