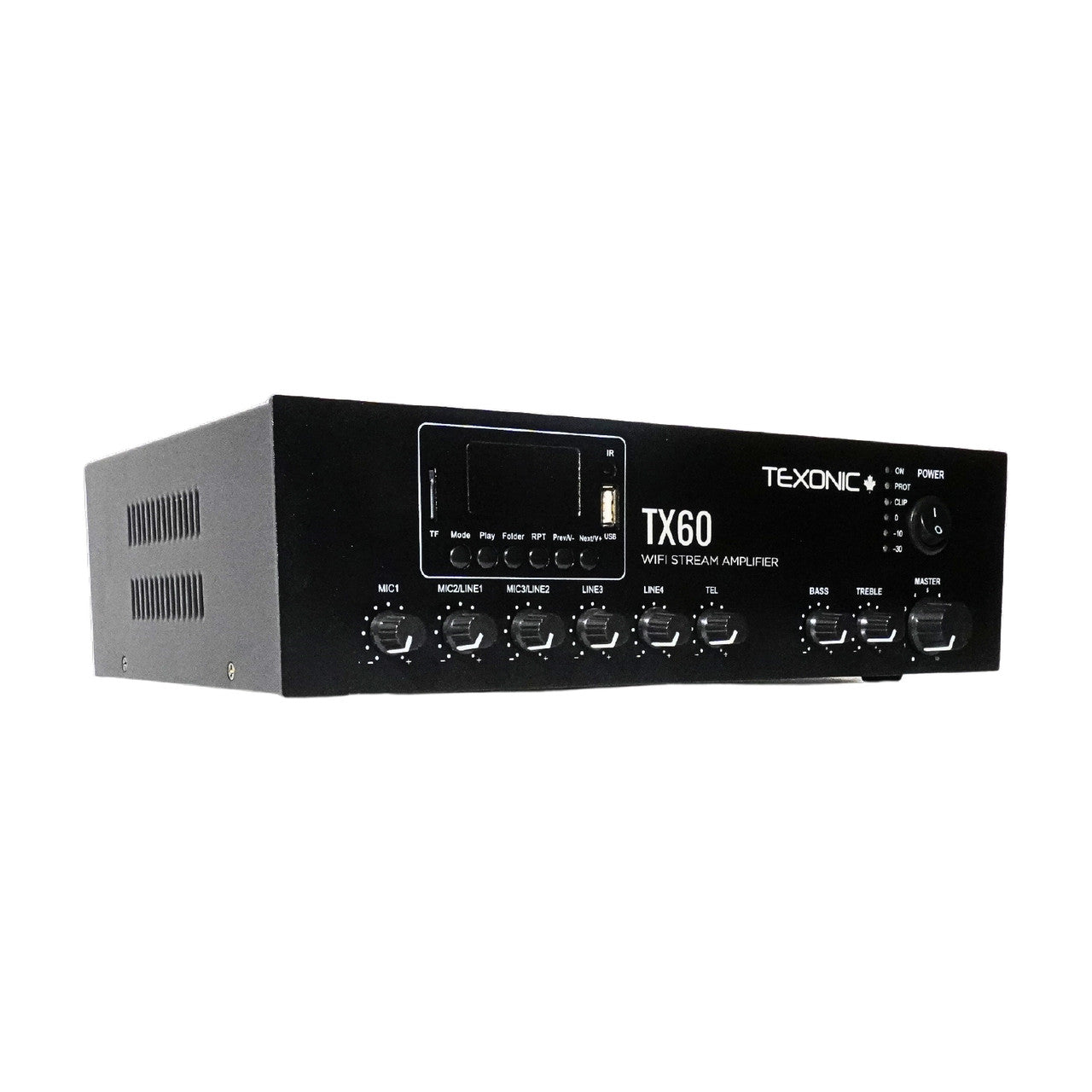

TEXONIC 60W Commercial Amplifier | 6 Channels | Canada

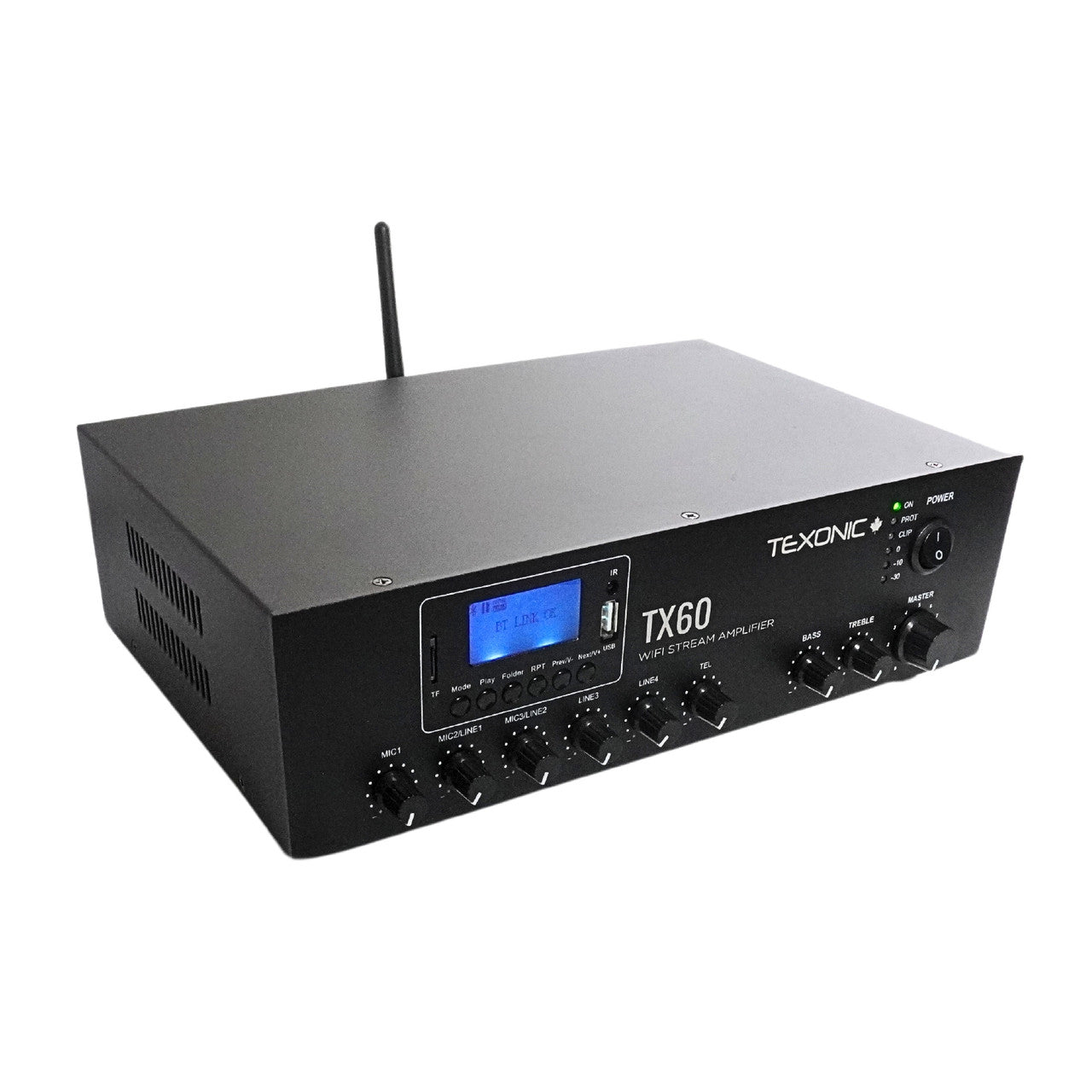

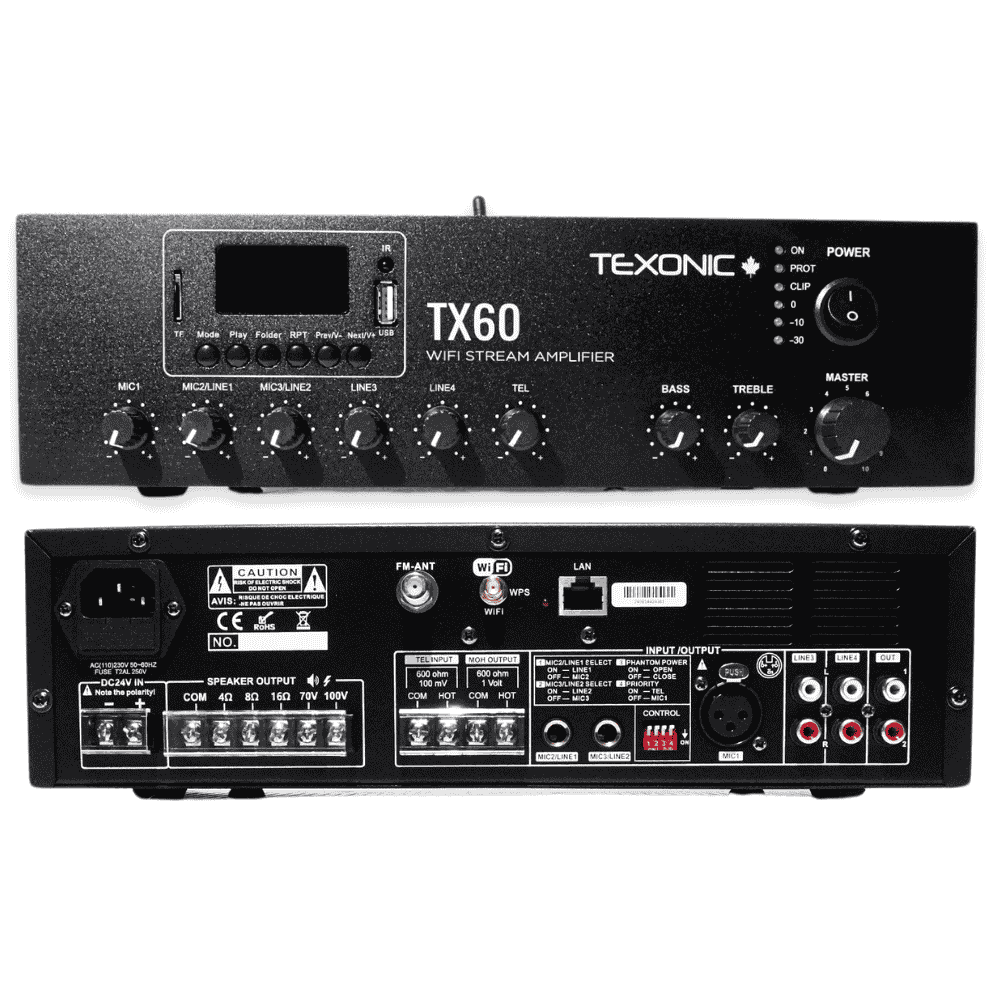

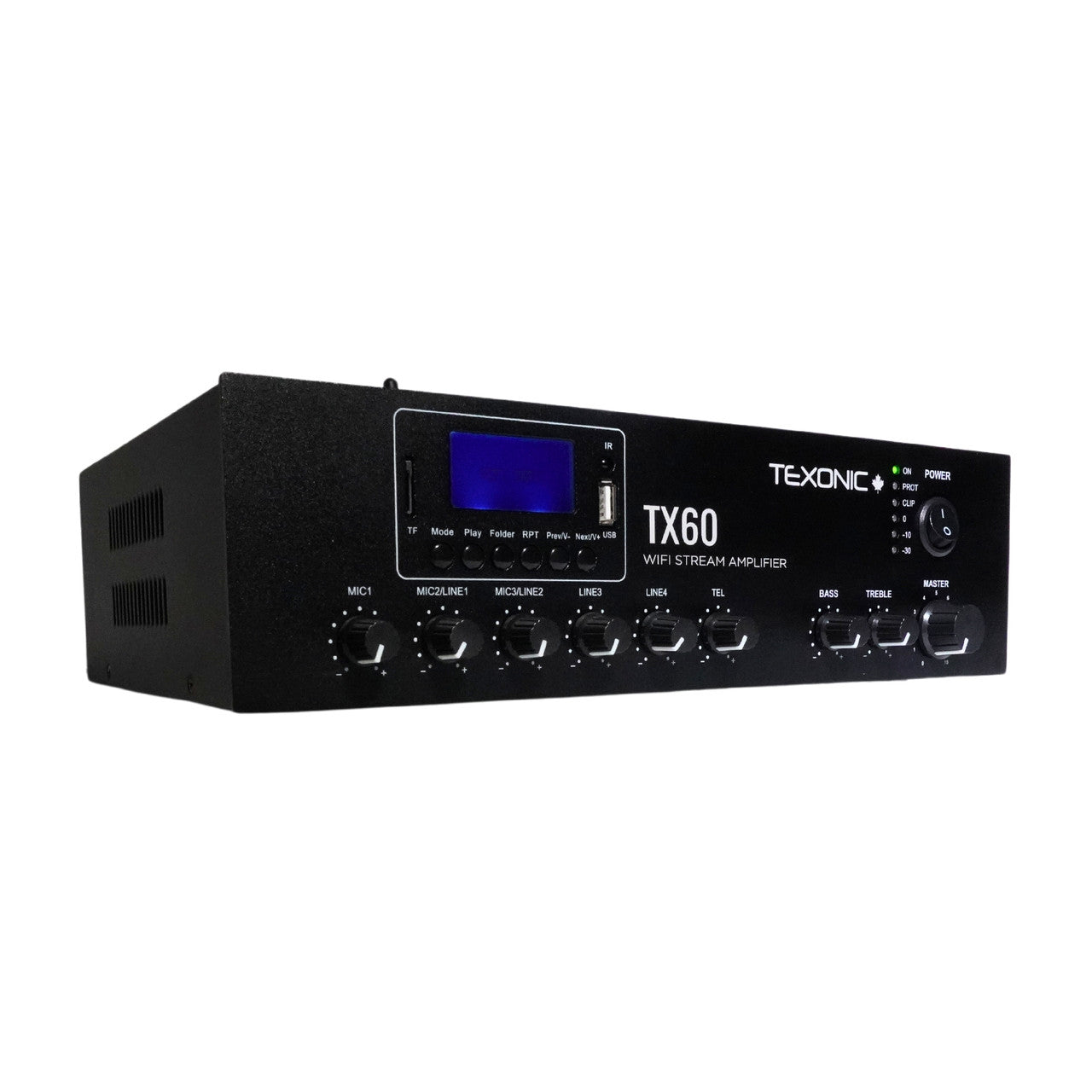

Simplify and elevate your commercial audio experience with the TX60 60W Streamer Audio Mixer Amplifier. This versatile all-in-one device supports up to 3 microphones, 4 external sources, and offers WiFi streaming, MP3 playback, FM radio, and Bluetooth connectivity. Designed for convenience, it features smart app control for effortless audio management, making it perfect for restaurants, stores, and offices. With BGM (Background Music) and MOH (Music On Hold) capabilities, easy volume controls, phantom power, and built-in overload protection, this rack-mountable amplifier ensures reliable performance for any professional audio setup.

Features

• Compact Design: Built-in 70V/100V transformer technology for versatile audio solutions.
• Streaming & Playback: Supports Wi-Fi streaming, MP3 player, FM radio, and Bluetooth.
• Flexible Speaker Outputs: Compatible with 70V, 100V, 4 Ohms, 8 Ohms, and 16 Ohms speakers.
• Convenient Media Inputs: Front panel USB/SD inputs with IR remote control for MP3, FM radio, and Bluetooth.
• Status Indicators: LED lights for power, clipping, protection, and signal presence.
• Microphone Inputs:
  • Mic 1: Balanced XLR input with phantom power option.
  • Mic 2 & 3: Switchable unbalanced Phoenix connectors for mic/line inputs.
• Telephone Integration: Built-in telephone input with VOX priority and MOH (Music on Hold) output.

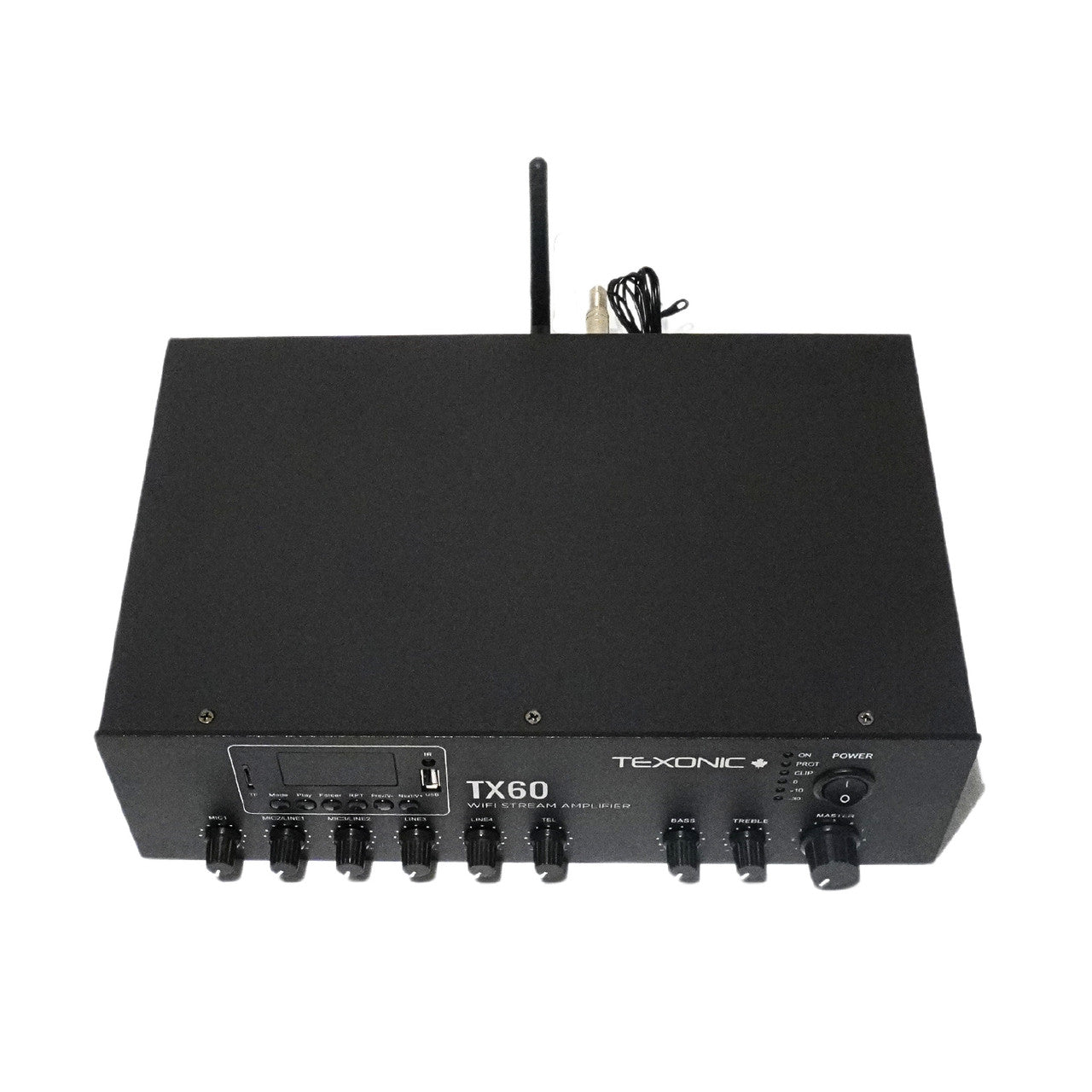

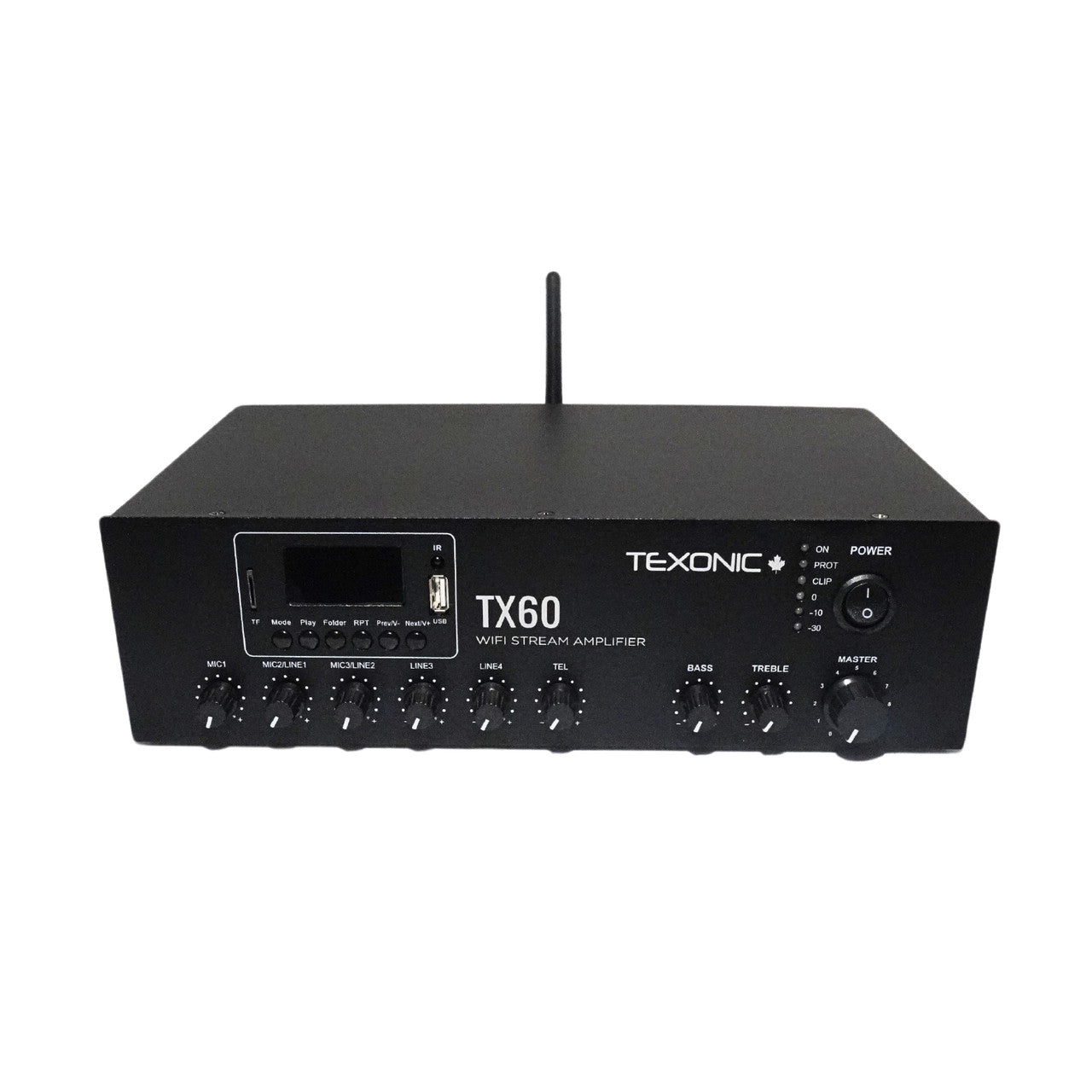

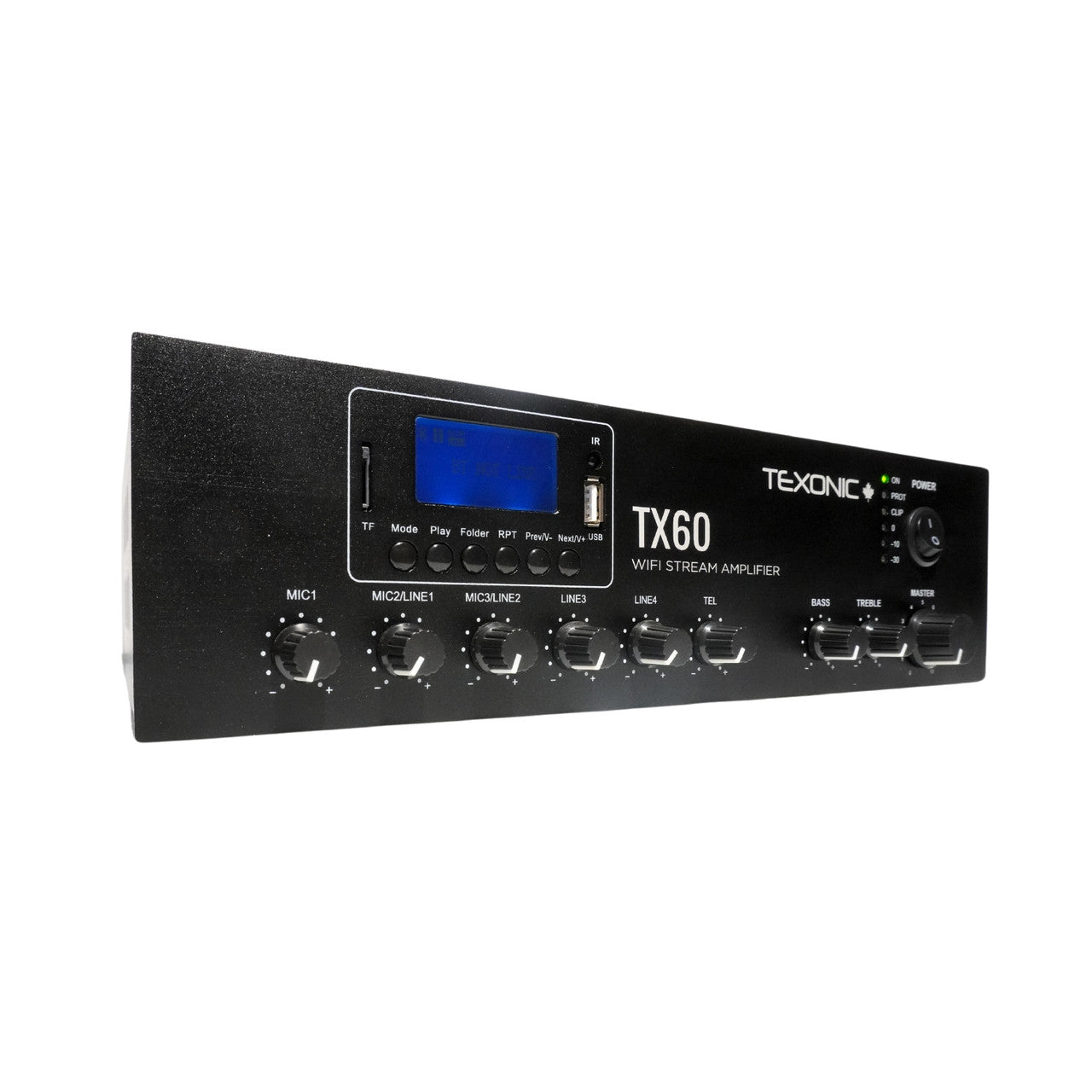

• Easy Control: Front-panel volume controls for all inputs, master volume, bass, and treble.
• Expandable: Line-out for connecting to an external amplifier.
• Robust Protection: Safeguards against short circuits, clipping, overload, and overheating.

SPECIFICATIONS

• Power Output: 60W

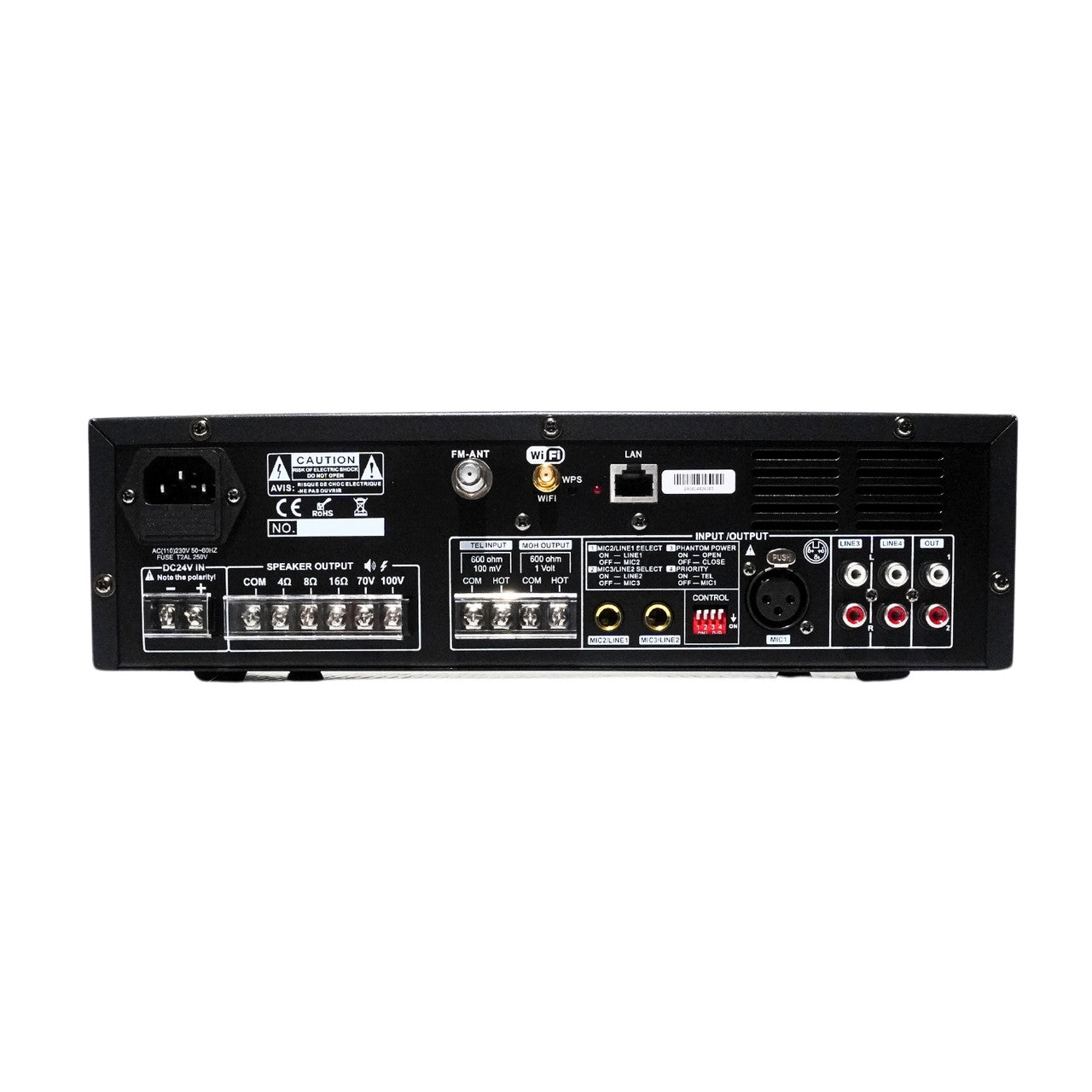

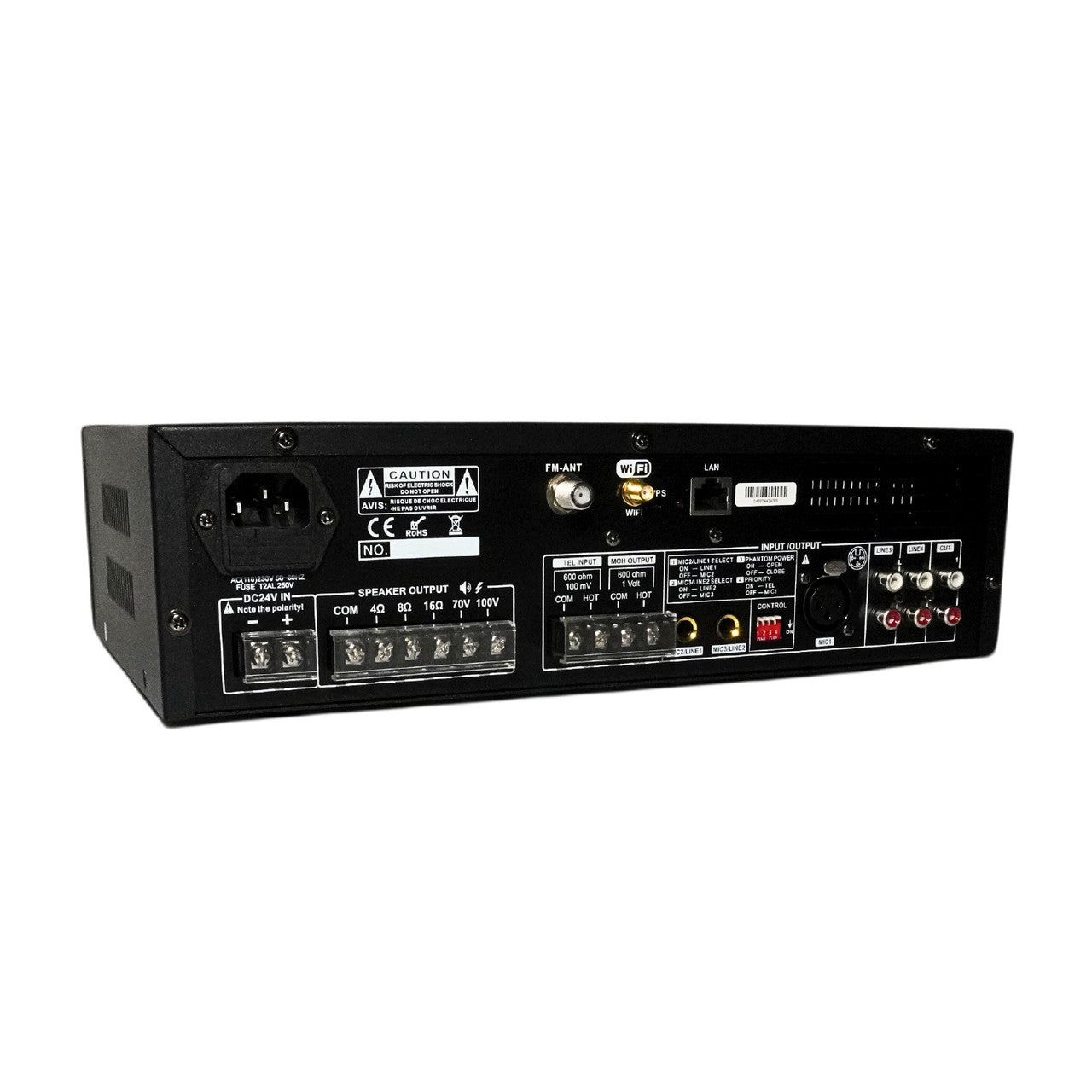

• Speaker Outputs: 70V/100V and 4Ω, 8Ω, 16Ω
• Microphone Inputs:
  • Mic 1: Balanced XLR with phantom power and highest VOX priority
  • Mic 2 & 3: Unbalanced 6.3mm jack, switchable between mic and line input
• Telephone Input: Secondary priority with MOH (Music on Hold) support
• Line Inputs/Outputs:
  • Line 1-2 inputs: RCA
  • Line output: RCA (0.775V/0dBV)
• Input Sensitivity/Impedance:
  • Mic 1-3: 5-8mV, 600Ω
  • Line: 150-470mV, 10kΩ
• Frequency Response: 60Hz - 15kHz (±3dB)
• Signal-to-Noise Ratio (S/N):
  • Line: ≥ 85dB
  • Mic: ≥ 72dB
• Total Harmonic Distortion (THD): < 0.5%
• Protection Features: Short circuit, clipping, overload, and high-temperature protection
• Power Consumption: 100W
• Power Supply: 110V AC and 24V DC, 50-60Hz
• Dimensions: 32 x 21 x 9 cm (12.59 x 8.26 x 3.54 in)
• Weight: 4.1 kg (9 lbs)

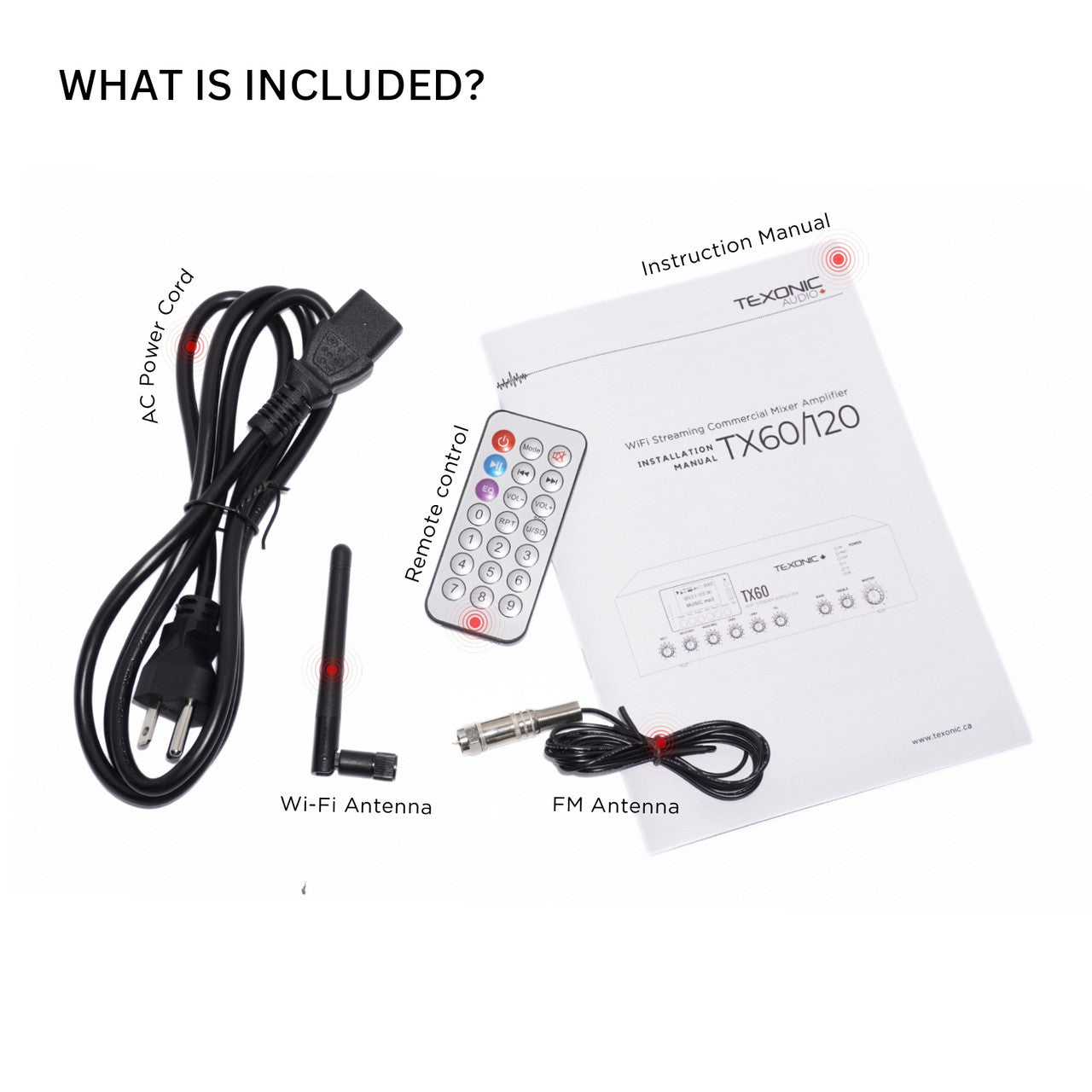

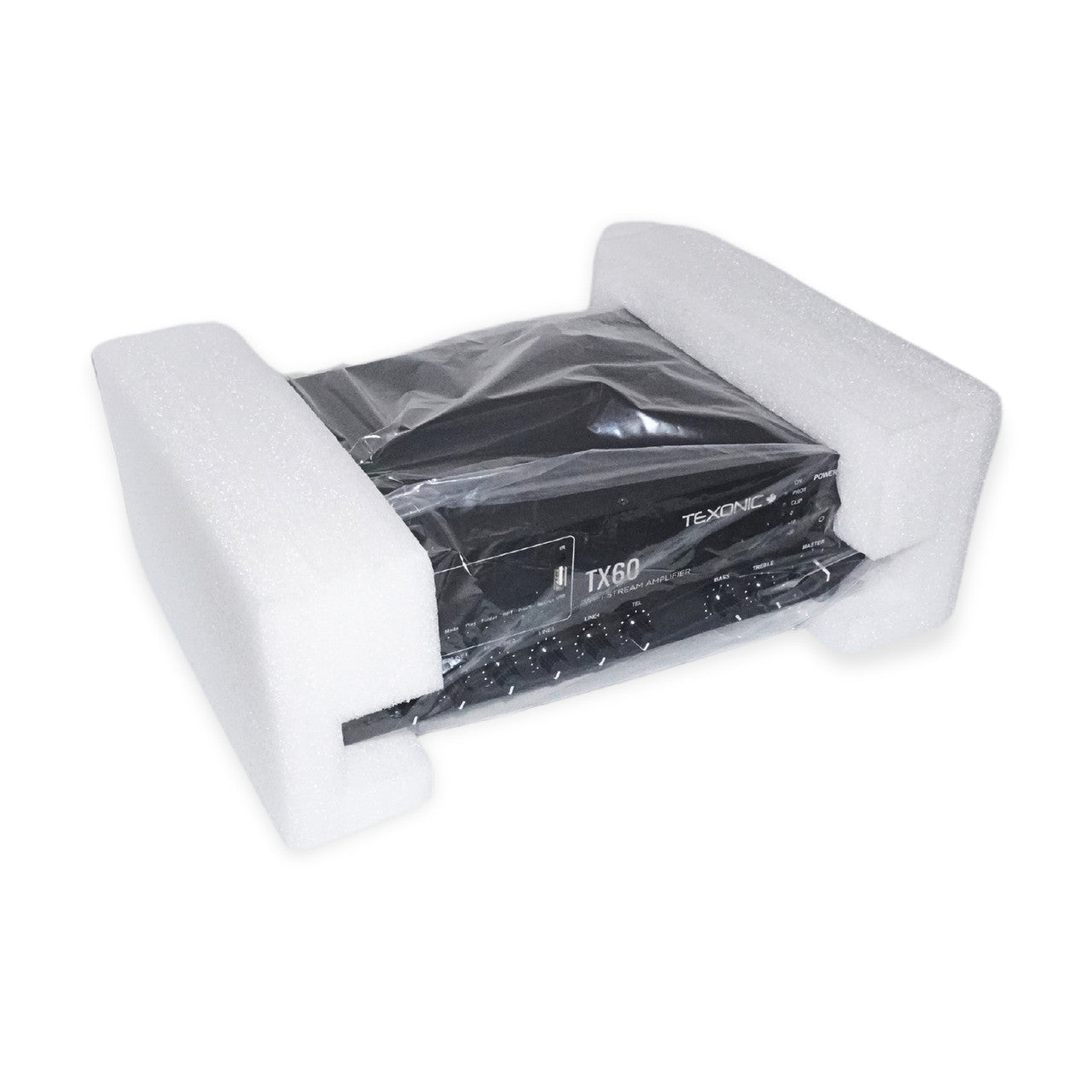

INCLUDED

• 1 x TX60 Amplifier
• 1 X FM Antenna

• 1 x Wi-Fi Antenna

• 1 x Remote control
• 1 x Power Code
• 1 x Installation Manual
