TEXONIC 120W Commercial Audio Amplifier Canada

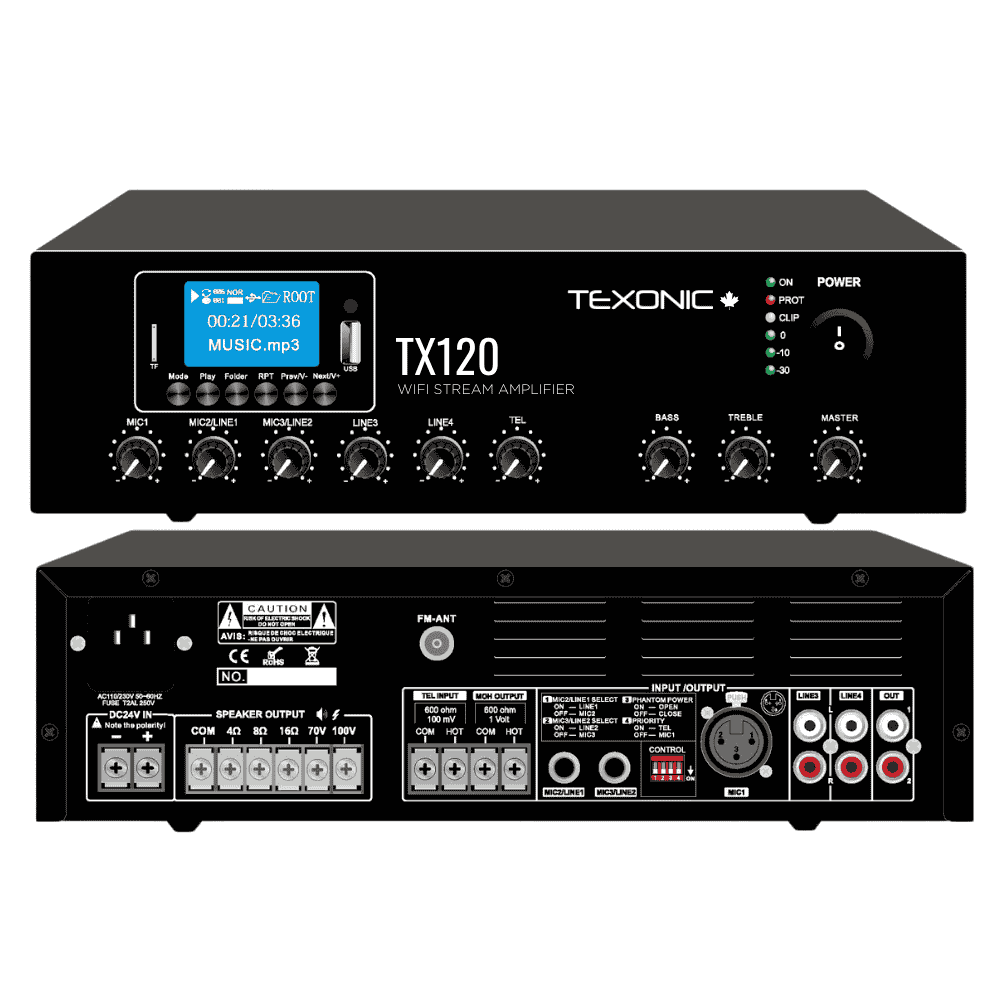

The TEXONIC TX120 Mixer Amplifier is a versatile 120W audio system designed for commercial use. It offers smart app control, WiFi streaming, MP3 playback, FM radio, and Bluetooth connectivity. Supporting up to 3 microphones and 4 external audio sources, it's ideal for background music, paging, and music-on-hold applications. The built-in 70V/100V transformer and simple front-panel controls ensure seamless operation, while its expandable design suits retail stores, medical offices, and other small to medium businesses. With reliable protection features and an intuitive interface, it’s a dependable all-in-one solution for professional audio needs.

FEATURES

• Compact Design: Integrated 70V/100V transformer technology in a space-saving form factor.
• Versatile Audio Sources: Supports Wi-Fi streaming, MP3 playback, FM radio, and Bluetooth for maximum connectivity.
• Flexible Speaker Outputs: Compatible with 70V, 100V, 4 Ohms, 8 Ohms, and 16 Ohms speaker systems.
• Convenient Front Panel Inputs: USB and SD inputs for MP3 playback, with an included IR remote control for MP3 player, FM radio, and Bluetooth management.
• LED Indicators: Displays for power status, clipping, protection mode, and signal presence.
• Multiple Microphone Inputs:
  • Mic 1: Balanced XLR input with optional phantom power.
  • Mic 2 & 3: Switchable unbalanced Phoenix connectors for mic or line inputs.
• Telephone Integration: Built-in telephone input with VOX priority and music-on-hold (MOH) output.
• User-Friendly Controls: Front-panel knobs for adjusting individual input volumes, MP3/FM, master volume, bass, and treble.
• Expandable Connectivity: Line-out for connecting to an external amplifier for additional power needs.
• Robust Protection: Safeguards against short circuits, clipping, overload, and overheating, ensuring reliable performance.

SPECIFICATION

• Power Output: 120W
• Speaker Outputs: 70V/100V and 4Ω, 8Ω, 16Ω
• Microphone Inputs:
  • Mic 1: Balanced XLR with phantom power and VOX highest priority
  • Mic 2 & 3: Switchable mic/line inputs via unbalanced 6.3mm jack
• Additional Inputs:
  • Telephone Input: With secondary priority and Music on Hold (MOH) feature
  • Line Inputs: Two RCA connectors
  • Line Output: RCA connector
• Input Sensitivity and Impedance:
  • Mic (1-3): 5–8mV, 600Ω
  • Line: 150–470mV, 10kΩ (unbalanced RCA)
  • Line Output: 0.775V (0dBV)
• Frequency Response: 60Hz–15kHz (±3dB)
• Signal-to-Noise Ratio:
  • Line: ≥85dB
  • Mic: ≥72dB
• Total Harmonic Distortion (THD): <0.5%
• Protection Features: Short circuit, clipping, overload, and high-temperature protection
• Power Supply: 110V AC or 24V DC, 50–60Hz
• Power Consumption: 200W
• Dimensions: 32 x 21 x 9 cm (12.59 x 8.26 x 3.54 inches)
• Weight: 4.7 kg (10.3 lbs)

INCLUDED

• 1 x TX120 Amplifier
• 1 X FM Antenna
• 1 x Wi-Fi Antenna
• 1 x Remote control
• 1 x Power Code
• 1 x Installation Manual
