Class D Amplifier | 50W | Stereo

Compact & Powerful Audio Boost.

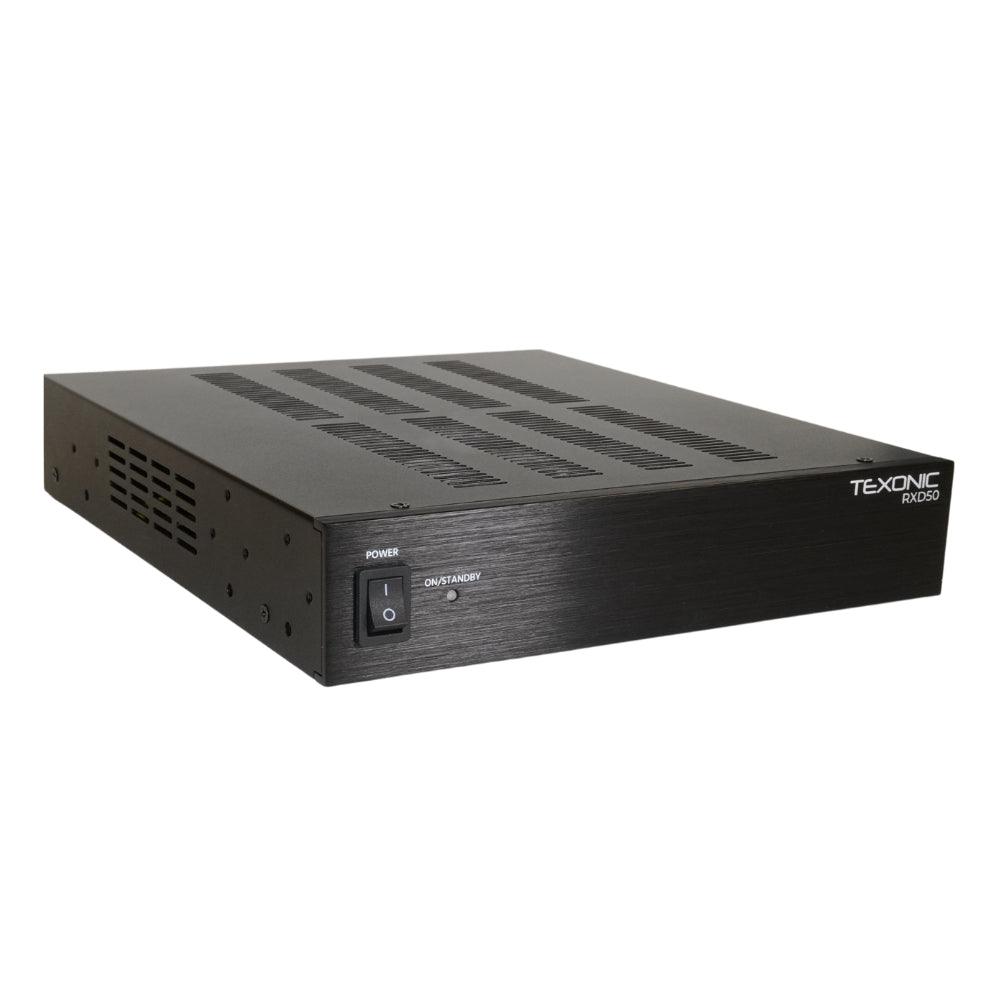

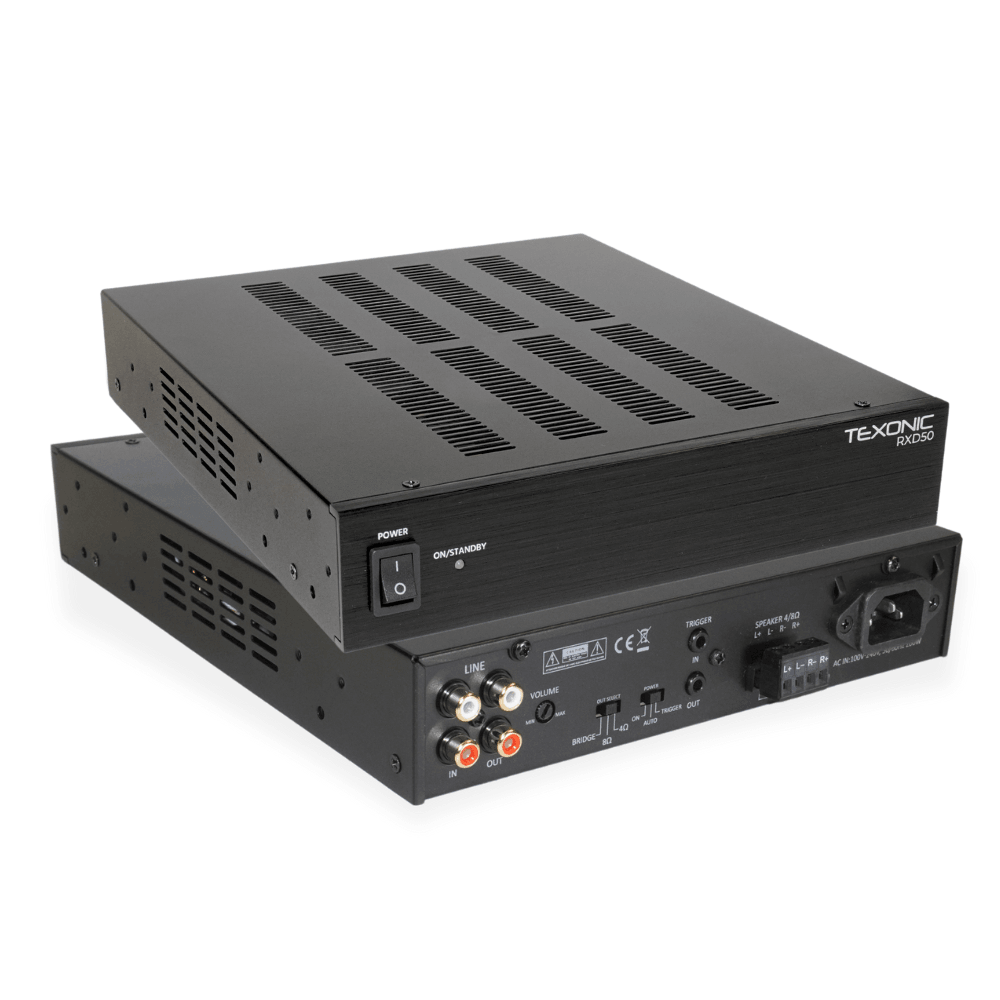

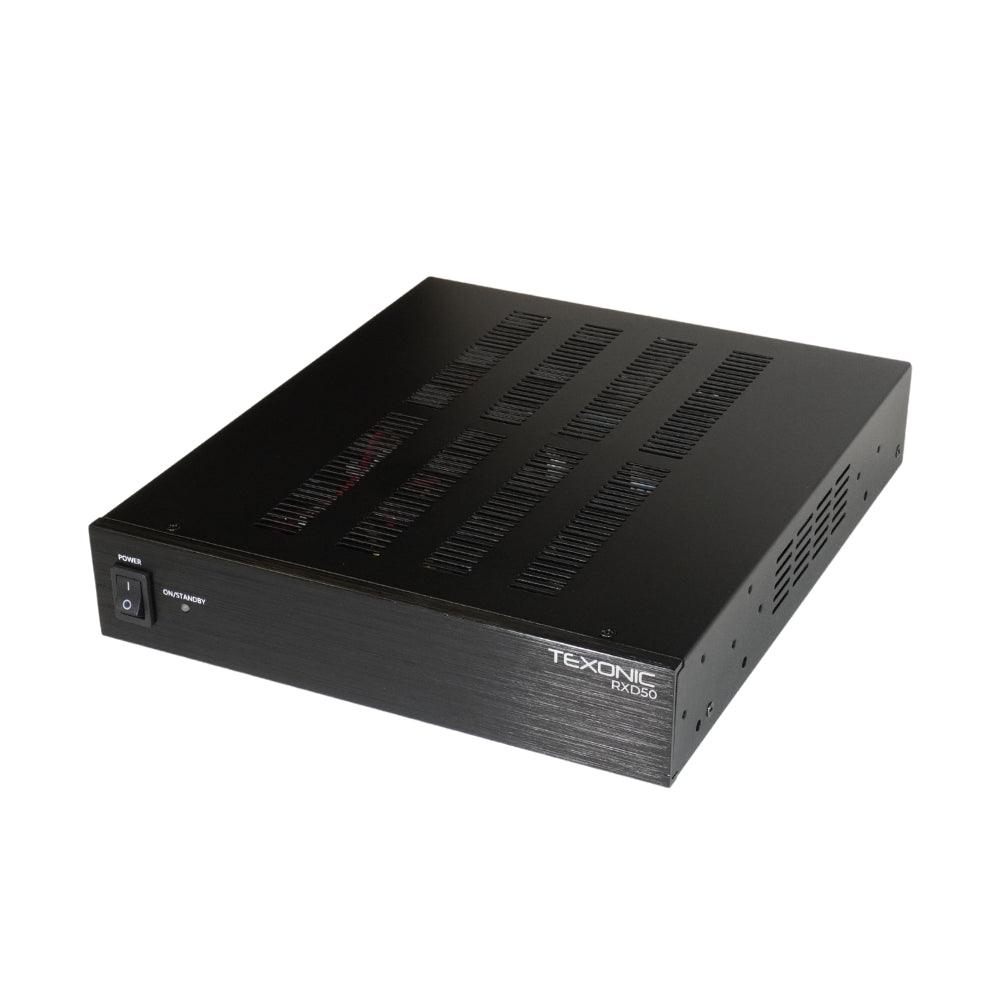

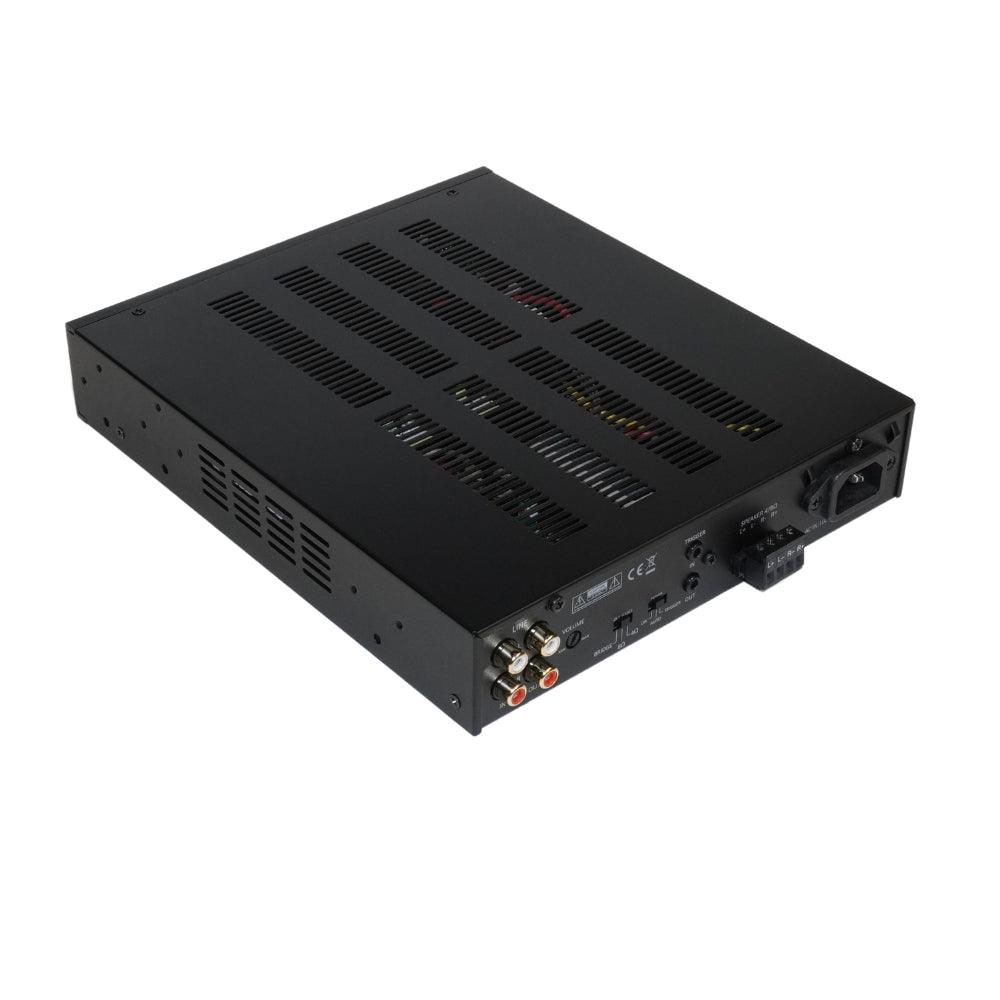

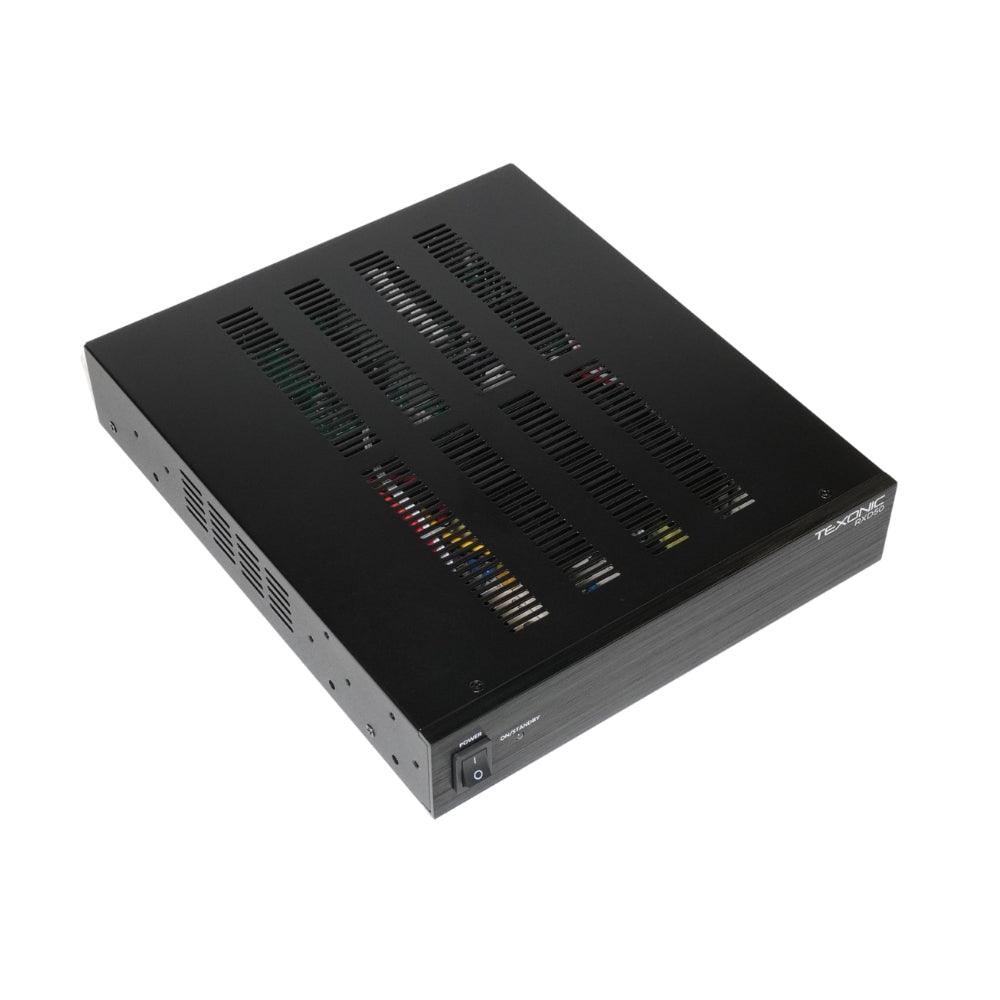

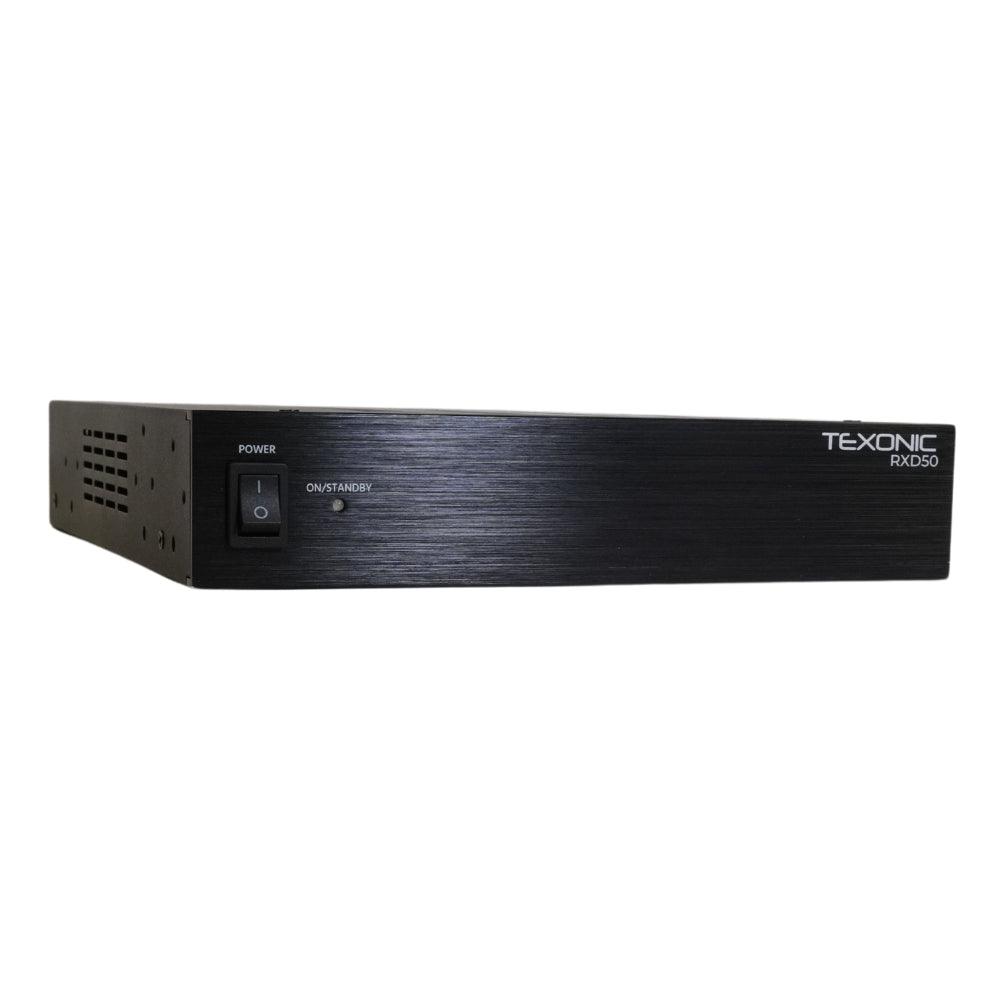

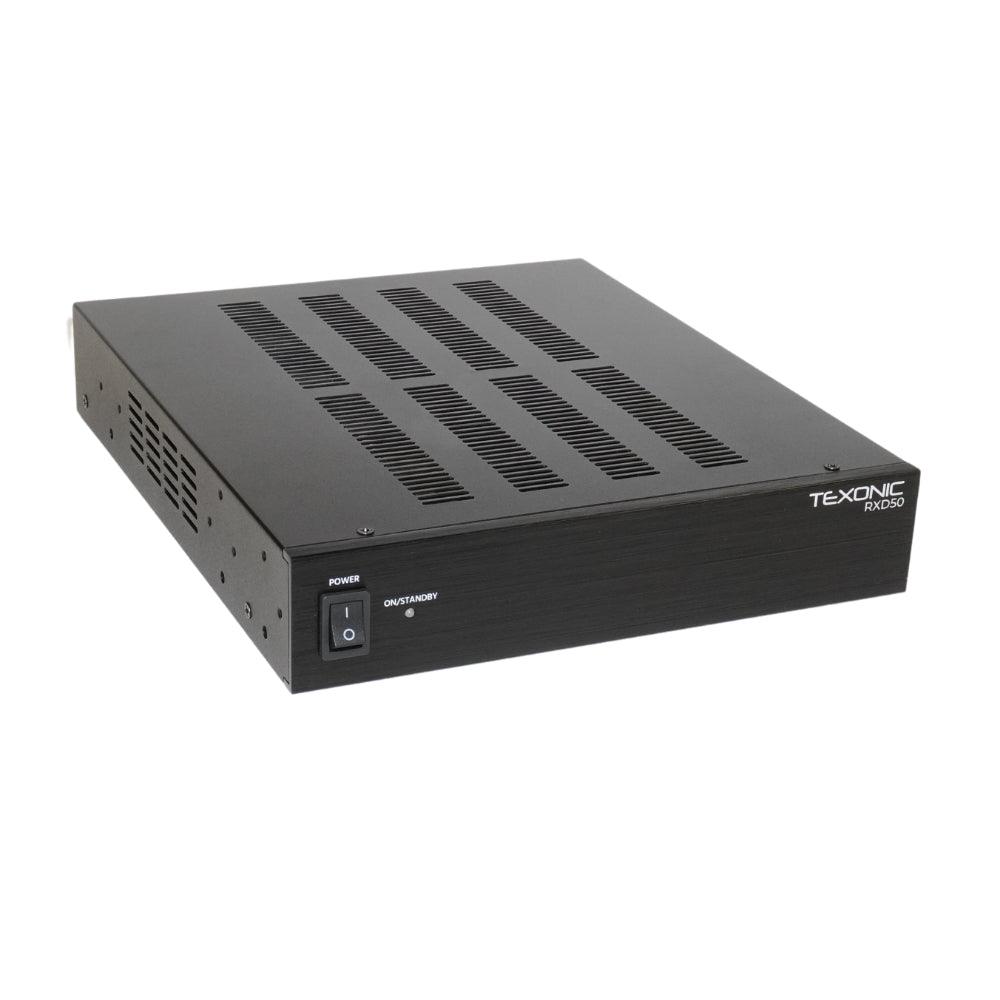

The RXD50 is a stereo amplifier designed to boost audio amplification where needed, either as a standalone amplifier or as an addition to a whole-house sound distributed system to provide extra amplifier power in larger rooms or spaces. Its space-saving 1/2-rack design allows for quick installation and gives the flexibility of mixing and matching with other 1/2-rack products to save valuable equipment rack space.

The powerful 50-Watt class D amplifier combined with 12v trigger control, audio sensing, volume gain adjustment, and a buffered line output enables even more amplification of the same audio signal when needed.

FEATURES

• Powerful Performance: Delivers a solid 50 watts of power per channel, ensuring clear, dynamic sound enhancement for any audio setup.
• Advanced Controls: Features include trim level adjustment, audio sensing inputs, and volume gain adjustment for tailored sound output.

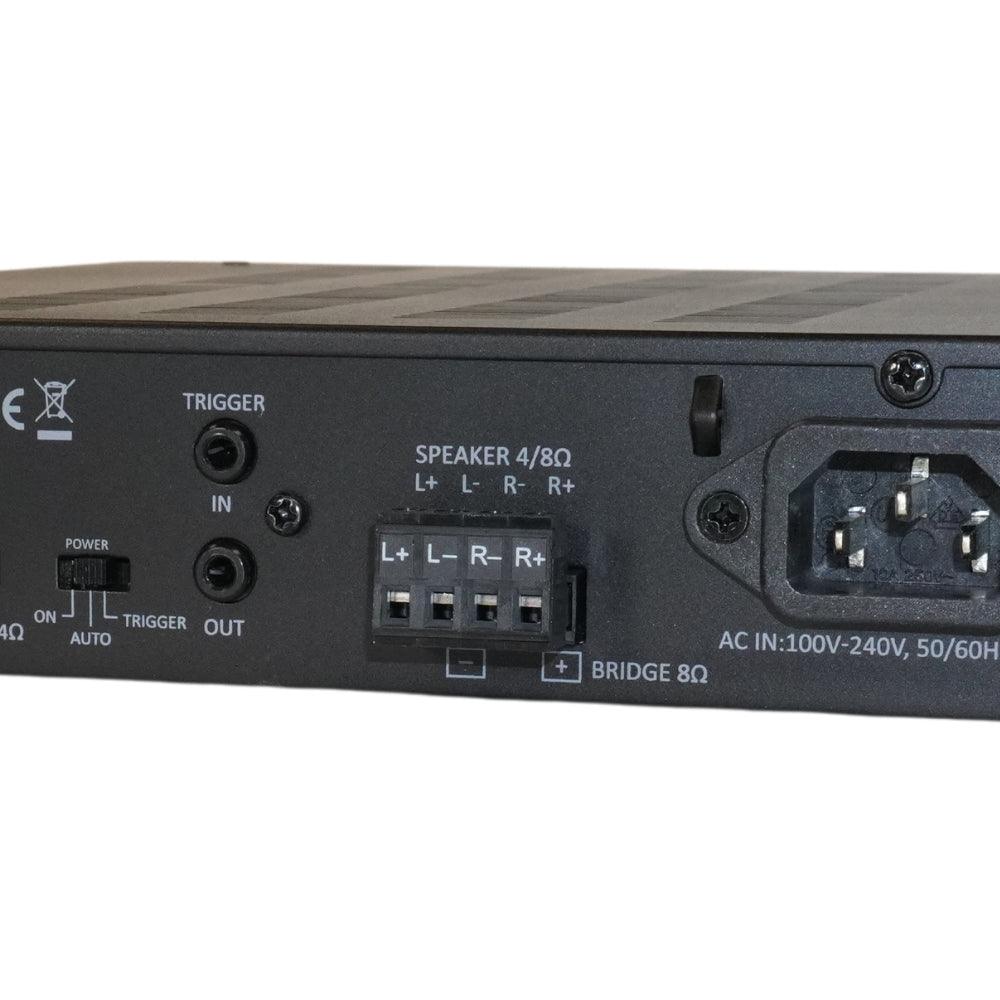

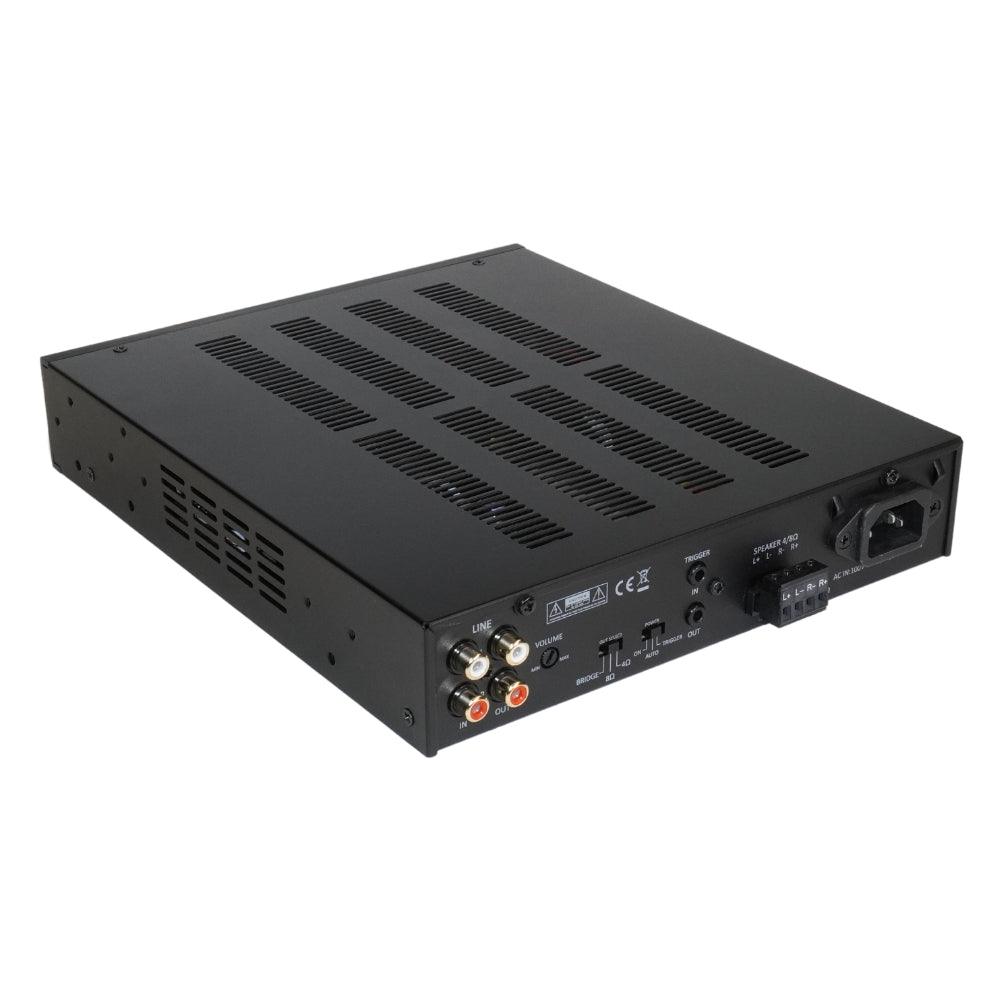

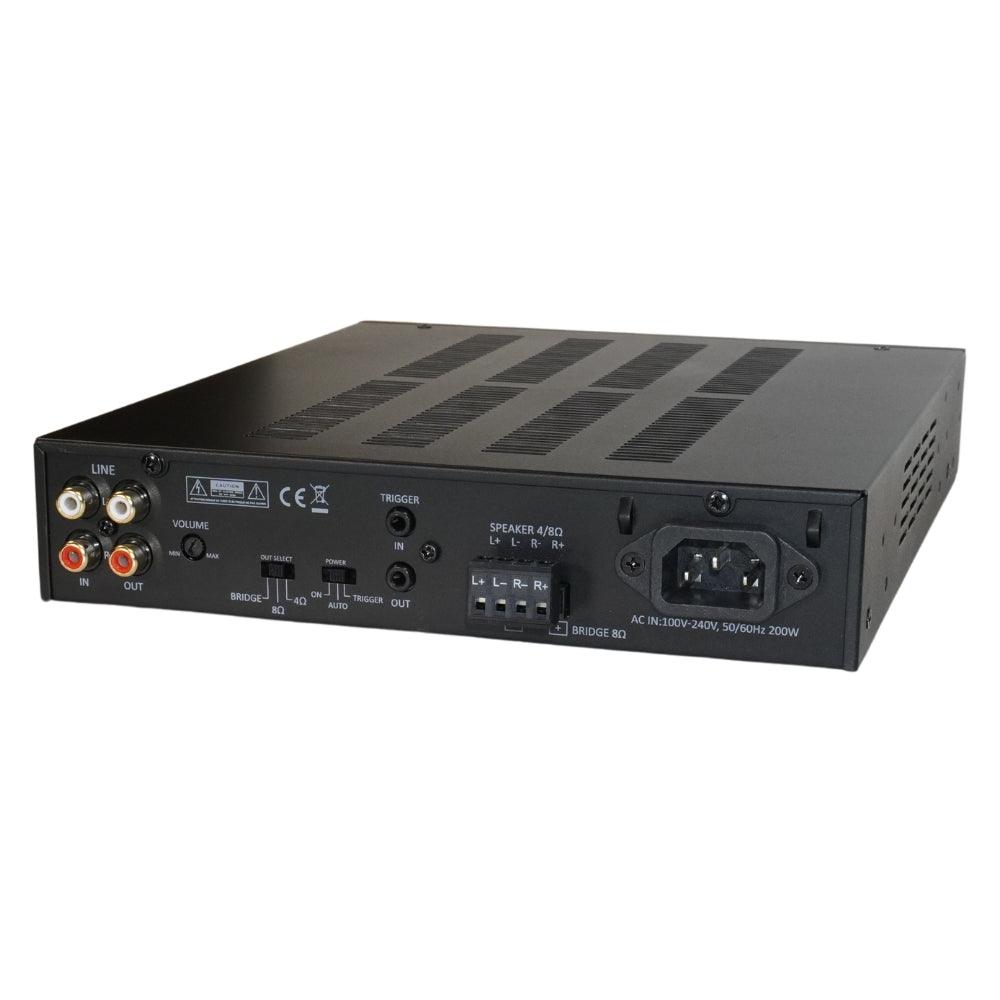

• Versatile Connectivity: Equipped with RCA jacks for signal loop-out, 12VDC trigger input and output, offering various turn-on and output modes for comprehensive control.
• Protection Systems: Includes short circuit and thermal protection, ensuring reliability and longevity of the amplifier.
• Easy Installation: Comes with rack mount ears for both half-rack and full-rack width mounting, providing flexibility for any space.

• Terminal Blocks: Speaker output
• RCA for Audio input
• AUTO SWITCH
• Built-in switching power
• Output power:50 W@4Ω THD1% RMS ( 70W MAX)
• THD1%: 50W 4Ω
• THD1%: 28 W 8Ω
• S/N: -107dB 1K(4Ω)
• THD: 1%(50W 4Ω)
• Frequency Response: 10Hz~50KHz(-3dB)
• Input Sensitivity: 300mV(50W 4Ω)
• Input Impedance (Audio): 10K
• Power output: AC 100~240 V 50/60Hz
• Power consumption: 70W(50W 1% 4Ω)
• Bridge mode support 100W for speak-out ( Mono. Type)
• Dimensions (W x D x H): 10.7” x 7.1” x 1.8” (271 x 180 x 45 mm)
• Weight: 1.85kg. (Net)
